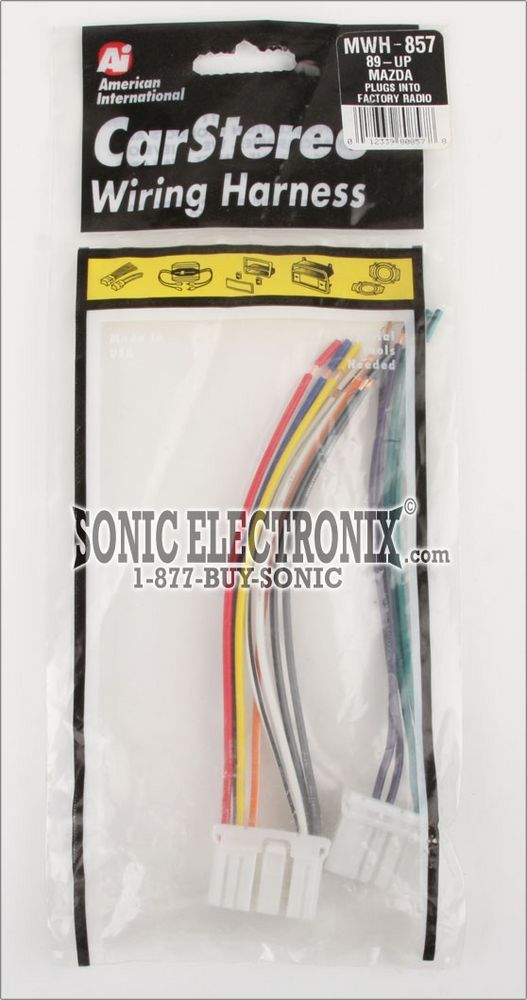

American International MWH-857

Reverse Harness - Plugs into Factory OEM Radio for Select 1989-2002 Mazda Vehicles

highlight-star-icon

In-dash car radio reverse harness that plugs into the factory OEM radio plug for select 1989-2002 Mazda vehicles, keeping it in tact (instead of cutting it off), and converting colors to the aftermarket standard

Learn more about the mwh857

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

APH-TY01 main

PAC APH-TY01

18" Speaker Connection Harnesses for select 2005-2021 vehicles from Toyota with Amplified Systems

-54.14%

$49.99

List price $109.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DMX129BT main

Kenwood DMX129BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

2
-26.30%

$199.00

List price $270.00

Limited time!
TS-G1620F main

Pioneer TS-G1620F

600W Peak (80W RMS) 6.5" G-Series 2-Way Coaxial 4-ohm Car Speakers

13
-26.15%

$48.00

List price $65.00

Club 64 main

JBL Club 64 (JBLSPKCB64)

360W Peak (120W RMS) 6.5" Club Series 2 Way Coaxial 3-ohms Speakers

2
-21.44%

$109.95

List price $139.95

Limited time!
Stage3 627 main

JBL Stage3 627 (Stage3627AM)

270W Peak (90W RMS) 6.5" Stage3 Series 2 Way Coaxial 3-ohm Speakers

2
-22.74%

$84.95

List price $109.95

FKB116 main

MB Quart FKB116

240W Peak (120W RMS) 6.5" Formula Series 2-Way 4-ohm Coaxial Car Speakers

12
-56.26%

$34.99

List price $79.99

SWI-CP2 main

PAC SWI-CP2 ControlPRO 2

(Replaces the SWI-RC) Universal Steering Wheel Control Interface, Works with Nearly All Popular Aftermarket Receivers

4
-33.56%

$99.00

List price $149.00

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Description


American International brand icon

Authorized dealer

Product Features:
  • Reverse harness is used when installing an aftermarket stereo
  • Connects the aftermarket stereo harness to the vehicles factory harness
  • Designed specifically to fit the compatible vehicles
  • Plugs into the factory harness without cutting any wires
  • Standard color coded wires provide a consistent and simplified installation
  • Made from OEM quality materials
  • Compatible with Select 1990-2003 Mazda Vehicles

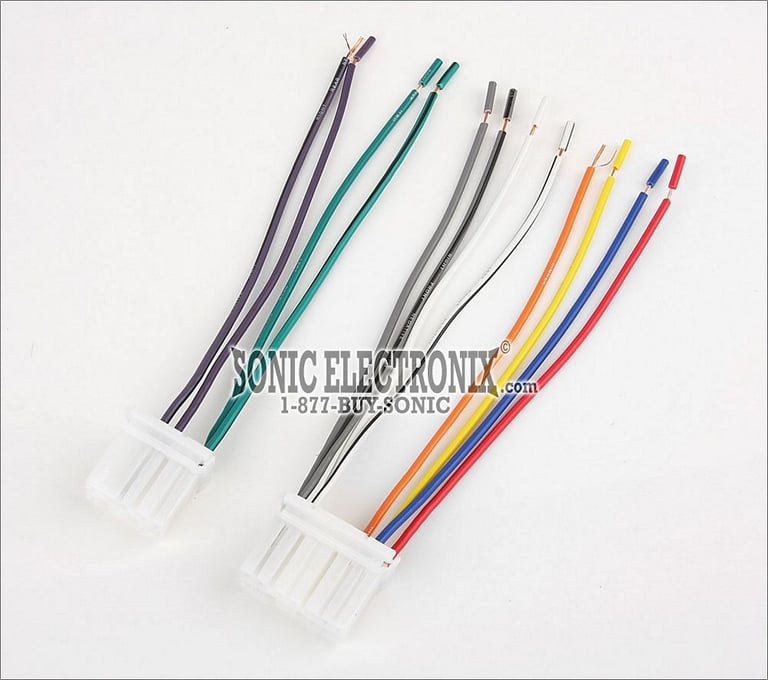

Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Blue - Power Antenna
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
Compatibility list:
  • Mazda
    • 1990 - 1994 323
    • 1988 - 2000 626
    • 1988 - 1996 929
    • 2007 CX-7
    • 1989 - 2000 Miata
    • 1995 - 1999 Millenia
    • 1989 - 2002 MPV
    • 1992 - 1997 MX-3
    • 1989 - 1997 MX-6
    • 1990 - 2000 Protege
    • 1989 - 1996 RX-7
    • 2001 - 2002 Tribute
