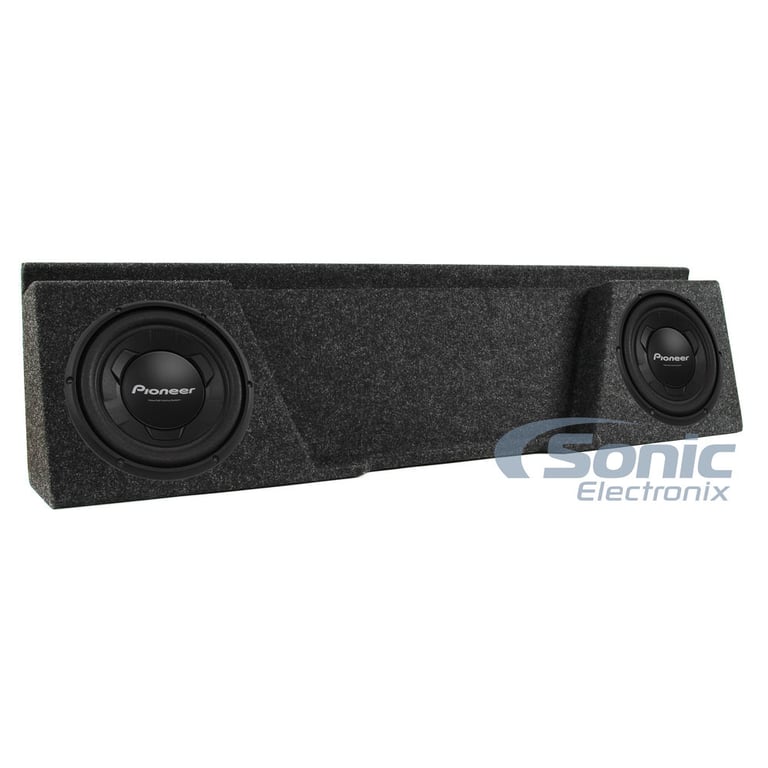

Fits 2007-13 Chevy Silverado/GMC Sierra Dual Loaded Subwoofer Box (2) TS-W106M

Dual Under-Seat Loaded Subwoofer Enclosure for 07-13 Silverado/Sierra Extended Cab Trucks

Pioneer
Shop all Pioneer
highlight-star-icon

• FEATURE 1
• FEATURE 2
• FEATURE 3
• FEATURE 4
• FEATURE 5
• FEATURE 6
• FEATURE 7

Learn more about the 2-tsw106m_a14210cp

We apologize

This item has been discontinued


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Description


Pioneer brand icon

Authorized dealer

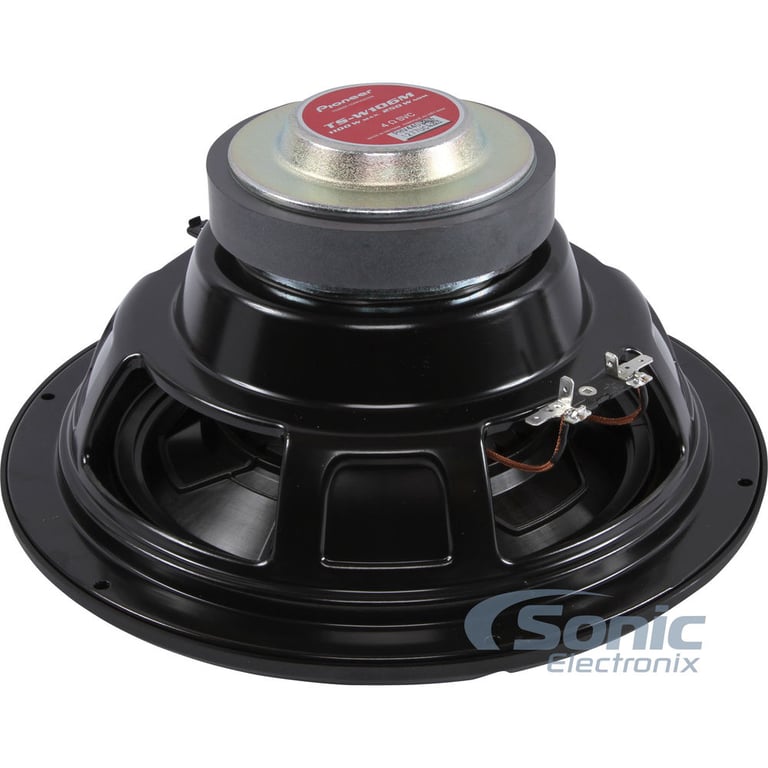

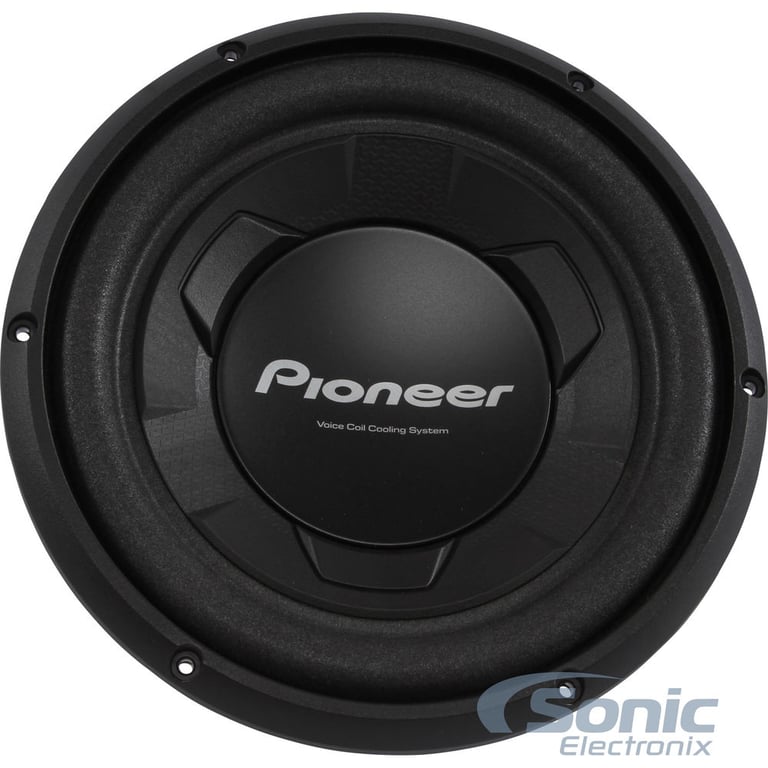

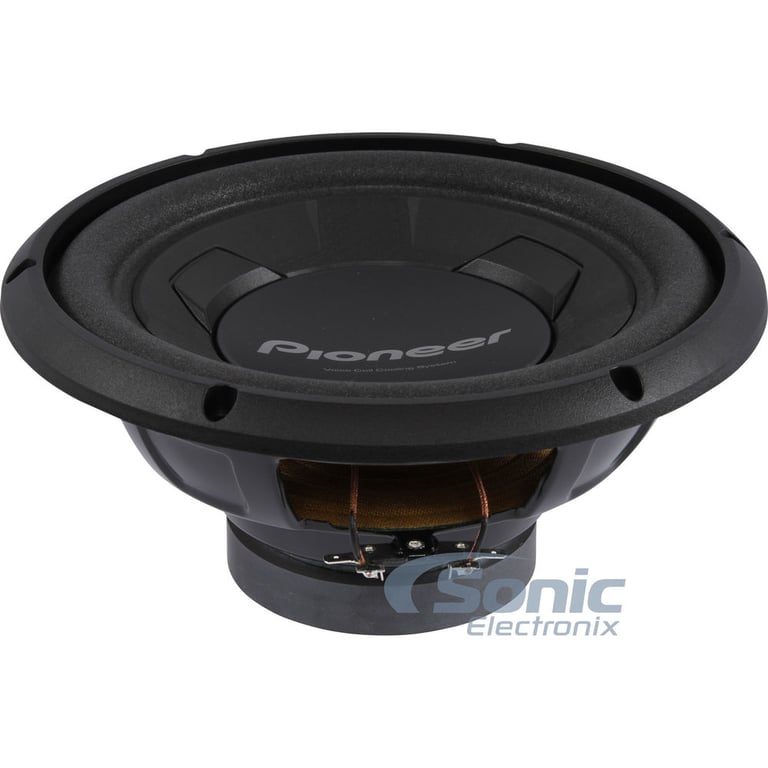

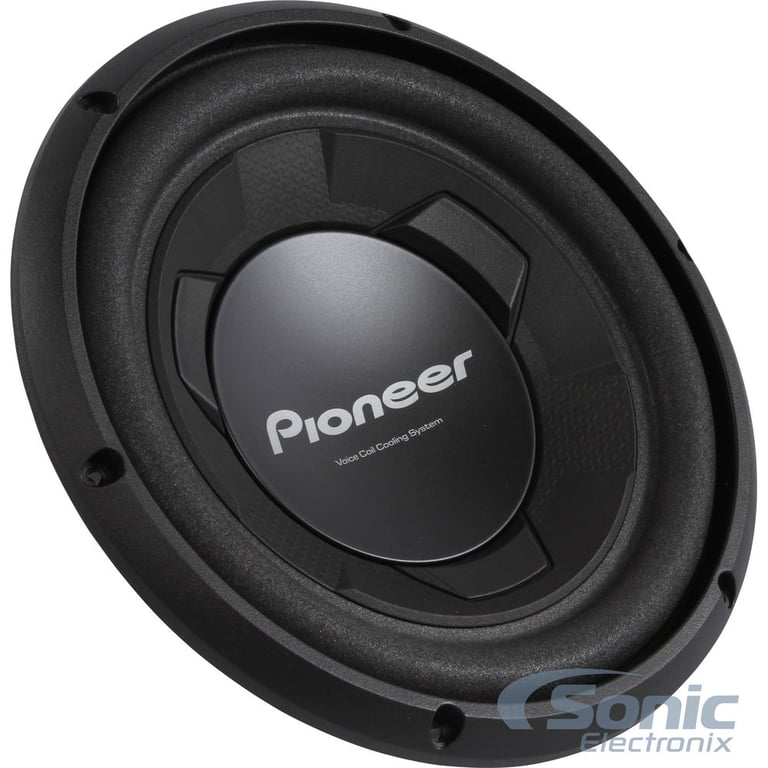

Pioneer TS-W106M

1100W Peak (250W RMS) 10" Single 4-Ohm Car Subwoofer
Quantity: 2

Product Features

  • 10" Champion Series Component Car Subwoofer
  • Power Handling:
    • Peak: 1100 watts
    • RMS: 250 watts
  • Recommended power range: 100 - 250 watts RMS
  • Impedance: Single 4 ohm
  • IMPP Composite seamless cone woofer for a rich bass sound
  • Urethane surround for generous amounts of excursion
  • Extended pole yoke improves linearity during long excursion
  • Vented pole yoke allows better heat dissipation and increased power handling
  • Extended excursion design provides longer travel to create loud bass output
  • Large binding posts for heavy gauge wire
  • Best tuned parameters provide superior sound quality and reliability
  • 6-Layer long high temperature Aluminum voice coil design
  • 30 oz large strontium magnet structure
  • Frequency Response: 20-160 Hz
  • Sensitivity: 92 dB
  • Xmax: 6.3 mm
  • Mounting Depth: 4.8"
  • Cutout Dimensions: 9.06"
  • 1-year Sonic Electronix Warranty

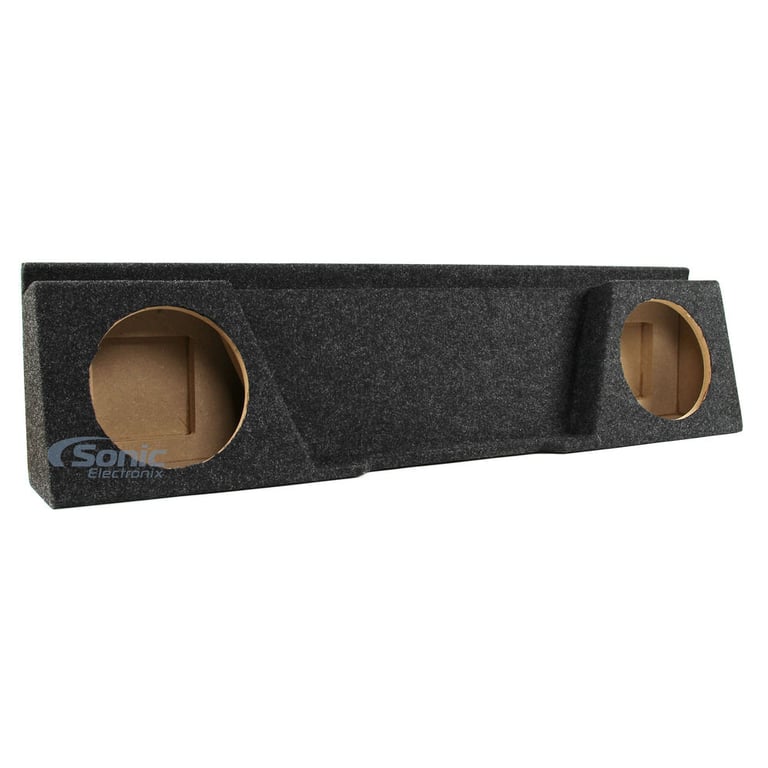

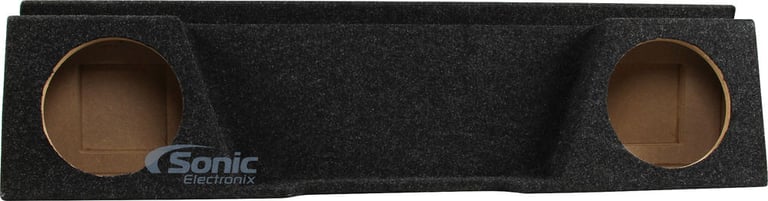

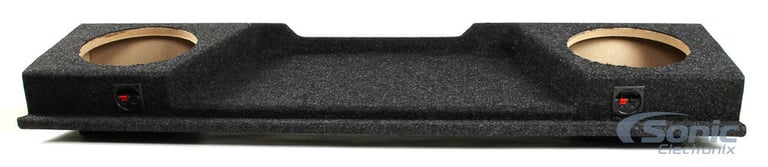

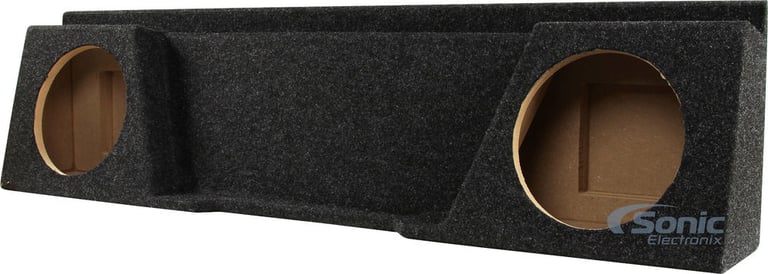

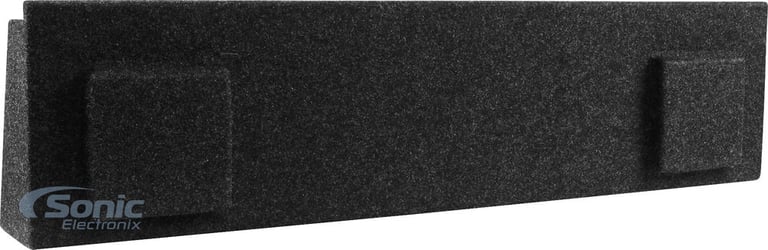

Atrend A142-10CP

Empty Dual 10" Sealed Enclosure for
Quantity: 1

Product Details:

  • 10" Dual Sealed Subwoofer Enclosure
  • Durable 3/4" Medium Density Fiberboard (MDF) construction
  • Wrapped in premium charcoal carpet finish for durable and sleek look
  • Formulated with aliphatic wood glue for a precision seal
  • Reinforced build pneumatic brad nails secure panel for zero vibration
  • Maximum subwoofer mounting depth: 6.25"
  • Subwoofer cutout diameter: 9.13"
  • Box volume: 0.91 cubic feet (per chamber)
  • Total box volume: 1.82 cubic feet
  • Dimensions: 52.75" L x 6.25" H x 11.88" W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

Specifications & Details


Subwoofer Specifications
Subwoofer Design
Round / Circle
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
250 watts
Peak Power Handling
1100 watts
Woofer Surround
Urethane
Woofer Composition
Injection Molded Polypropylene
Sensitivity
92 dB
Frequency Response
20 - 160 Hz
Xmax (millimeters)
6.3 mm
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
2
Box Style/Shape
Vehicle Specific
Height
6-7/8"
Width
52-3/4"
Depth
11-7/8"
Second Width
14-1/4"
Cutout Diameter or Length
9-1/8"
Wood Thickness
5/8"
Number of Terminals
2
Terminal Type
Spring clips
Box Exterior Color
Gray
Box Finish
Carpet
Type of Enclosure
Empty
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

2-TS-W106M_A142-10CP

Weight:

44.00lbs

Internal SKU:

2-tsw106m_a14210cp

Internal Product ID:

143205

Customer Ratings & Reviews


Fits 2007-13 Chevy Silverado/GMC Sierra Dual Loaded Subwoofer Box (2) TS-W106M thumbnail image

5 star
67%
4 star
25%
3 star
8%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
4.7

Customer Reviews

Sort by:

Loading...

Boom Boom??

The following review is for A142-10CP, which is a part of the bundle you are viewing.

Atrend boxes are great quality and I have never had any issues with them. THis model was for a low transmission hump with down firing subwoofers. the connector is great but I wish the lip that holds the box up was a little taller. Some subwoofers that have some good travel will rub the carpeting if pushed.

By Anonymous on January 26, 2019

19 found this helpful


Good value, needs a bit of work tho

The following review is for A142-10CP, which is a part of the bundle you are viewing.

Best priced box around,best price for box on sonic electronic, much lower than anywhere else. Was boxed nicely and delivered undamaged. Professional carpeting, fit great in my 2011 Silverado 1500 ext cab. Used with older dual kicker cvr 10"'s with a 600watt amp. The kickers barely fit height wise but fit none the less after dragging them in the last 1/4 to 1/8" after they met a small amount of resistance(rubber plastic bumpers on magnet body of these speakers). Box hits pretty hard for the Sq footage it is, but Definently had air leaks. With seat down I don't really notice them so I left as is. Bedlinered box would be sealed if thats your thing, spend a few more $$. Fyi you will need a drill to install side boards into main box and there is no where to put your amp, I ran mine on top of the box for now, just barely fits under seat when down. May move to rear seat center footwell on trans tunnel and just tell people to watch their feet!

By Brandon on March 9, 2017

19 found this helpful


Great value!! Great sound!!

The following review is for A142-10CP, which is a part of the bundle you are viewing.

I was very pleased with this enclosure. I install custom sound systems for a living and i am a mechanical engineer by degree. There is actually an impressive amount of air space within the enclosure. I have 2 10's running off of a 1200 watt RMS JBL amplifier. The only real negatives is that one woofer cut out was a tad too small and i had to sand it down, and air leaks out of the speaker terminals so they need to be siliconed from the inside.

!!! One thing to note: on my 2007 Chevy NBS extended cab has less floor space in the driver's side, so during high excursion the woofer makes partial contact with the floor.

!!! In order to mount the massive amplifier on top of the box, i used high strength washers to elevate the rear seat about an extra inch. This allowed the seat to be folded down properly.

Good luck!!

By Nolan on January 13, 2017

18 found this helpful


Super Value!

The following review is for A142-10CP, which is a part of the bundle you are viewing.

Great price and you couldn't ask for a better fit, Perfect Size!

By Gary on September 16, 2016 Checkmark Icon Verified purchase

17 found this helpful


SUB BOX

The following review is for A142-10CP, which is a part of the bundle you are viewing.

The box fits perfect under the back seat of the extended cab and for the money for a sealed double 10" box is good deal and sounds great with the down firing position I have two Rockford 10's and sounds great in my 2011 GMC Sierra ext cab.

By Matt on January 16, 2017

15 found this helpful


Purchase to replace an older version from 10 years ago.

The following review is for A142-10CP, which is a part of the bundle you are viewing.

Purchase to replace an older version from 10 years ago. This newer version has more air space To accommodate my NVX VCW 10 inch subwoofers. I added a 3/4 inch MDF ring to give a little more space for the subwoofers Pole venting and mounting depth and also added 1 inch spacers on the legs to raise the box to accommodate the MDF ring. The box is installed underneath my lifted rear seat of my 2012 Chevy Silverado 2500 HD extended cab. Atrend makes quality boxes as my previous box lasted for over 10 years and is still going strong in another truck.

By Chad on May 9, 2022 Checkmark Icon Verified purchase

14 found this helpful


great value

The following review is for TS-W106M, which is a part of the bundle you are viewing.

great sound at a great price. can't go wrong with this subs

By chacho on March 20, 2018

4 found this helpful


Excellent value

The following review is for TS-W106M, which is a part of the bundle you are viewing.

Liked the sub but it was actually to big. I knew it was bigger but not that much. Right now tryin to cut open hole a bit to get it in because I like the sound. Also I purchased a cxx8 that blew and ur team cant find the receipt to see if its under warranty. Thanks

By Craig on January 17, 2018 Checkmark Icon Verified purchase

4 found this helpful


Great Subwoofer

The following review is for TS-W106M, which is a part of the bundle you are viewing.

Very nice Subwoofer, really worth the money, is not a window shaker but it does what I need

By Carlos on March 23, 2018 Checkmark Icon Verified purchase

2 found this helpful


great value

The following review is for TS-W106M, which is a part of the bundle you are viewing.

great sound at a great price. can't go wrong with this subs

By chacho on March 20, 2018

2 found this helpful
