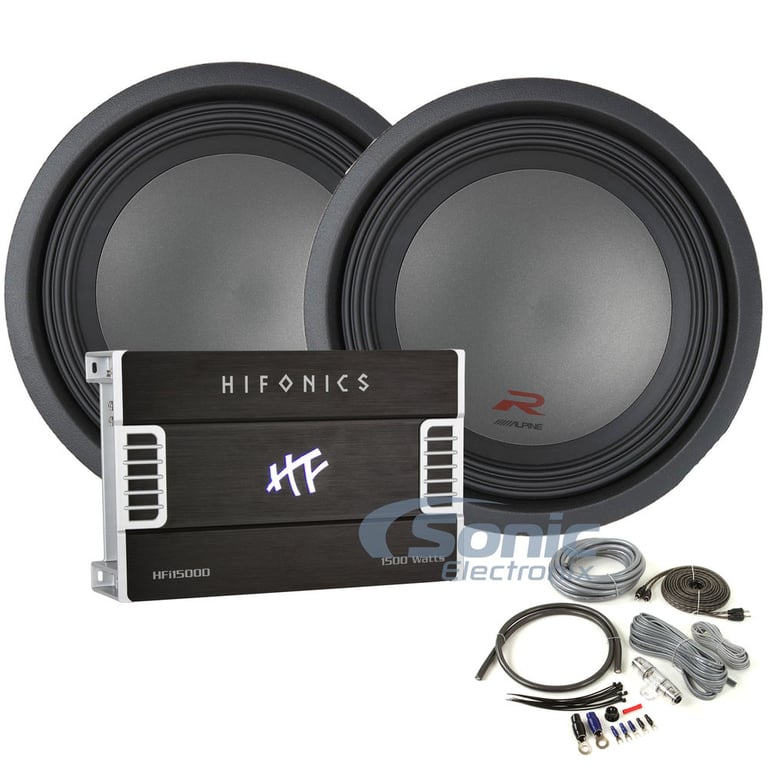

2 Alpine R-W10D4 + Hifonics HFi1500D + Belva BAK42BK

2 10" Subwoofer Bass Package with 1500 RMS Amplifier and 4 Gauge Wiring Kit

Hifonics
Shop all Hifonics
highlight-star-icon

• 2250W Max
• 750W RMS
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Cast aluminum frame with integral shorting sleeve
• Polypropylene, mica and talc dust cap
• 111 oz. Strontium ferrite segmented magnet

Learn more about the rw10d4_hfi1500d_pkg

We apologize

This item has been discontinued

Description


Hifonics brand icon

Authorized dealer

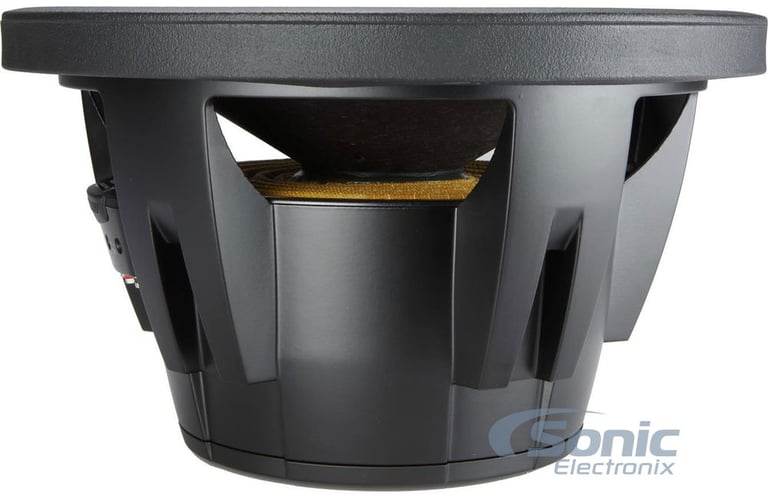

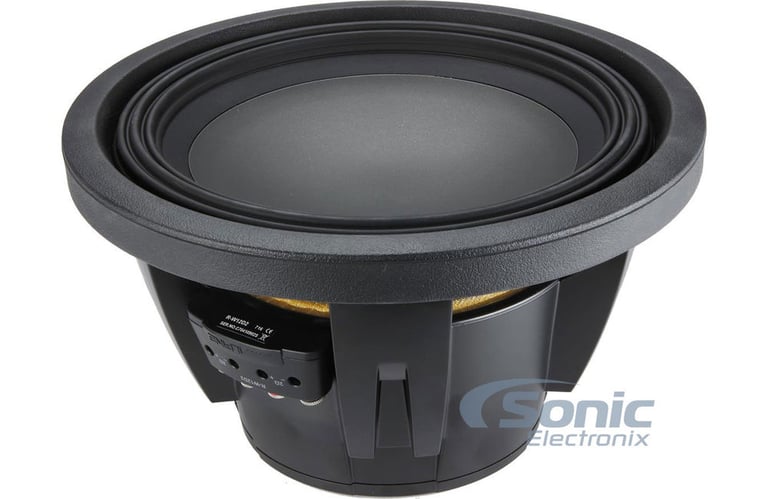

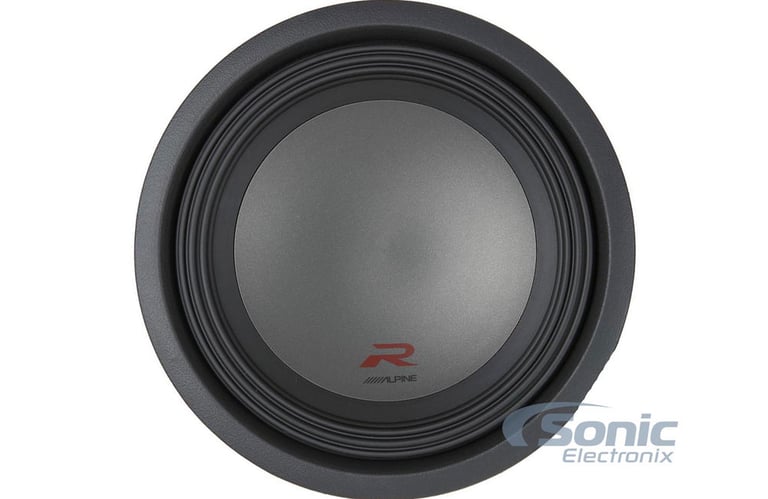

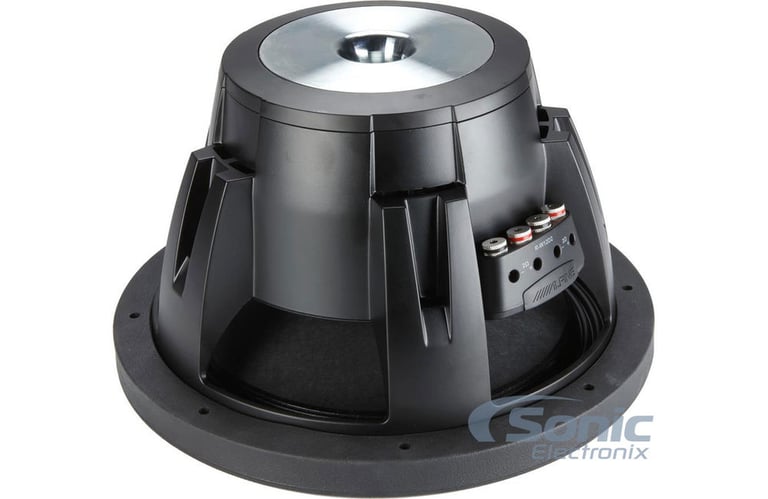

Alpine R-W10D4

2250W Max (750W RMS) 10" R-Series Dual 4-Ohm Car Subwoofer
Quantity: 2

General Features:

  • 10" Dual 4 ohm Type-R Subwoofer
  • Power Handling:
    • Peak: 2250watts
    • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve
  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 111 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 5-7/8"
  • Cutout diameter: 9-1/16"
  • Frequency Response: 26 - 200Hz
  • Sensitivity: 82.4dB
  • Resonance Frequency (Fs): 31Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually



PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

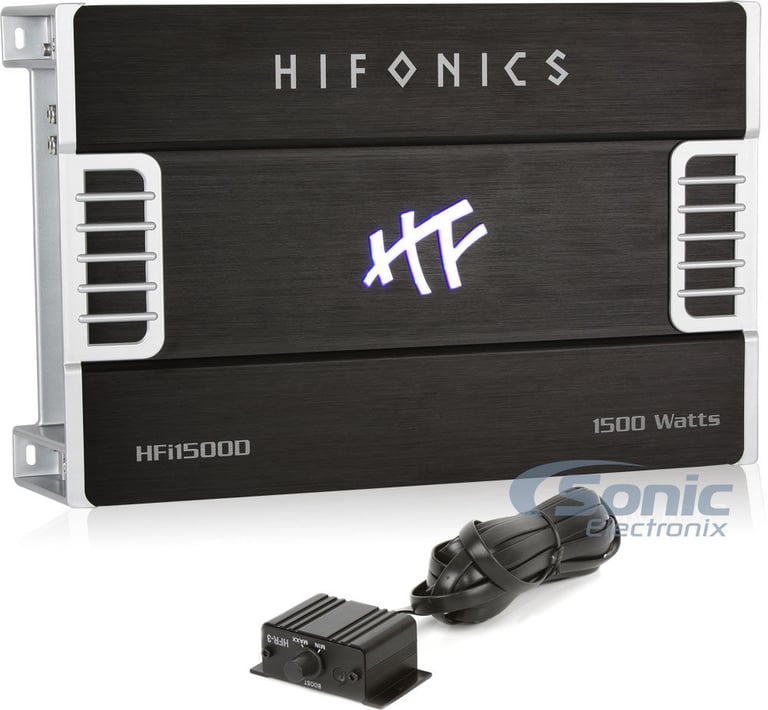

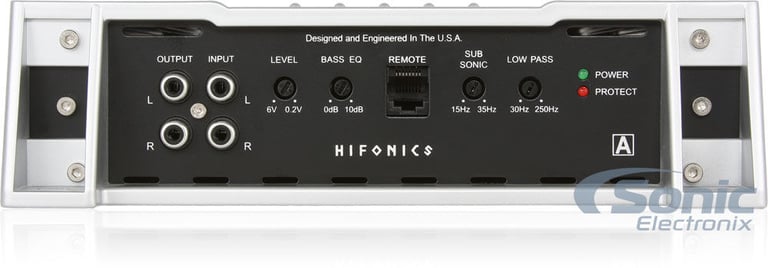

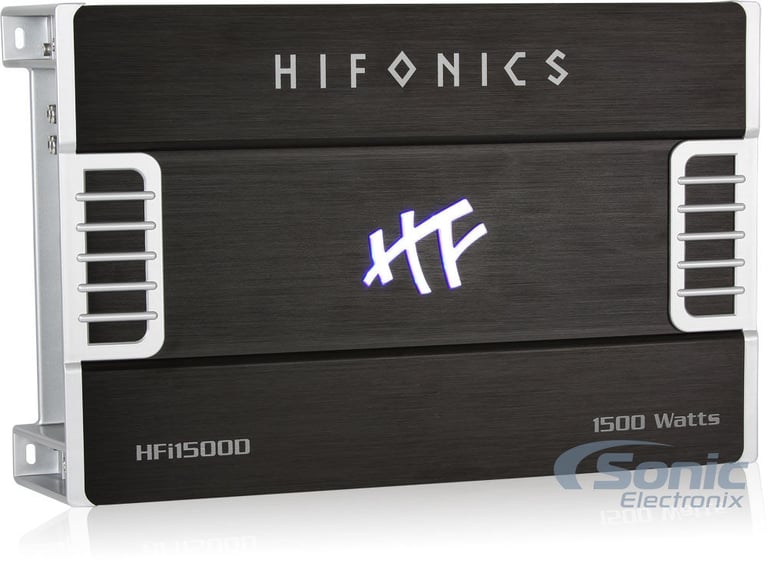

Hifonics HFi1500D

1500 Watt RMS Class D Monoblock HFi Series 1-Ohm Stable Subwoofer Amplifier (HFi 1500D)
Quantity: 1

General Features

  • HFi Series Single Channel Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
    • 1 ohm: 1500 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

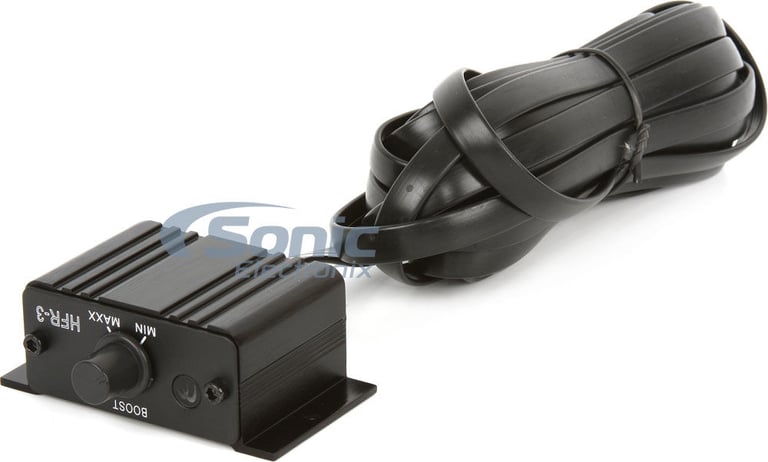

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 15 - 250 Hz
  • Total Harmonic Distortion & Noise: <0.05
  • Signal to Noise Ration: >95 dB
  • Damping Factor: >200
  • Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
  • Subsonic filter: 15 - 35 Hz
  • Variable Bass Boost: 0 to +10 dB bass boost at 45 Hz

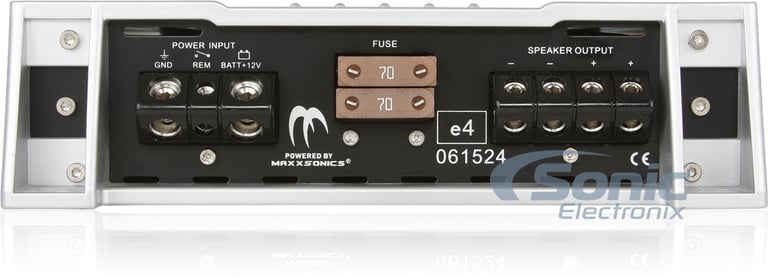

  • Fuse Rating: 70A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 8.82"W x 14.65"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

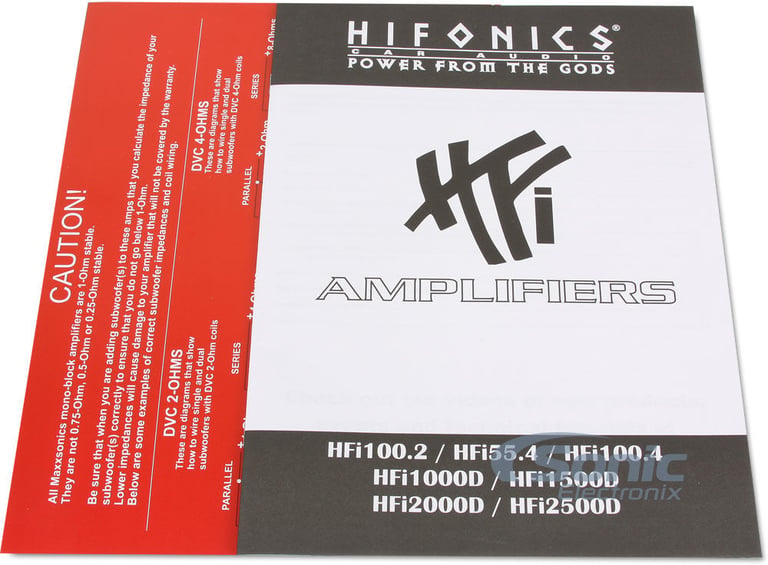

Check out the Hifonics HFi1500D Owner's Manual

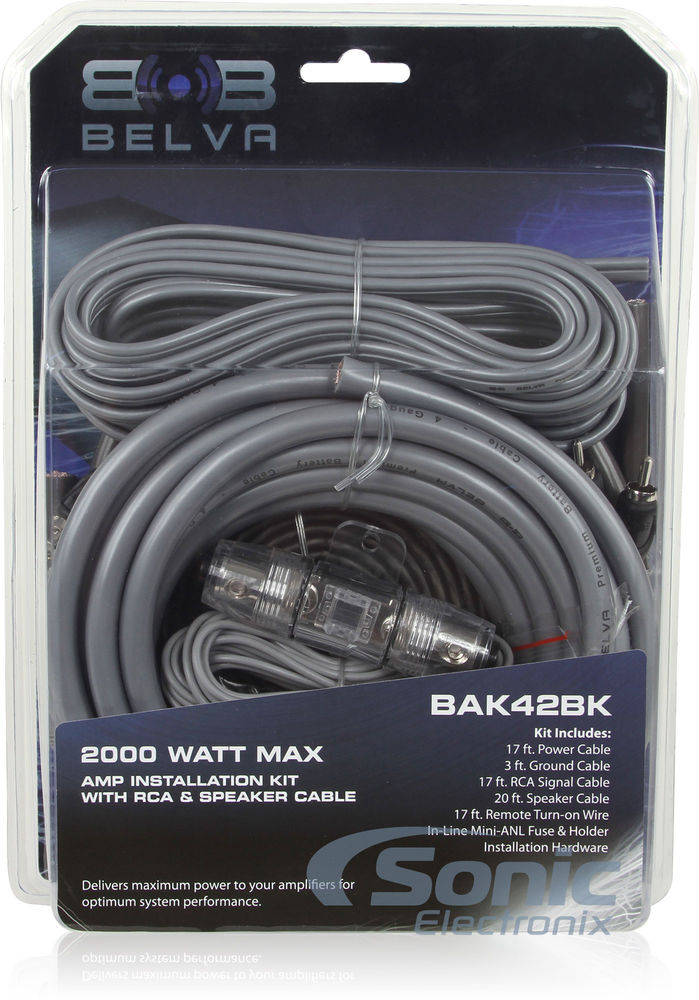

Belva BAK42BK

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

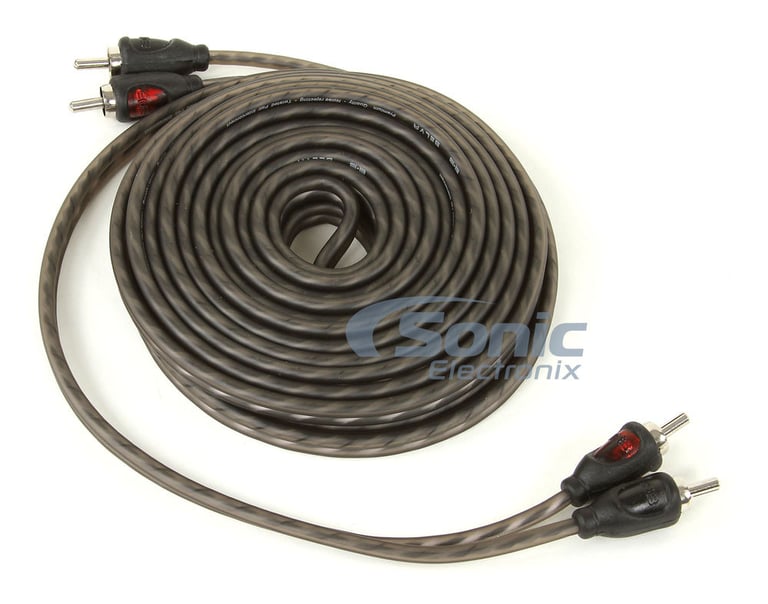

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

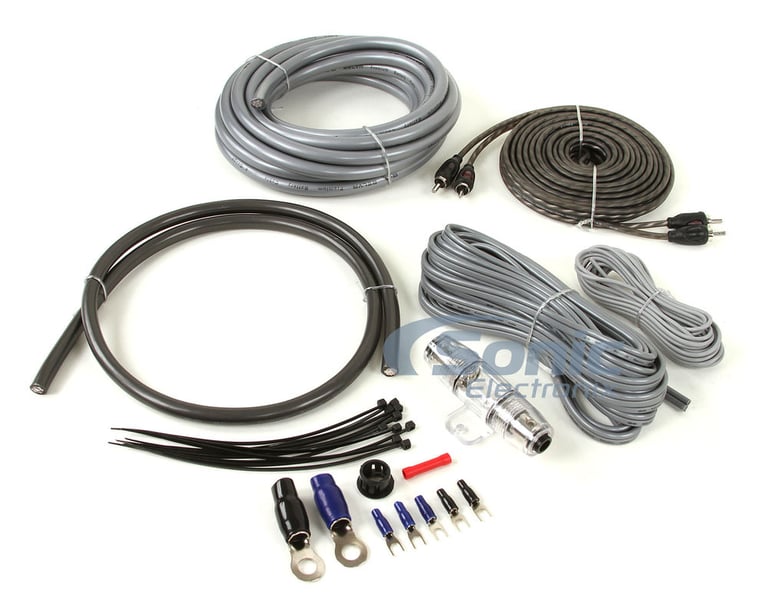

Kit includes:

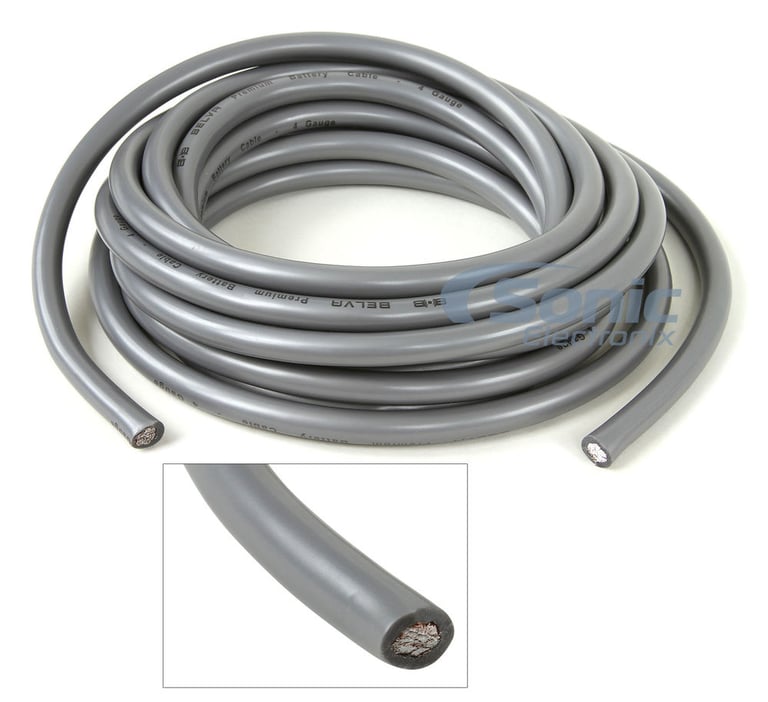

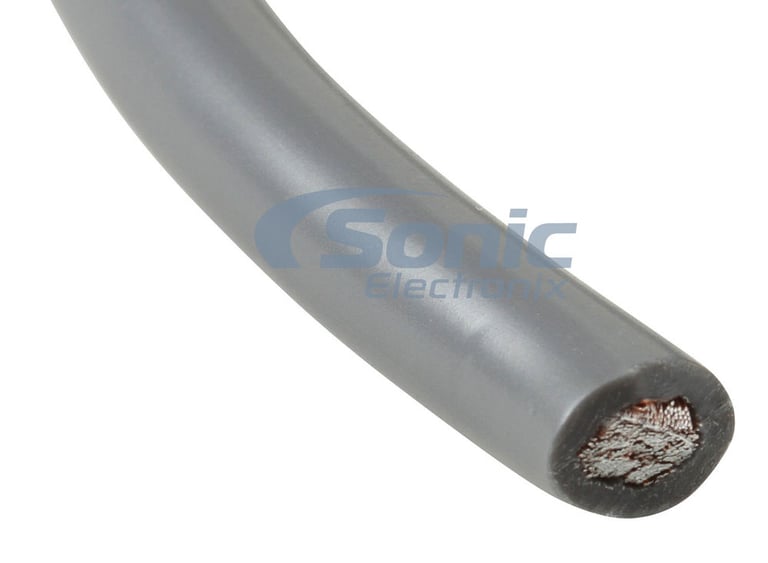

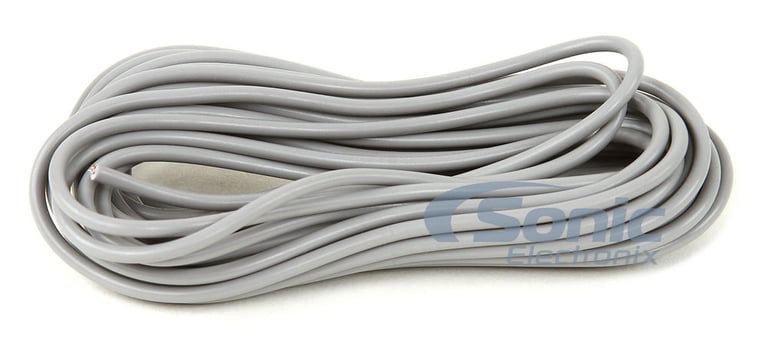

  1. 17 ft. Gray 4 gauge power wire

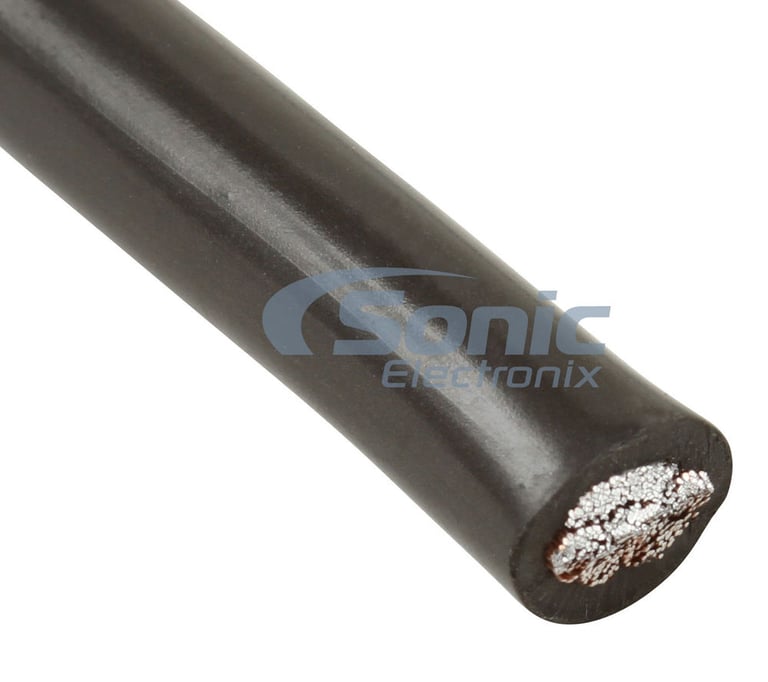

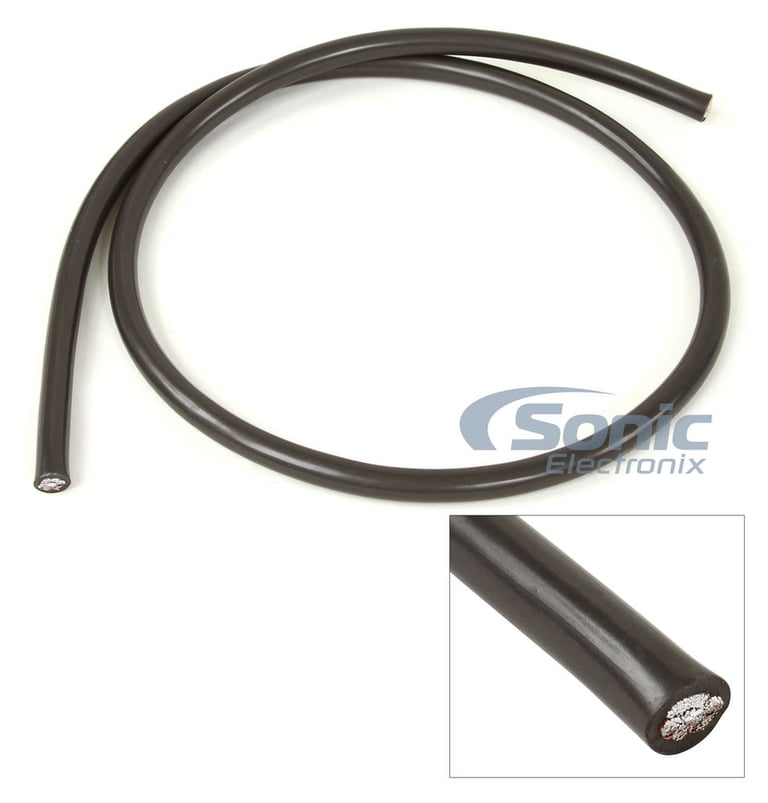

  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire

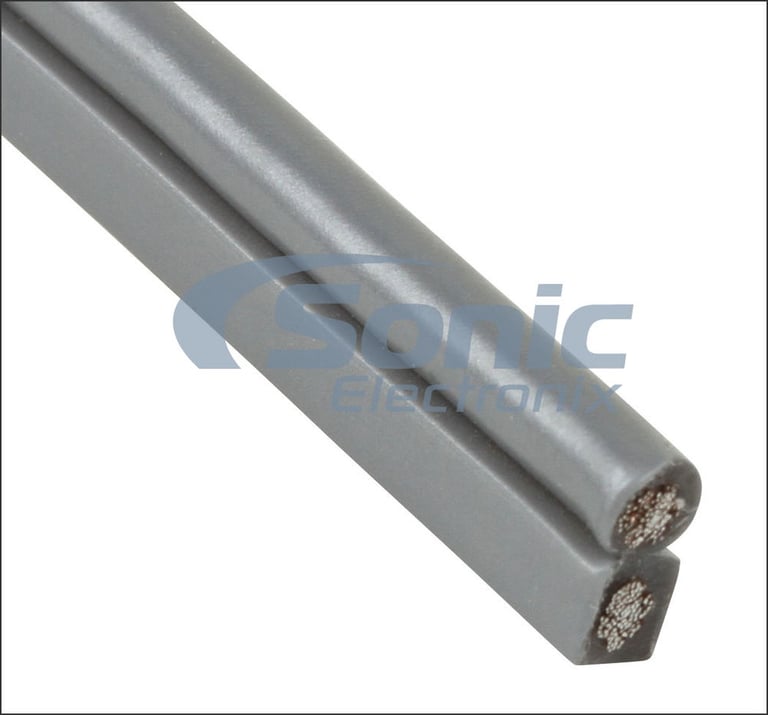

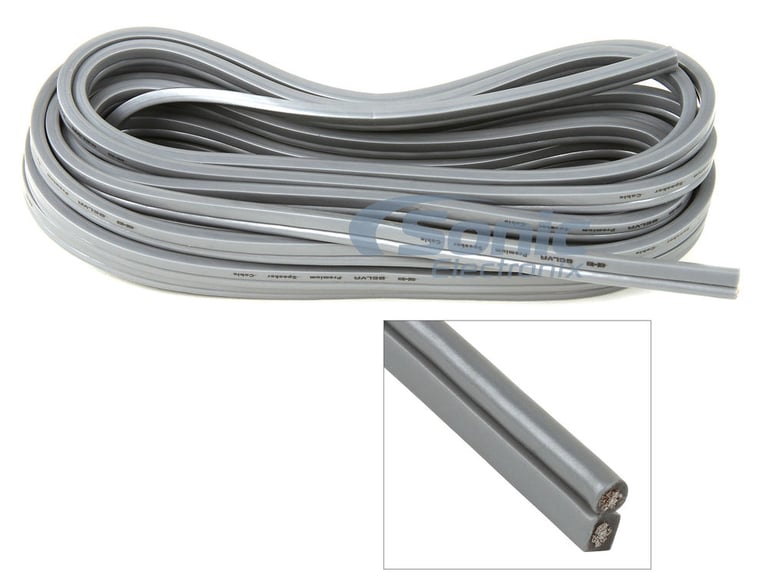

  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

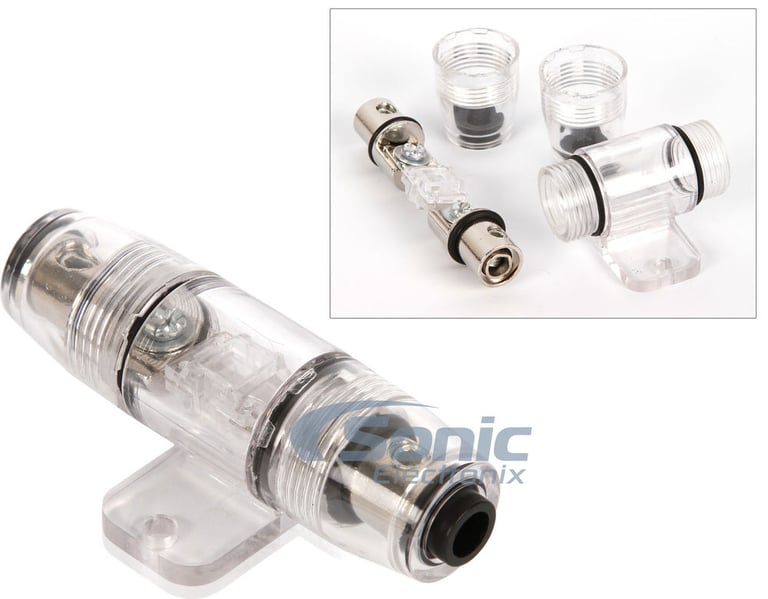

  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet

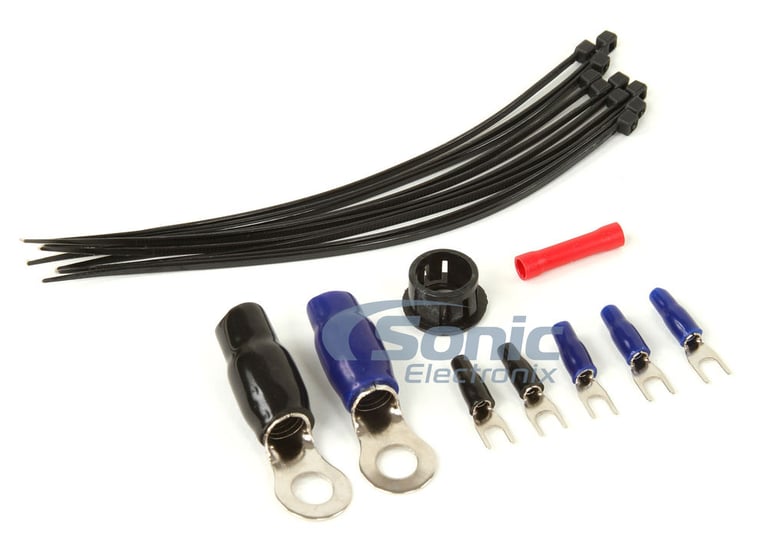

  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Subwoofer Wiring Guide


Wiring Guide to Wire 1 2 Alpine R-W10D4 + Hifonics HFi1500D + Belva BAK42BK Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 2 Alpine R-W10D4 + Hifonics HFi1500D + Belva BAK42BK Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 2 Alpine R-W10D4 + Hifonics HFi1500D + Belva BAK42BK Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 2 Alpine R-W10D4 + Hifonics HFi1500D + Belva BAK42BK Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1456.96

List price $2074.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

DAX800XR_MRR_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1403.96

List price $2053.96

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1605.96

List price $2254.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1348.96

List price $1973.96

DAX1050XR_MRR_FLFO1 small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1913.97

List price $2509.97

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
10"
Peak Power Handling
2250 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.6"
Frequency Response
26 - 200 Hz
Sensitivity
82.4 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.58 cubic feet
Optimum Ported Box Volume
1.3 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31 Hz
Equivalent Compliance (Vas)
20 liters
Total Speaker Q Value (Qts)
.55
Electrical Q Value (Qes)
.59
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
7.71
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R-W10D4 HFi1500D PKG

Weight:

35.60lbs

Internal SKU:

rw10d4_hfi1500d_pkg

Internal Product ID:

143341

Customer Ratings & Reviews


2 Alpine R-W10D4 + Hifonics HFi1500D + Belva BAK42BK thumbnail image

5 star
82%
4 star
12%
3 star
4%
2 star
0%
1 star
2%



Durability
4.7
Value
4.8
Features
4.6
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

Quality Product

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Works very well with my Rockford Fosgate sub system in my car.

By Ronald on December 11, 2014

135 found this helpful


good deal!

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Pretty decent value for the price. Worked out great, thanks.

By Brett on January 29, 2015

130 found this helpful


Usable

The following review is for BAK42BK, which is a part of the bundle you are viewing.

The wiring has done me right so far but the only thing I don't like is the speaker wires. You have to carefully split it so the wire doesn't show. Other than that minor thing everything was great and a great value!

By tyler on November 18, 2014

126 found this helpful


price is right

The following review is for BAK42BK, which is a part of the bundle you are viewing.

the price is right for this setup. the ground wire and the power wire are to big for my amp but i made them fit. better to have to much than not enough so if i upgrade to a larger amp it will be fine.

By Mark on November 13, 2014

123 found this helpful


Accessories for product

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Just what I needed and made installation so much easier. Thanks

By Susie on February 9, 2015

113 found this helpful


awesome products

The following review is for BAK42BK, which is a part of the bundle you are viewing.

I run 2 12inch audiobahn exursions on this amp and it pushes them very well. The size is perfect not to big and fits right unerneath the seat or small space. The best part is it stays pretty cool even after running most the day.

By CJ on March 22, 2015

108 found this helpful


good wires

The following review is for BAK42BK, which is a part of the bundle you are viewing.

I like the wire kit I got with my amp it seems to be holding up goo it handles the power of the amp I got but I would of gave it 5 stars all the way around but I wold of like the ground at less 2 more feet for good use but over all its a nice kit

By jay on March 8, 2015

100 found this helpful


Good stuff

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Great product last a long time good value for the money.

By Brandon on December 7, 2014

106 found this helpful


Cable

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Good product fast shipping awsome seller... keep up the good work.....

By Rondell on November 9, 2015

84 found this helpful


Perfect kit

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Comes with everything you need. Works good with my 800w system

By Chad on May 14, 2020 Checkmark Icon Verified purchase

69 found this helpful



Related Searches


Save up to 10 different vehicles in your garage

Add vehicle
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
