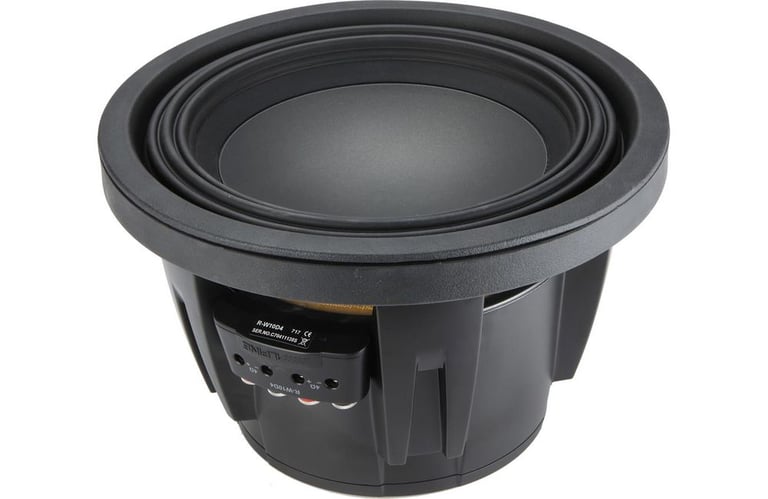

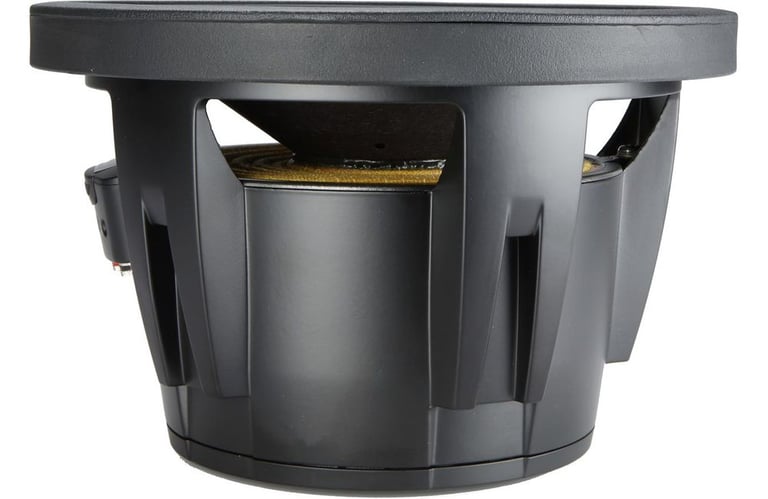

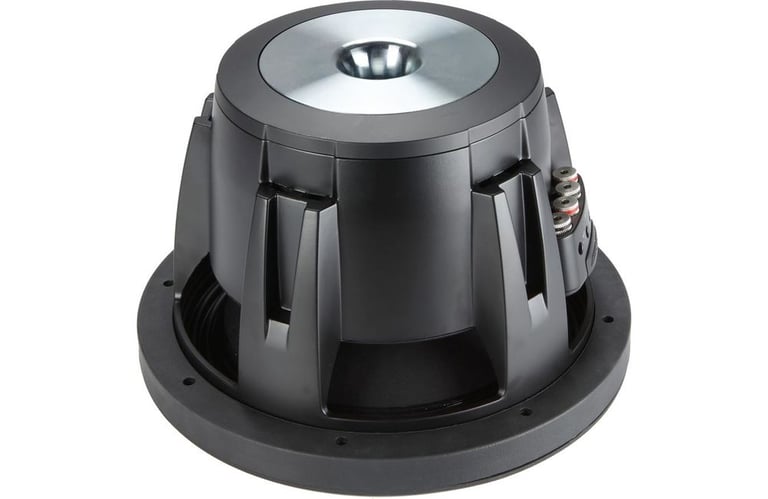

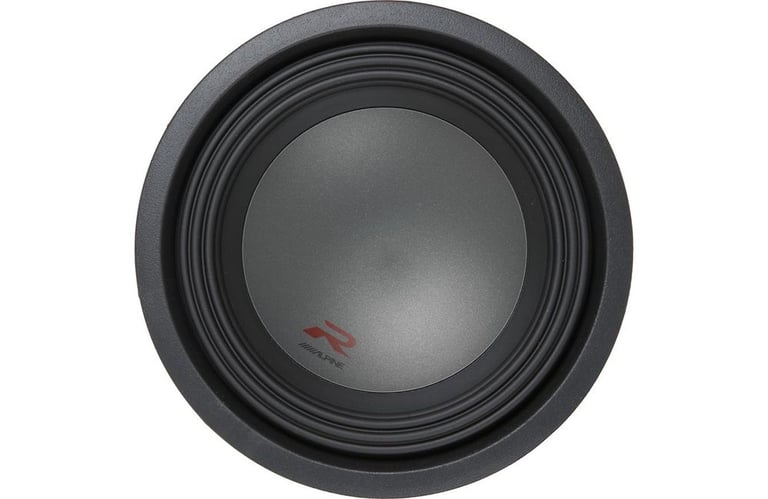

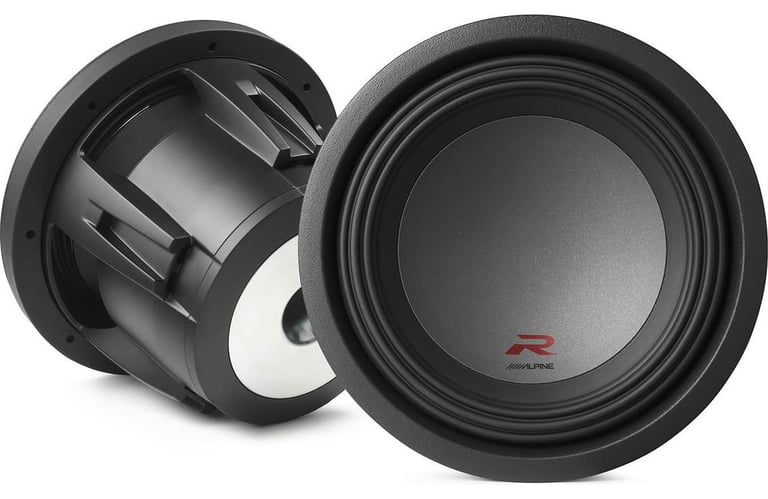

Alpine R-W10D4

2250W Max (750W RMS) 10" R-Series Dual 4-Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 2250W Max
• 750W RMS
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Cast aluminum frame with integral shorting sleeve
• Polypropylene, mica and talc dust cap
• 111 oz. Strontium ferrite segmented magnet

Learn more about the rw10d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17

Description


Alpine brand icon

Authorized dealer

General Features:

  • 10" Dual 4 ohm Type-R Subwoofer
  • Power Handling:
    • Peak: 2250watts
    • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve
  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 111 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 5-7/8"
  • Cutout diameter: 9-1/16"
  • Frequency Response: 26 - 200Hz
  • Sensitivity: 82.4dB
  • Resonance Frequency (Fs): 31Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually



PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

Alpine R-W10D4 thumbnail
(newest, current model)
Alpine SWR-10D4 thumbnail
(previous model, replaced by Alpine R-W10D4)
Alpine SWR-1043D thumbnail
(previous model, replaced by Alpine Type-R SWR-10D4)
Alpine SWR-1042D thumbnail
(previous model, replaced by Alpine SWR-1043D)
Alpine SWR-1041D thumbnail
(previous model, replaced by Alpine SWR-1042D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine R-W10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine R-W10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine R-W10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine R-W10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
10"
Peak Power Handling
2250 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.6"
Frequency Response
26 - 200 Hz
Sensitivity
82.4 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
H.A.M.R
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.58 cubic feet
Optimum Ported Box Volume
1.3 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31 Hz
Equivalent Compliance (Vas)
20 liters
Total Speaker Q Value (Qts)
.55
Electrical Q Value (Qes)
.59
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
7.71
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

R-W10D4

Weight:

10.00lbs

Internal SKU:

rw10d4

Internal Product ID:

133725
