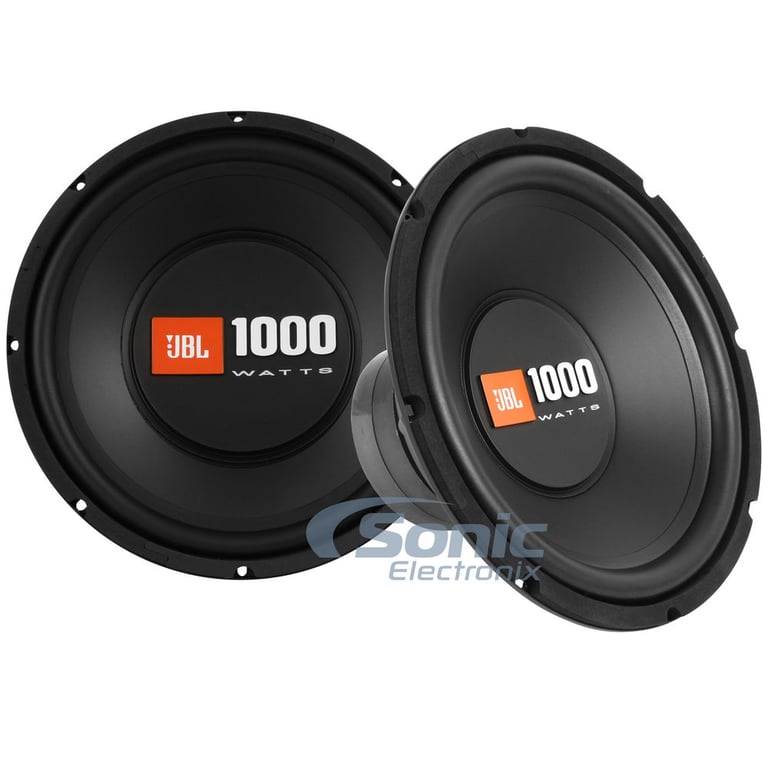

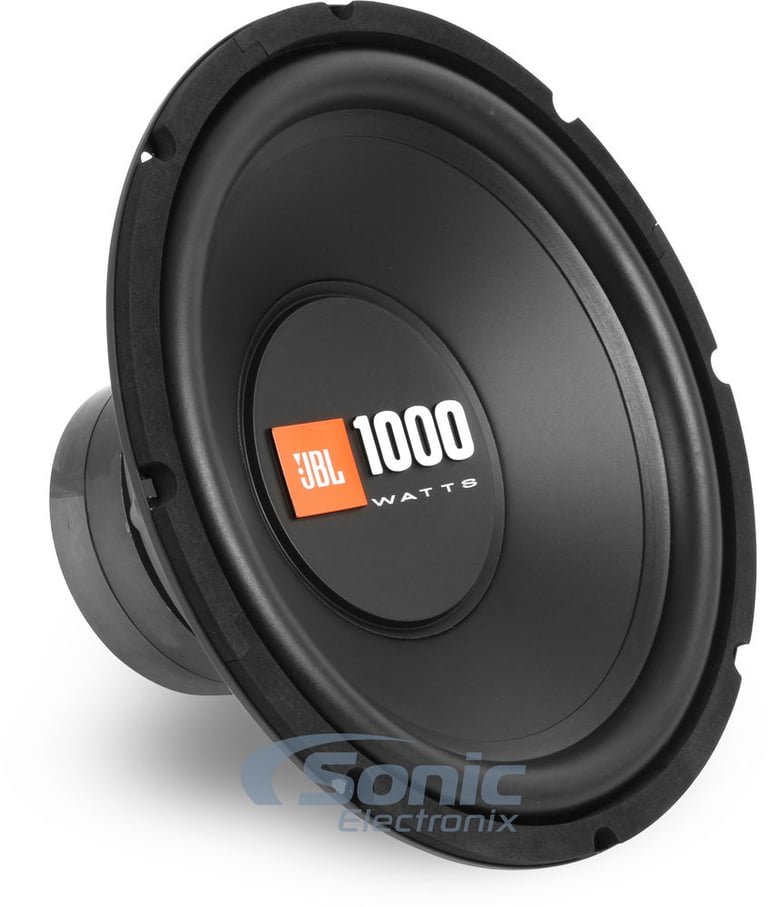

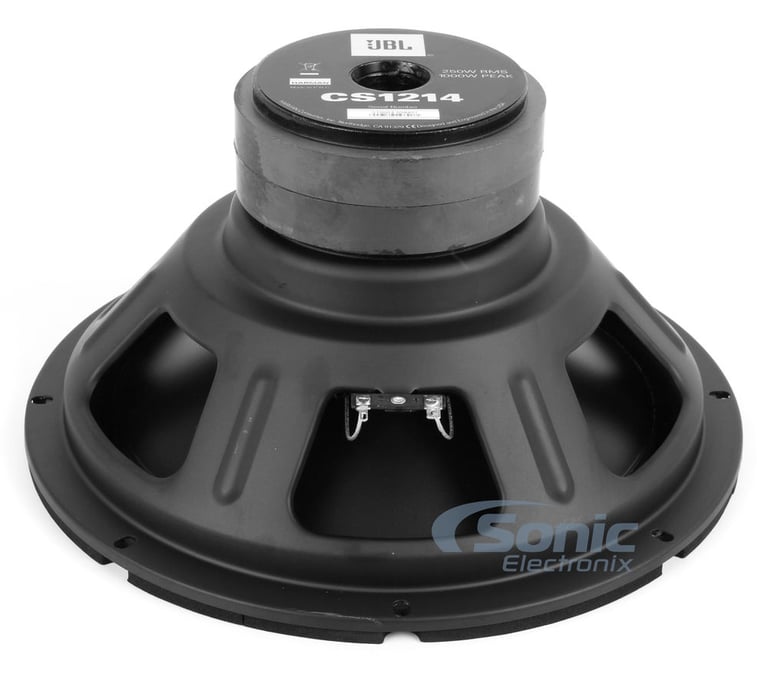

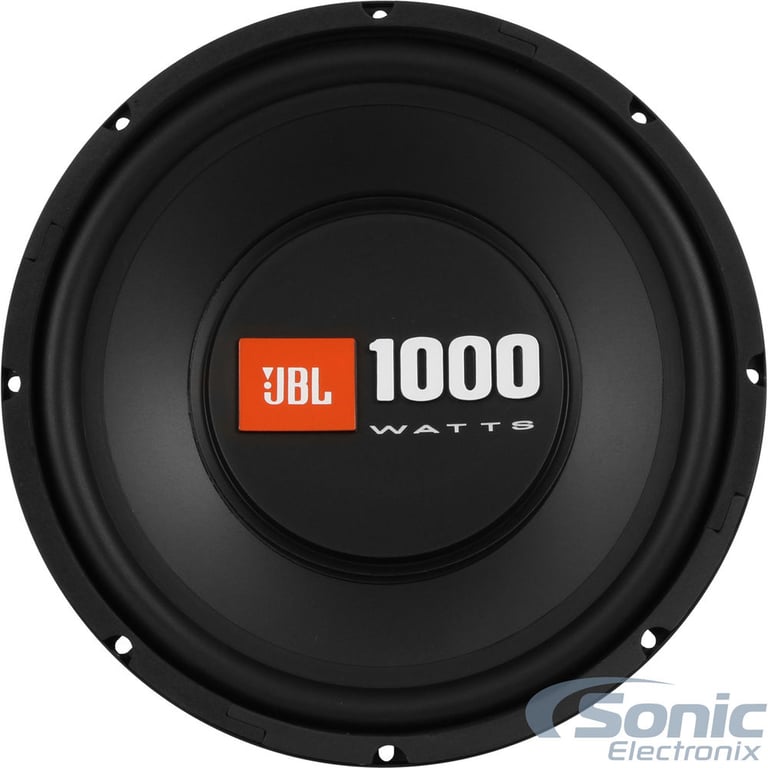

(2) JBL CS1214 12" 250W RMS Subwoofer Bundle 1000W Peak

Two 250W 12" CS Series Single 4 Ohm Subwoofer

JBL
Shop all JBL
EXCLUSIVE
highlight-star-icon

• Peak Power: 1000W
• RMS Power: 250W
• Impedance: 4 ohm
• Polypropylene Cone
• Rubber Surround
• Resonance Frequency (Fs): 28 Hz

Learn more about the cs1214_pkg1

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

95-8202 main

Metra 95-8202 Dash Kit

Install a new Double-DIN car stereo in select 2000-2020 vehicles from Toyota, Subaru, Scion

35
-43.50%

$12.99

List price $22.99

TSB920 main

American International TSB920

6" to 6.5" Speaker Mounting Adapters for select 1998-2020 vehicles from Toyota, Scion, Lexus

6
-58.38%

$9.99

List price $24.00

72-9300 main

Metra 72-9300

Install New Car Speakers in select 1976-2015 vehicles from Subaru, Nissan, Mazda

8
-40.03%

$8.99

List price $14.99

82-8153 main

Metra 82-8153

6-6.75 inch speakers Front door location for select 2000-2007 Tundra and Sequoia

-40.76%

$15.99

List price $26.99

72-8112 main

Metra 72-8112

Install New Speakers in select 2001-2022 vehicles from Toyota

1
-13.34%

$12.99

List price $14.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Description


JBL brand icon

Authorized dealer



Great "Boom" For The Buck!

With 1000 watts of peak power handling and 250 watts RMS, the JBL CS Series CS1214 subwoofer handles a serious amount of power. Some of its great features include a frequency response of 35Hz – 200Hz which enables you to hear the wide bass range that you’ve always wanted. And with a sensitivity of 90dB, it provides for better performance at lower power levels. The woofer cone is polypropylene and very light, ensuring maximum performance and efficiency. JBL also uses a progressive spider on the CS Series, which offers better control at the excursion limits, rather than the linear spider commonly used by other manufacturers. This helps reduce distortion even at the highest output levels.



The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 12" CS Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Recommended power range: 100 - 250 watts RMS
  • Impedance: 4 ohm
  • High excursion, high BL motor
  • Polypropylene Cone
  • Rubber Surround
  • 1-1/2" Voice coil
  • Frequency response: 35-200 Hz
  • Resonance Frequency (Fs): 28 Hz
  • Top-mount depth: 6-1/16"
  • Sensitivity: 90dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Tips for Installing the your subwoofer


Subwoofer Wiring Guide


Wiring Guide to Wire 1 (2) JBL CS1214 12" 250W RMS Subwoofer Bundle 1000W Peak Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 (2) JBL CS1214 12" 250W RMS Subwoofer Bundle 1000W Peak Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 (2) JBL CS1214 12" 250W RMS Subwoofer Bundle 1000W Peak Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 (2) JBL CS1214 12" 250W RMS Subwoofer Bundle 1000W Peak Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
CS Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1-1/2"
Frequency Response
35 - 200 Hz
Sensitivity
90 dB
Xmax (millimeters)
6.6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
.75 cubic feet
Optimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1.1 cubic feet
Minimum Ported Box Volume
.75 cubic feet
Optimum Ported Box Volume
1 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/16"
Cutout Diameter
11"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
76.7 liters
Total Speaker Q Value (Qts)
.54
Electrical Q Value (Qes)
.57
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
8.85
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

CS1214_PKG1

Weight:

22.00lbs

Internal SKU:

cs1214_pkg1

Internal Product ID:

143827

Customer Ratings & Reviews


(2) JBL CS1214 12

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


JBG03BW small

Aliph Jawbone Icon Hero Thinker Black Wheat

Universal Hands-Free Bluetooth Headset with MyTALK Platform Capability (JBG03BW)

$99.99

List price $99.99

No picture

Pyle PSW129MT PYLE TILT TV WALL MOUNT FOR 32"-50"

$49.99

List price $79.99

GM-D8601 small

Pioneer GM-D8601 (Ships as 2019 model: Pioneer GM-D8701)

800W RMS Class D Monoblock GM Digital Series Amplifier

(89)

$230.00

List price $250.00

PL2400.4 2 Pack small

Planet Audio 4 Channel Full Range Class A/B MOSFET Amplifier PL2400.4 (2 Pack)

Planet Audio 4 Channel Full Range Class A/B MOSFET Amplifier PL2400.4 (2 Pack)

(4)

$290.90

List price $368.00

SBK926 small

American International SBK926

Single DIN or Double DIN Stereo Dash Kit for select 2008-2014 vehicles from Subaru

(1)

$12.99

List price $44.00

TOY-TUN-PK1 small

Crimestopper Rear View Mirror + Tailgate Camera for 2007-2013 Toyota Tundra

OEM Style Replacement Mirror with 4.3" LCD Screen + Tailgate Handle Mount Color CMOS Reverse Camera (170-degree view)

(2)

$349.85

List price $619.85

ABF39T small

Audiobahn ABF39T 6" x 9" ABF Series

$84.99

List price $224.99

MF209-S1 small

Sanus Systems MF209-S1 (Silver)

Full-Motion Wall Mount with 9" Extension for 15"-37" Flat-Panel TVs

$69.99

List price $149.99

M6-880SGI-S-Si small

JL Audio M6-880SGI-S-Si

Sport Grille Insert for JL Audio 8.8" M6 Marine Speakers (Silver)

$39.99

List price $39.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Toyota Sequoia

2011 BMW M3

2006 Cadillac SRX

2000 Daewoo Daewoo -SEOLD

2007 Mazda Mazdaspeed3

2013 Ram C/V

2010 Mazda 6

2017 Chevrolet Bolt EV

1997 Dodge Ram 2500

2011 Ford Focus

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
