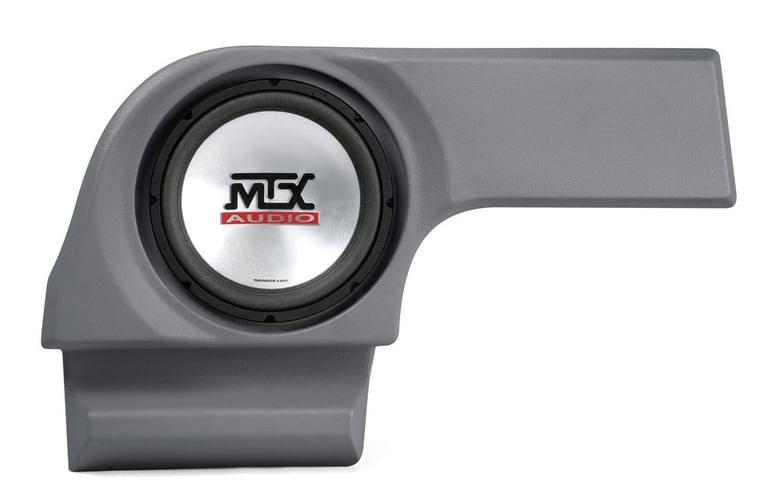

MTX Audio Thunderform DMAGW05G10-T45 (Light Gray, Loaded)

Dodge Magnum 2005-2008, 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

MTX
Shop all MTX
highlight-star-icon

10" Loaded Thunderform Subwoofer Enclosure • For Dodge Magnum 2005-2008 • Loaded with a 10" Thunder4500 Subwoofer • 450W Max • 225W RMS • 4 ohm • Carbon filled polypropylene cone

Learn more about the dmagw05g10t45

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

GMSB356 main

American International GMSB356

6.5" to 6.75" Speaker Mounting Adapters for select 1997-2020 vehicles from Chevrolet, GMC, Pontiac

33
-58.38%

$9.99

List price $24.00

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Lowest price in 30 days
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-16.67%

$49.99

List price $59.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

44
-10.01%

$17.99

List price $19.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

Description


MTX brand icon

Authorized dealer

Subwoofer Features:

  • 10" Thunder4500 Subwoofer
  • Subwoofer Power Handling:
    • Peak: 450 watts
    • RMS: 225 watts
  • Impedance: 4 ohm
  • Carbon filled polypropylene cone
  • Polyether foam surround
  • Asymmetrical Linear Drive System (ALDS): flat progressive spider and extended pole piece for smooth, linear, piston like drive
  • Spider Plateau Venting technology, which ensures a cooler, more reliable subwoofer
  • Precision Stamped Basket for greater structural integrity
  • FEA optimized roll geometry to maximize excursion without sacrificing cone surface area
  • Stitched Cone for added durability and style
  • Long Integral Tinsel Leads are woven into the spider for better bass extension with greater durability
  • Voice coils are wound on an Apical voice coil former for high power handling
  • Industry leading thermal power handling using 428˚F High Temperature Voice Coil Wire
  • 1.5" Voice coil
  • 30oz. Strontium Ferrite magnet
  • Frequency response: 35-150 Hz
  • Sensitivity: 90 dB
  • 2-year Manufacturer's warranty

Enclosure Features:

  • Single 10" Sealed Loaded Thunderform Subwoofer Enclosure
  • For 2005-2008 Dodge Magnum

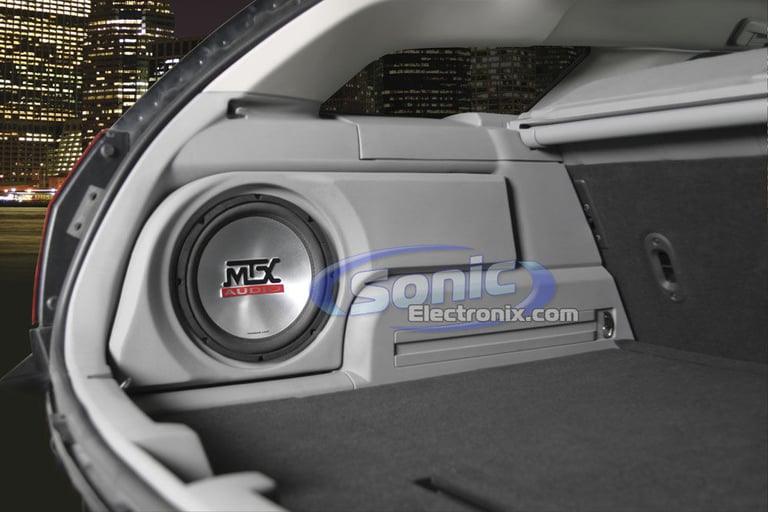

  • Mounts in the trunk of the vehicle on the drivers side
  • Does not interfere with access to the spare tire
  • Install hardware and grille included
  • Made of a high density polyethylene resin, which is flexible enough to transform into a variety of shapes and sizes, yet strong enough to avoid flexing
  • Enclosure volume: 0.75 cubic feet, sealed
  • Molded factory color is Light Gray
  • Also available in: Charcoal
  • Dimensions: 8-1/2"D x 28-7/8"W x 18"H
Note: Since each MTX Audio Thunderform is custom made to order, it can ship within 2 to 5 business days. When ordering please allow enough time for the manufacturing and shipping of the product.

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

$929.95

List price $747.95

DRQC20AC-TN small

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

• Dual 10" Loaded Amplified MTX Thunderform Subwoofer Enclosure
• For Dodge Ram Quad Cab 2002-2014
• Loaded with Dual Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 Ohm

(2)

$899.95

List price $802.95

C1500C-07A small

MTX C1500C-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

J-WRANGLER-07L small

MTX J-WRANGLER-07L

• 1 10" MTX ThunderForm Series Subwoofer
• 250 watts RMS ( Peak)
• Final Impedance: 4-ohm
• Dimensions: 17-4/5" L x 16-5/16" H x 6-9/16" W

$719.95

List price $639.95

DRQC20C-TN small

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

• Dual 10" Loaded MTX Thunderform Subwoofer Enclosure
• For Dodge Ram Quad Cab 2002-2014
• Loaded with Dual Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 ohm
• Polypropylene Cone

$719.95

List price $637.95

C1500EX-07A small

MTX C1500EX-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F-150C-09A small

MTX F-150C-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F150C04BK12A-TN small

MTX Audio Thunderform F150C04BK12A-TN (Black, Amplified)

• Amplified 12" Loaded MTX Thunderform Sealed Subwoofer Enclosure
• For 2004-2008 Ford F-150 Crew/Ext Cab
• Loaded with 12" Terminator Series Subwoofers
• 400W Max
• 200W RMS
• 4 Ohm

$719.95

List price $637.95

Specifications & Details


Subwoofer Specifications
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
225 watts
Peak Power Handling
450 watts
Woofer Surround
Poly-Foam
Woofer Composition
Carbon-Polypropylene Hybrid
Sensitivity
90 dB
Frequency Response
35 - 150 Hz
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
1
Height
18"
Width
28-7/8"
Depth
8-1/2"
Number of Terminals
1
Terminal Type
Spring posts
Box Exterior Color
Light Gray
Box Finish
Paint
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

DMAGW05G10-T45

Weight:

21.50lbs

Internal SKU:

dmagw05g10t45

Internal Product ID:

14396
