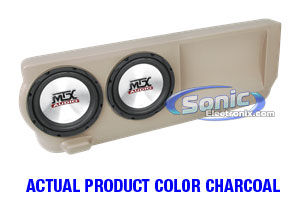

MTX Audio Thunderform FXP16AC-T45 (Charcoal, Amplified)

Ford F-150 Extended Cab 1997-2003, Amplified 2 8" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

MTX
Shop all MTX
highlight-star-icon

Amplified Dual 8" Loaded Vehicle Specific Thunderform Subwoofer Enclosure • For 1997-2003 Ford F-150 Extended Cab • Loaded with 8" Thunder4500 Subwoofers • 600W Max • 300W RMS • 4 ohm

Learn more about the fxp16act45

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Description


MTX brand icon

Authorized dealer

Authorized MTX Dealer

Subwoofer Features:

  • Dual 8" Thunder4500 Subwoofers
  • Subwoofer Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Impedance: 4 ohm
  • Carbon filled polypropylene cone
  • Polyether foam surround
  • Asymmetrical Linear Drive System (ALDS): flat progressive spider and extended pole piece for smooth, linear, piston like drive
  • Spider Plateau Venting technology, which ensures a cooler, more reliable subwoofer
  • Precision Stamped Basket for greater structural integrity
  • FEA optimized roll geometry to maximize excursion without sacrificing cone surface area
  • Stitched Cone for added durability and style
  • Long Integral Tinsel Leads are woven into the spider for better bass extension with greater durability
  • Voice coils are wound on an Apical voice coil former for high power handling
  • Industry leading thermal power handling using 428˚F High Temperature Voice Coil Wire
  • 1.5" Voice coil
  • 30oz. Strontium Ferrite magnet
  • Frequency response: 35-150 Hz
  • Sensitivity: 90 dB
  • 1-year Manufacturer's warranty

Enclosure Features:

  • Dual 8" Sealed Loaded Thunderform Subwoofer Enclosure with built-in Amplifier
  • For 1997-2003 Ford F-150 Extra Cab
  • Mounts under rear seat on passenger side
  • No loss of leg room
  • Install hardware included
  • Built-in 200 watt Class D Amplifier
  • EBC and wire harness included
  • Made of a high density polyethylene resin, which is flexible enough to transform into a variety of shapes and sizes, yet strong enough to avoid flexing
  • Enclosure volume: 0.8 cubic feet, sealed
  • Molded factory color is Charcoal
  • Also available in: Gray, Maroon, Tan, and Willow Green
  • Dimensions: 7"D x 12-1/4"W x 34"H
Note: Since each MTX Audio Thunderform is custom made to order, it can ship within 2 to 5 business days. When ordering please allow enough time for the manufacturing and shipping of the product.

Best selling similar products

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

$929.95

List price $747.95

DRQC20AC-TN small

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

• Dual 10" Loaded Amplified MTX Thunderform Subwoofer Enclosure
• For Dodge Ram Quad Cab 2002-2014
• Loaded with Dual Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 Ohm

(2)

$899.95

List price $802.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
8"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
300 watts
Peak Power Handling
600 watts
Woofer Surround
Poly-Foam
Woofer Composition
Carbon-Polypropylene Hybrid
Sensitivity
90 dB
Frequency Response
35 - 150 Hz
Enclosure Specifications
Number of Subwoofers
2
Height
34"
Width
12-1/4"
Depth
7"
Number of Terminals
1
Terminal Type
Spring posts
Box Exterior Color
Charcoal
Box Finish
Paint
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

FXP16AC-T45

Weight:

26.00lbs

Internal SKU:

fxp16act45

Internal Product ID:

14457
