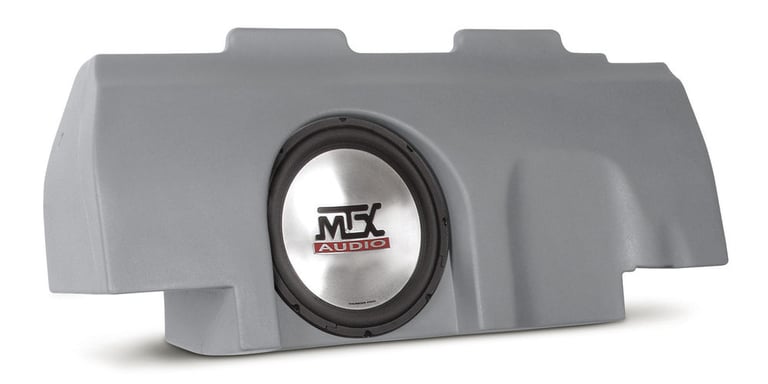

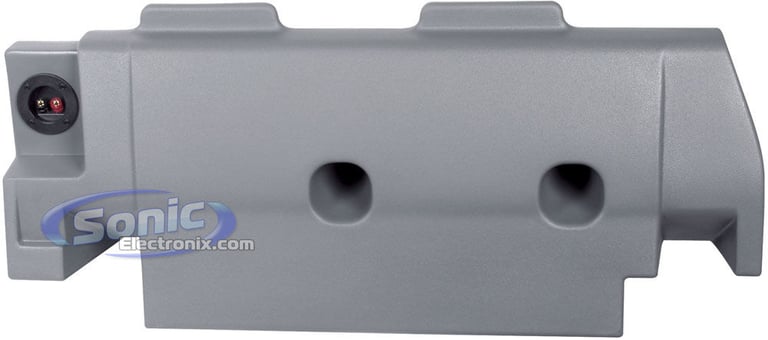

MTX Audio Thunderform FSC10AG-T45 (Gray, Amplified)

Ford F-150 Supercrew 2001-2003, Amplified 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

MTX
Shop all MTX
highlight-star-icon

Amplified 10" Loaded Vehicle Specific Thunderform Subwoofer Enclosure • For 2001-2003 Ford F-150 Supercrew • Loaded with Thunder4500 Subwoofer • 450W Max • 225W RMS • 4 ohm • Carbon filled polypropylene cone

Learn more about the fsc10agt45

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Description


MTX brand icon

Authorized dealer

Authorized MTX Dealer

Subwoofer Features:

  • Single 10" Thunder4500 Subwoofer
  • Subwoofer Power Handling:
    • Peak: 450 watts
    • RMS: 225 watts
  • Impedance: 4 ohm
  • Carbon filled polypropylene cone
  • Polyether foam surround
  • Asymmetrical Linear Drive System (ALDS): flat progressive spider and extended pole piece for smooth, linear, piston like drive
  • Spider Plateau Venting technology, which ensures a cooler, more reliable subwoofer
  • Precision Stamped Basket for greater structural integrity
  • FEA optimized roll geometry to maximize excursion without sacrificing cone surface area
  • Stitched Cone for added durability and style
  • Long Integral Tinsel Leads are woven into the spider for better bass extension with greater durability
  • Voice coils are wound on an Apical voice coil former for high power handling
  • Industry leading thermal power handling using 428˚F High Temperature Voice Coil Wire
  • 1.5" Voice coil
  • 30oz. Strontium Ferrite magnet
  • Frequency response: 35-150 Hz
  • Sensitivity: 90 dB
  • 1-year Manufacturer's warranty

Enclosure Features:

  • Amplified 10" Sealed Loaded Thunderform Subwoofer Enclosure with built-in Amplifier
  • For 2001-2003 Ford F-150 Supercrew 4-door model
  • Mounts under rear driver's side seat
  • Install hardware included
  • Built-in 200 watt Class D Amplifier
  • EBC and wire harness included on amplified
  • Made of a high density polyethylene resin, which is flexible enough to transform into a variety of shapes and sizes, yet strong enough to avoid flexing
  • Enclosure volume: 1.1 cubic feet, sealed
  • Molded factory color is Gray
  • Also available in: Charcoal and Tan
  • Dimensions: 15-1/4"D x 34-1/2"W x 8-1/4"H
Note: Since each MTX Audio Thunderform is custom made to order, it can ship within 2 to 5 business days. When ordering please allow enough time for the manufacturing and shipping of the product.

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99


Best selling similar products

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

(1)

$929.95

List price $747.95

DRQC20AC-TN small

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

• Dual 10" Loaded Amplified MTX Thunderform Subwoofer Enclosure
• For Dodge Ram Quad Cab 2002-2014
• Loaded with Dual Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 Ohm

(2)

$899.95

List price $802.95

C1500C-07A small

MTX C1500C-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

J-WRANGLER-07L small

MTX J-WRANGLER-07L

• 1 10" MTX ThunderForm Series Subwoofer
• 250 watts RMS ( Peak)
• Final Impedance: 4-ohm
• Dimensions: 17-4/5" L x 16-5/16" H x 6-9/16" W

$719.95

List price $639.95

DRQC20C-TN small

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

• Dual 10" Loaded MTX Thunderform Subwoofer Enclosure
• For Dodge Ram Quad Cab 2002-2014
• Loaded with Dual Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 ohm
• Polypropylene Cone

(1)

$719.95

List price $637.95

C1500EX-07A small

MTX C1500EX-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F-150C-09A small

MTX F-150C-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F150C04BK12A-TN small

MTX Audio Thunderform F150C04BK12A-TN (Black, Amplified)

• Amplified 12" Loaded MTX Thunderform Sealed Subwoofer Enclosure
• For 2004-2008 Ford F-150 Crew/Ext Cab
• Loaded with 12" Terminator Series Subwoofers
• 400W Max
• 200W RMS
• 4 Ohm

(2)

$719.95

List price $637.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
225 watts
Peak Power Handling
450 watts
Woofer Surround
Poly-Foam
Woofer Composition
Carbon-Polypropylene Hybrid
Sensitivity
90 dB
Frequency Response
35 - 150 Hz
Enclosure Specifications
Number of Subwoofers
1
Height
8-1/4"
Width
34-1/2"
Depth
15-1/4"
Number of Terminals
1
Terminal Type
Spring posts
Box Exterior Color
Gray
Box Finish
Paint
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

FSC10AG-T45

Weight:

27.00lbs

Internal SKU:

fsc10agt45

Internal Product ID:

14468
