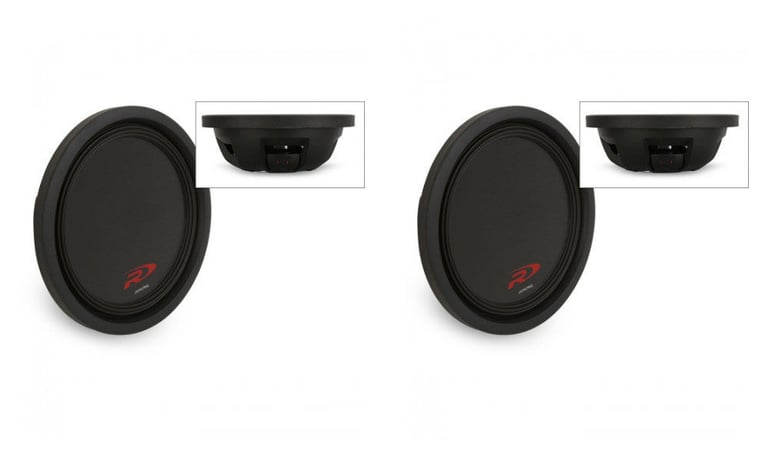

BOGO 50% Off! Alpine Type-R SWR-T12

(2) 1800W Peak 12" Type-R Series Shallow Mount Single 4 ohm Truck Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• Peak Power: 1,200 Watts
• RMS Power: 600 Watts
• Aluminum Woofer Cone
• Santoprene Rubber Surround
• Cast Aluminum Frame
• Radial Finned Heat Sink
• Special Spider Design

Learn more about the swrt12_x2

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

Description


Alpine brand icon

Authorized dealer

Product Features:

  • 12" Type-R Shallow-Mount Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
  • Recommended power range: 300 - 600 watts RMS
  • Impedance: Single 4 Ohm

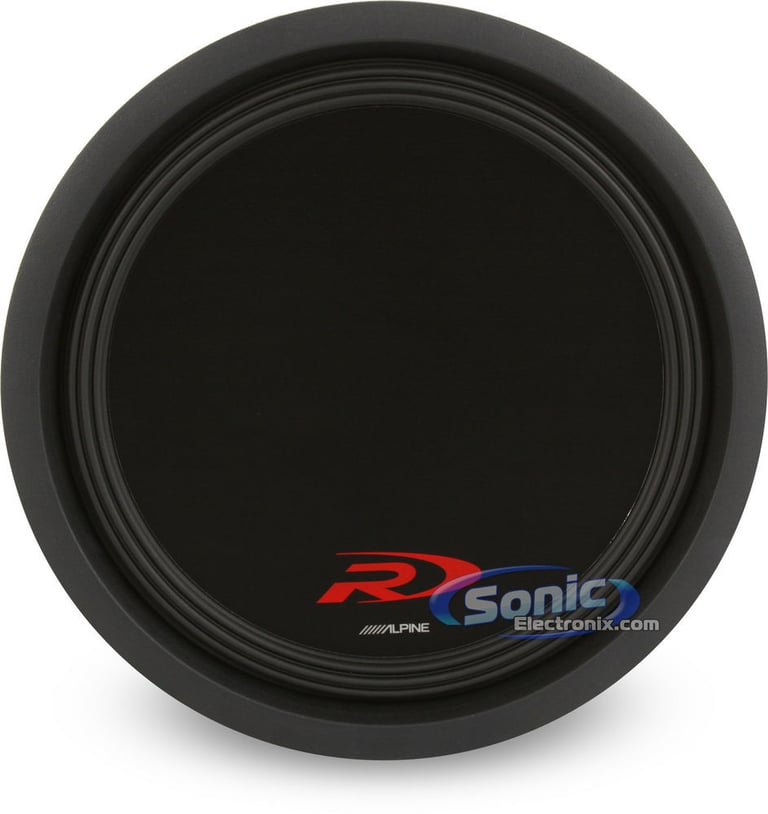

  • Aluminum woofer cone

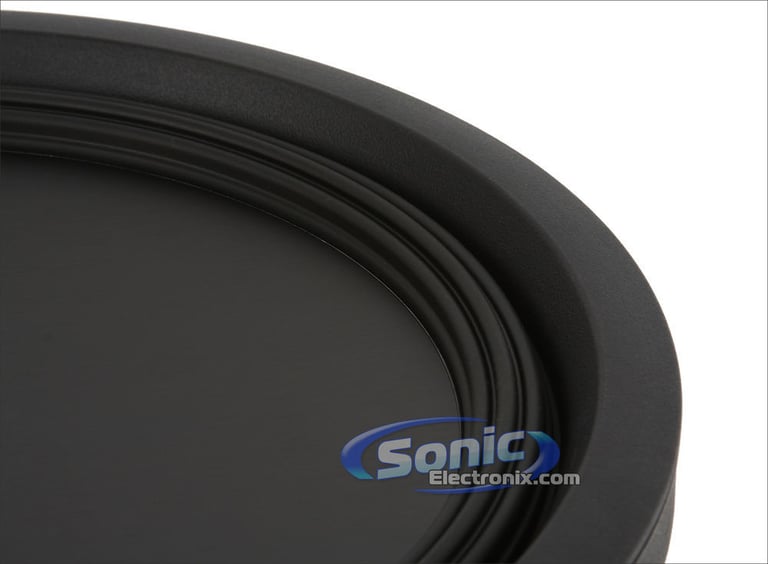

  • Injection Molded Santoprene rubber surround
  • High-Amplitude Multi-Roll (HAMR) suspension results in the highest X-max and SPL output in its category

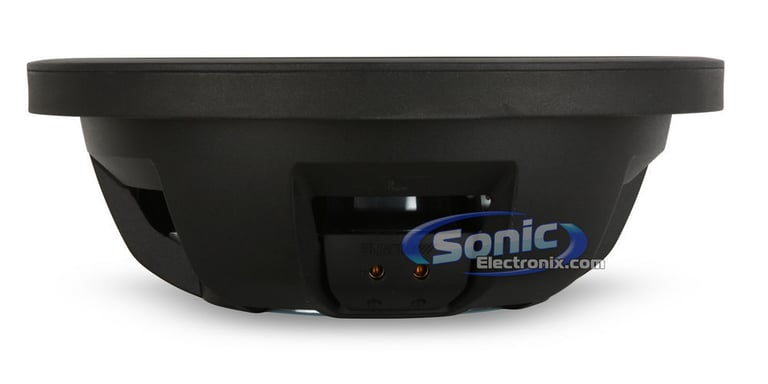

  • Thin design allows for installation in compact areas
  • FEA-Optimization allows for maximum linearity, greatly reduces distortion, and improves power handling and output
  • Vented voice coil heat sink, and airflow management system keeps subwoofer cool, while reducing distortion
  • 4" diameter single layer edge-wound ribbon wire voice coil
  • Unique spider and pass-through gap design, provide over 50mm of peak-to-peak excursion

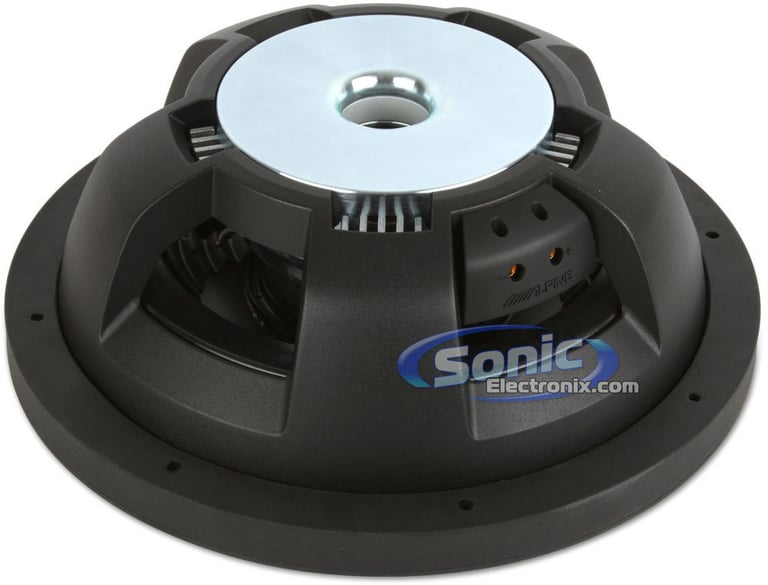

  • Neodymium 35SH magnet structure
  • Frequency response: 26-200 Hz
  • Sensitivity: 84dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 BOGO 50% Off! Alpine Type-R SWR-T12 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 BOGO 50% Off! Alpine Type-R SWR-T12 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 BOGO 50% Off! Alpine Type-R SWR-T12 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 BOGO 50% Off! Alpine Type-R SWR-T12 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
12"
Peak Power Handling
1800 watts
RMS Power Handling
600 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
26 - 200 Hz
Sensitivity
84 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Aluminum
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.40 cubic feet
Optimum Sealed Box Volume
0.55 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/2"
Cutout Diameter
10-15/16"
Shallow Mount Installation
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SWR-T12 X2

Weight:

31.00lbs

Internal SKU:

swrt12_x2

Internal Product ID:

145047
