MTX Audio Thunderform JWTJ97G20A-T45 (Gray, Amplified)

Jeep Wrangler TJ 1997-2006, Amplified 2 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

MTX
Shop all MTX
highlight-star-icon

Amplified 2 10" Loaded Vehicle Specific Thunderform Subwoofer Enclosure • 1997-2006 Jeep Wrangler TJ • Loaded with Thunder4500 Subwoofer • 900W Max • 450W RMS • 4 ohm • Carbon Filled Polypropylene Cone

Learn more about the jwtj97g20at45

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Description


MTX brand icon

Authorized dealer

Subwoofer Features:

  • Dual 10" Thunder4500 Subwoofers
  • Subwoofer Power Handling:
    • Peak: 900 watts
    • RMS: 450 watts
  • Impedance: 4 ohm
  • Carbon filled polypropylene cone
  • Polyether foam surround
  • Asymmetrical Linear Drive System (ALDS): flat progressive spider and extended pole piece for smooth, linear, piston like drive
  • Spider Plateau Venting technology, which ensures a cooler, more reliable subwoofer
  • Precision Stamped Basket for greater structural integrity
  • FEA optimized roll geometry to maximize excursion without sacrificing cone surface area
  • Stitched Cone for added durability and style
  • Long Integral Tinsel Leads are woven into the spider for better bass extension with greater durability
  • Voice coils are wound on an Apical voice coil former for high power handling
  • Industry leading thermal power handling using 428˚F High Temperature Voice Coil Wire
  • 1.5" Voice coil
  • 30oz. Strontium Ferrite magnet
  • Frequency response: 35-150 Hz
  • Sensitivity: 90 dB
  • 1-year Manufacturer's warranty

Enclosure Features:

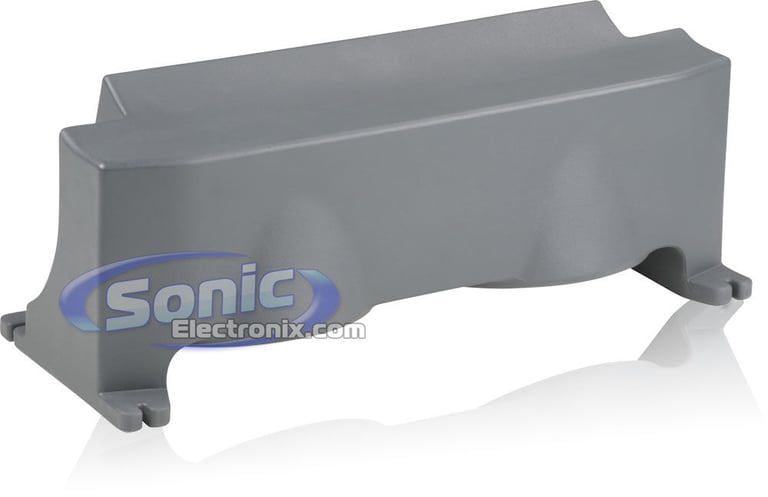

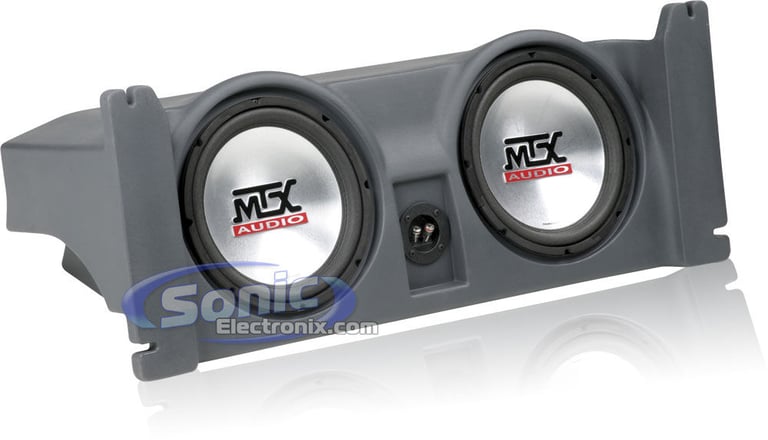

  • Dual 10" Sealed Loaded Thunderform Subwoofer Enclosure with built-in Amplifier
  • For 1997-2006 Jeep Wrangler TJ
  • Also fits Jeep Unlimited

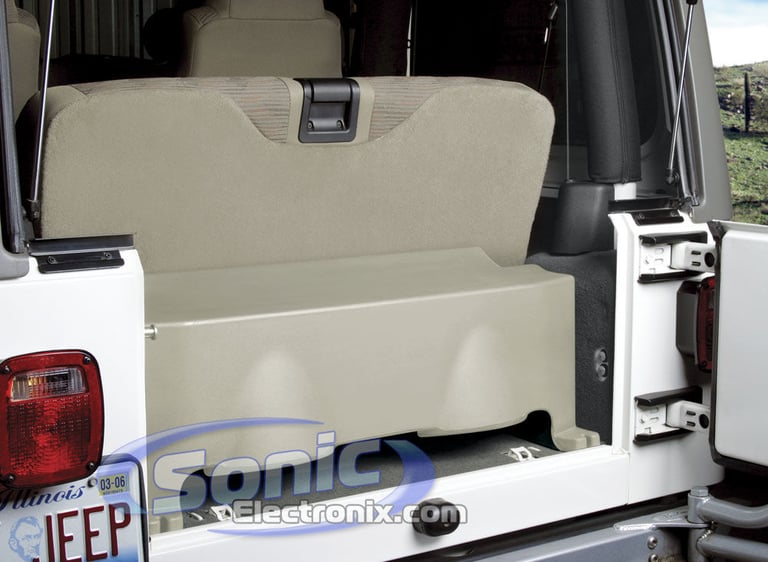

  • Mounts behind the rear seat
  • Seat still flips and folds
  • Install hardware included
  • Built-in 200 watt Class D Amplifier
  • EBC and wire harness included
  • Made of a high density polyethylene resin, which is flexible enough to transform into a variety of shapes and sizes, yet strong enough to avoid flexing
  • Enclosure volume: 1.48 cubic feet, sealed
  • Molded factory color is Gray
  • Also available in: Charcoal and Tan
  • Dimensions: 12-1/4"D x 34"W x 11-5/8"H
Note: Since each MTX Audio Thunderform is custom made to order, it can ship within 2 to 5 business days. When ordering please allow enough time for the manufacturing and shipping of the product.
