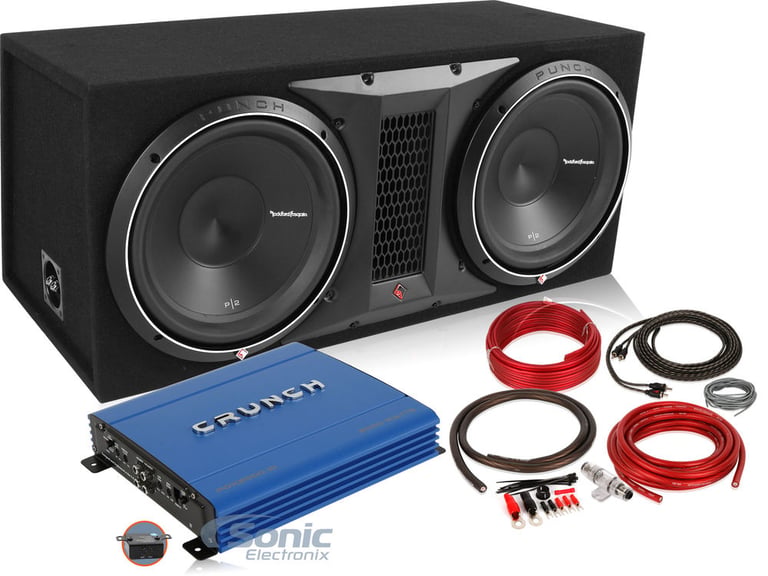

Rockford Fosgate Dual Loaded Enclosure with Crunch Amp and Wiring Kit Package

General Features:

• 12" Dual Punch Stage 2 Subwoofer
• Power Handling:
• Peak: 1600 watts total
• RMS: 800 watts total
• Recommended power range: 600 - 1000 watts RMS @ 1-ohm
• CEA-2031 Compliant
• Klippel Verified
• Flex-fit™ Mounting pattern
• Proprietary spider venting/cooling technique
• StampCast basket with integrated spider venting
• Sturdy 16 gauge compound bend frame geometry
• High modulus Kevlar™ re-inforced paper-pulp cone
• Semi-flexible, PVC removable protective motor cover
• Multi-point high-temp/high-strength neck joint bonding technique
• Tall-profile VAST™ Santoprene™ surround for larger surface area
• Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
• Fatigue resistant and reduced strain "stitched on" flexible lead wire design
• Proprietary all metal, radially oriented compression input terminal assembly
• Optimized motor magnetics with extended pole and bumped vented backplate
• High temp 2.25" voice coil w/ spun-laced Nomex™ insulating re-inforcement collar
• Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
• Stamped Mesh Grille Insert Available: Rockford Fosgate P2P3G-12
• Magnet Weight: 72.80 oz
• Frequency Response: 27.2 - 250 Hz
• Xmax: 13.3mm
• Sensitivity: 86 dB @ 1 watt / 1 meter
• Matching Amplifier: (two drivers)
• Rockford Fosgate R750-1D, @ 1ohm
• Rockford Fosgate P1000X1BD, @ 1ohm
  ✔ Preferred Match
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

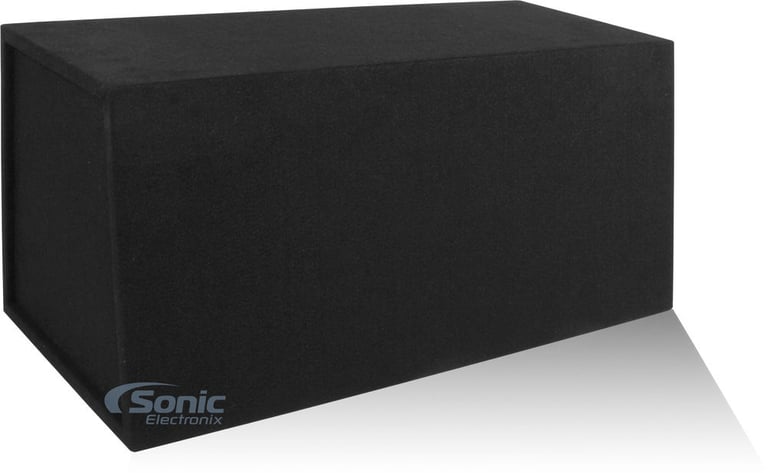

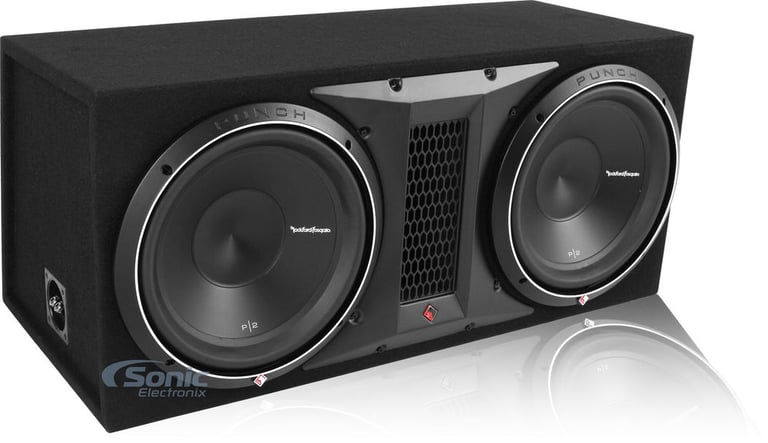

Enclosure Features:

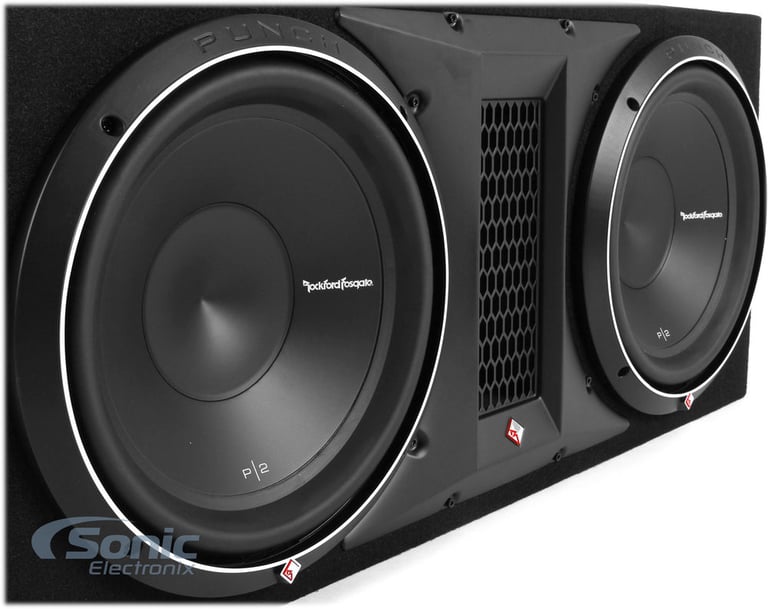

• Dual 12" Loaded, Ported Box
• Solid 5/8" MDF Construction
• Front-firing tuned port
• Spring-loaded binding posts
• Complete with high-density black box carpeting
• Dimensions: 15-3/4"D x 33-7/8"W x 15-1/8"H

General Features:

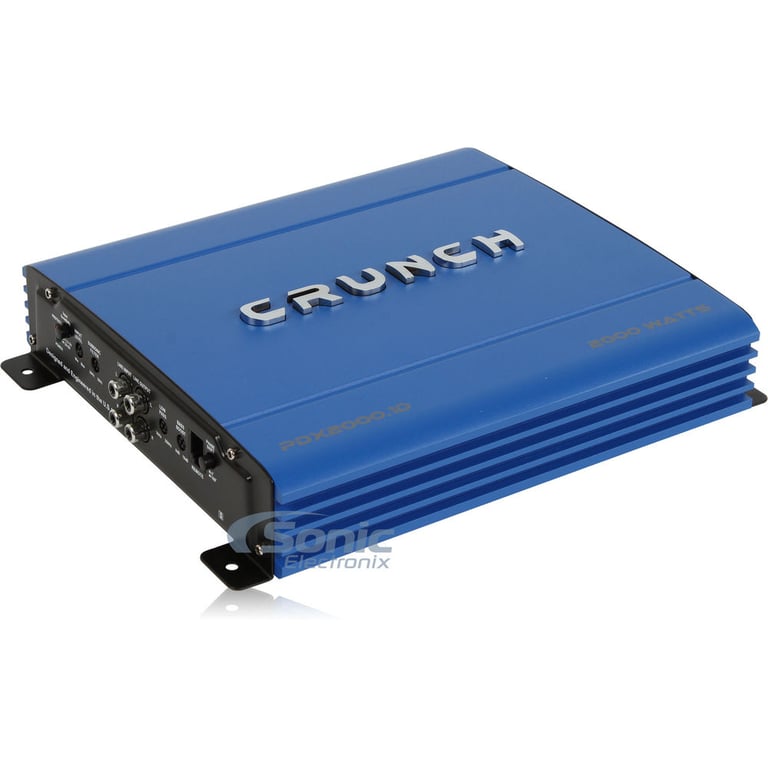

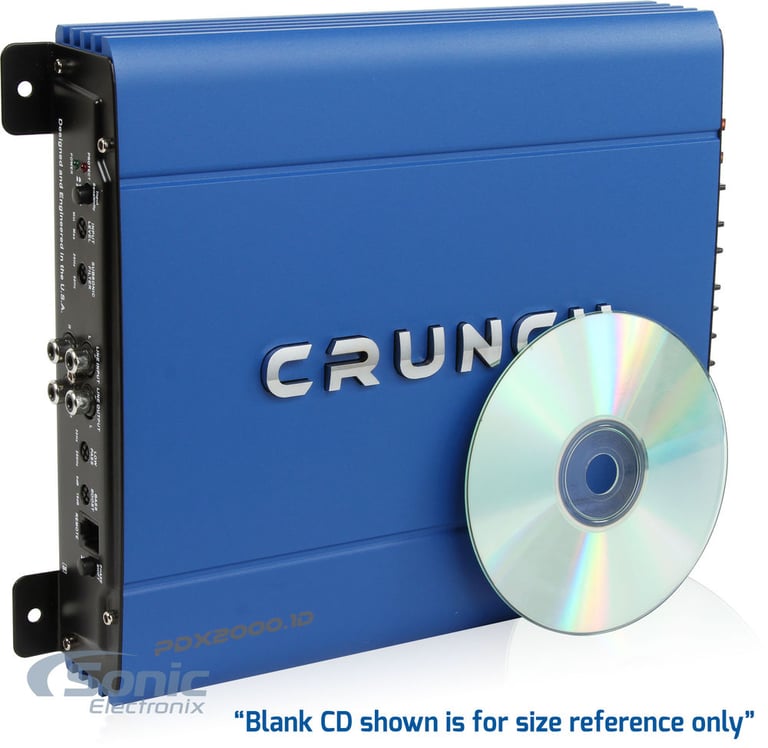

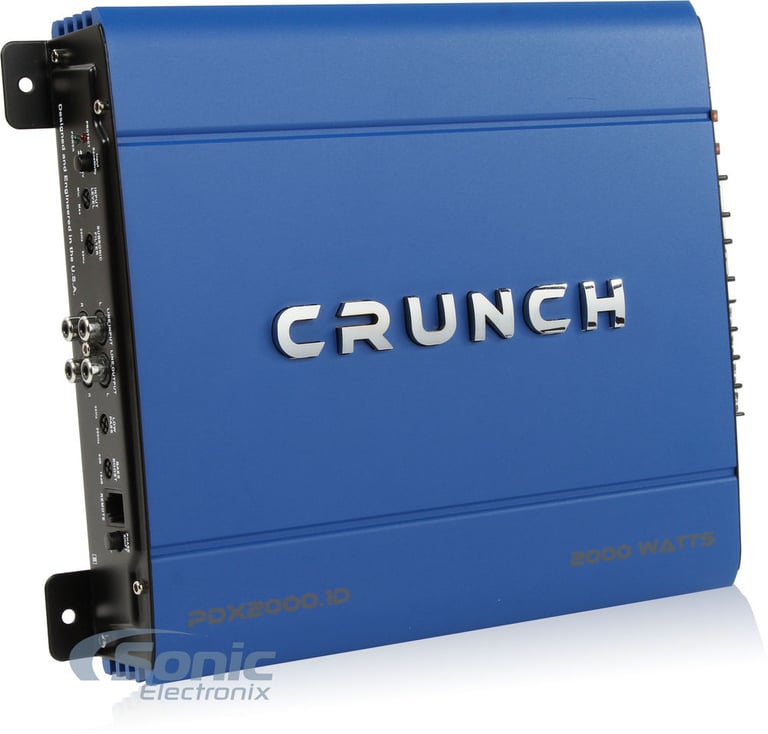

• PDX Series Monoblock Class D Car Amplifier
• MAX Power Rating:
• 4 ohm: 400 watts x 1 chan.
• 2 ohm: 1000 watts x 1 chan.
• 1 ohm: 2000 watts x 1 chan.
• RMS Power Rating:
• 4 ohm: 200 watts x 1 chan.
• 2 ohm: 500 watts x 1 chan.
• 1 ohm: 1000 watts x 1 chan.
• SEPP (Single Ended Push-Pull) output technology
• Pulse Width Modulated power supply
• LED power (green) and protect (red) indicators

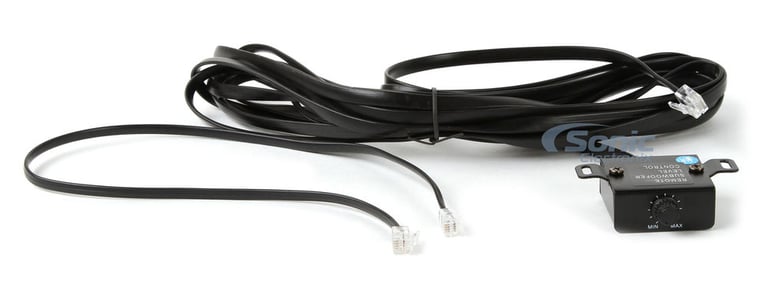

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Slow un-mute soft start turn-on
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

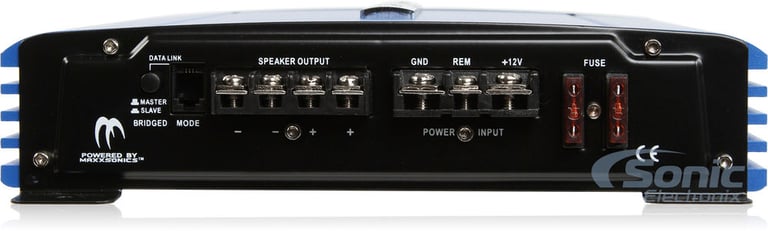

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heatsink for extreme heat dissipation

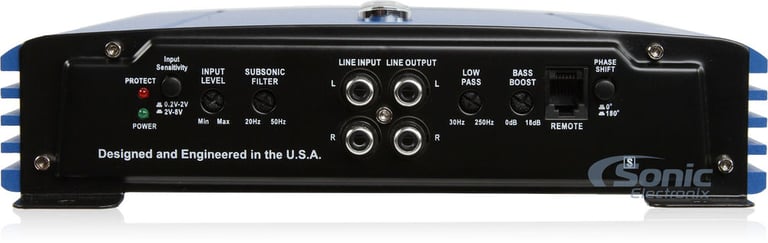

• Silver-plated RCA level inputs
• Silver-plated screw terminals
• Master/Slave power strapping capable
• Input sensitivity: 200mV-6V
• Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
• Variable Subsonic filter:20 - 50 Hz
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• Damping factor: >200
• Frequency response: 20 - 250 Hz
• Fuse rating: 40A x 2
• Dimensions: 15-3/4"L x 9-7/8"W x 2-1/16"H
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

General Features:

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available in Black, Blue and as a 4-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

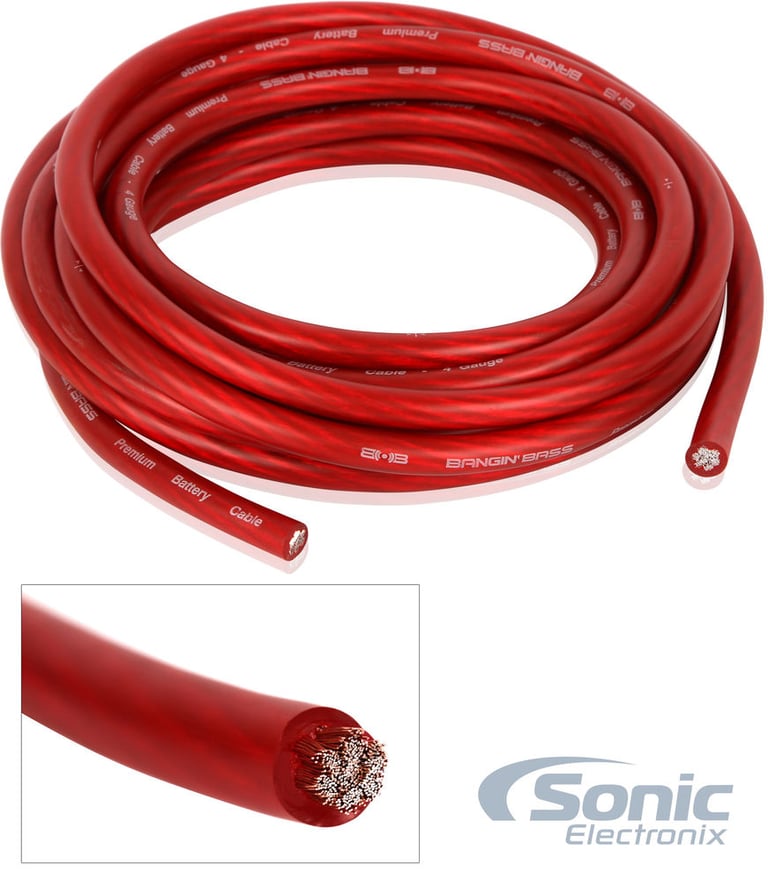

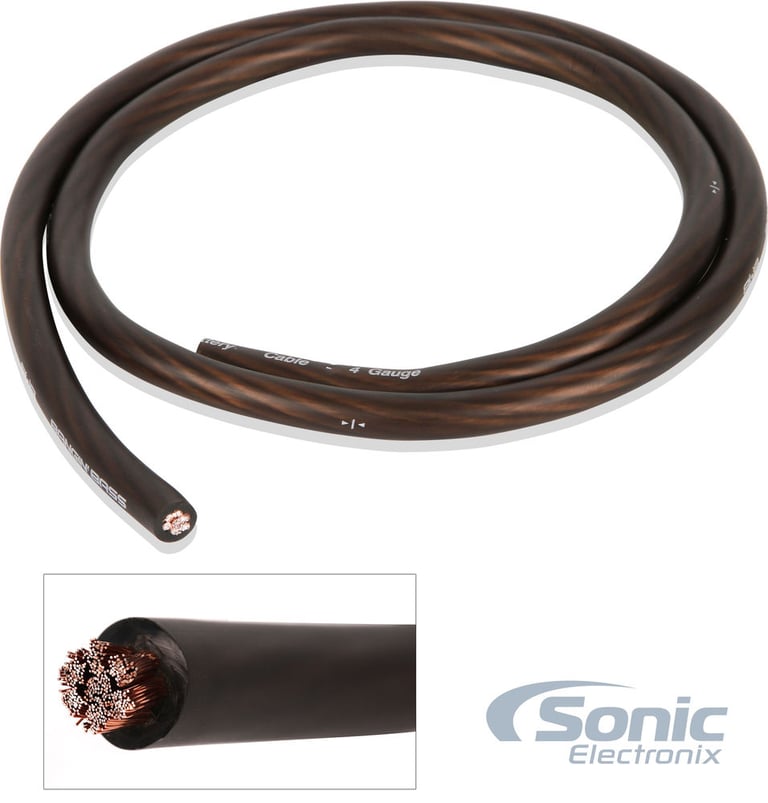

1. 17 ft. (5.2 meters) Red 4 gauge power wire
2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

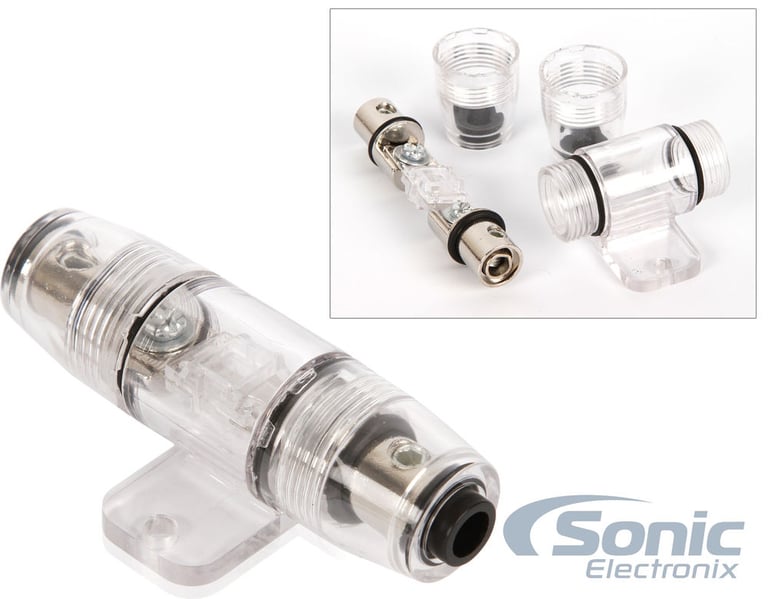

6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. One 4 Gauge red chrome plated ring terminals
9. One 4 Gauge black chrome plated ring terminal
10. Three 18 Gauge red Spade terminal
11. Two 18 Gauge black Spade terminal
12. One 18 Gauge red butt connector
13. Ten 4" Black zip ties
