See all parts that fit your 2002 QX4

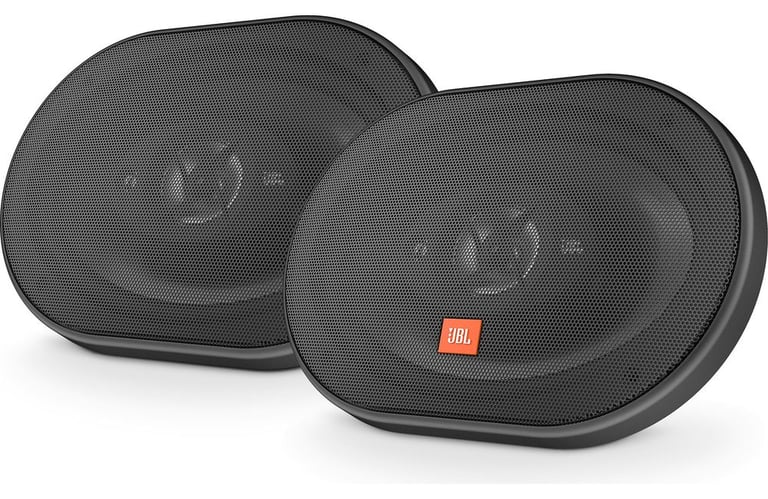

JBL Stage 9603

420W Max (140W RMS) 6" x 9" Stage Series 3-Way Coaxial Car Speakers

JBL
Shop all JBL
highlight-star-icon

• 210 Watts Max Each, 70 Watts RMS Each
• PEI Balanced Dome Tweeter
• Injection-Molded Polypropylene Cone
• 4 ohm Impedance
• Sensitivity: 92dB
• Mounting Depth: 2-29/325"

Learn more about the stage9603

We apologize

This item has been discontinued


Loading...
KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DSX-A415BT main

Sony DSX-A415BT (DSXA415BT)

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

6
-21.33%

$118.00

List price $149.99

KD-X560BT main

JVC KD-X560BT

Single DIN Marine Digital Audio Receiver with Bluetooth

4
-7.65%

$239.00

List price $258.80

Description


JBL brand icon

Authorized dealer

General Features:

  • 6" x 9" Stage Series 3-Way Car Speakers
  • Power Handling:
    • Peak: 420 watts per pair / 210 watts each
    • RMS: 140 watts per pair / 70 watts each
  • Injection-molded polypropylene cone
  • Balanced dome PEI tweeter
  • Piezo supertweeter
  • Rubber magnet boot cover
  • Top-mount Depth: 2-29/32"
  • Cutout Dimensions: 8-11/16" x 5-29/32"
  • 4 ohm impedance
  • Frequency Response: 45 - 20000 Hz
  • Sensitivity: 92dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Per Pair

Check out the Stage 9603 Owner's Manual


PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
KDC-BT382U main

Kenwood KDC-BT382U

Single DIN CD Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

12
-10.50%

$179.00

List price $200.00

KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00


Best selling similar products

46CSC6934 small

Kicker CSC693 (46CSC6934)

• 450 watts Peak Each, 150 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(40)

$111.96

List price $159.99

SXE-6926S small

Alpine SXE-6926S

• 280 watts Peak Each, 90 watts RMS Each
• Mylar Dome tweeters
• Natural Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(13)

$56.99

List price $71.99

R169X2 small

Rockford Fosgate Prime R169X2

• 130 watts Peak Each, 65 watts RMS Each
• 1/2" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(49)

$99.99

List price $99.99

Specifications & Details


Speaker Specifications
Priced Per
Pair
Number of Speakers
2
Speaker Size
6" x 9"
Design
3-way Coaxial
Tweeter Design
Balanced Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Injection Molded Polypropylene
Peak Power Handling
210 watts
RMS Power Handling
70 watts
Sensitivity
92 dB
Frequency Response
50 - 20000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-29/32"
Cutout Dimensions
8-11/16 x 5-29/32
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

STAGE 9603

Weight:

6.53lbs

Internal SKU:

stage9603

Internal Product ID:

145715

Customer Ratings & Reviews


JBL Stage 9603 thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

JBL Stage 9603

Got it paired with the jbl gx-a602 amplifier they sound pretty good for the price the bass isn't the clearest im certain tones but overall great value speakers

By Anonymous on May 10, 2018

1 found this helpful
