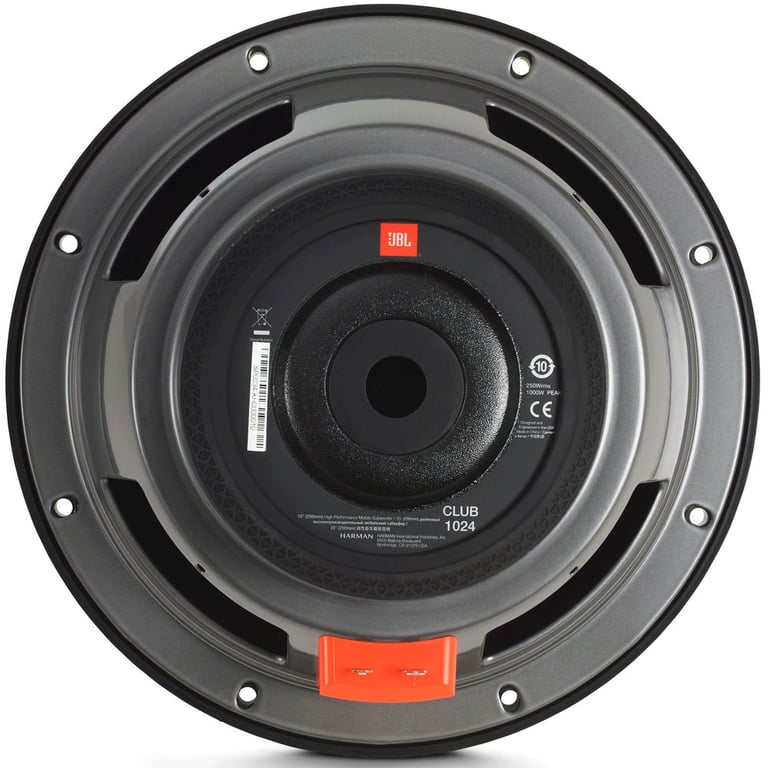

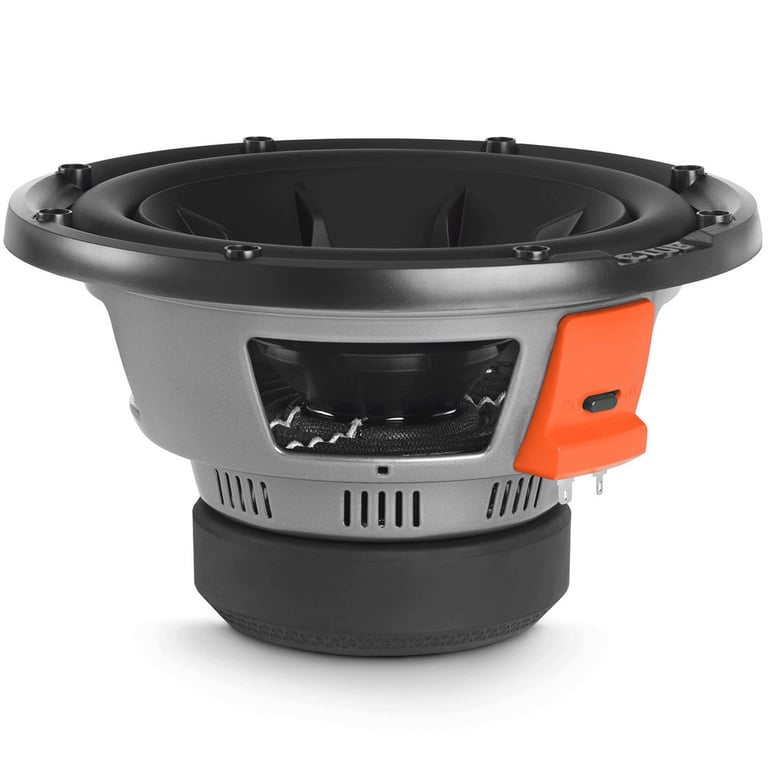

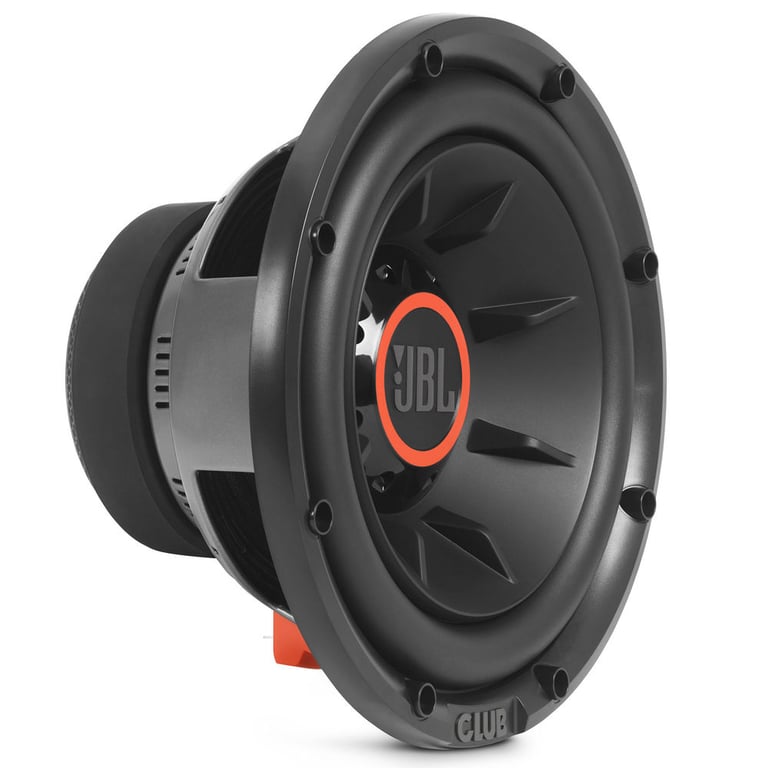

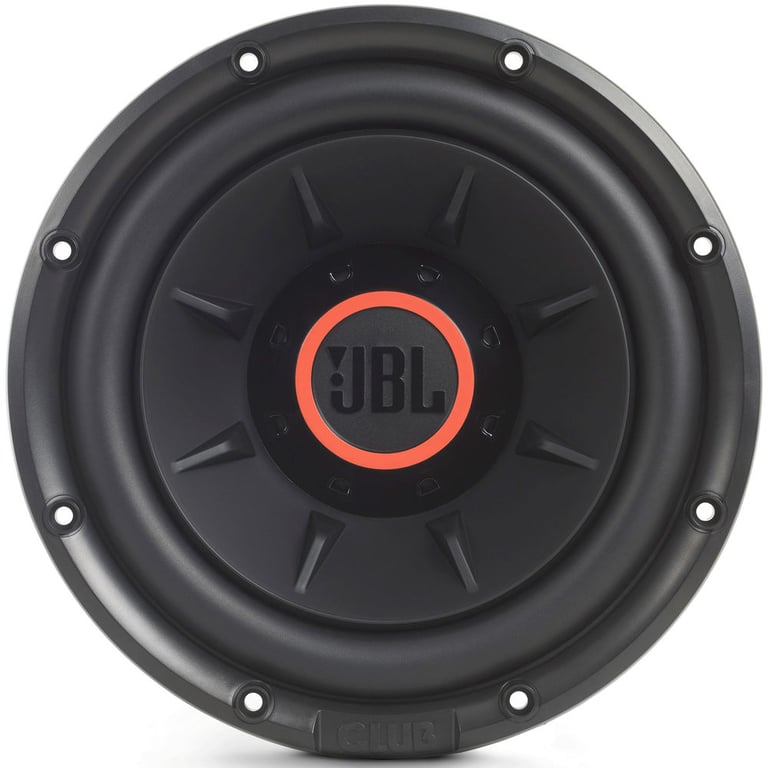

JBL CLUB 1024 (Open Box, Complete)

1000W Max (250W RMS) 10" Club Series Single Selectable 2 or 4 ohm Car Subwoofer

JBL
Shop all JBL
highlight-star-icon

• 1000 Watts Max
• 250 Watts RMS
• Polypropylene Cone
• Rubber Surround
• Selectable 2 or 4 ohm Impedance
• 2" Voice Coil

Learn more about the ls-club1024-obc10

We apologize

This item has been discontinued

Description


JBL brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

  • 10" Selectable 2 or 4 ohm Club Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Polypropylene cone
  • Rubber surround

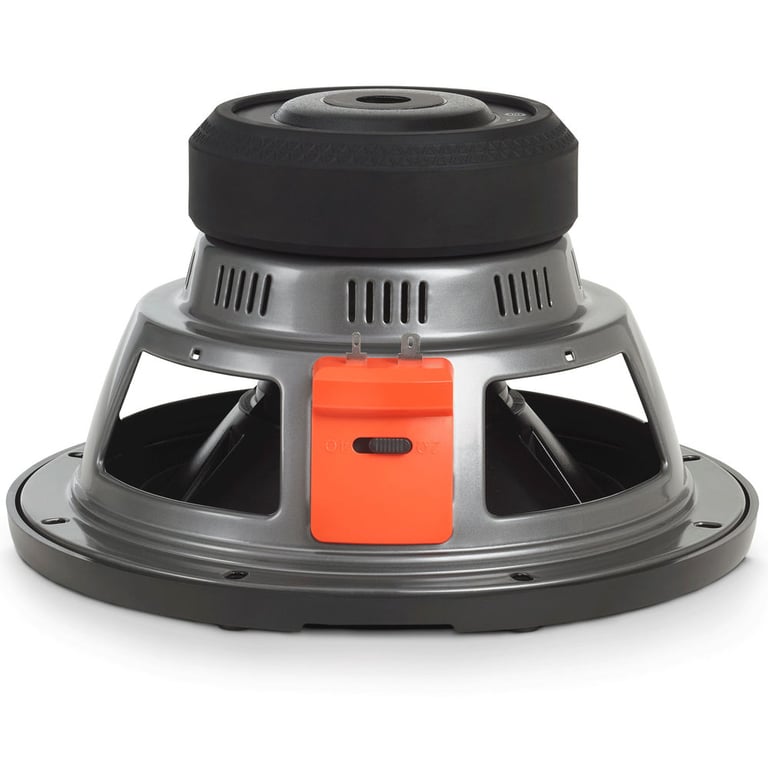

  • Selectable Smart Impedance (SSI) allows you to select 2 or 4 ohm resistance, giving you more flexibility in your installation
  • Simple switch for selecting resistance
  • Quick-disconnect compatible terminals
  • 2" voice coil
  • Single-stacked magnet
  • Top-mount depth: 5-5/8"
  • Cutout diameter: 9"
  • Frequency Response: 30- 175 Hz
  • Sensitivity: 92dB
  • Resonance Frequency (Fs): 29.9 or 30.7 (depending on 2 or 4 ohm configuration)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Product history:

JBL Club 1024 thumbnail
(newest, current model)
JBL S2-1024 thumbnail
(previous model, replaced by JBL CLUB 1024 (Open Box, Complete))
JBL GT5-10 thumbnail
(previous model, replaced by JBL S2-1024 **Toggle between 2-Ohm & 4-Ohm Impedance!**)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL CLUB 1024 (Open Box, Complete) Subwoofer

Mono Amp

Wiring Guide to Wire 2 JBL CLUB 1024 (Open Box, Complete) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL CLUB 1024 (Open Box, Complete) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL CLUB 1024 (Open Box, Complete) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Club
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2"
Frequency Response
30 - 175 Hz
Sensitivity
92 dB
Xmax (millimeters)
9.25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.5 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-5/8"
Cutout Diameter
9"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.9 or 30.7 Hz
Equivalent Compliance (Vas)
32.3 or 30.6 liters
Total Speaker Q Value (Qts)
.43 or .49
Electrical Q Value (Qes)
.48 or .6
Electrical Resistance of Voice Coil (Re)
2 or 4.3 ohm
Mechanical Q Value (Qms)
4.1 or 2.6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

Club 1024

Weight:

8.82lbs

Internal SKU:

ls-club1024-obc10

Internal Product ID:

155337
