See all parts that fit your 1991 Eclipse

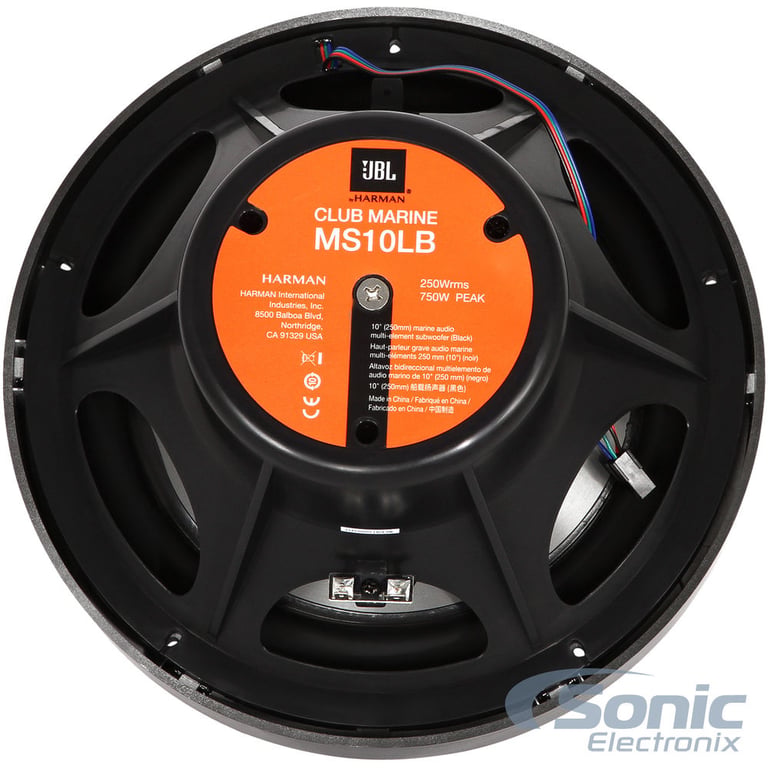

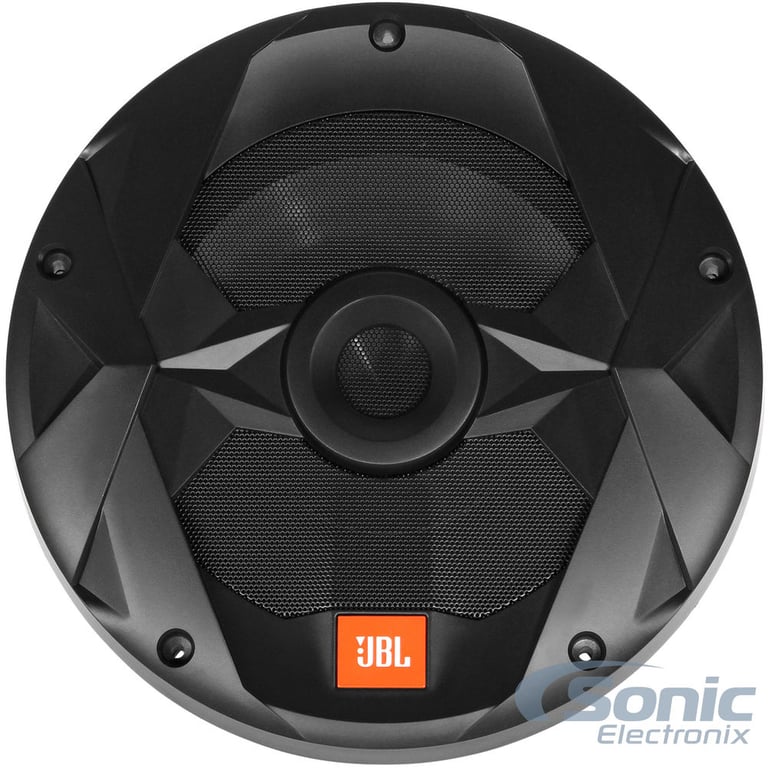

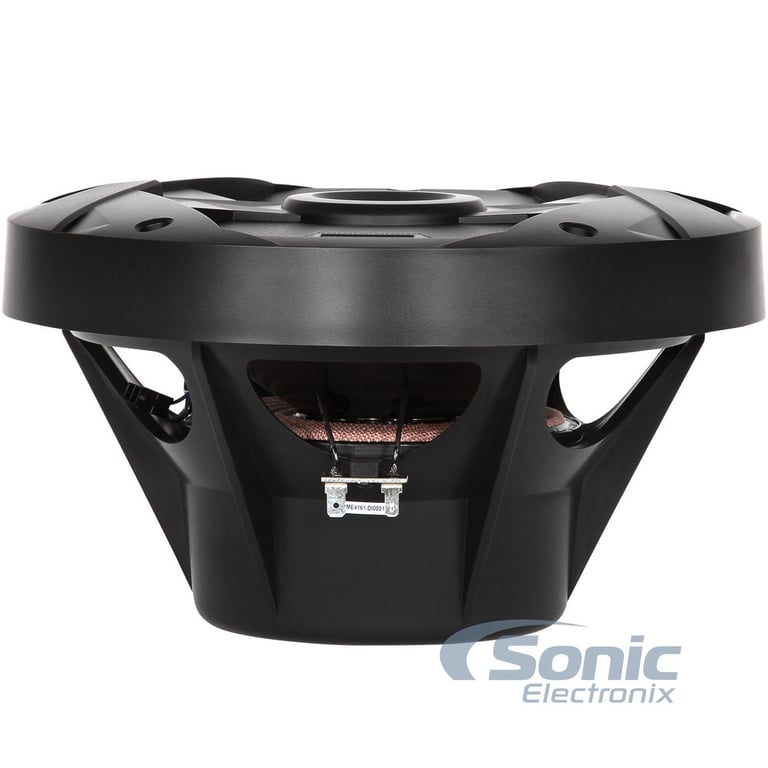

JBL MS10LB

750W Max (250W RMS) 10" Club Marine Single 4 ohm Marine Subwoofer w/ RGB Illumination (Black)

JBL
Shop all JBL
highlight-star-icon

• 750 Watts Max
• 250 Watts RMS
• Polypropylene Plus One Cone
• RGB Illumination
• ABS Plastic Basket
• Built for Marine Environments

Learn more about the ms10lb

We apologize

This item has been discontinued


Loading...
FKB169. main

MB Quart FKB169

300W Peak (150W RMS) 6x9" Formula Series 2-Way 4-ohm Coaxial Car Speakers

8
-43.34%

$50.99

List price $89.99

FKB113 main

MB Quart FKB113

180W Peak (90W RMS) 5.25" Formula Series 2-Way 4-ohm Coaxial Car Speakers

4
-57.15%

$29.99

List price $69.99

DEH-S1200UB main

Pioneer DEH-S1200UB

Single DIN CD Receiver with Pioneer ARC App and USB Control for Android Phones

1
-8.34%

$109.99

List price $120.00

FKB110 main

MB Quart FKB110

160W Peak (80W RMS) 4" Formula Series 2-Way 4-ohm Coaxial Car Speakers

-36.18%

$29.99

List price $46.99

Description


JBL brand icon

Authorized dealer

General Features:

  • 10" 4 ohm Club Marine Series Subwoofer
  • Power Handling:
    • Peak: 750 watts
    • RMS: 250 watts
  • Polypropylene Plus One Cone
  • ABS plastic basket resists corrosion
  • Built for the elements
  • Grille built-in
  • RGB illumination, ready for optional lighting controller
  • Standard connection terminals
  • Top-mount depth: 4-7/16"
  • Cutout diameter: 9-3/16"
  • Frequency Response: 25 - 500Hz
  • Sensitivity: 89 dB
  • Resonance Frequency (Fs): 35.6
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Product Manual: Club Marine MS10LB



PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL MS10LB Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL MS10LB Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL MS10LB Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL MS10LB Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

M6-10IB-S-GwGw-4 small

JL Audio M6-10IB-S-GwGw-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5.9"
• Sensitivity: 86.1 dB

(3)

$479.99

List price $479.99

JBLMARSUBSD102GAM small

JBL Stadium Marine 102 (JBLSUBMASD10AM)

• Peak Power: 900 watts
• RMS Power: 300 watts
• Impedance: 2 or 4 ohm
• Multi-color RGB LED lights
• Plus One Polypropylene Cone
• Rubber Surround
• Mount depth: 4-7/8"
• Sensitivity: 89 dB

$149.95

List price $449.95

M6-8IB-S-GwGw-4 small

JL Audio M6-8IB-S-GwGw-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5.07"
• Sensitivity: 86.8 dB

$349.99

List price $349.99

STADIUMMW1000AM small

JBL Stadium Marine MW1000 (MW1000AM)

• RMS: 300 Watts / Peak: 900 Watts
• Plus One cones provide more overall speaker-cone area than other cones in its class
• Unique and eye-catching RGB illumination
• Features SSI (Switch-Selectable Impedance), which allows you to choose either 2 or 4 ohm load impedance
• Durable One-piece Polymer basket

$149.95

List price $449.95

XM1041WL small

Kenwood eXcelon XM1041WL

• Peak Power: 1300 watts
• RMS Power: 300 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 5-1/2"
• Sensitivity: 84 dB

$199.00

List price $580.00

M2D2-10I small

Rockford Fosgate M2D2-10I

• Peak Power: 1600 watts
• RMS Power: 400 watts
• Impedance: Dual 1 or 4 ohm
• Mineral-Filled Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 4.44"
• Sensitivity: 90.3 dB

$439.99

List price $399.99

REVO 12 XXX V4-B small

Wet Sounds REVO 12 XXX V4-B

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Polypropylene-Carbon Fiber Hybrid cone
• Santoprene Rubber surround
• Mount depth: 6.53"
• Sensitivity: 89 dB

(1)

$1099.99

List price $1099.99

M3-10IB-C-Gw-4 small

JL Audio M3-10IB-C-Gw-4

• RMS Power: 175 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 87.23 dB

(3)

$329.99

List price $329.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
750 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 500 Hz
Sensitivity
89 dB
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Polypropylene
Subwoofer Grille
Yes - Included
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
4-7/16"
Cutout Diameter
9-3/16"
Shallow Mount Installation
No

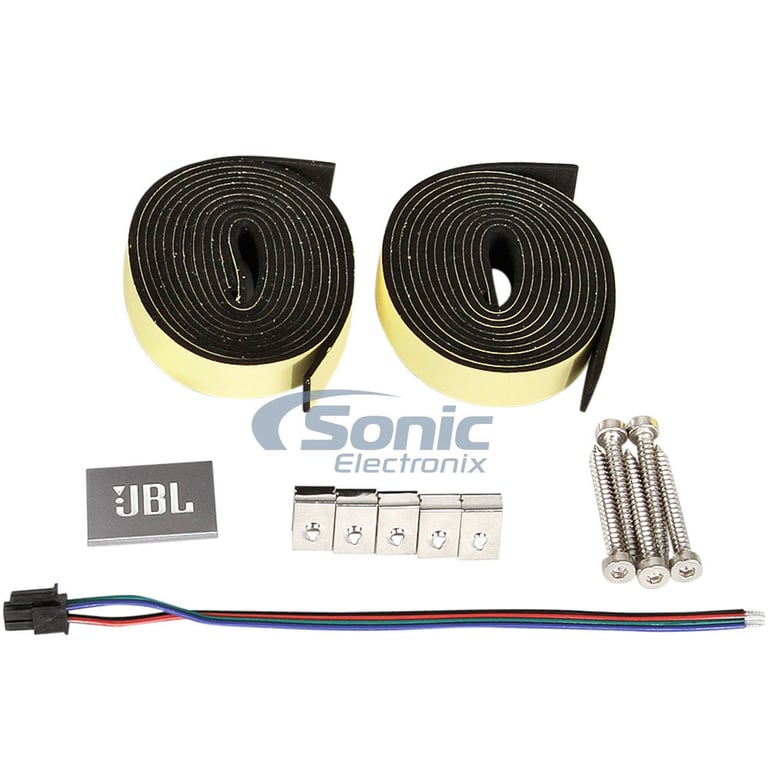

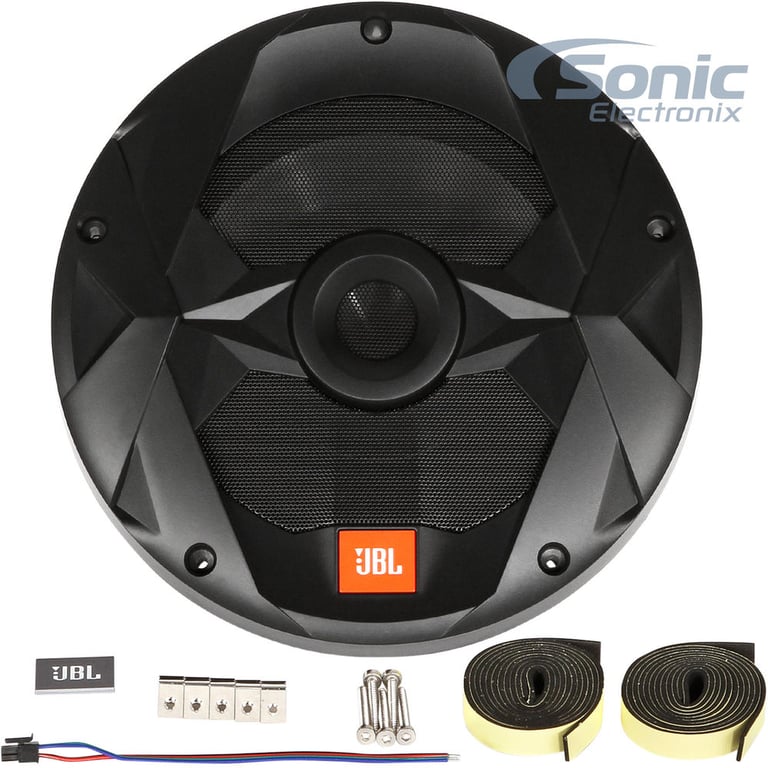

What is in the box?
Paperwork
Quick start guide
Brand sticker/decal
WITB: Subwoofers
Subwoofer
Grille (attached)
See below for additional accessories
Other Accessory #1
1 x Stainless steel mounting hardware
Other Accessory #2
1 x Foam gasket
Other Accessory #3
1 x JBL logo 2prs
Other Accessory #4
1 x RGB lighting pigtail harness
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

MS10LB

Weight:

10.50lbs

Internal SKU:

ms10lb

Internal Product ID:

145763
