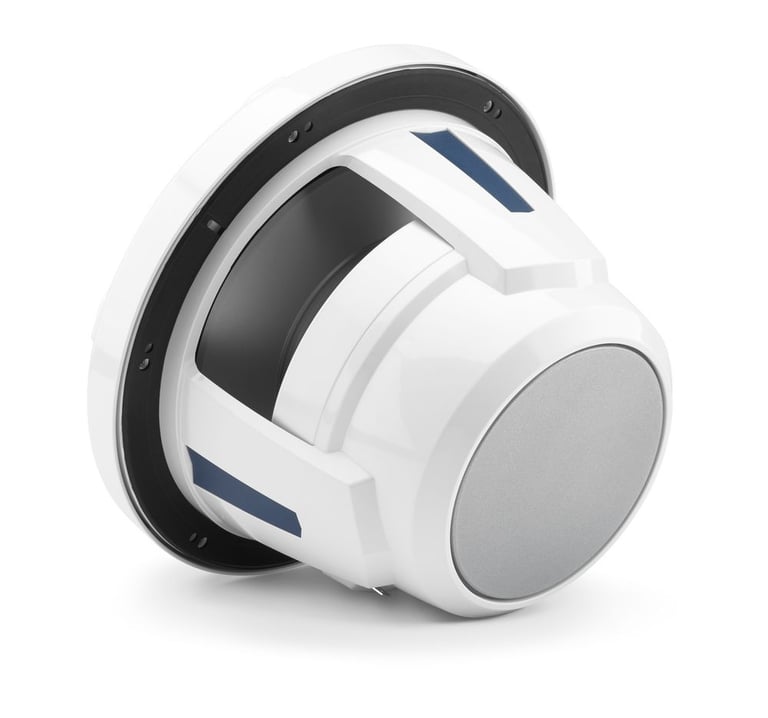

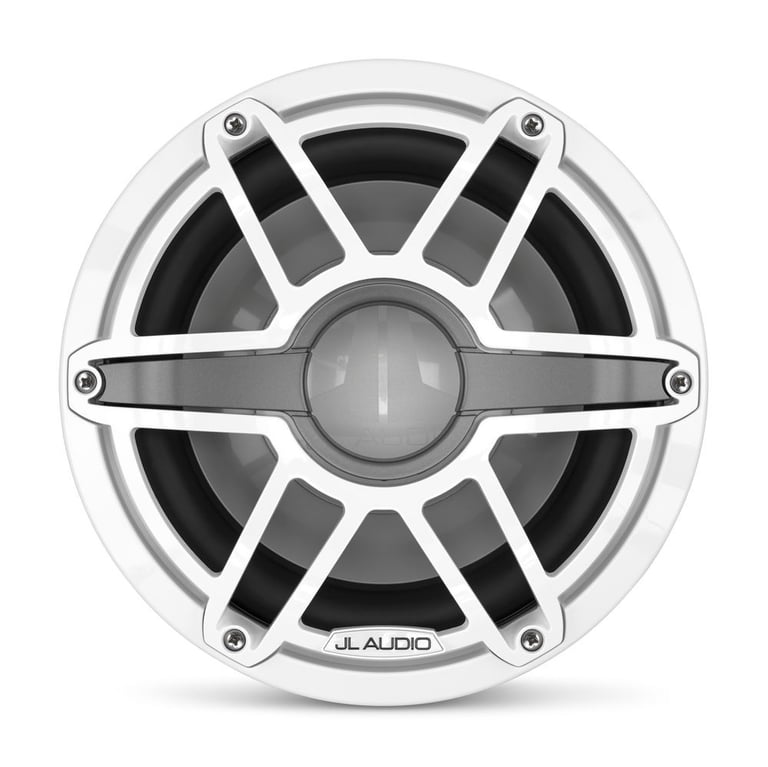

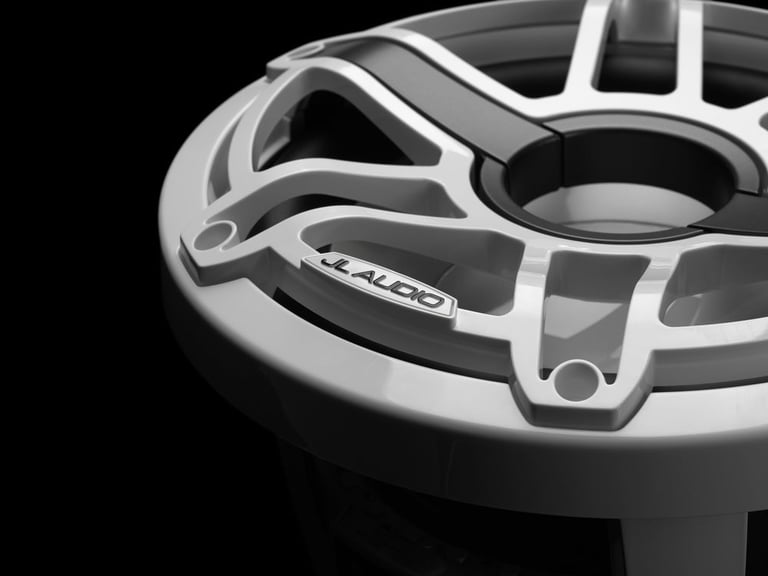

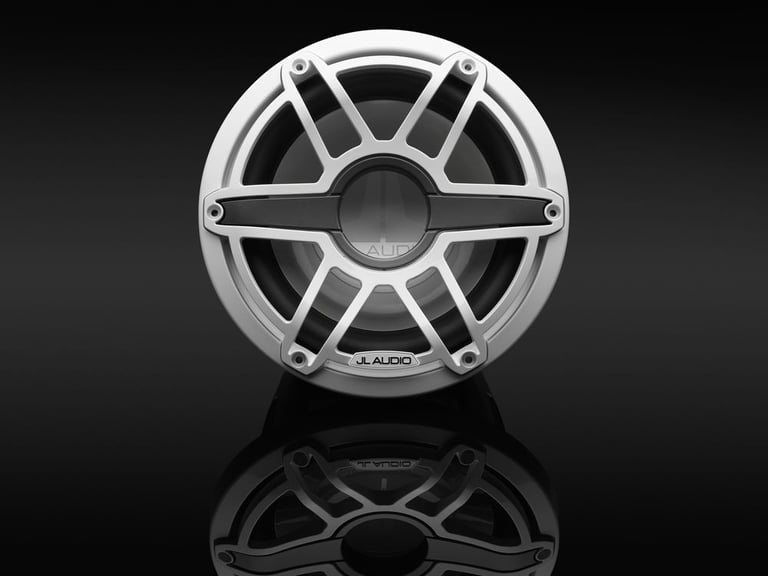

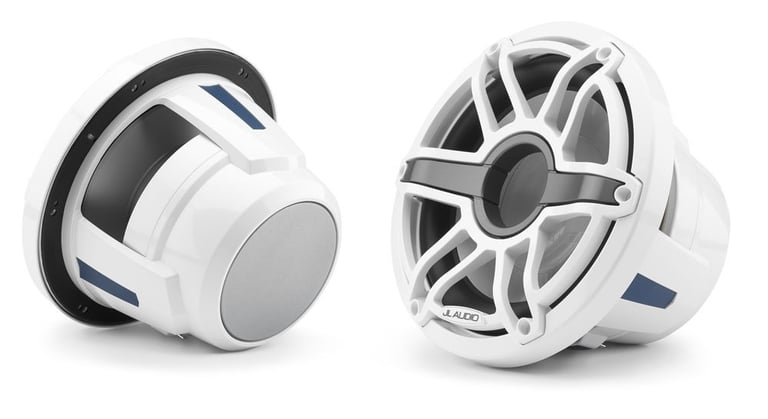

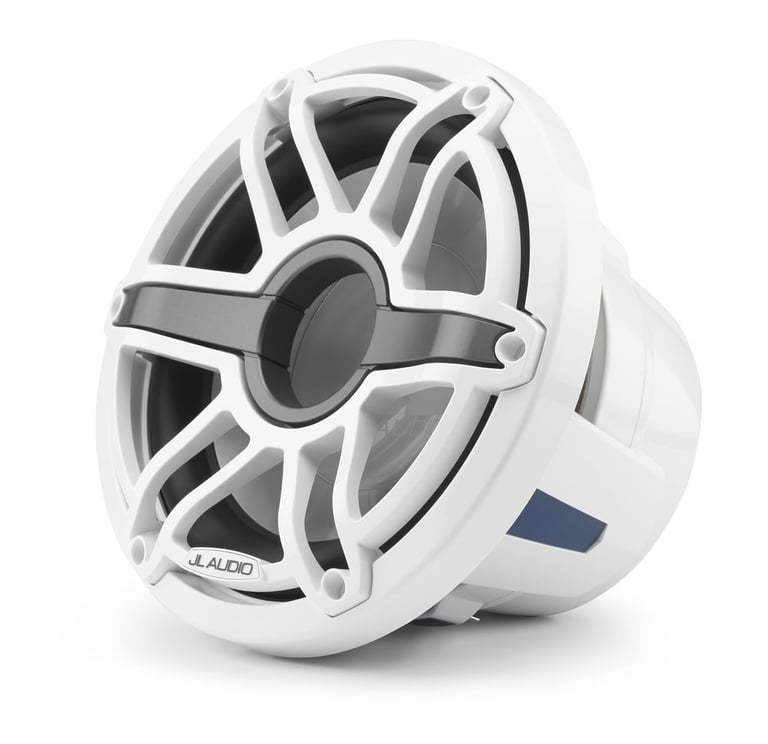

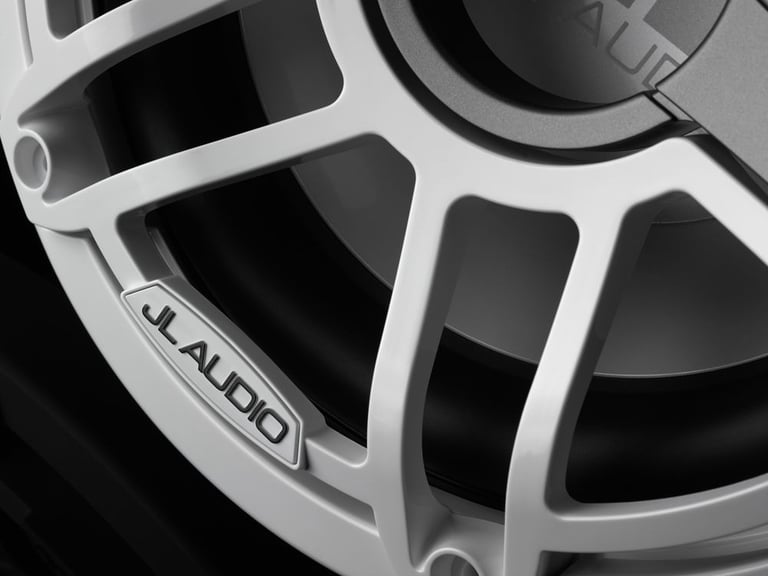

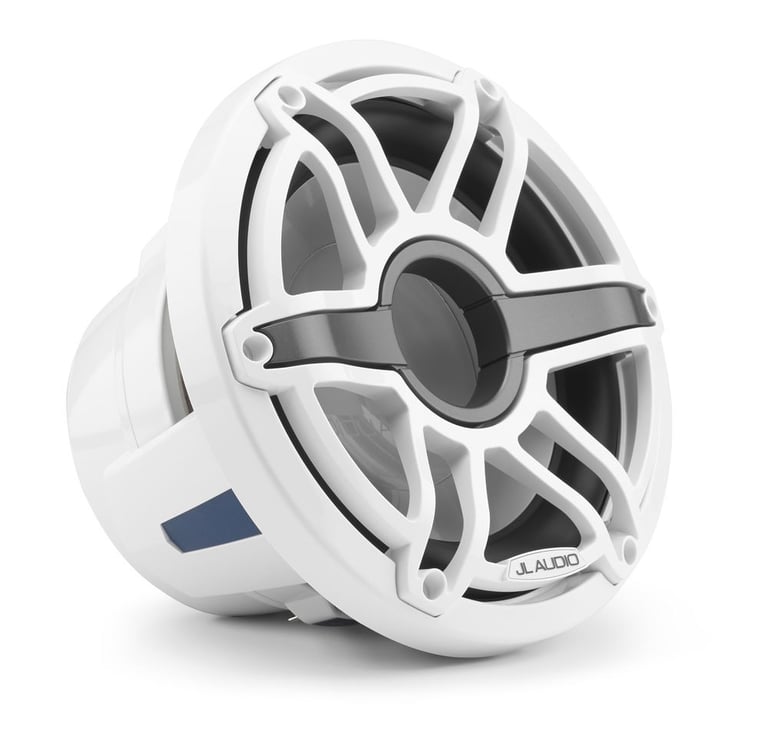

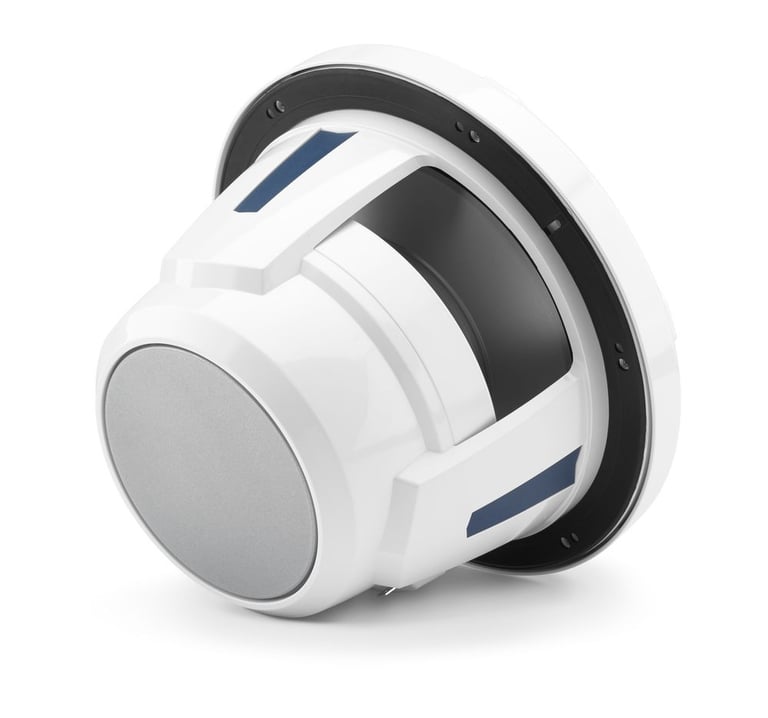

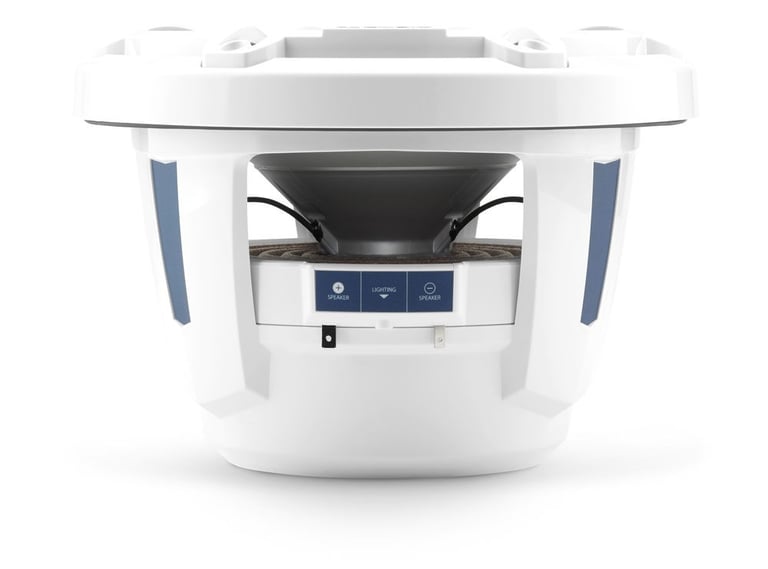

JL Audio M6-10IB-S-GwGw-4 (m610ibsgwgw4) M6 10" Marine Subwoofer

JL Audio M6-10IB-S-GwGw-4

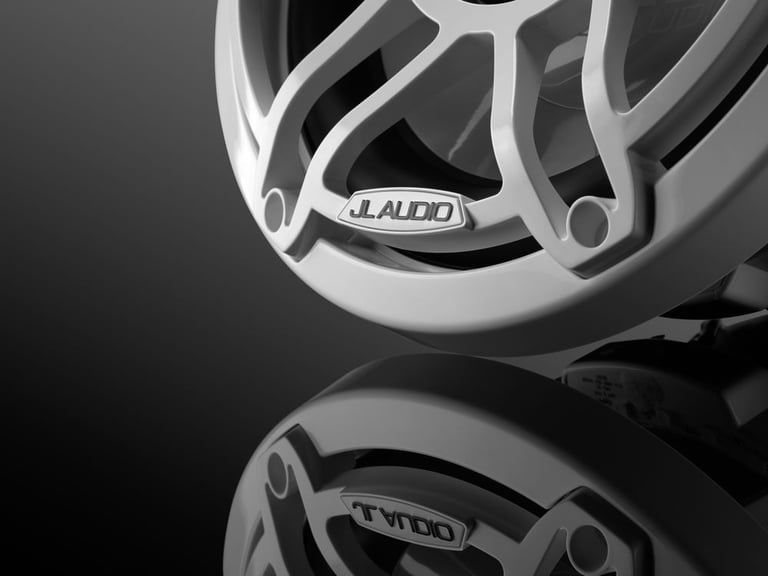

M6 10" Marine Subwoofer (250 W 4 Ω) Gloss White Trim Ring, Gloss White Sport Grille

M6 10" Marine Subwoofer (250 W 4 Ω) Gloss White Trim Ring, Gloss White Sport Grille

• 10" Marine Subwoofer
•Power: 250 W RMS 4 Ohm
• Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure.
• Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system
• Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds

List price $409.99
Save: $10.00

$399.99

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
JL Audio

Authorized dealer


General Features:

  • Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure.
  • Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.
  • The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l).
  • Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Power Handling

  • Continuous Power Handling (RMS): 250 W
  • Recommended Amplifier Power (RMS): 75 - 250 W
  • System Efficiency: 86.1 dB @ 1 W / 1 m
  • System Nominal Impedance: 4Ω

Specs

  • Nominal Diameter: 10.0 in / 250 mm
  • Overall Diameter: 10.75 in / 273 mm
  • Bolt Hole Circle Diameter: 9.70 in / 247 mm
  • Frontal Grilles Protrusion*: 1.66 in / 42 mm
  • Mounting Hole Diameter: 8.875 in / 225 mm
  • Mounting Depth: 5.90 in / 150 mm
  • Driver Displacement: 0.052 cu ft / 1.47 L
  • Net Weight: 8.70 lbs / 3.90 kg

Materials Used:

  • Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated with UV inhibitors for marine duty.
  • Marine-grade, synthetic fiber spiders with progressive roll designs to withstand high humidity.
  • Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion.
  • Gold-plated, marine-grade brass connection terminals
  • Marine-grade stainless steel mounting hardware is included.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • FEATURES & SPECS
    Subwoofer Specifications
    Subwoofer Series
    Subwoofer Size
    10"
    Peak Power Handling
    500 watts
    RMS Power Handling
    250 watts
    Voice Coil(s)
    Single
    Impedance (Per Voice Coil)
    4 ohms
    Voice Coil Diameter
    Sensitivity
    86.1 dB
    Xmax (millimeters)
    13.2 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    White
    Woofer Composition
    Mica Injected Polypropylene - MIPP
    Woofer Surround
    Synthetic Rubber
    Magnet Structure
    Subwoofer Grille
    Yes - Included
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Minimum Sealed Box Volume
    2 cubic feet
    Optimum Sealed Box Volume
    Minimum Ported Box Volume
    2.5 cubic feet
    Optimum Ported Box Volume
    Top-Mount Depth
    5.9"
    Cutout Diameter
    10.75"
    Electromechanical Parameters
    Free-Air Resonance (Fs)
    Equivalent Compliance (Vas)
    Total Speaker Q Value (Qts)
    Electrical Q Value (Qes)
    Electrical Resistance of Voice Coil (Re)
    Mechanical Q Value (Qms)
    Efficiency Bandwidth Product (EBP)
    What is in the box?
    WITB: Subwoofers
    Subwoofer
    Authorized Dealer
    Authorized Dealer
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer
