Infinity Reference 8632CFX (REF8632CFXAM)

360W Peak (120W RMS) 6x8" Reference Series 2 Way Coaxial 3-ohm Car Speakers

Infinity
Shop all Infinity
highlight-star-icon

• 180 watts Peak Each, 60 watts RMS Each
• Textile Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

Learn more about the do-not-use-ref8632cfx

We apologize

This item has been discontinued


Loading...
VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Description


Infinity brand icon

Authorized dealer

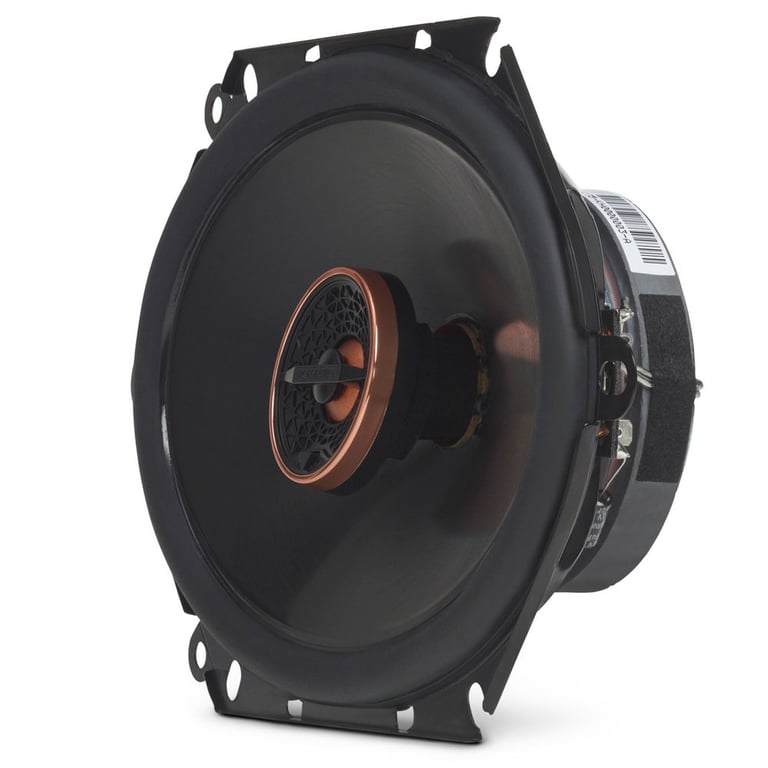

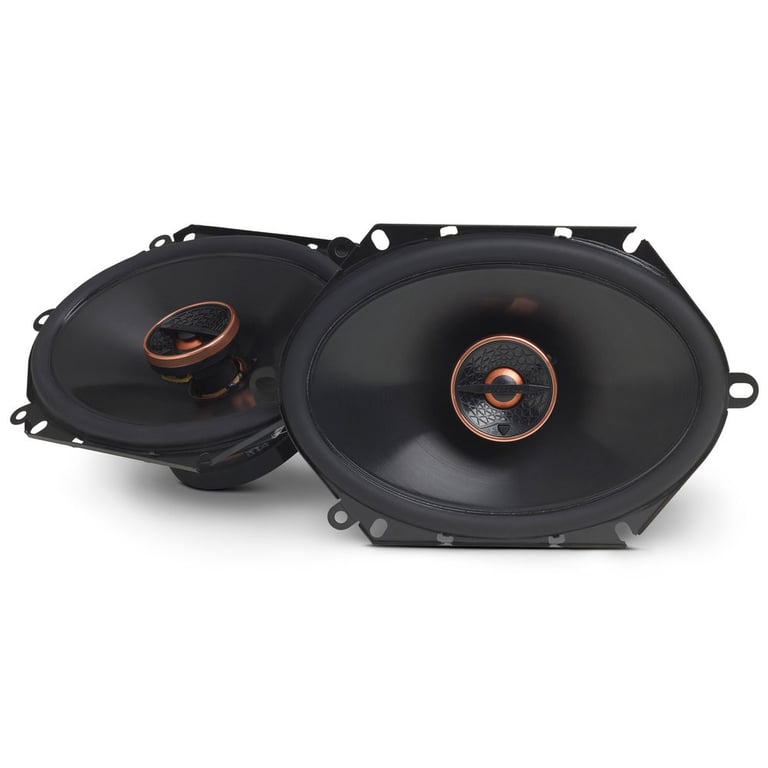

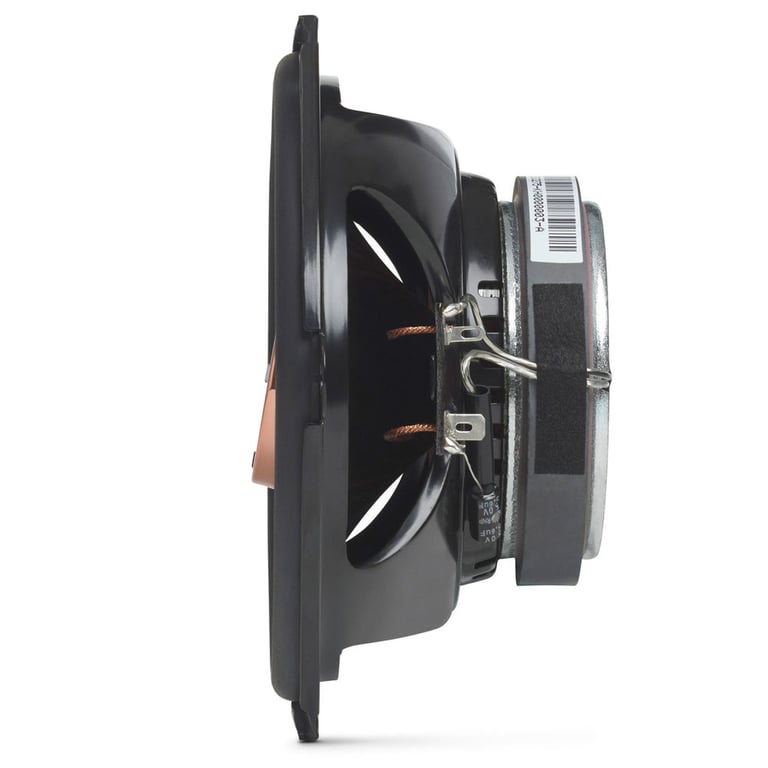

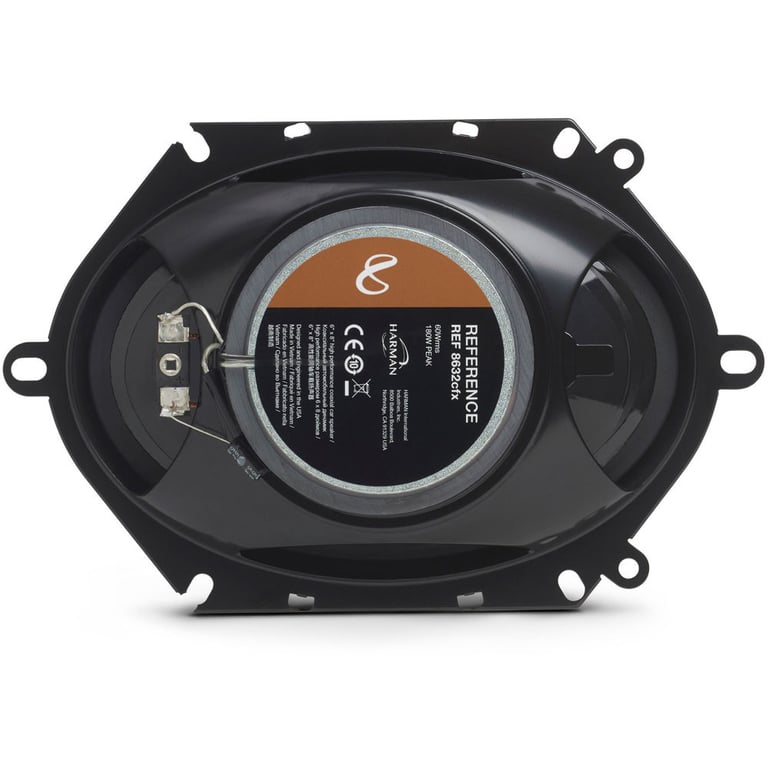

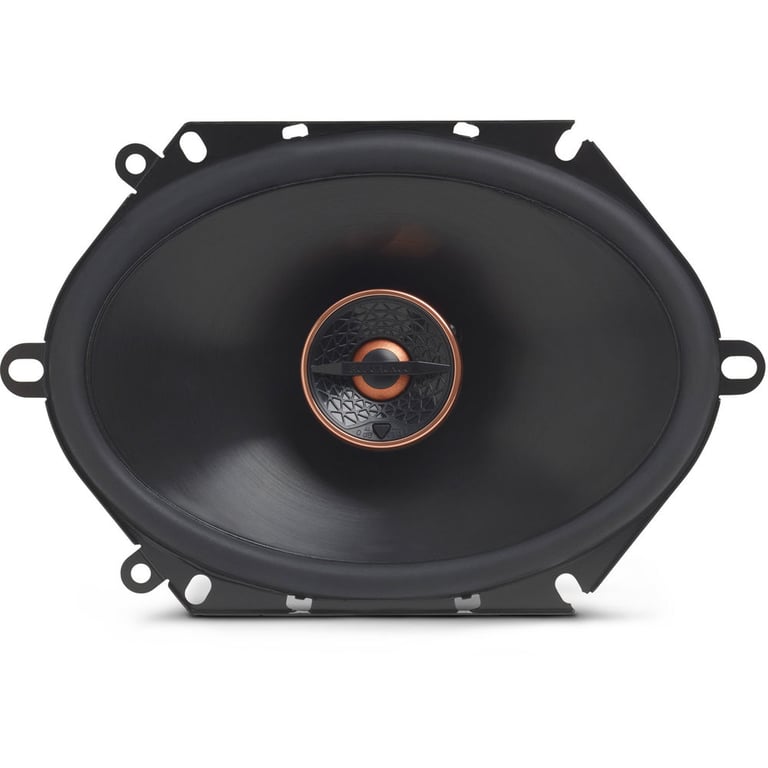

Infinity Reference 8632CFX

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations.


Product Details:

  • 6" x 8" Reference Series 2-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 360 watts per pair / 180 watts each
    • RMS: 120 watts per pair / 60 watts each
  • Polypropylene cone material
  • Foam speaker surround
  • Edge driven, textile tweeters
  • Adjustable tweeter output level
  • Plus One woofer cone architecture
  • Optimized Frame Size
  • Textile Dome Tweeters
  • Voice coil
  • magnet motor structure
  • Top-mount Depth: 2-7/16"
  • Cutout Dimensions: 7-1/4 x 5
  • Impedance: 3 ohm
  • Frequency Response: 49 - 21000 Hz
  • Sensitivity: 93 dB
  • Authorized Internet Dealer
  • MFR #: Reference 8632CFX
  • 1-year Manufacturer's Warranty

  • Priced Per Pair

Product history:

(newest, current model)
Infinity Reference 8632CFX thumbnail
(previous model, replaced by Infinity REF-8632CFX (REF8632CFXAM) (Open Box, Good))
Infinity REF-8622cfx thumbnail
(previous model, replaced by Infinity Reference 8632CFX (REF8632CFXAM))
Infinity REF-8602cfx thumbnail
(previous model, replaced by Infinity REF-8622cfx)
Infinity 6832cf thumbnail
(previous model, replaced by Infinity Reference X REF-8602cfx)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

AVH-2550NEX main

Pioneer AVH-2550NEX

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, and Android Auto (SiriusXM Ready)

-13.33%

$650.00

List price $750.00


Best selling similar products

C1-570x small

JL Audio C1-570x

• 50 watts RMS Each
• 3/4" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$129.99

List price $129.99

NSP68 small

NVX NSP68

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Mounting Depth: 2.63"

(59)

$79.99

List price $95.99

P1683 small

Rockford Fosgate Punch P1 P1683

• 130 watts Peak Each, 65 watts RMS Each
• 3/4" tweeter and 1/2" super tweeter PEI (Polyetherimide) Dome tweeters
• Injection-molded Mineral-filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(85)

$109.99

List price $109.99

PK1-168 small

MB Quart PK1-168

• 110 watts Peak Each, 55 watts RMS Each
• 1" Magnesium Dome tweeters
• Tunable waveguide tweeter housing
• Pop Paper-Mica Blend cone material
• Curvilinear cone design geometry
• Impedance: 4 ohm
• Sensitivity: 88.5 dB

$129.99

List price $189.99

VTEK-57Xi small

Earthquake Sound VTEK-57Xi

• 400 watts RMS Each
• 3/4" Silk Dome swiveling tweeters
• Glass Fiber cone material
• Impedance: 2 ohm
• Sensitivity: 90 dB

$129.99

List price $169.00

VSP68 small

NVX VSP68

• 300 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 2.59"

(46)

$89.99

List price $107.99

No picture

Jensen JS68K

• 250 watts Peak Each, 60 watts RMS Each
• 1-3/16" PEI (Polyetherimide) Dome tweeters
• 2-1/4" PEI (Polyetherimide) Dome midranges
• Woven Aramid Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

$139.99

List price $139.99

46CSC684 small

Kicker CSC68 (46CSC684)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material with EVC™ (Extended Voice Coil) technology
• Impedance: 4 ohm
• Sensitivity: 90 dB

(11)

$79.96

List price $119.99

Stadium GTO860C small

JBL Stadium GTO860C

• 300 watts Peak Each, 100 watts RMS Each
• 1-3/16" PEI (Polyetherimide) Dome Tweeters
• Glass Fiber cone material
• Impedance: 2.5
• Sensitivity: 93 dB

(3)

$199.95

List price $269.99

V68 small

Cerwin-Vega V68

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Balanced Dome Tweeters
• Carbon Fiber Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

$139.99

List price $139.99

Specifications & Details


Speaker Specifications
Series
Reference Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6" x 8"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Textile
Woofer Composition
Polypropylene
Woofer Surround
Foam
Peak Power Handling
180 watts
RMS Power Handling
60 watts
Total PEAK Per Pair/Set
360 watts
Total RMS Per Pair/Set
120 watts
Sensitivity
93 dB
Frequency Response
49 - 21000 Hz
Impedance (Per Voice Coil)
3 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-7/16"
Cutout Dimensions
7-1/4 x 5
CTA-2031 Compliant
No
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
No
Includes Damping Kit
without Damping Kit
Compatible vehicle types
Car/Truck/SUV/Van
What is in the box?
Paperwork
User manual
WITB: Speakers
Speakers (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Reference 8632CFX

Weight:

3.66lbs

Internal SKU:

do-not-use-ref8632cfx

Internal Product ID:

145789
