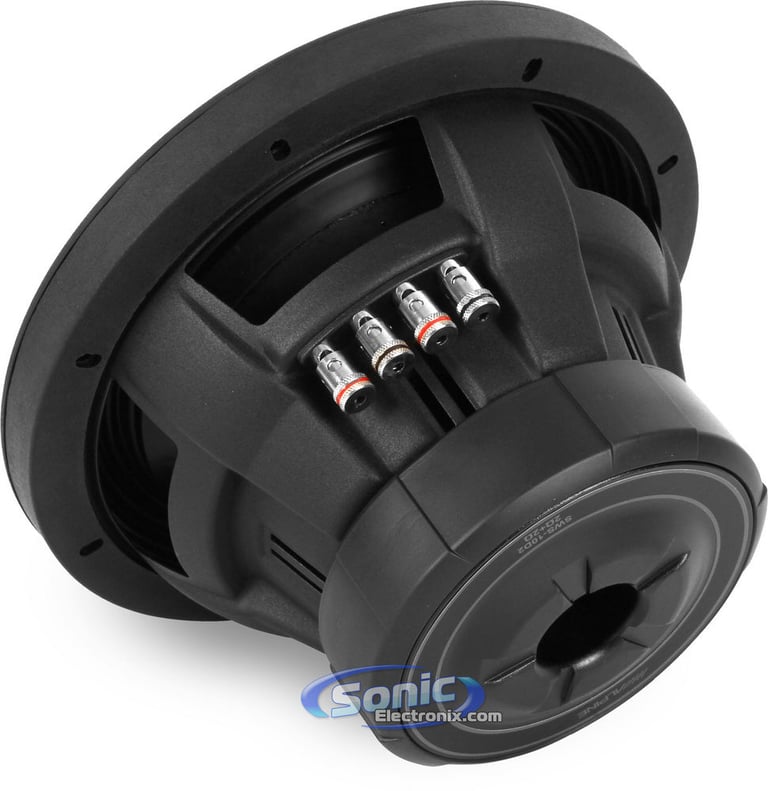

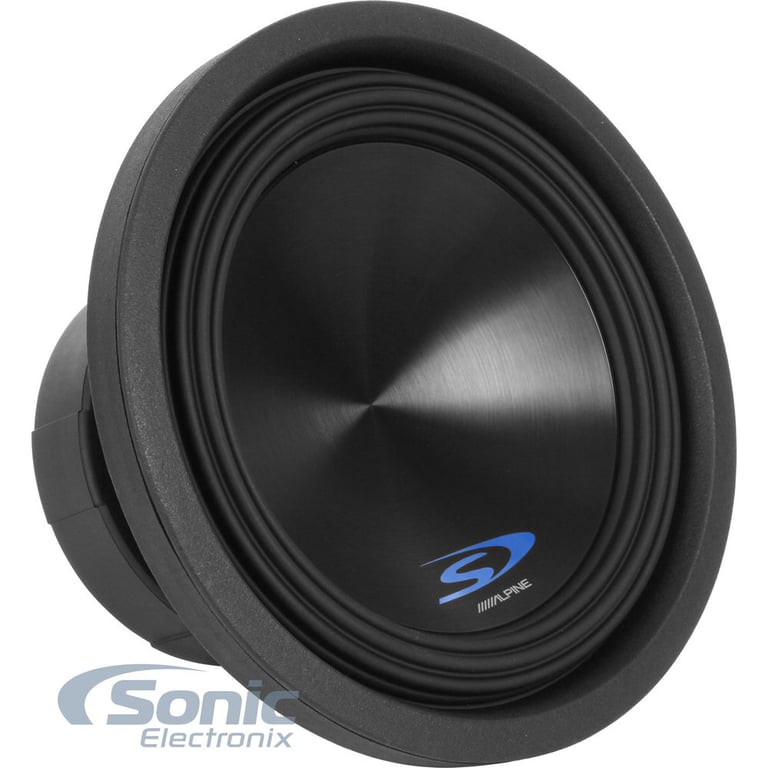

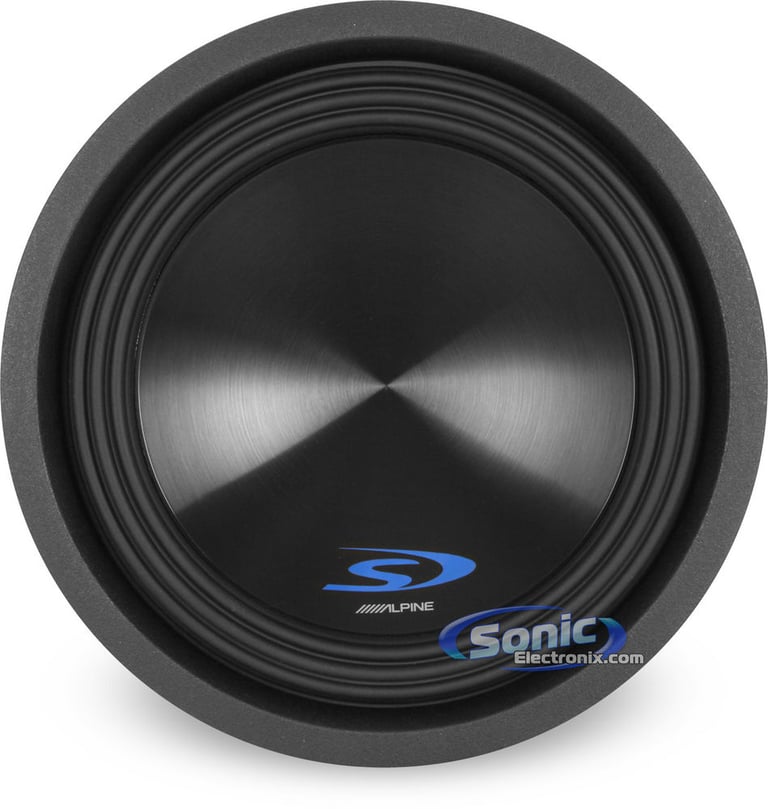

Alpine Type-S SWS-10D2

1000W Peak 10" Type-S Series Dual 2-Ohm High Performance Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

• 1000W Peak
• 500W RMS
• Dual 2-Ohm Voice Coil
• Kevlar Treated Pulp Cone
• Durable HAMR Santoprene™ Surround

Learn more about the sws10d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

s2w10d2 thumbnail

Alpine S2-W10D2

OUR PRICE: $191.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1743 main

Metra 70-1743 Wiring Harness

Install a new car stereo in select 1987-1996 vehicles from Mitsubishi, Dodge, Eagle

3

Product Highlights


• 1000W Peak
• 500W RMS
• Dual 2-Ohm Voice Coil
• Kevlar Treated Pulp Cone
• Durable HAMR Santoprene™ Surround

Description


Alpine brand icon

Authorized dealer




General Features:

  • 10" Type-S Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Recommended power range: 100 - 500 watts RMS
  • Impedance: Dual 2 ohm
  • Kevlar reinforced cone

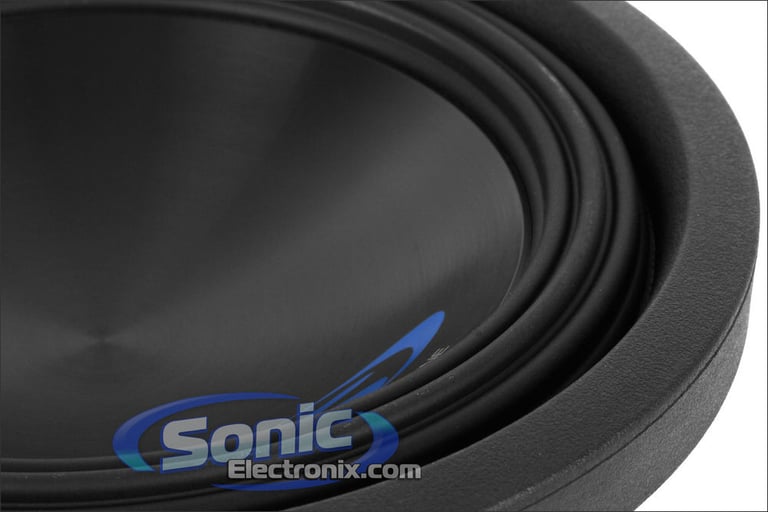

  • HAMR performance surround
  • Progressive spider for reliable and consistent control
  • FEA Optimized Dual-Sided CRC Motor Structure
  • CEA-2031 compliant
  • 10" Protective 2-Piece Subwoofer Grille Available, sold separately:
  • 2.5" Voice Coil
  • 64 oz. magnet motor structure
  • Frequency response: 28-200 Hz
  • Resonance Frequency (Fs): 35 Hz
  • Sensitivity: 85.1 dB
  • Top-mount depth: 5-9/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Priced Individually



PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

Alpine S2-W10D2 thumbnail
(newest, current model)
Alpine S-W10D2 thumbnail
(previous model, replaced by Alpine S2-W10D2)
Alpine SWS-10D2 thumbnail
(previous model, replaced by Alpine S-W10D2)
Alpine SWS-1023D thumbnail
(previous model, replaced by Alpine Type-S SWS-10D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine Type-S SWS-10D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine Type-S SWS-10D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine Type-S SWS-10D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Alpine Type-S SWS-10D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Type-S Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Frequency Response
28 - 200 Hz
Sensitivity
85 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
Santoprene Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.50 cubic feet
Optimum Sealed Box Volume
0.54 cubic feet
Maximum Sealed Box Volume
0.85 cubic feet
Minimum Ported Box Volume
0.75 cubic feet
Optimum Ported Box Volume
1.22 cubic feet
Maximum Ported Box Volume
1.3 cubic feet
Top-Mount Depth (Mounting Depth)
5-9/16"
Cutout Diameter
8-5/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
3.5 Hz
Equivalent Compliance (Vas)
25 liters
Total Speaker Q Value (Qts)
0.49
Electrical Q Value (Qes)
0.52
Electrical Resistance of Voice Coil (Re)
1.8 ohm
Mechanical Q Value (Qms)
7.54
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SWS-10D2

Weight:

10.00lbs

Internal SKU:

sws10d2

Internal Product ID:

45532

Product and How-to Videos


Customer Ratings & Reviews


Alpine Type-S SWS-10D2 thumbnail image

5 star
85%
4 star
15%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Alpine Type S

Its a good sub, i own 2 10s in my 2002 dodge ram. They sit under the back seat and they hit hard, I owned the JL w3 and honestly think that JL sounds better but they are more expensive

By BerzerK on January 31, 2014

47 found this helpful


Awesome subs, great price. Excellent customer service

I would definitely recommend sonic electronix, fast shipping for going across North America, I will be buying more in the near future

By Bmack on May 11, 2014

42 found this helpful


Excellent sub

The Alpine SWS-10D2 sub is the best for the money!
I have it and it hits very hard

By ACE on March 17, 2014

41 found this helpful


Great Sub

I am using this sub in my 2006 Dodge Magnum SRT8. I didnt want to loose any space in the back that I use for my dogs So I used the MTX Audio Thunderform enclosure. It worked out great but took some tinkering to make it seal perfectly with that enclosure. But once it was done I have some nice hitting bass. The interesting thing is that I can be inside the car and heave my ears hurting from the pressure from the sub, but on the outside of the car you can barely tell there is a sub pounding. I dont know if its just my car or the setup in the back? Either way at least I dont have to be worried about a cop stopping me for a noise issue.

By Andrew on February 10, 2014

42 found this helpful


sws 10d2

great sub for the price, amazing sound quality and bass

By MATTHEW on September 12, 2013

40 found this helpful


Great Value

if I liked them and I'm happy with a speaker but I'm looking for an amplifier that can. thank you.

By pedrikis on July 19, 2013

40 found this helpful


beast of a woofer!

I got two of these and they're breaking in nicely after about a week or 2. I have these babies in a shared chamber sealed box that I built roughly 1.12 cubes so right at what alpine calls for. They're running 500rms each powered by my kicker dx1000.1. They will hit as low as my 15's and keep wanting more. not so much loud as rumbling and super clean sounding. Love them and recommend so hard.

By Will on March 2, 2013

38 found this helpful


Awesome!

For the price you can't get anything better. Build quality is really good. I hooked mine up to a pioneer 400w rms amp and it hits way harder than most 12's. I am really impressed with this sub. Alpine makes good stuff. If you are looking for a good sub buy this one you won't regret it.

By Justin on December 14, 2014

37 found this helpful


Rockin my Impreza TS

I hooked this sub up to the Kenwood KAC-8105D amp. I only have it wired to 4 ohms, which gives it 300w rms, and I can only imagine what it would sound like with the whole 500w rms. This thing beats hard and clean! Sounds great and shakes the mirrors. I like this sub so much, I might even get a dual box and another one of these subs!

By Justin on March 14, 2013

37 found this helpful


good

this sub sounds very clean and it gets very loud in a sealed box at 400 rms. it also looks very nice and is the best woofer for the price!

By darren on February 25, 2013

31 found this helpful




No picture

Scosche HA1562B / HA1562

$9.99

List price $19.99

MRP-F450 small

Alpine MRP-F450

4-Channel Amplifier

(7)

$199.99

List price $399.99

RE6.5FR small

RE Audio RE65FR

140W 6.5" 2-Way FR Series Coaxial Speakers w/ Silk Tweeters

(10)

$54.95

List price $124.99

MRV-F345 small

Alpine MRV-F345

4-Channel Class A/B Amplifier

(2)

$269.99

List price $449.99

CDX-M10 small

Sony CDX-M10

Marine CD, MP3, WMA Receiver

(18)

$109.99

List price $159.99

4652CFP small

Infinity Reference 4652cfp 4" x 6"

(1)

$74.99

List price $109.99

VIR-8300NRT small

Soundstream VIR-8300NRT

In-Dash 8.3" TFT-LCD Touchscreen Monitor with DVD/CD/MP3 Player, USB, Aux-In and TV Tuner

(1)

$339.95

List price $599.99

07CVR154 small

Kicker CVR154 (07CVR154)

15" Dual 4 ohm CompVR Series Car Subwoofer

(45)

$129.99

List price $299.95

VIR-5100 small

Soundstream VIR-5100

In-Dash DVD, CD, MP3 Receiver with 5" TFT-LCD Touchscreen Monitor, USB Port and Aux In-put

$229.95

List price $319.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1992 Eagle Talon

1999 Chevrolet Corvette

2003 Dodge Durango

2003 MINI Cooper

2015 Ram C/V

2007 Dodge Sprinter 2500

2007 Ford Freestar

2000 Lexus RX300

2011 Dodge Challenger

2016 Audi Q3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
