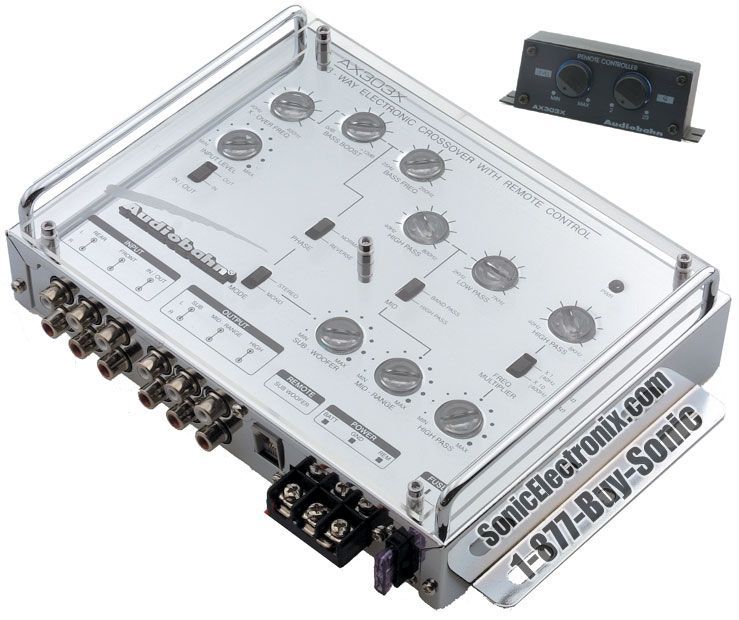

Audiobahn AX303X 3-Way Electronic Crossover

Audiobahn
Shop all Audiobahn
highlight-star-icon

3-way Electronic Crossover • Remote subwoofer gain control included • bass boost control • front and rear RCA inputs

Learn more about the ax303x

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

20
-28.59%

$9.99

List price $13.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
H735 main

Cerwin-Vega H735

500W Peak (60W RMS) 3.5" HED Series 2-Way Coaxial 4-ohm Speakers

34
-16.67%

$59.99

List price $71.99

43DSC3504 main

Kicker DSC350 (43DSC3504)

160W Peak (40W RMS) 3.5" DS Series 2-Way 4-ohm Coaxial Car Speakers

15
-15.39%

$54.99

List price $64.99

Limited time!
Kappa 693M main

Infinity Kappa 693M (INFSPKKA693MAM)

720W Peak (240W RMS) 6x9” Kappa Series 3 Way Coaxial 3-ohm Speakers

6
-31.43%

$239.95

List price $349.95

Limited time!
HDZ-65 main

Alpine HDZ-65

600W Peak (200W RMS) 6.5” Status Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

1
-33.17%

$527.95

List price $790.00

NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

UNIFRING main

NVX UNIFRING

Universal Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 6)

5
-16.65%

$29.99

List price $35.98

Description


Crossovers act as a filter to deliver specific frequencies to specific speakers. This means the tweeters get the music info for the tweeters, the mids get the music info for the mids and the woofers get the music info for the woofers. Keeps your system playing cleaner, safer and better.
  • 18dB per Octave Crossover Slopes
  • PWM Power Supply
  • Variable Q (2 – 20)
  • Subwoofer Gain Remote Module
  • Variable Bass Boost Frequency: 25Hz – 250Hz
  • Variable Bass Boost: 0 – 12dB
  • Stereo/Mono Subwoofer Switch
  • 0/180° Subwoofer Phase Switch
  • Band Pass/High Pass Midrange Switch
  • Variable Low Pass Crossover: 40Hz - 400Hz
  • Variable Band Pass Crossover: High 40Hz - 800Hz & Low 2kHz - 7kHz
  • Variable High Pass Crossover: 40Hz - 8kHz
  • 1/10x Crossover Multiplier (High Pass Only)
  • Front & Rear RCA Inputs
  • Low, Band Pass, High, & Full Range RCA Outputs
  • Variable Input Level Control
  • Variable Output Level Controls
  • Remote Output and Bass Boost Control
  • Blue Backlight Knobs on Remote
  • Blue LED Indicator Lights
  • Chrome Plated Steel Chassis
  • Chrome Plated Protective Handles
  • Clear Acrylic Protective Cover
  • 1-year SonicElectronix.com warranty
