Jensen VM9512HD + NAV102 Package

Combo with GPS Navigation + In-Dash 7" LCD Monitor with Touchscreen, BUILT-IN Bluetooth Hands-Free Kit and HD Radio Tuner, Multimedia DVD, CD, MP3 Player, iPod Cable Included, USB, SD Slot and Remote (VM-9512HD + NAV-102)

Jensen
Shop all Jensen
Product videos
highlight-star-icon

In-dash DVD, CD, MP3 Player with BUILT-IN BLUETOOTH Capability, USB, SD Slot, iPod Connection Cable and Remote • 60W x 4 chan. Max • 18W x 4 chan. RMS • Navigation and XM Radio Ready • 3 Sets of 4V preamp outputs • Includes FREE HD Radio and iPod Accessories!

Learn more about the vm9512hd_nav102

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


In-dash DVD, CD, MP3 Player with BUILT-IN BLUETOOTH Capability, USB, SD Slot, iPod Connection Cable and Remote • 60W x 4 chan. Max • 18W x 4 chan. RMS • Navigation and XM Radio Ready • 3 Sets of 4V preamp outputs • Includes FREE HD Radio and iPod Accessories!

Description


Jensen brand icon

Authorized dealer

Jensen VM9512HD Key Features:

Connectivity is Jensen's middle name when it comes to the VM9512HD. The VM9512HD virtually plays all disc types (see description below for complete list) and with easy touchscreen controls all features are a finger away. The 7" LCD touchscreen can also control an iPod through the included adapter cable, 4GB worth of music stored on a SD card, digital files from a USB thumb drive or storage device. New for this year is the ability to also add an optional navigation system to the VM9512HD and it also can be controlled by the touchscreen.

Another great connectivity addition for safety and convenience is the built-in Bluetooth controls that allow you to place and receive calls, as well as streem A2DP audio files through your stereo system from a compatible Bluetooth phone.

A remote mount MediaLink4 center makes it easy to add additional components, with connections for Jensen's included iPod cable, a mini jack 3.5mm auxiliary input, a USB port, and RCA connections. All ports are easily accessible on the front of the MediaLink4 interface, and it can be mounted seemingly anywhere in your vehicle, such as under your dash, in a glove compartment or center console.

The Jensen VM9512HD also allows your rear-seat passengers to enjoy separate sources of entertainment from the front passenger with dual zone capability. For example, you and your driving mate in front can enjoy music, while passengers in the back can watch a movie on an optional flip-down or backseat screen.

Be sure to checkout Jensen's optional navigation system, so you can add turn-by-turn instructions with voice guidance through an easy-to-use graphic interface. The system comes with a 2GB SD card preloaded with US maps.

General Features:

  • In-dash DVD, CD, MP3 Player with BUILT-IN BLUETOOTH Capability, USB, SD Slot, iPod Connection Cable and Remote
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone

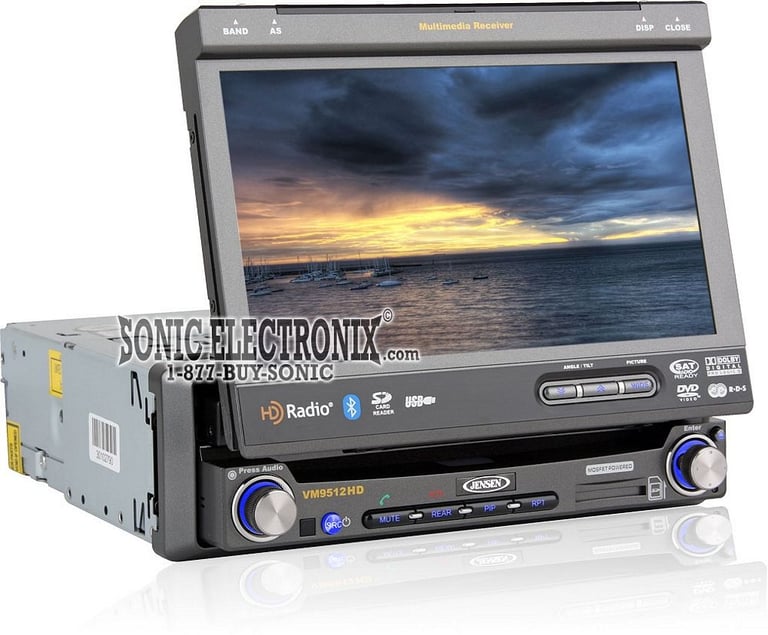

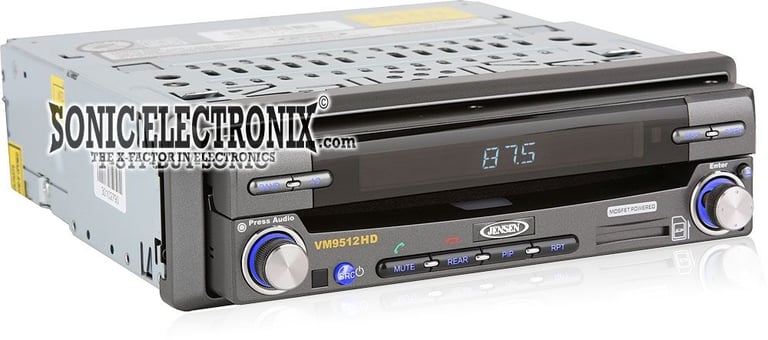

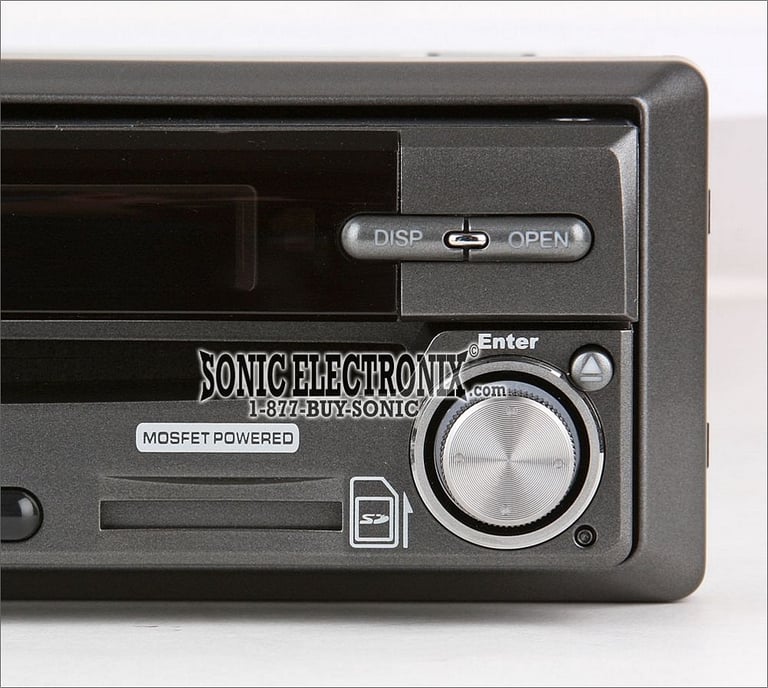

  • Flip-out retractable face
  • 7" LCD touchscreen display

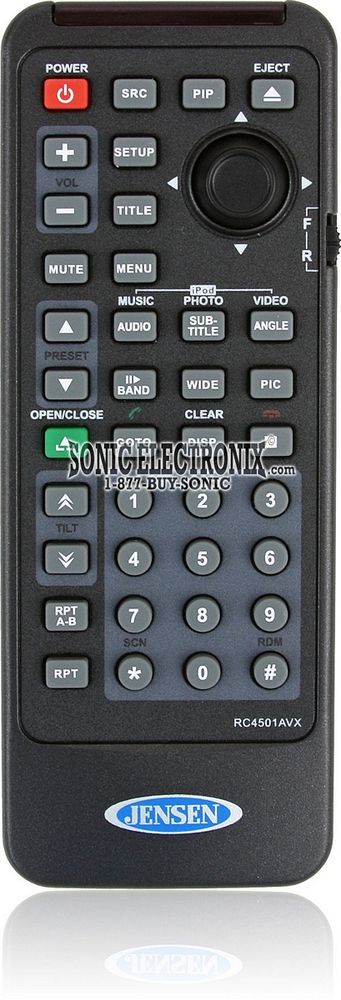

  • Wireless remote control included
  • Blue button lighting
  • Power Output:
    • Peak: 60 watts x 4 channels
    • RMS: 18 watts x 4 channels
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year Manufacturer's warranty

Playback and Audio Features:

  • Playback of CD, CD-R/RW, DVD+R/RW (including discs loaded with MP3, WMA, and AAC files), SVCD, VCD, DivX, DVDs, DVD+Rs, and XviD
  • Picture-in-picture capable
  • Dual-zone capable
  • Dolby Digital and Pro-Logic II/5.1 with Time Delay
  • DVD signal-to-noise: ratio 95 dB
  • FM sensitivity: 10 dBf

Expandability Options:

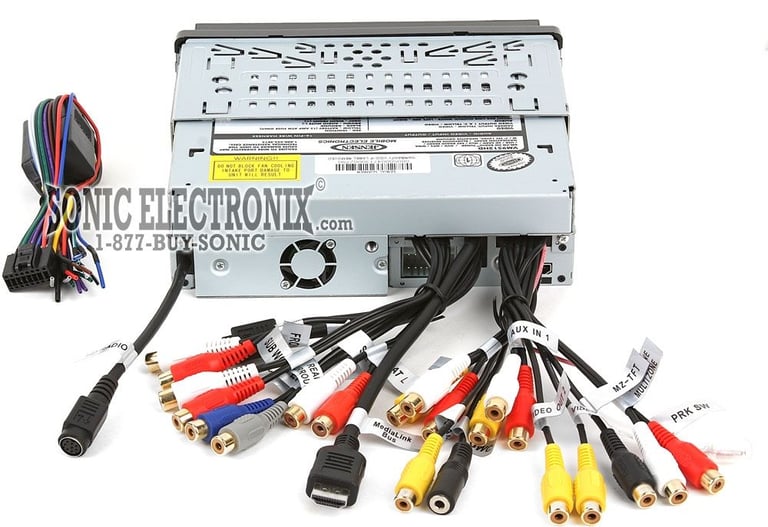

  • 3 Sets of 4V preamp outputs (front, rear, and subwoofer)

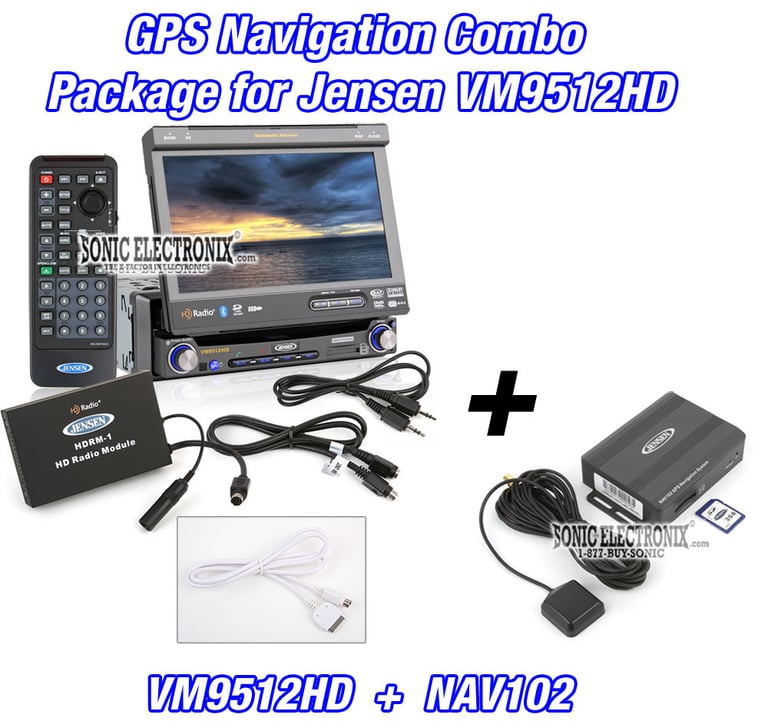

  • Navigation Included: Jensen NAV102 navigation add-on module INCLUDED IN THIS COMBO PACKAGE!
  • XM Satellite Radio Ready: A subscription is required for service as well as the Jensen XM Radio Package

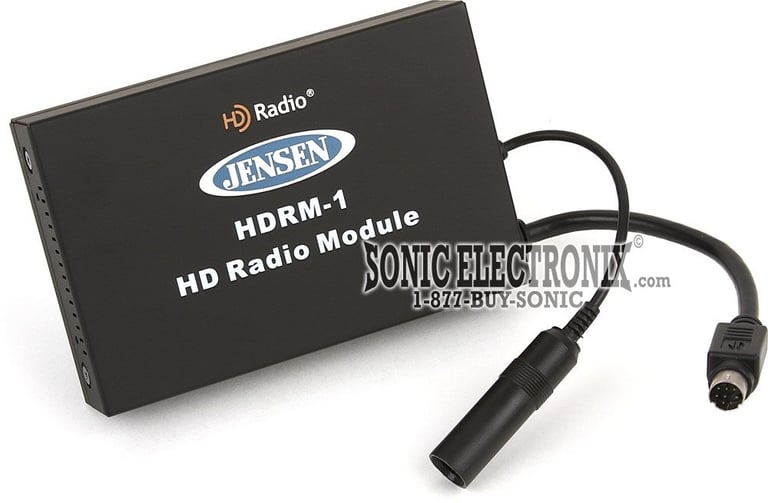

  • HD Radio Ready: FREE HD Radio tuner module included!
  • Bluetooth Ready: Built-in Bluetooth wireless technology

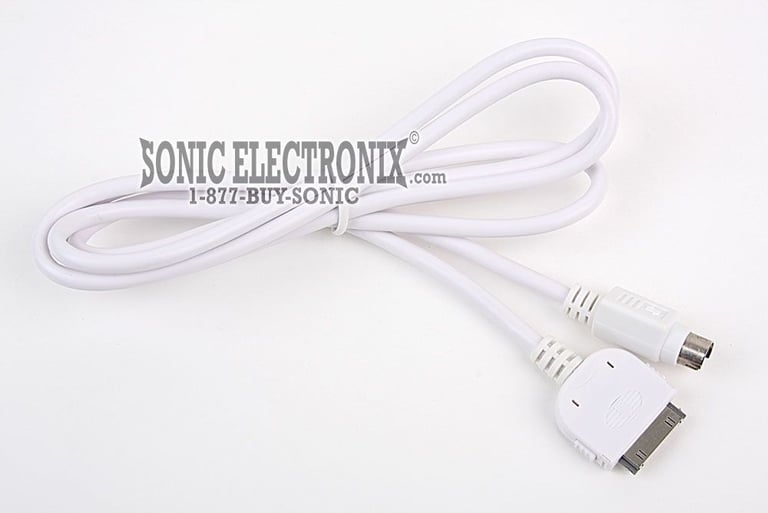

  • iPod ready: FREE iPod adapter cable included!
    • The Apple iPhone 3G, iPod Touch 2nd Gen, and any other newly released iPods can be controlled using the iPod adapter above; however, charging will not be possible unless you purchase the Scosche IFWA PassPORT charging adapter.
  • Steering wheel remote ready: PAC SWI-PSv1 required and sold separately

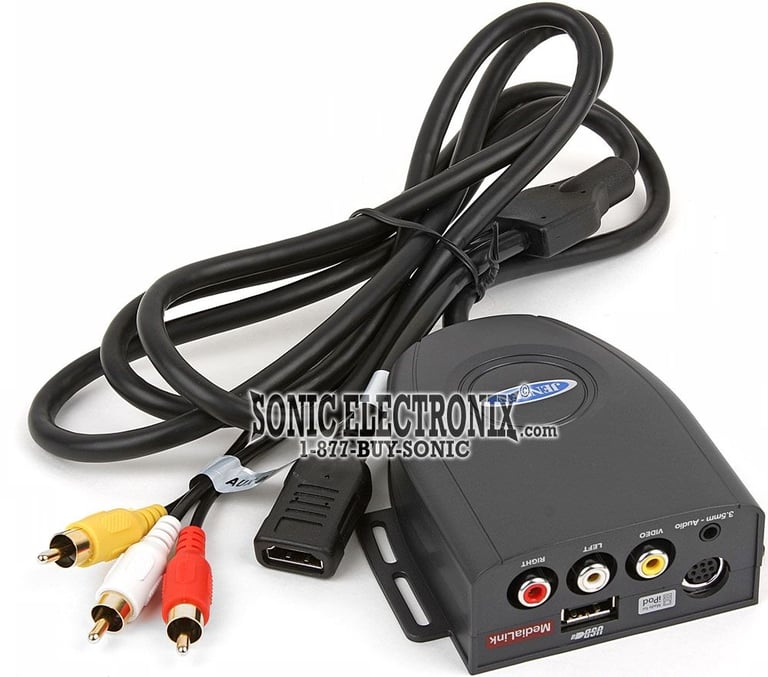

  • Included remote-mount MediaLink4 auxiliary input module: includes USB connector, minijack, iPod cable connector, and RCA jacks
  • SD Card reader
  • 2 Audio/video inputs
  • 2 Video outputs
  • Rear camera input

Jensen NAV102 Key Features:

The Sky is the Limit

In conjunction with industry leaders Horizon Navigation, NavMate, and TeleAtlas, Jensen introduces the NAV102. This add-on GPS navigation system is the perfect way to get the most out select Jensen headunits. The system accurately gives turn-by-turn direction to your destination, as well as voice guidance from your choice of male or female voices. With over 11 million points of interest built in, you will always have plenty of places to go and food to eat. The NAV102 is just about everything that you could want in a navigation system!

  • Add-on GPS Navigation System compatible with select Jensen In-Dash DVD Receivers
  • 2 GB SD Card preloaded with USA maps
  • Easy to use graphics interface
  • Night mode and day mode for optimal viewing
  • 2D and 3D Map view options
  • Path analysis using optimized roads
  • 11 Million points of interest
  • Male and female text to speech (TTS) guidance
  • Both male and female recorded voice guidance
  • Supports 20 different languages
  • Accurate guidance and reliable routes
  • Turn-by-turn instructions
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

DMH-1800NEX small

Pioneer DMH-1800NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Easy to use graphic user interface

(3)

$339.99

List price $420.00

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

DAX800XR small

Kenwood eXcelon DAX800XR

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from GMC, Chevrolet, Nissan
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(1)

$999.00

List price $1500.00

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Controls
Wireless Remote
Yes
Peak Power Output
60 watts x 4 channel
RMS Power Output
18 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
Bass and Treble Controls with EQ Presets
Display Type
TFT-LCD Display
Touchscreen
Yes
Expandability Features
Inputs
Audio/Video (Rear)
Auxiliary (Front)
Auxiliary (Rear)
Backup Camera
Outputs
Composite Video (RCA)
Memory Card Slot
SD
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Navigation Features
Map Database
Tele Atlas
Maps
Complete 50 USA
Map Dimensional Display
2D
3D
Points of Interest
4 Million
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VM9512HD+NAV102

Weight:

13.00lbs

Internal SKU:

vm9512hd_nav102

Internal Product ID:

14730
