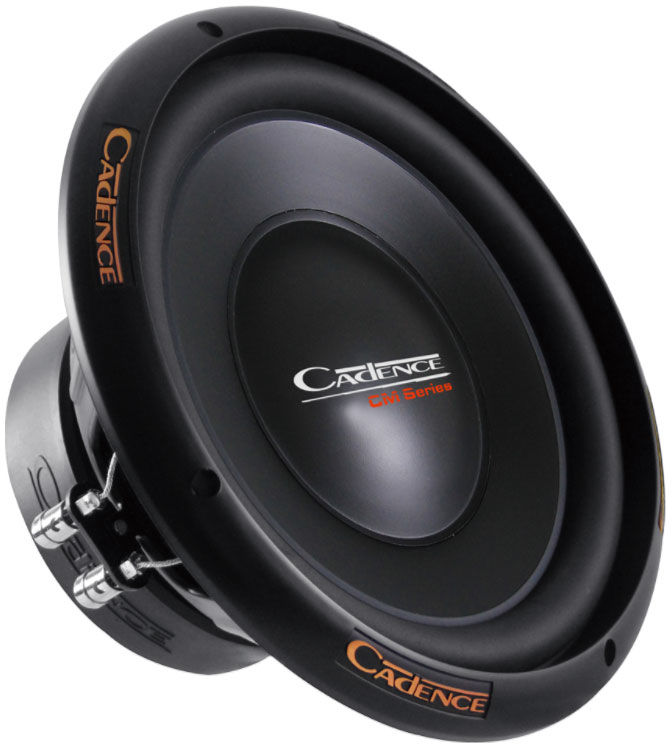

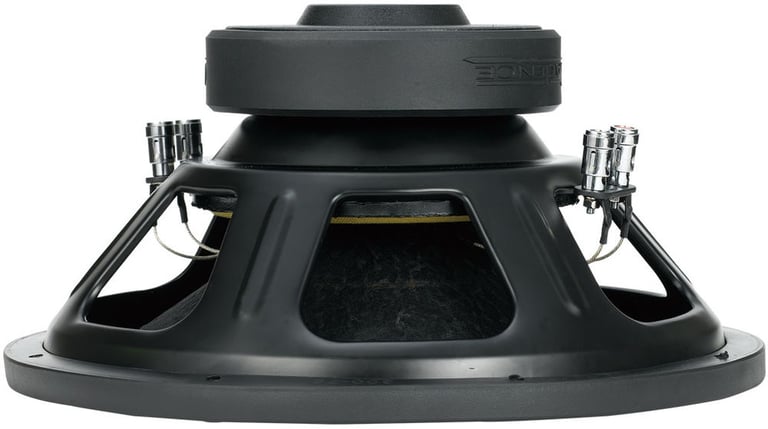

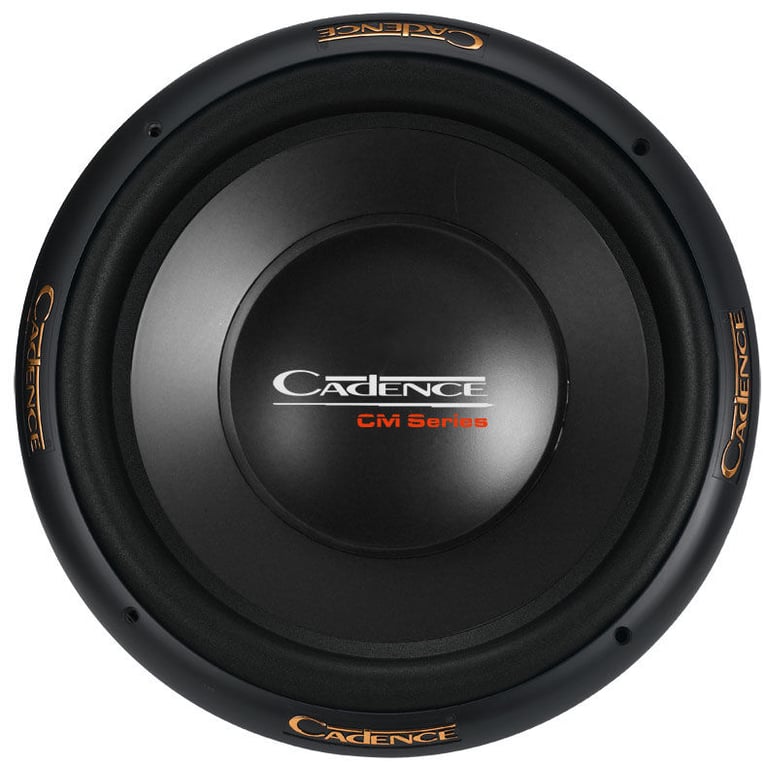

Cadence CM12D2 (CM 12D2)

600W Max (300W RMS) 12" CM Series Dual 2 ohm Car Subwoofer

Cadence
Shop all Cadence
highlight-star-icon

• 600 Watts Max
• 300 Watts RMS
• Mica-Filled Polypropylene Cone
• Rubber Surround
• Stamped Steel Basket
• Dust Cap

Learn more about the cm12d2

We apologize

This item has been discontinued


Loading...
RSFD3 main

Kleinn RSFD3 Remote Start for Select 2014-2025 Ford Vehicles

Easy DIY Remote Starter Kit for Key-to-Start and Push-to-Start Vehiles, Takes Less Than 1 Hour to Install

-17.39%

$189.99

List price $229.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

KIT-FTR1 main

iDataLink Maestro KIT-FTR1 Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2015-2022 vehicles from Ford (Requires MRR or MRR2 module)

-17.65%

$279.99

List price $339.99

82-5606 main

Metra 82-5606

6x9" Front Door Speaker Bracket for select 2015-2025 vehicles from Ford, Lincoln

15
-48.62%

$16.95

List price $32.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

FSB1501 main

PAC FSB1501

6", 6.5", 6.75", or 6x9" Speaker Mounting Adapters for select 2015-2021 F-150 and F-250 Super Duty and F-350 Super Duty

-20.41%

$39.00

List price $49.00

LPHFD21 main

PAC LPHFD21

Vehicle Specific Audio Integration T-Harness for select 2011-2020 vehicles from Ford

-42.20%

$63.00

List price $109.00

72-5603 main

Metra 72-5603

Install New Tweeters in select 2015-2024 F-150 and Bronco and Maverick

4
-20.01%

$11.99

List price $14.99

Description


Cadence brand icon

Authorized dealer

General Features:

  • 12" Dual 2 ohm CM Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Recommended power range: 100W to 300W RMS
  • Mica-filled polypropylene cone
  • Rubber surround
  • Stamped steel basket
  • High temperature KSB voice coil
  • CMD Motor with 54 oz. Magnet
  • Top-mount depth: 5.59"
  • Cutout diameter: 11.18"
  • Frequency Response: 28 - 800Hz
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the CM12D2 Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cadence CM12D2 (CM 12D2) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cadence CM12D2 (CM 12D2) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cadence CM12D2 (CM 12D2) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Cadence CM12D2 (CM 12D2) Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
R2-DB8V-TRK main

Alpine R2-DB8V-TRK

2000W Peak (700W RMS) Loaded Dual 8" R-Series Vented Truck Enclosure for select 2007-2024 vehicles from Ford, Jeep, Ram

1
-16.67%

$999.95

List price $1200.00

SBX-F-150-SCDBL/12TW3 main

JL Audio Stealthbox® SBX-F-150-SCDBL/12TW3

Loaded Dual 12" Sealed Fiberglass Enclosure for select 2009-2026 vehicles from Ford

$2,199.99

S2-DB8V-TRK main

Alpine S2-DB8V-TRK

600W Peak (300W RMS) Loaded Dual 8" Vented Enclosure for select 2007-2024 vehicles from Jeep, GMC, Ford

-16.67%

$849.95

List price $1020.00

SB-F-F150SPRCB/10TW3 main

JL Audio Stealthbox® SB-F-F150SPRCB/10TW3

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2015-2025 vehicles from Ford

$1,349.99

SB-F-150-SPRCRW/13TW5v2/BK main

JL Audio Stealthbox® SB-F-150-SPRCRW/13TW5v2/BK

Custom fit subwoofer enclosure for select 2009-2025 vehicles from Ford (Black)

$1,549.99

SB-F-150-SPRCRW/13TW5v2/TN main

JL Audio Stealthbox® SB-F-150-SPRCRW/13TW5v2/TN

Custom fit subwoofer enclosure for select 2009-2025 vehicles from Ford (Camel)

$1,399.99

TXFF15D10 main

AudioControl TXFF15D10

1200W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2015-2024 vehicles from Ford

-7.70%

$1,199.00

List price $1299.00

TXTRB10 main

Stinger TXTRB10

800W Peak (400W RMS) Loaded Single 10" Enclosure for select 2007-2020 vehicles from Ford, Chevrolet, GMC

-10.79%

$579.00

List price $649.00

EXCL-FORDBASS.FF/17-UP.LD main

DS18 EXCL-FORDBASS.FF/17-UP-LDPKG

4800W Peak (2400W RMS) Loaded Quad 8" Sealed Enclosure and Amplifier Package for select 2017-2024 F-150 and F-350 Super Duty and F-250 Super Duty

-16.67%

$2,579.95

List price $3095.99

FD-F150-10 main

VIBE FD-F150-10

900W Peak (300W RMS) Loaded Single 10" Vented Truck Subwoofer Enclosure for


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
CM
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
28 - 800 Hz
Sensitivity
88 dB
Xmax (millimeters)
8.12 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Optimum Sealed Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5.59"
Cutout Diameter
11.18"
T/S Parameters (Electromechanical)
Equivalent Compliance (Vas)
74.5 liters
Total Speaker Q Value (Qts)
.431
Electrical Q Value (Qes)
.485
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
3.887
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CM12D2

Weight:

10.00lbs

Internal SKU:

cm12d2

Internal Product ID:

149781
