JL Audio C5-525x

(450W Max) Evolution C5 Series 5.25" 2-Way Coaxial Speaker System

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• Peak Power: 225W per channel
• RMS Power: 75W per channel
• Mineral Filled Polypropylene Cone
• Butyl Rubber Surround
• Silk Dome Tweeter
• Cast Alloy Frame
• Elevated Frame Cooling
• 4 ohm

Learn more about the c5525x

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


• Peak Power: 225W per channel
• RMS Power: 75W per channel
• Mineral Filled Polypropylene Cone
• Butyl Rubber Surround
• Silk Dome Tweeter
• Cast Alloy Frame
• Elevated Frame Cooling
• 4 ohm

Description


JL Audio brand icon

Authorized dealer


Save on the Open Box Version:
Available Now - CLICK HERE

Will fit most 6x9" and 5x7"/6x8" locations,
with appropriate speaker adapter. Click "Related Items" Tab.

JL Audio Evolution® C5 Series Coaxial Speaker System


Evolution™ C5 is a serious product, engineered by JL Audio to meet the demands of the toughest acoustic and environmental conditions in the high-fidelity world. It is not about cute buzzwords or the exotic material of the month... it's all about making your music come alive with realism and excitement. C5 woofers and tweeters are precision-built in Germany alongside JL's flagship ZR components, incorporating their exclusive DMA-optimized motor and patented Elevated Frame Cooling technologies. Particular emphasis has been placed on off-axis response and dynamic stability which might not be that important during a five-minute evaluation on a demo board but makes all the difference when installed in your car. The system is comprised of high-end silk dome tweeters, die-cast alloy baskets, and renowned Kurt Müller designed cones and suspensions. In addition, C5 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations! The combination of these components provide smooth and transparent audio for the true Audiophile!

Silk Dome Tweeter

JL Audio C5 tweeters incorporate silk dome diaphragms to deliver smooth high-frequency transitions, on and off-axis. Silk is a natural material with inherently good characteristics as a tweeter diaphragm. In addition to being very light in weight, silk exhibits excellent damping properties, which reduces ringing and resonances in the tweeter's passband, leading to a smooth, pleasing high-frequency character free from unnatural sibilance or exaggerated brightness. This is why a Silk Dome Tweeter is preferred by many audiophiles for its overall balance. The small size of the tweeter minimizes tweeter protrusion, allowing it to easily fit behind most factory speaker grilles.


Unparalleled Build and Precision

DMA is JL Audio's proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, Evolution C5 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate low end. In addition, JL Audio turns to their partners at Germany's Dr. Kurt Müller & Co. for critical cone and suspension elements that provide unparalleled woofer performance.


Product Features:









  • 5.25" Evolution C5 Series 2-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 450 watts per set / 225 watts per channel
    • RMS: 150 watts per set / 75 watts per channel
  • Recommended Power Range: 25 - 150 watts per channel
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Cast Alloy Frame/Basket
  • Elevated Frame Cooling
  • Ferrite Woofer Magnet
  • 1.00" Voice Coil on Kapton® Former
  • Low-Profile, Symmetrical Roll Spider
  • Dynamic Motor Analysis (DMA) Optimized Motor
  • 0.75" Silk Soft Dome Tweeter
  • Ferrofluid Cooling/Damping Neodymium Tweeter Magnet

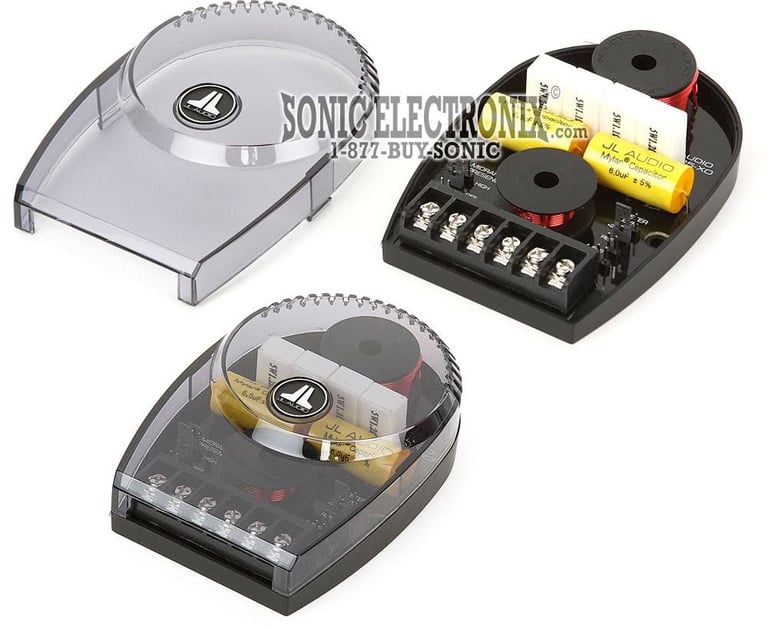

  • 2-way Crossover Network w/ 2nd Order Low-Pass and 2nd Order High-Pass Circuit
  • Premium Mylar® Capacitors w/ Air-Core Inductors
  • 4-Position Adjustable Tweeter Output Level
  • 3-position Mid-range Presence Control
  • Polyswitch Tweeter Protection

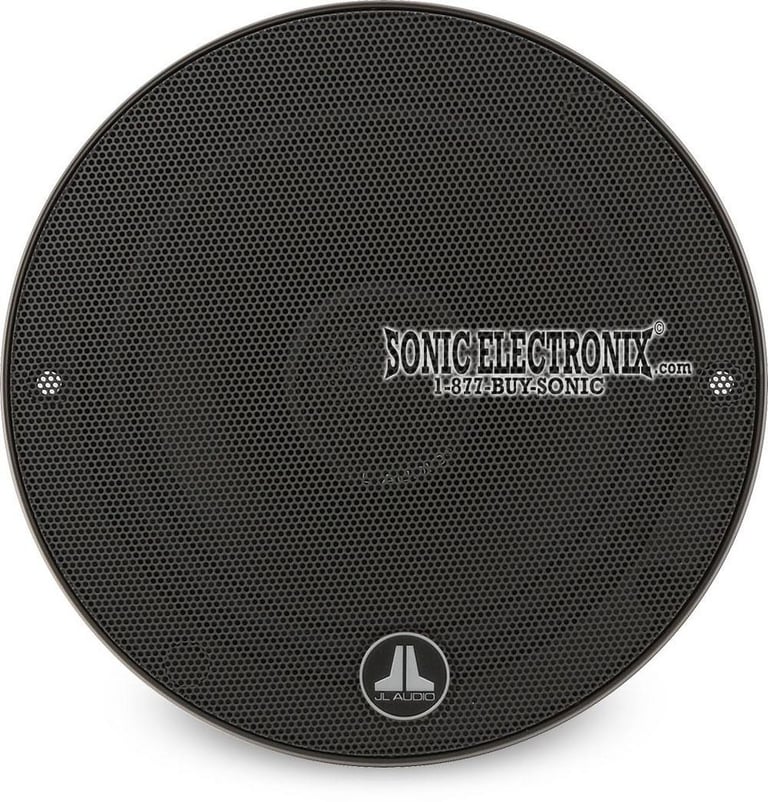

  • Black Steel Mesh Grille with An Electroformed JL Audio Logo Included
  • Woofer Dimensions:
    • Top-mount depth: 2.27"
    • Cutout Dimensions: 4.48"
  • Crossover Dimensions:
    • Width: 3.36"
    • Height: 1.44"
    • Depth: 4.72"
  • Nominal Impedance: 4 ohm
  • Efficiency: 88.5 dB @ 1 watt / 1 meter
  • Frequency Response: 53 Hz - 25 KHz ± 3 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

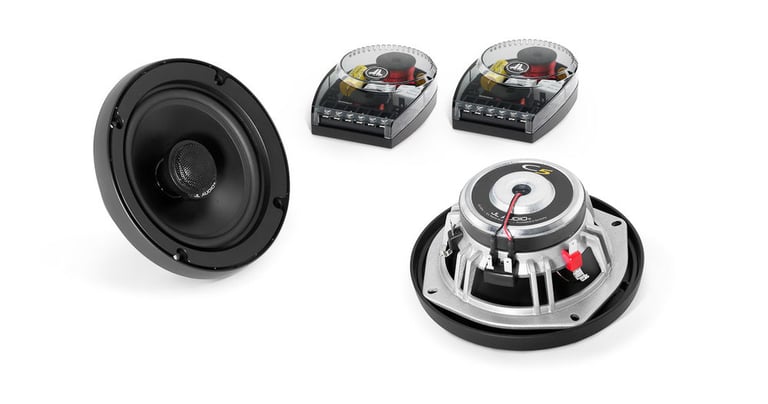

  • Priced Per Complete Coaxial System: 2 full-range speakers and 2 crossover networks.

Check out the JL Audio C5-525x Owner's Manual


Best selling similar products

Club 522F small

JBL Club 522F (SPKCB522FAM)

• 135 watts Peak Each, 45 watts RMS Each
• Silk Edge Driven Dome tweeters
• UV-Resistant Polypropylene cone material
• Plus One woofer architecture
• Impedance: 3 ohm
• Sensitivity: 91 dB

$74.99

List price $129.95

46CSC54 small

Kicker CSC5 (46CSC54)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(5)

$79.96

List price $119.99

43DSC504 small

Kicker DSC50 (43DSC504)

• 200 watts Peak Each, 50 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(17)

$74.99

List price $84.99

VSP525 small

NVX VSP525

• 240 watts Peak Each, 80 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Mounting Depth: 2.16"

(23)

$79.99

List price $95.99

DB522 small

Polk Audio DB522 (DB 522)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Dome tweeters
• UV-tolerant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(13)

$100.00

List price $109.99

TS-G1320S small

Pioneer TS-G1320S

• 250 watts Peak Each, 35 watts RMS Each
• 1-3/16" Polyethylene Terephthalate (PET) Balanced Dome tweeters
• Mica Injected Polypropylene - MIPP cone material with Progressive Flex Suspension System (PFSS) spider
• Impedance: 4 ohm
• Sensitivity: 87 dB

(7)

$44.99

List price $65.00

THUNDER52 small

MTX Audio THUNDER52

• 45 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(2)

$95.96

List price $119.95

P152 small

Rockford Fosgate Punch P1 P152

• 80 watts Peak Each, 40 watts RMS Each
• 3/4" PEI (Polyetherimide) Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(27)

$109.99

List price $109.99

T152 small

Rockford Fosgate Power T1 T152

• 120 watts Peak Each, 60 watts RMS Each
• 1" Aluminum Dome offset cantilever coaxial mounted tweeters
• Polypropylene-Carbon Fiber Hybrid cone material
• Impedance: 4 ohm
• Sensitivity: 86.5 dB

(22)

$219.99

List price $219.99

PNW-525 small

AudioControl PNW-525

• 75 watts Peak Each, 50 watts RMS Each
• Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.41 dB

(1)

$239.00

List price $259.00

Specifications & Details


Speaker Specifications
Series
C5 Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
5-1/4"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Size
3/4"
Tweeter Composition
Silk
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
225 watts
RMS Power Handling
75 watts
Sensitivity
88.5 dB
Frequency Response
53 - 25,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2.27"
Cutout Dimensions
4.48"
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Speaker Grilles
Yes
What is in the box?
Paperwork
User manual
WITB: Speakers
Speakers (2)
Grilles (2, attached)
Crossover networks (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C5-525x

Weight:

6.00lbs

Internal SKU:

c5525x

Internal Product ID:

15049
