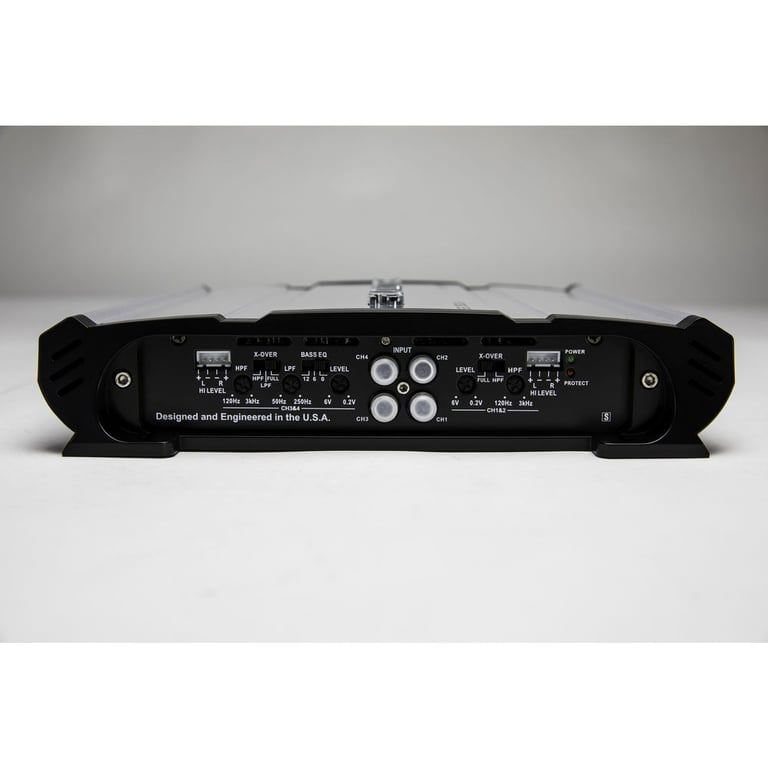

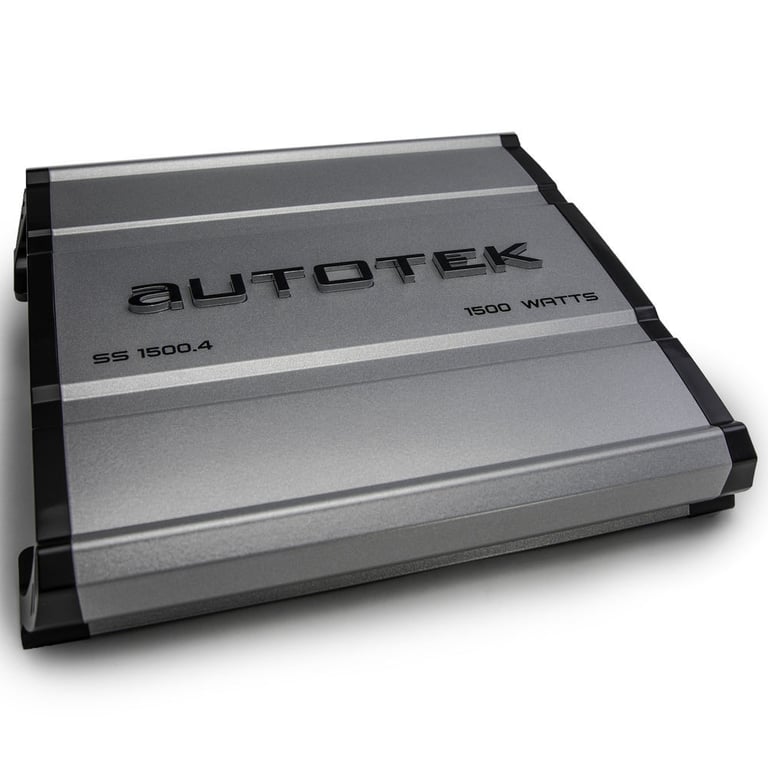

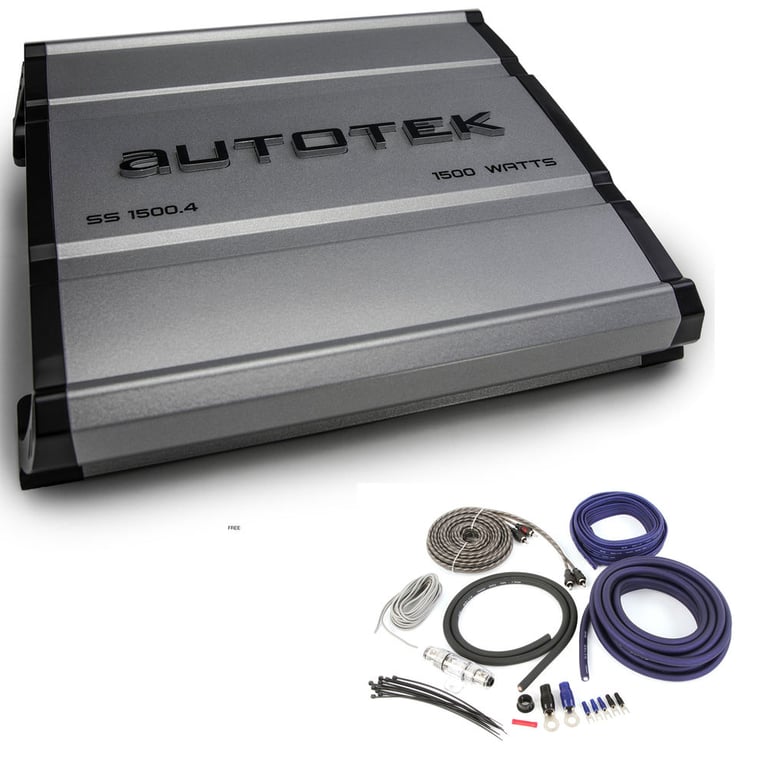

Autotek SS1500.4 4-Channel Car Amplifier + Amp Kit

General Features:

• Autotek Super Sport SS1500.4
• Class-A/B Full Range 2-Ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 175 watts x 4 chan.
• 2 ohm: 375 watts x 4 chan.
• 1 ohm: ------------N/A------------
• Bridged, 4 ohm: 750 watts x 2 chan.
• Total power output: 1,500 watts
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• 4/3/2 channel operation
• Speaker-level (high-level) inputs
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)

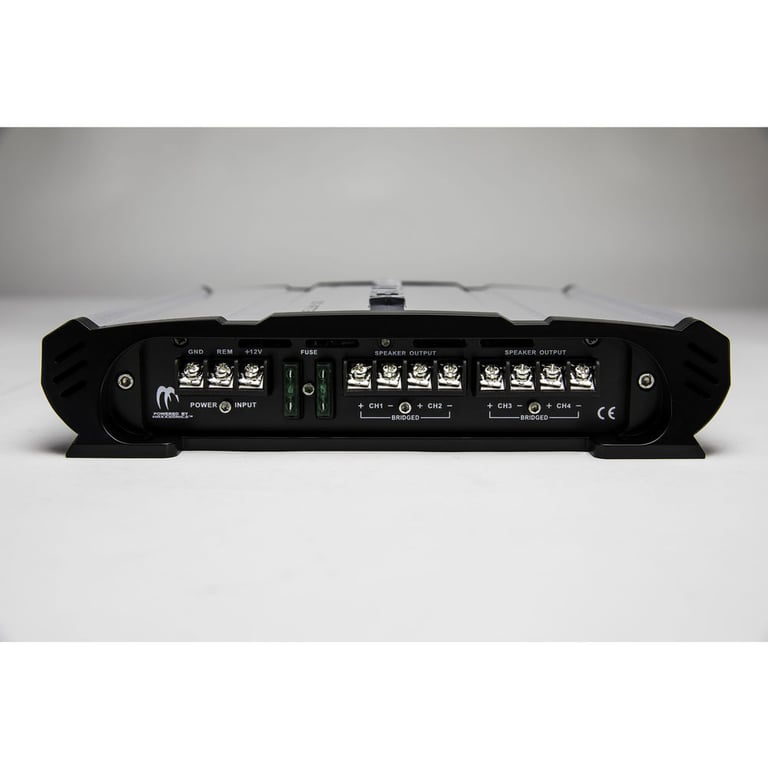

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Frequency Response: 20 - 20,000 Hz
• Signal to Noise Ratio: >94 dB
• Variable high-pass filter: 120 - 3,000 Hz, 12 dB/octave
• Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
• Variable Bass Boost: 0, +6, +12 dB bass boost switch at 50 Hz
• Fuse Rating: 30 A x 2
• 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 12.75"W x 10.25"L x 2"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Check out the SS1500.4D product manual

Product Details:

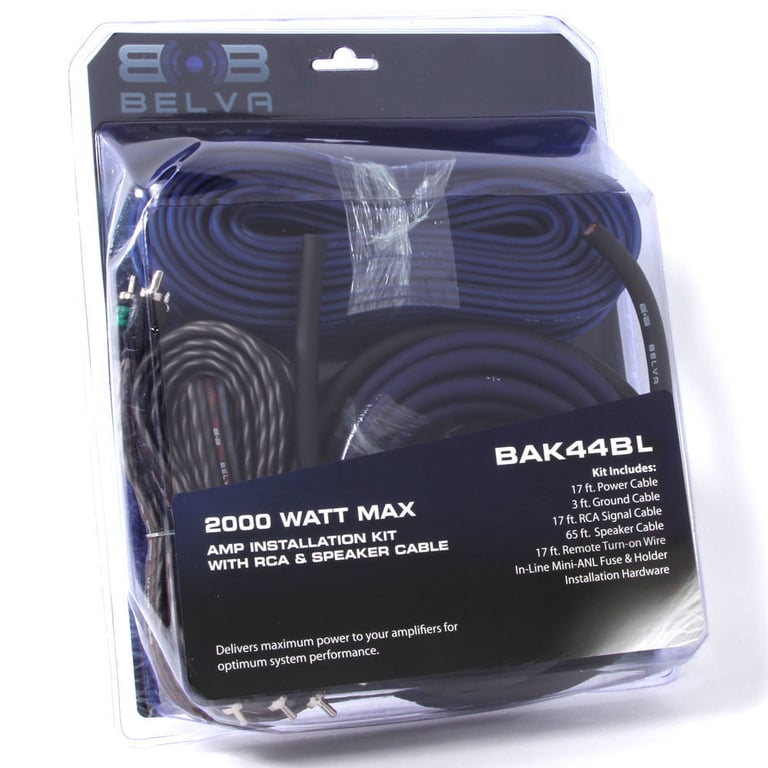

• 4 Gauge 2-Channel Complete Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Made from 100% Copper-Clad Aluminum (CCA)
• Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• RCA Interconnect Cable
• Twisted-pair construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

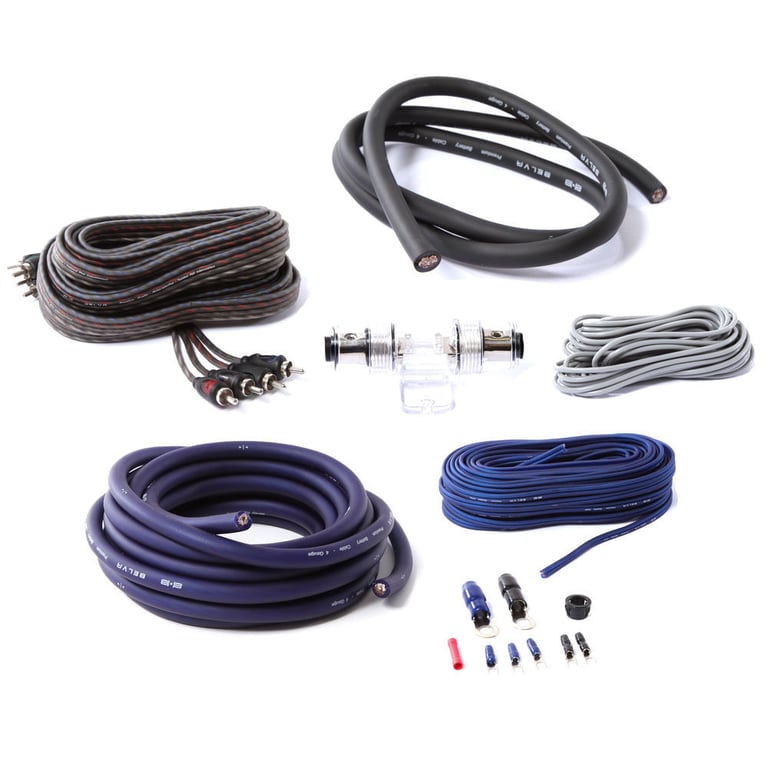

Kit includes:

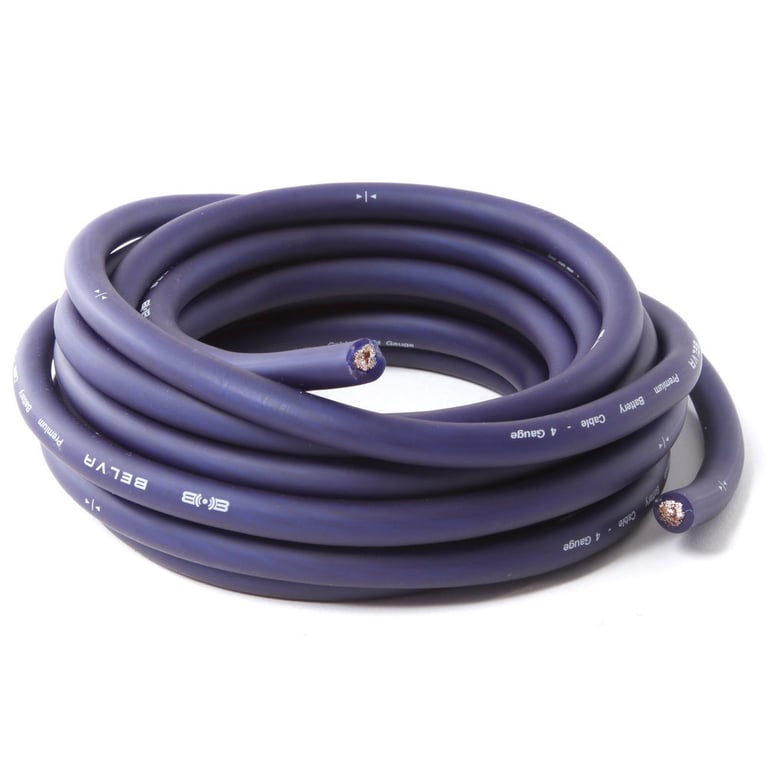

1. 17 ft. Gray 4 gauge power wire

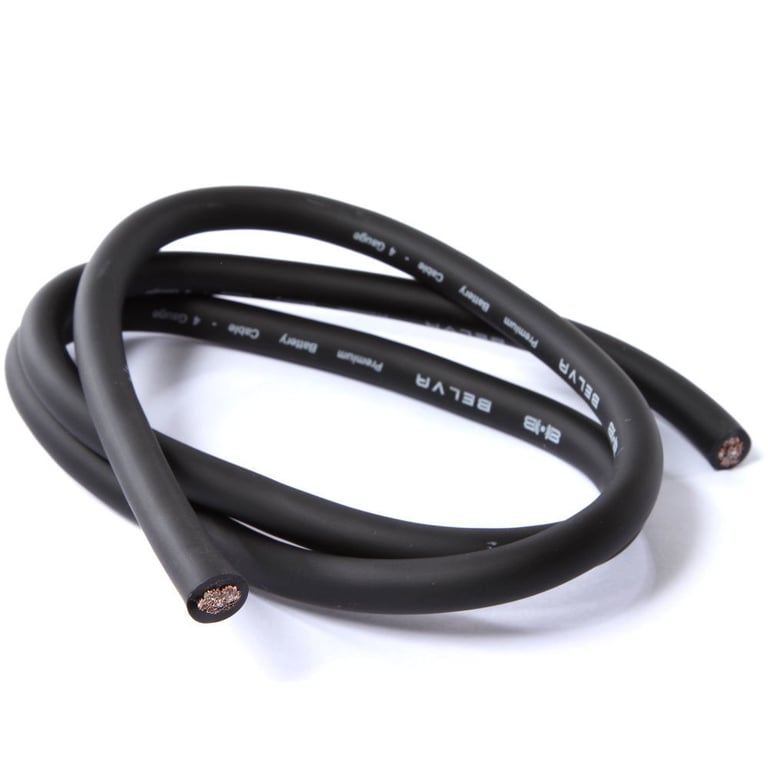

2. 3 ft. Black 4 gauge ground wire

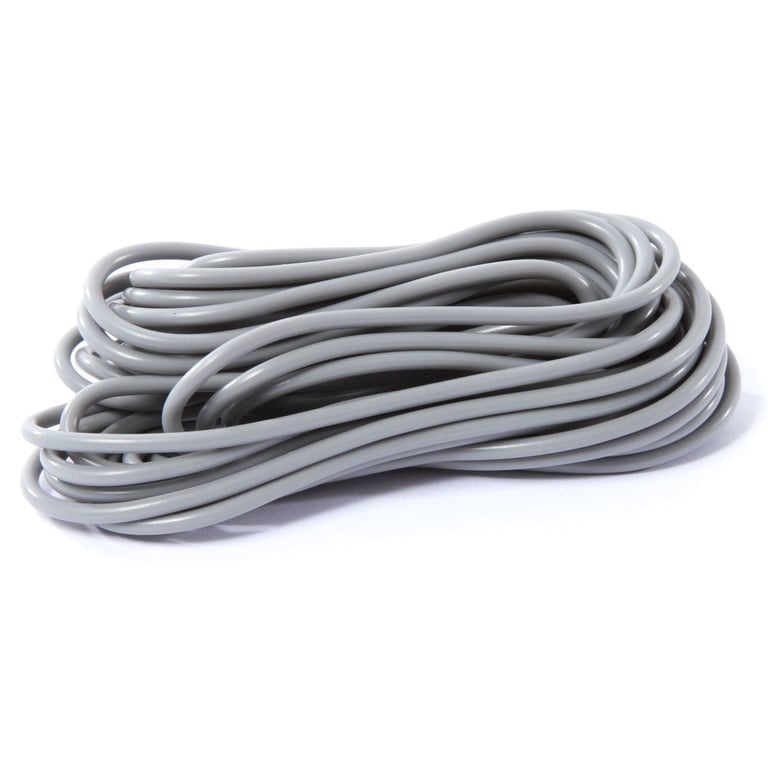

3. 17 ft. Gray 18 gauge remote lead wire

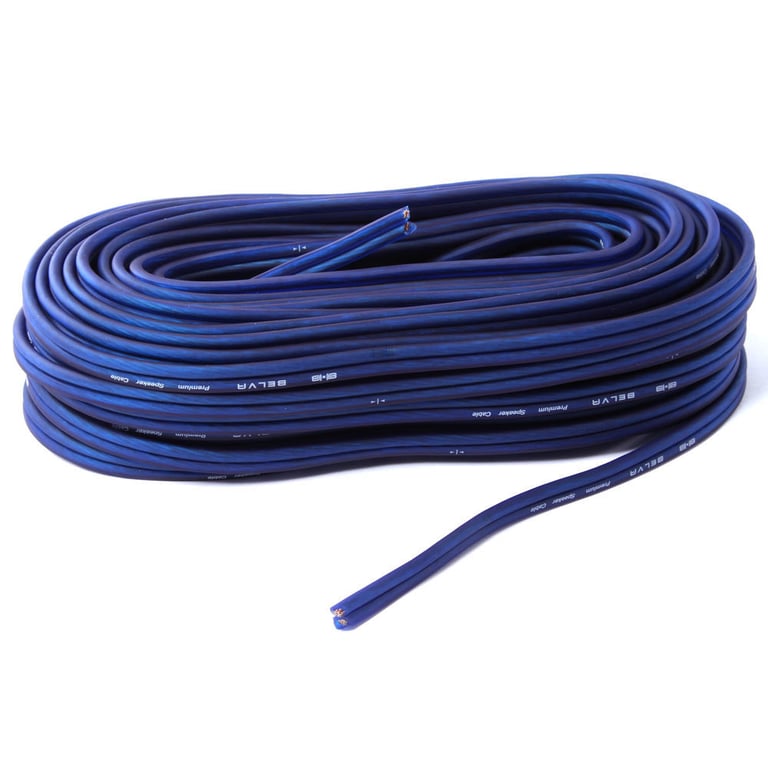

4. 20 ft. 16 gauge speaker wire

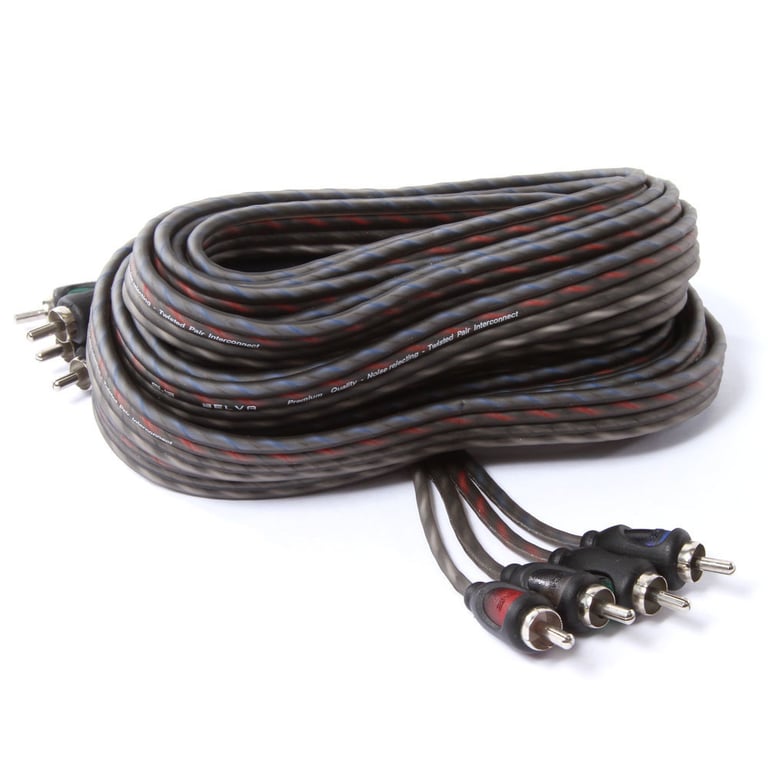

5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

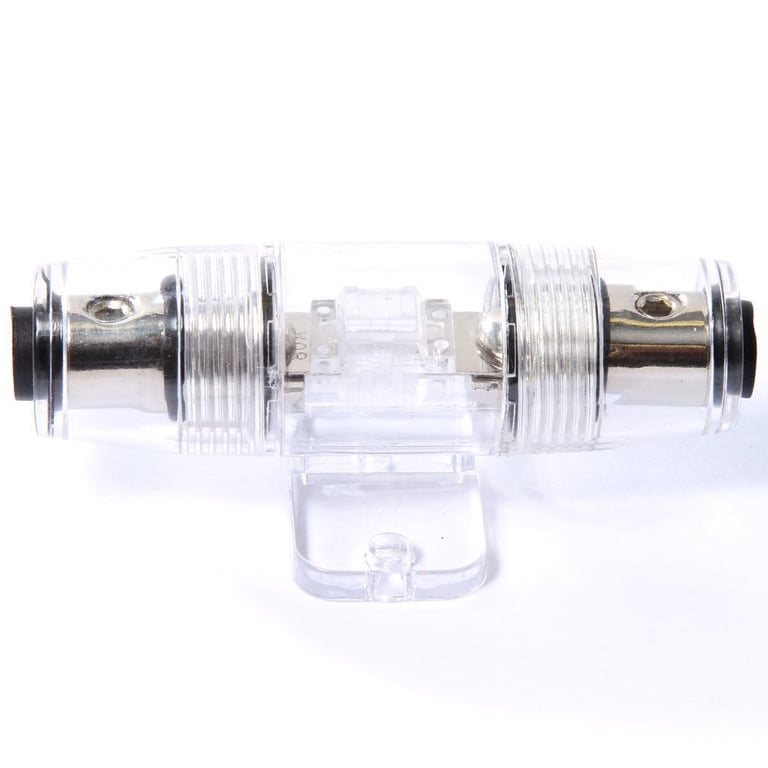

6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse

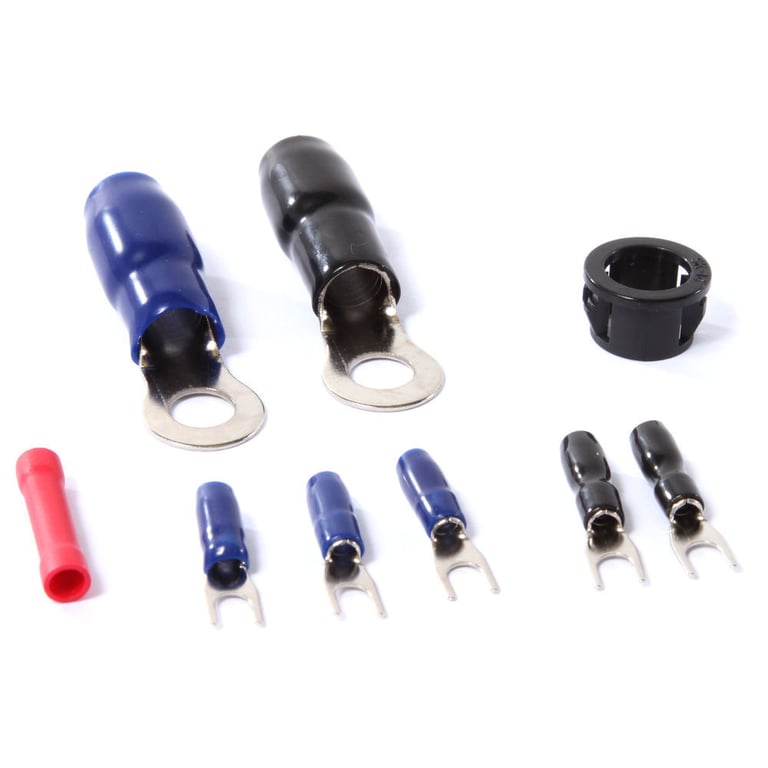

7. One Black rubber firewall grommet
8. Two 4 Gauge Chrome Plated ring terminals
9. Five 16 Gauge Spade terminal
10. One 18 Gauge Red butt connectors
11. Ten 4" Black zip ties

General Features:

• Audio Interconnect Cable (CCA)
• 2-Channel RCA, perfect for stacking, strapping or connecting amps
• Helical Twist construction minimizes noise and interference
• Patented high tolerance compact machined metal end
• Packed in resealable bag
• Length: 5m (16.4 feet)
• Also available in 9.8 Ft.
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
