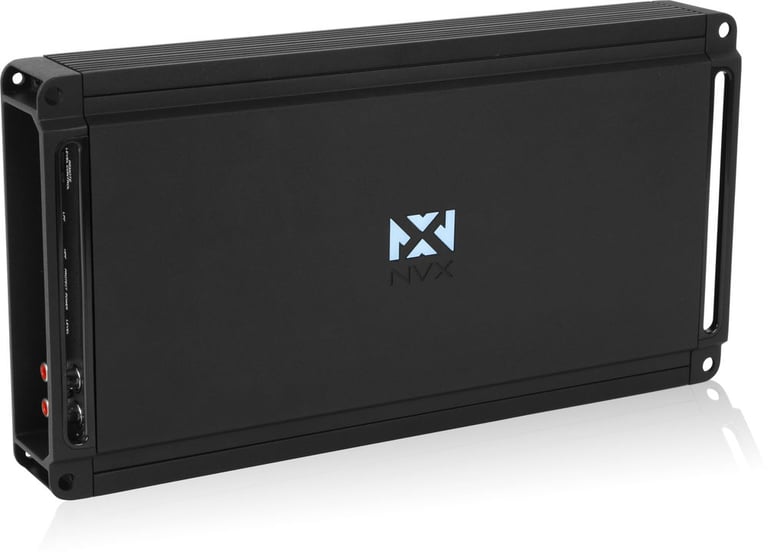

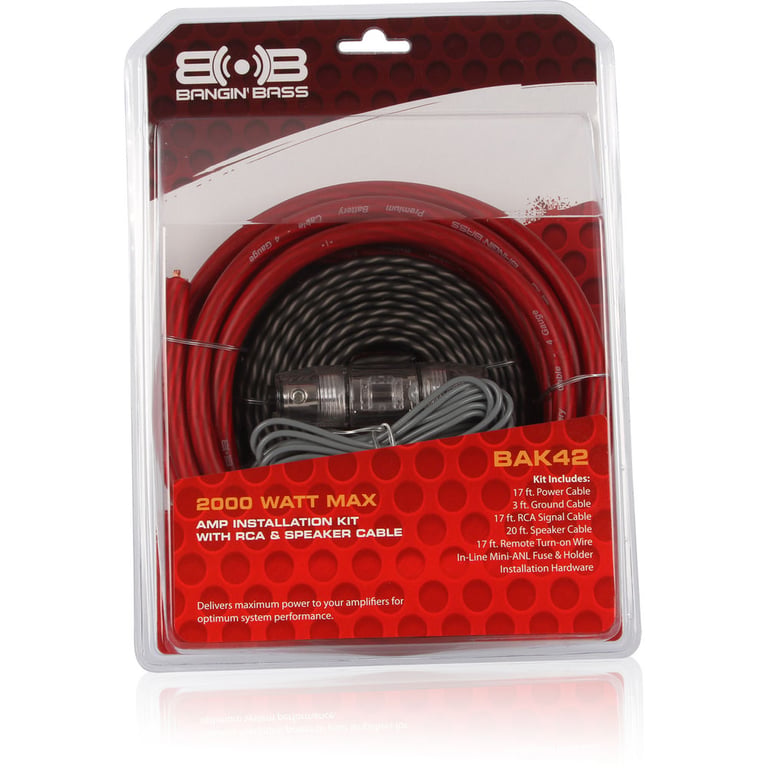

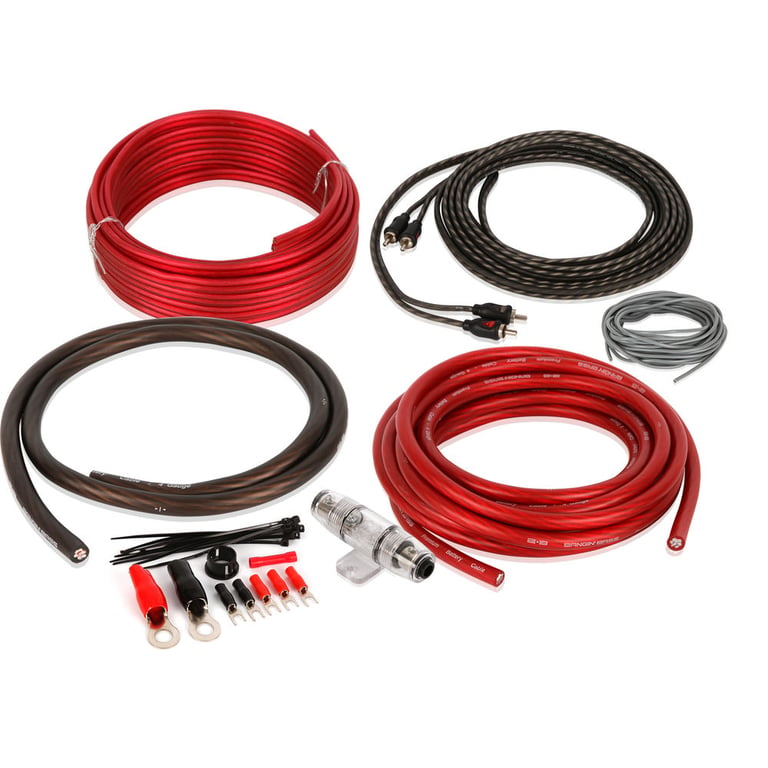

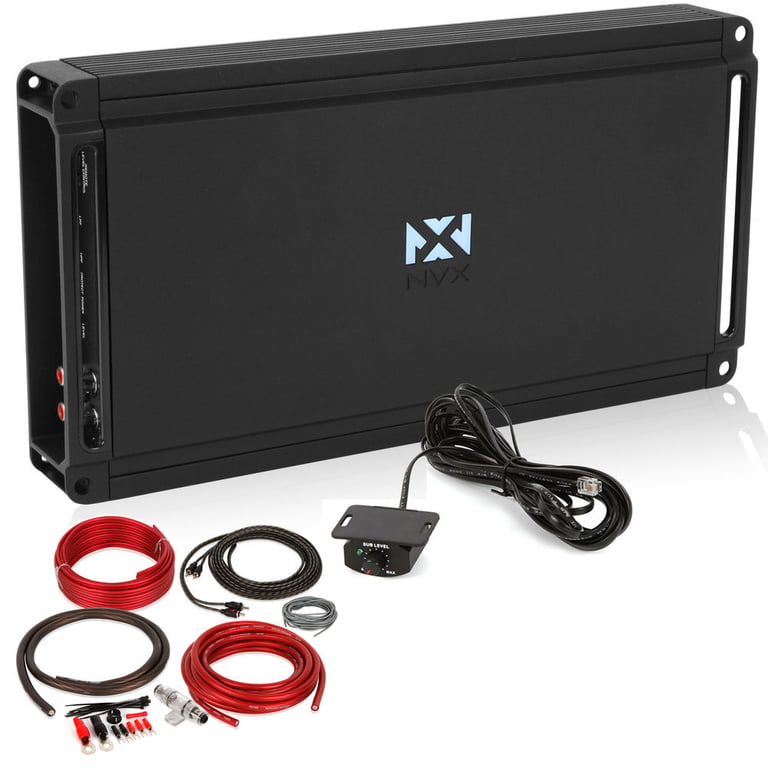

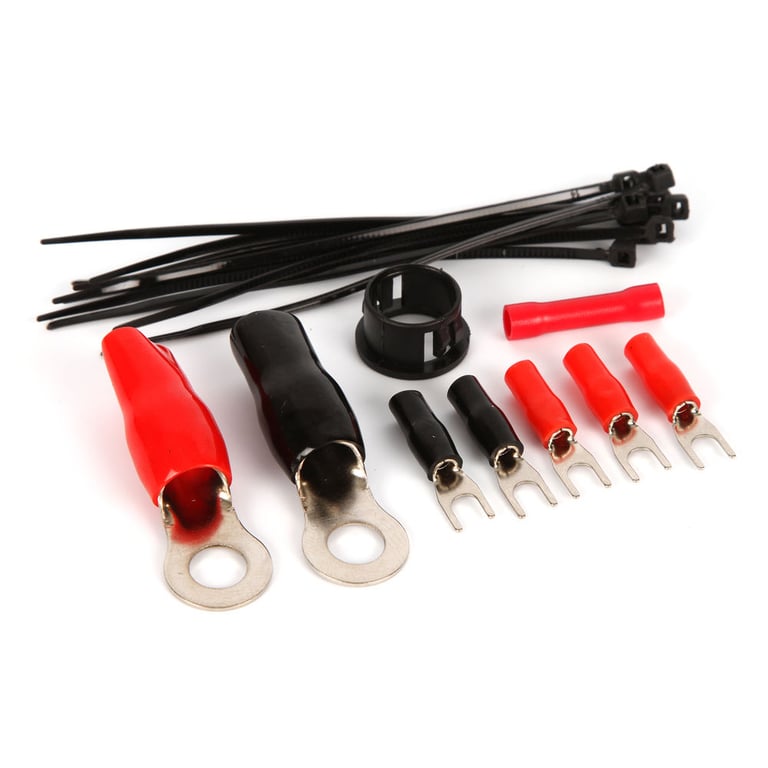

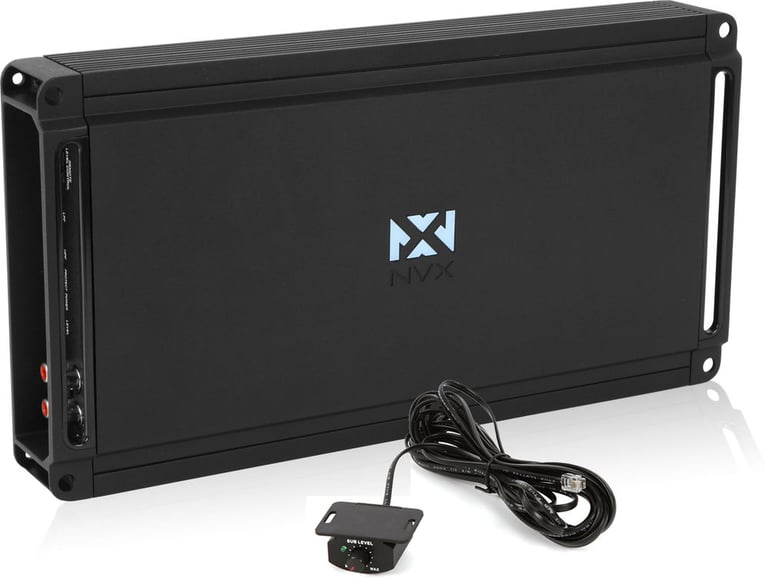

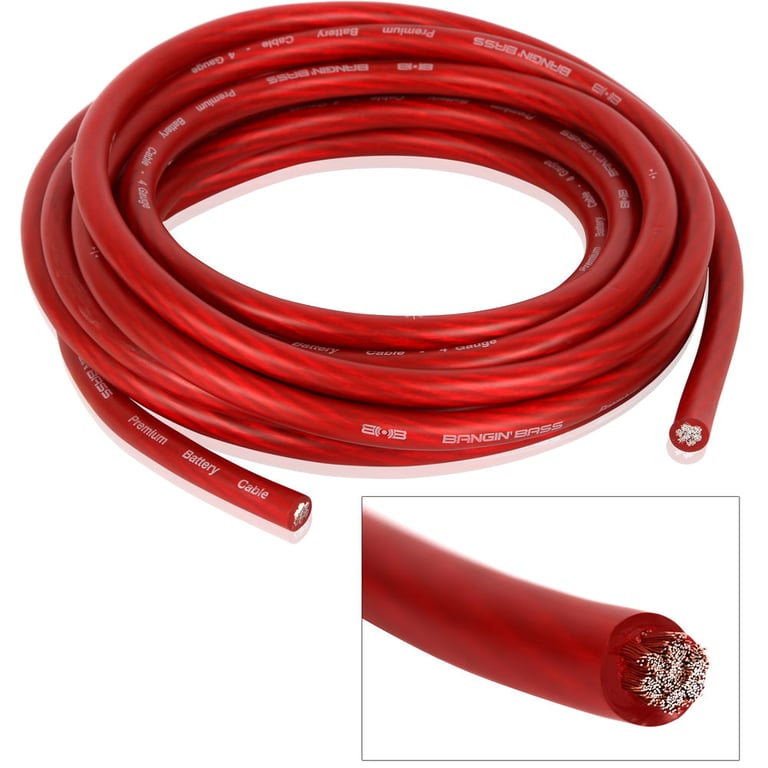

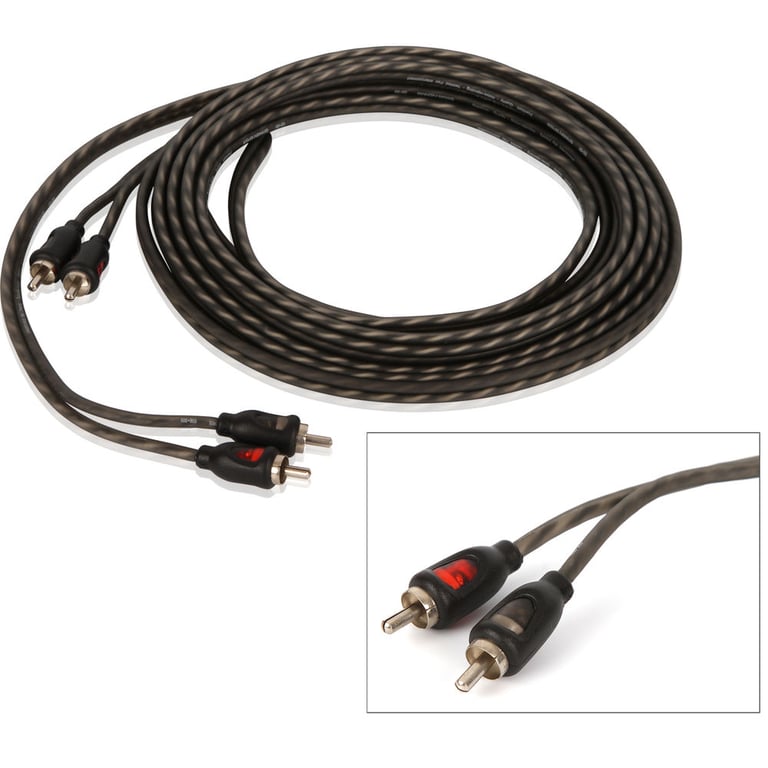

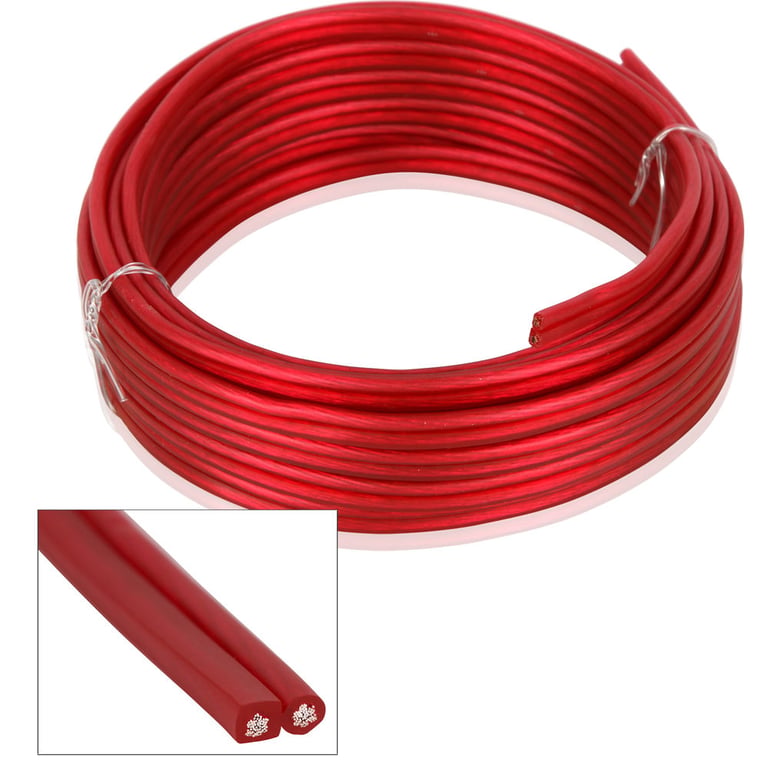

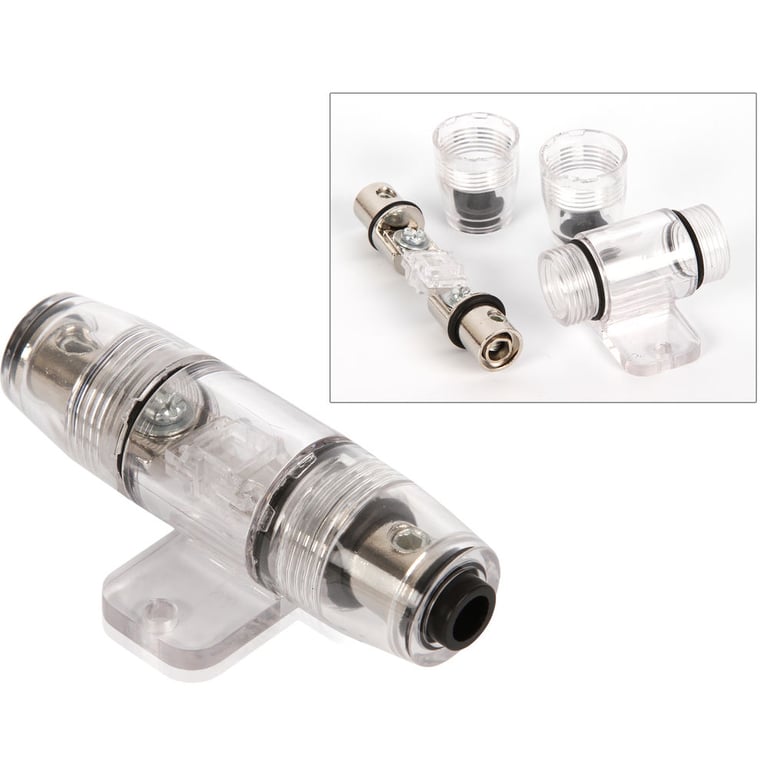

NVX JAD1200.1 + FREE 4 Gauge Amp kit

True 2400 Watt Peak 1200W RMS Class D Monoblock Amplifier + Amp kit and Bass Remote Included

NVX
Shop all NVX
highlight-star-icon

• RMS: 500W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total RMS Power: 1200W
• CEA-2006 Compliant
• Wired Bass Remote Included
• Ultra Efficient Class D Design
• Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H

Learn more about the ampkitcombo8

We apologize

This item has been discontinued


Loading...
AXLOC-CH5 main

Axxess AXLOC-CH5

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ram, Dodge, Jeep with Non-Amplified Systems

10
-10.48%

$93.99

List price $104.99

95-6511-17 main

Metra 95-6511-17 Dash Kit

Install a new Double-DIN car stereo in select 2007-2020 vehicles from Dodge, Jeep, Chrysler

8
-48.02%

$12.99

List price $24.99

40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Ram

49
-13.05%

$19.99

List price $22.99

VWA4B main

Scosche VWA4B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2000-2026 vehicles from Audi, Chevrolet, Volkswagen

11
-17.73%

$12.99

List price $15.79

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

95-6545B main

Metra 95-6545B

Double DIN Stereo Dash Kit for select 2018 Compass

-38.19%

$33.99

List price $54.99

MET-CH6 main

Metra MET-CH6

Install a New Car Stereo and Retain Steering Wheel Controls, Backup Camera and Other Factory Features in select 2014-2023 vehicles from Jeep, Ram, Fiat with Non-Amplified Systems

-10.38%

$94.99

List price $105.99

SWRCR-59LV main

Crux SWRCR-59LV Wiring Interface

Install a New Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2014-2022 vehicles from Ram, Jeep

-35.71%

$251.10

List price $390.60

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Description


NVX brand icon

Authorized dealer



NVX JAD Series Amplifiers

NVX's new line of JAD amplifiers are perfect for those looking for a small footprint, high output amplifier. They boast an abundance of features such as variable high and low pass filters, pre-amp outputs, and gain level control. The sleek design of the chassis combined with the illuminated badge makes these amplifiers eye-catchers. The JAD1200.1 monoblock includes a wired remote bass knob as well as a convenient power and ground gauge adapter for converting the 8 gauge inputs into 1/0 gauge inputs. Dual speaker terminals bridge the amplifier internally allowing for less confusion when wiring multiple subwoofers.



Sonic Electronix Power Certified Amplifier

NVX's JAD1200.1 monoblock amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings.
Learn more about this amp's Sonic Electronix Certified Power Here!


Impedance
Claimed Output
Certified Results
Dynamic Results
4 Ω
500W @ 14.4v
662W @ 14.59v
666W @ 14.70v
2 Ω
800W @ 14.4v
1037W @ 14.3v
1128W @ 14.60v
1 Ω
1200W @ 14.4v
1384W @ 14.05v
1647W @ 14.42v

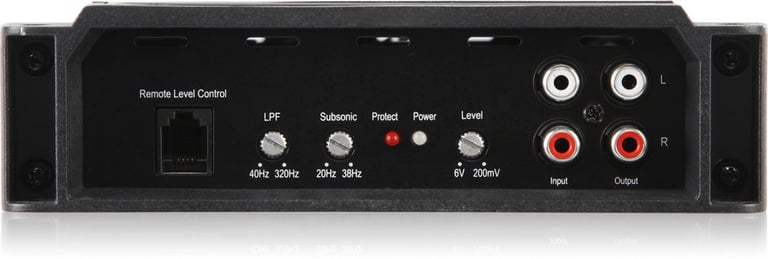

General Features:

  • Class D Monoblock Amplifier with Bass Remote
  • CEA-2006 Compliant
  • Peak Power Rating: 2400 Watts
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 800 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 662 watts x 1 chan.
    • 2 ohm: 1037 watts x 1 chan.
    • 1 ohm: 1384 watts x 1 chan.

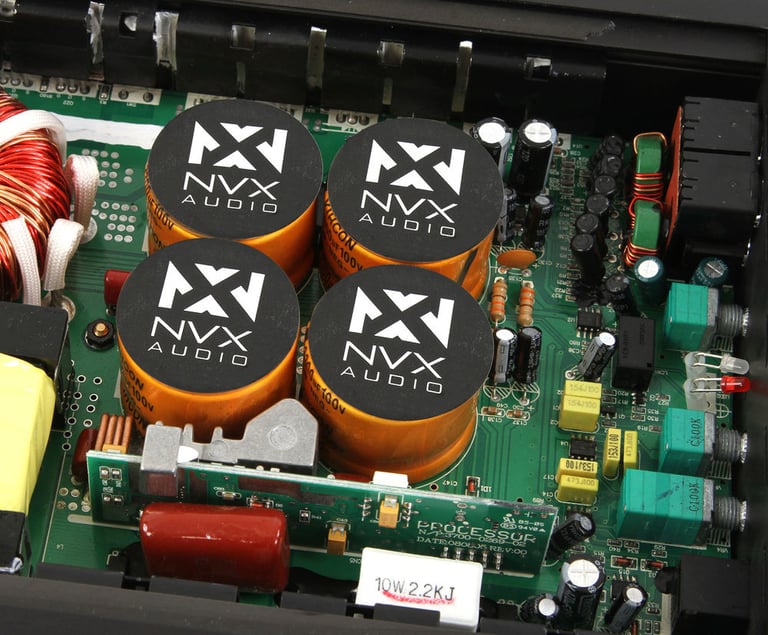

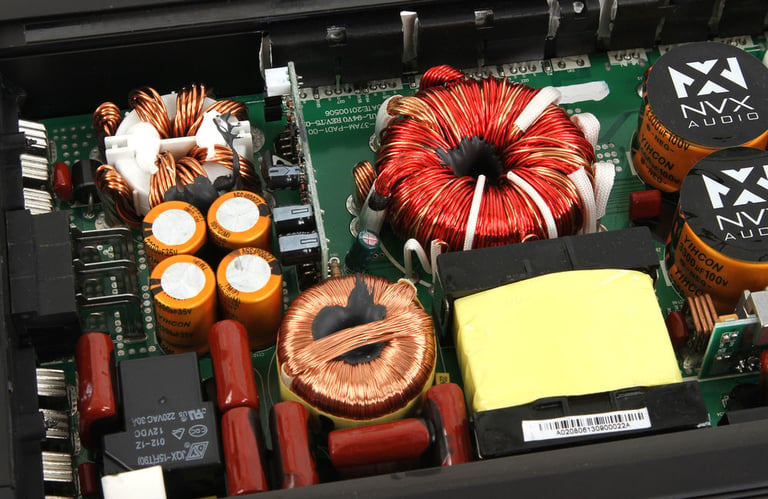

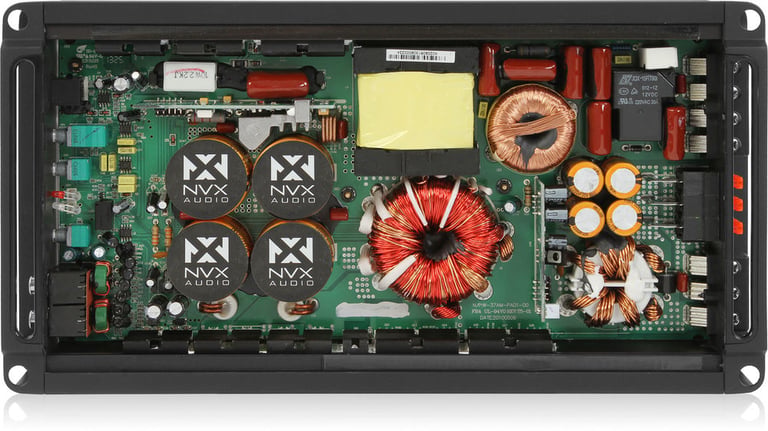

  • Non-regulated efficient S.M.P.S power supply design
  • Pulse Width Modulated MOSFET power supply

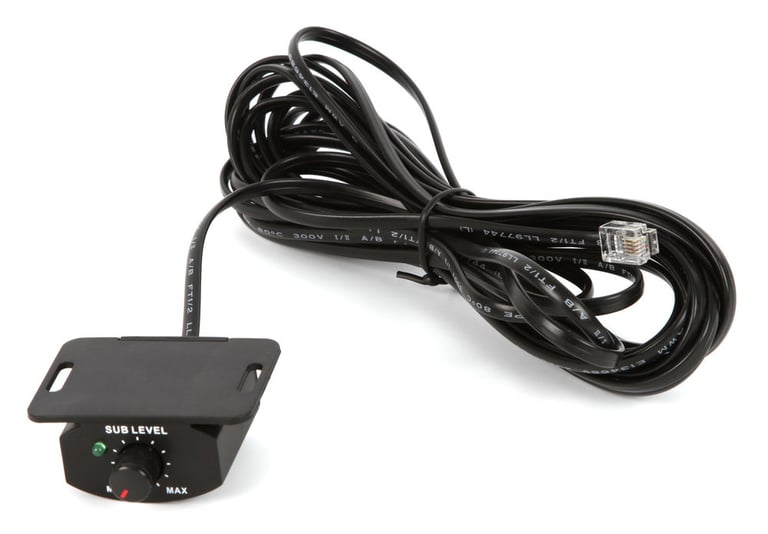

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators

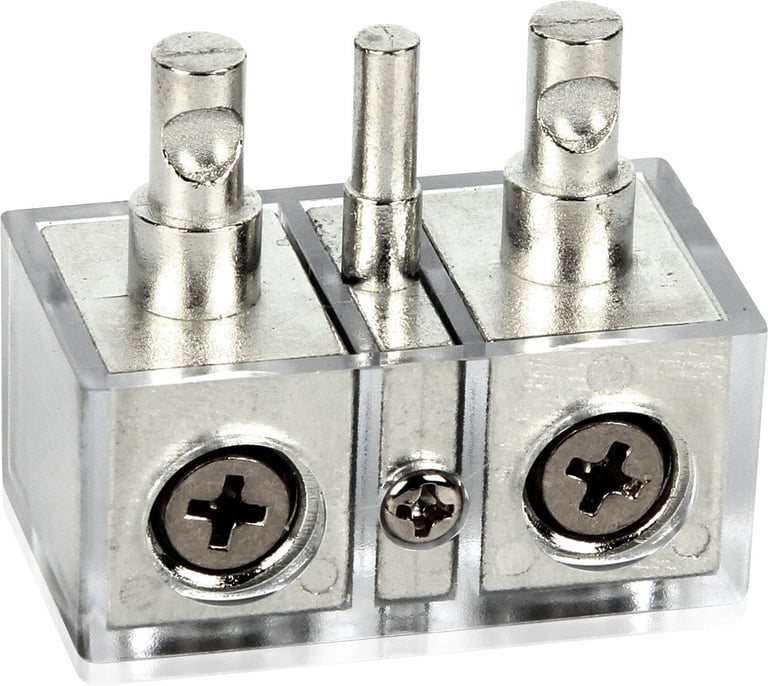

  • Power and ground Gauge adapter included (Up to 0 gauge)
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable subsonic filter: 20 - 38 Hz, 24 dB/octave
  • Variable low-pass filter: 40 - 320 Hz, 24 dB/octave
  • Signal to Noise Ratio: 111 dB
  • Total Harmonic Distortion: <1.0%
  • Damping factor: 200
  • Input Sensitivity: 200mV-6V
  • Frequency response: 20 - 200 Hz

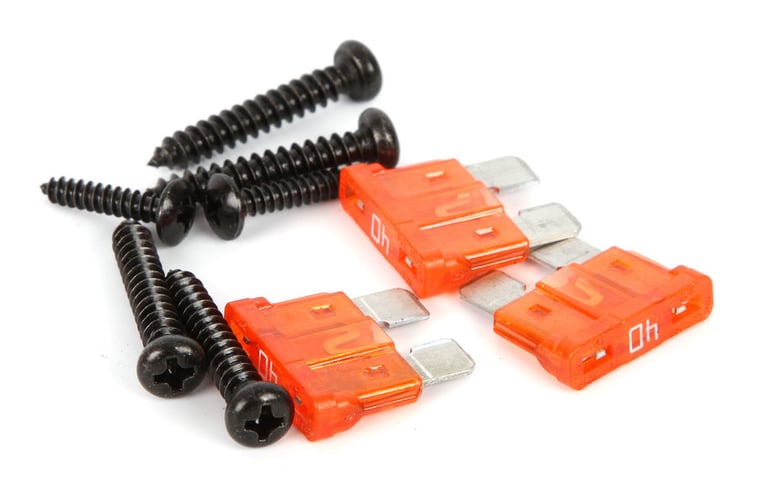

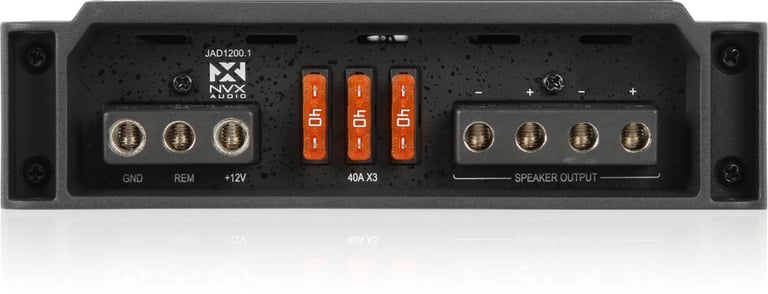

  • Fuse Rating: 40A x 3
  • Accepts 8, 4, 2, and 1/0 Gauge wire with gauge adapter

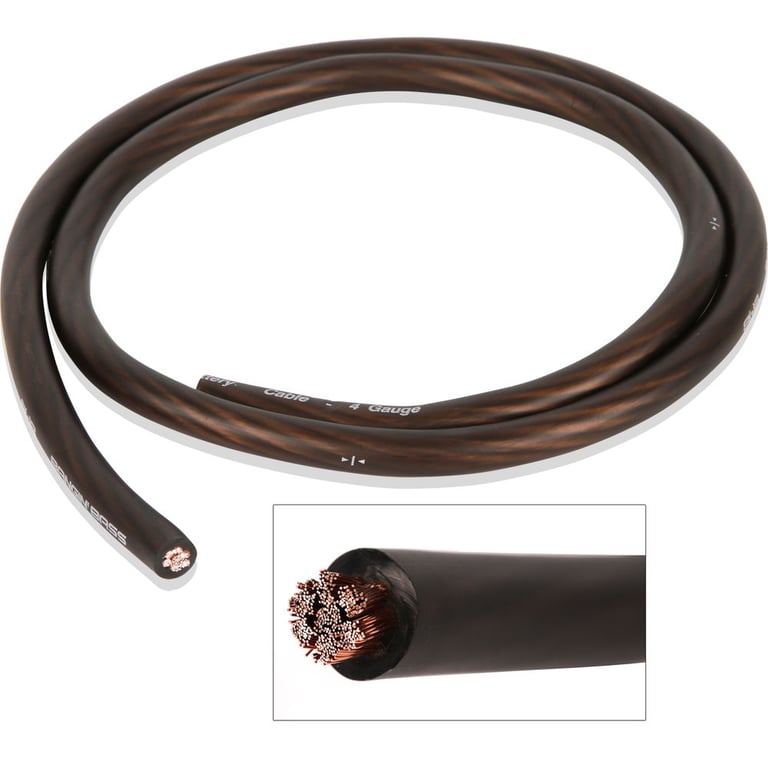

  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty**

Recommended Configurations:

  • Two NVX VCW104 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
  • One NVX VCW104 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
  • One NVX VCW124 12" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
  • One NVX VCW154 15" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
  • Two NVX VSW124 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
  • Two NVX NSW102V2 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS

**Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT42, or NVX XAPK4

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

KWZ1000AW_MRR2_FLFO1 small

JVC KW-Z1000AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(7)

$1601.82

List price $2348.97

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.97

List price $2479.97

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1605.96

List price $2254.96

DAX8000S_MRR_S8FO2_S small

Kenwood DAX8000S Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• 4 Camera Inputs Function

(37)

$1348.96

List price $1923.96

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1456.96

List price $2074.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(38)

$1383.97

List price $1778.97

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1348.96

List price $1973.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
800 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 320 Hz
Subsonic Filter
20 - 38 Hz
Signal-to-Noise Ratio
111 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 3
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

JAD1200.1 BAK42

Weight:

10.10lbs

Internal SKU:

ampkitcombo8

Internal Product ID:

152065

Customer Ratings & Reviews

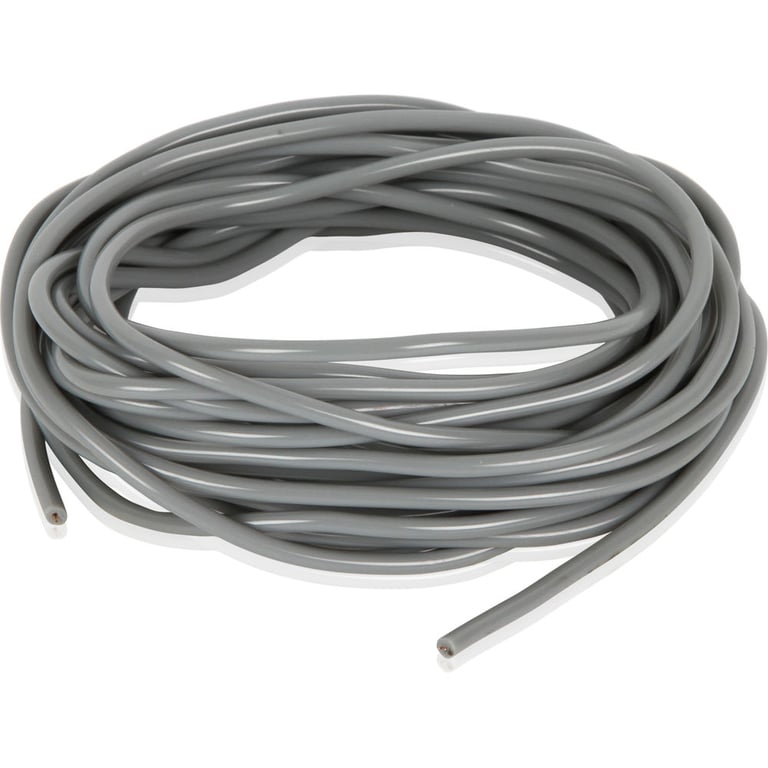

NVX JAD1200.1 + FREE 4 Gauge Amp kit thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found

01-03-toyota-hilander-spkg small

NVX Complete N-Series Speaker Upgrade Kit for 2001-2003 Toyota Highlander

Pair of 5.25" & 6.5" NVX N-Series Speaker Upgrade Kit with Metra Speaker Adapters and Harnesses | Fits select 2001-2003 Highlander

(208)

$141.94

List price $255.94

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Kia Rio

2018 Jeep Compass

2016 Lincoln MKC

2020 Audi Q5

2008 Ford Focus

2005 Honda Element

2016 Dodge Charger

2012 Chrysler 200

2011 BMW X5 M

2000 Nissan Pathfinder

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
