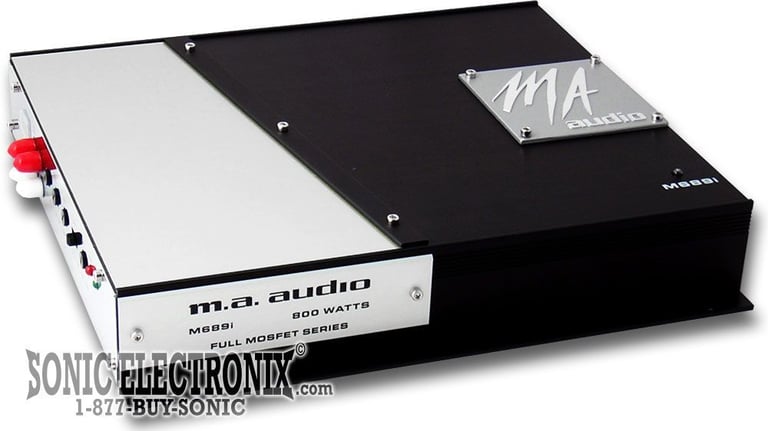

Name: MA Audio M689I
Brand: MA Audio
SKU: m689i
Price: 99.99 USD
Availability: Discontinued
Rating: 4.6000 (5 reviews)

Shop all MA Audio

by MA Audio

About
Similar Products
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Product videos

Product highlights

800W 2-Channel High Performance Amplifier • 180W x 2 @ 4 Ohm RMS • 250W x 2 @ 2 Ohm RMS • Full MOSFET Circuitry • High/Low Level Inputs • Variable High/Low Pass Cross-Over 50 - 250 Hz • Variable Bass Boost 0-18dB @ 45Hz

Learn more about the m689i

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights

Description

Authorized dealer

800W 2-Channel High Performance Amplifier
Variable High/Low Pass Cross-Over 50 - 250 Hz
Variable Bass Boost 0-18dB @ 45Hz
3-Way Protection Circuitry
2 Ohm Stereo Stable
High/Low Level Inputs
Low Level Output
Full MOSFET Circuitry
180 x 2 chan. Watts RMS @ 4 Ohm Stereo
250 x 2 chan. Watts RMS @ 2 Ohm Stereo
800 x 1 chan. Watts MAX
Dimensions: 2" H x 10.75" W x 11.5" L
2-Year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

180 watts x 2 channel

RMS Power @ 2 ohms

250 watts x 2 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

400 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

800 watts

Total RMS Power Output

500 watts

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.05%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Bass Boost

0 - 18 dB

Remote bass/level controller

Customer Ratings & Reviews

Overall rating distribution

5 star		60%
4 star		40%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.6
Value		5
Features		3.8
Design		4.4
Usability		4.6

Customer Reviews

Sort by:

Good Amp Great Price

I installed this amp in a customers car powering 2 Clif Designs CD100W Subs. The subs were underpowered, but still sounded tight, however not too deep. For the price you can't beat the quality though.

By James on September 10, 2005

3 found this helpful

Report abuse

good starter

I've had this amp for about 10 months now hooked up. It is a good starter amp sound quality is fairly good when wired correctly (use preamps and sounds miles clearer...of course) safety protection is very nice for someone who is worried about loading down amps and blowing them, this amp WILL NOT run if it is loaded down further than specs. Inversely this is not the amp for you if you want mind blowing bass and want to load down for burping

NEVER had a heat problem

By matt on July 13, 2007

2 found this helpful

Report abuse

don't believe the hype

I have been the proud owner of a HK400D for a little over a year. I recently received a pretty good bonus on my job, so to treat myself I decided to upgrade to this amp. I had a single Powerbass M-10 hooked to the 400D. So, I figured if one was good, why not have two. If you are anything like I am, you've probably done a ton of research and you have seen people say that in order to have a great system you need RF or JL, or even Kicker. Don't get me wrong, these are fine amps. All I'm saying is, you don't have to spend all that money to get a QUALITY amp. Maybe this one doesn't have a built in fan, if you have it installed properly and buy the right amp for the job, you won't have any problems, and if you do MA has something other amps for this price range don't; a full 2 yr warranty. If you are looking for a starter system, or upgrading like I am, MA has what you are looking for whether it be clean S.Q. or window breaking SPL, they make one with over 4000watts RMS. And Powerbass falls right in with the MA. So, don't believe the hype... These are quality products, my money is too hard to come by to throw it away...nuff said.

By william on March 13, 2007

2 found this helpful

Report abuse

great value, and great performance

I purchased this amp for my g/f, after installing this amp with 2 kicker 12" comps i must say i'm impressed, the amp puts out tons of clean useable power and is built like a freakin tank, and the chrome accent is a very nice detail, i would recommend this amp to anyone looking for a budget sub system.

By Jesse on October 2, 2005

2 found this helpful

Report abuse

niceee

this is a very nice amp...only downside is no cooling fan or nothing, but other than that it's built very well and puts out nice clean power...definitely worth the money, i have it hooked up to two MA audio 12s and it POUNDS..great buy

By Kyle on April 21, 2006

1 found this helpful

Report abuse
