DC Audio Level 2 12M3D4 (M3LV212D4)

1200W Peak (600W RMS) 12" Level 2 Series M3 Version Dual 4-ohm Car Subwoofer

DC Audio
Shop all DC Audio
highlight-star-icon

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Non-Pressed Paper cone
• Multi-layered Polymer Foam surround
• Mount depth: 6.1"
• Sensitivity: 84.2 dB

Learn more about the m3lv212d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

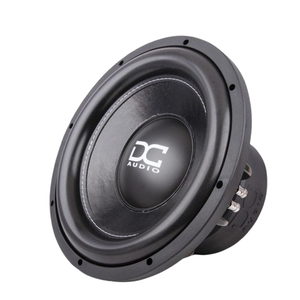

m4lv212d4 thumbnail

DC Audio Level 2 12M4D4 (M4LV212D4)

OUR PRICE: $239.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
P1692 main

Rockford Fosgate Punch P1 P1692

300W Peak (150W RMS) 6x9" Punch Series 2 Way Coaxial 4-ohm Speakers

82
KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

33
-14.29%

$119.99

List price $139.99

H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

Description


DC Audio brand icon

Authorized dealer


DC Audio Level 2 12M3D4


With more power handling than before, the Level 2 is back and better than ever!

This sub has everything you need in a daily driver except the cost. This is one of our greatest accomplishments.

It starts out with a double-stacked FEA optimized motor. A chrome top plate and T yoke to keep it looking good. It has 22 mm of X-Max, progressive spider, 2.5" voice coil, cast basket, push terminals and a rating suggestion of 600 watts RMS / 1200 watts peak power handling.

This sub works great in sealed or ported enclosures and definitely gives you more bang for your buck!


Product Details:

  • 12" Dual 4 ohm Level 2 Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Non-Pressed Paper cone
  • Multi-layered Polymer Foam surround
  • Polypropylene dust cover with embossed DC logo
  • Dual 8" OD semi-cup progressive roll spider
  • Heavy duty interwoven tinsel lead wire sewn to spider
  • Cast Aluminum black frame (No invert mount)
  • Rubber mounting gasket
  • Chrome spring loaded push terminals
  • 2.5" high-temperature Copper voice coil
  • Black anodized voice coil former
  • 22 mm Xmax
  • FEA analyzed and optimized motor assembly
  • Rubber magnet cover
  • Resonance Frequency (Fs): 33 Hz
  • Sensitivity: 84.2 dB
  • Recommended sealed box volume: 0.75 cubic feet
  • Recommended ported box volume: 1.25 cubic feet
  • Top-mount depth: 6.1"
  • Cutout diameter: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Product history:

DC Audio M4LV212d4 thumbnail
(newest, current model)
DC Audio M3LV212D4 thumbnail
(previous model, replaced by DC Audio Level 2 12M4D4 (M4LV212D4))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 2 12M3D4 (M3LV212D4) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 2 12M3D4 (M3LV212D4) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 2 12M3D4 (M3LV212D4) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 2 12M3D4 (M3LV212D4) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Specifications & Details


Subwoofer Specifications
Series
Level 2 Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Copper
Voice Coil Diameter
2.5"
Sensitivity
84.2 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Multi-layered Polymer Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.75 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6.1"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33 Hz
Equivalent Compliance (Vas)
30.6 liters
Total Speaker Q Value (Qts)
0.594
Electrical Q Value (Qes)
0.639
Electrical Resistance of Voice Coil (Re)
7.2 ohm
Mechanical Q Value (Qms)
8.46
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M3LV212D4

Weight:

18.00lbs

Internal SKU:

m3lv212d4

Internal Product ID:

152849

Customer Ratings & Reviews


DC Audio Level 2 12M3D4 (M3LV212D4) thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


GT7-6 small

JBL GT7-6 (GT76)

6.5" 2-Way GT7-Series Coaxial Car Audio Speakers

(6)

$49.99

List price $99.95

P12G small

Rockford Fosgate P12G

12" Cast Aluminum Subwoofer Grille for 2008 Rockford Fosgate Punch P1 and P2 Series Subs

(1)

$29.99

List price $39.99

KFC-W3013PS small

Kenwood KFC-W3013PS

400W 12" Performance Series Single 4 ohm Subwoofer

(125)

$90.00

List price $140.00

MVH-P8200 small

Pioneer MVH-P8200

3" In-Dash Multimedia Receiver with Built-in SD Card Slot and USB/iPod Direct Control

(9)

$154.99

List price $299.99

KFC-W3012 small

Kenwood KFC-W3012

12" Single 4 ohm KFC Series Car Subwoofer

(84)

$119.99

List price $149.99

CDX-H905IP+RM-X11M small

Combo: Sony CDX-H905IP + RM-X11M

Marine Ready CD, MP3, WMA Receiver with 2 Remotes and Built-in iPod Adapter & Controls

$194.99

List price $469.98

MATRIX-12 small

Clifford Matrix 12 (3102X)

6-Channel, 1-Way Vehicle Security System with Keyless Entry and Two 4-Button Transmitters

(1)

$89.99

List price $299.99

SX2400.2 small

Phoenix Gold SX2 400.2 (SX24002)

400 Watt SX Series 2 Channel Car Amplifier

$289.00

List price $339.00

JH4512-04 small

MTX Audio JackHammer JH4512-04

500W Max, 12" Single 4 ohm Jack Hammer JH45 Series Subwoofer

(13)

$64.99

List price $119.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Mitsubishi Eclipse

2007 Dodge Sprinter 2500

2003 Ford Taurus

1987 Dodge Caravan

1990 Volvo 780

2010 Ford Edge

1983 Saab 900

1997 Ford Windstar

2009 Ford Escape

2016 Subaru Crosstrek

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
