Name: JL Audio VX600/1i (Open Box, Good)
Brand: JL Audio
SKU: ls-vx6001i-u7
Price: 599.99 USD
Availability: Discontinued

by JL Audio

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

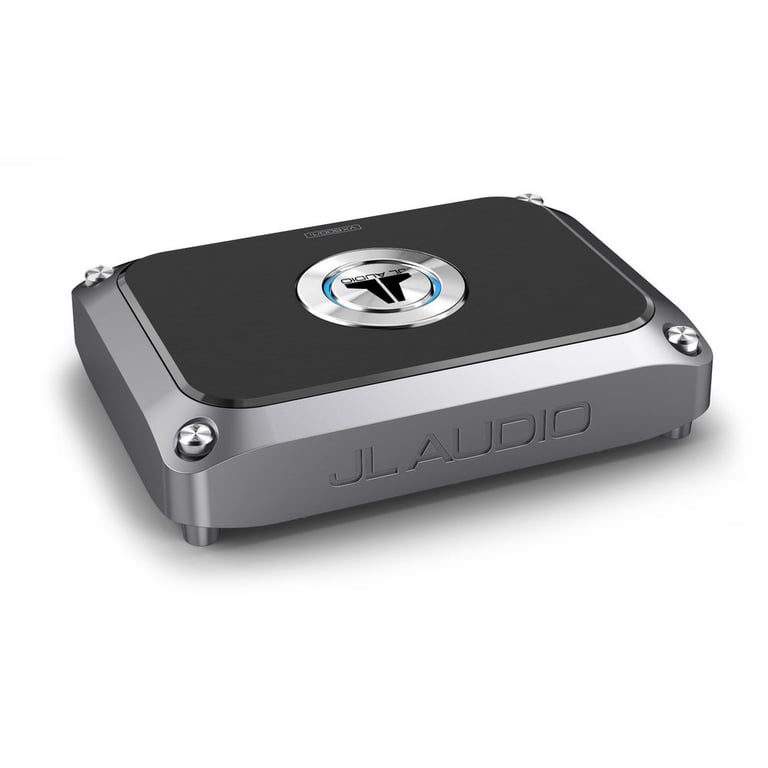

JL Audio VX600/1i (Open Box, Good) Image 1 — JL Audio VX600/1i (Open Box, Good)

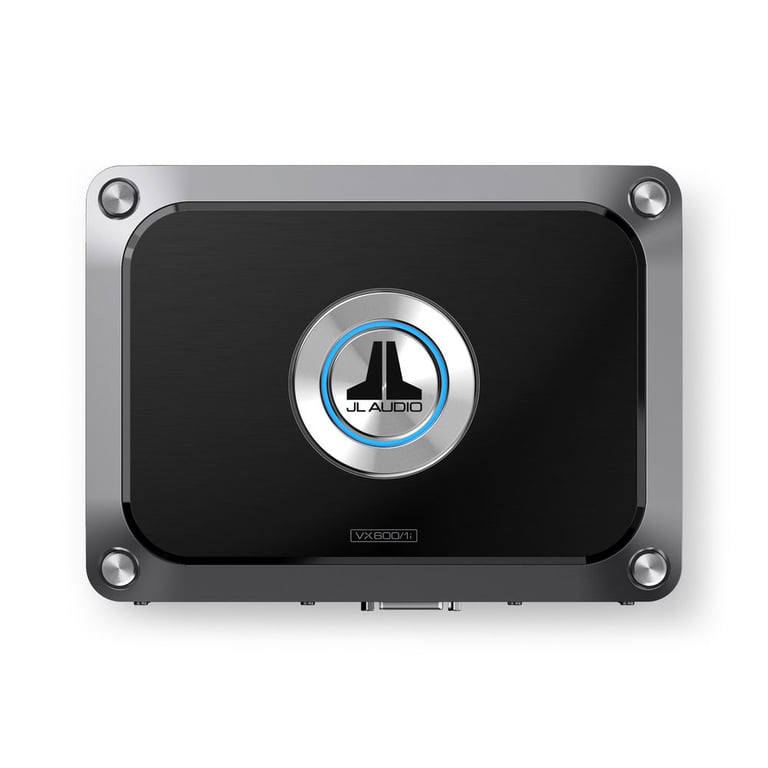

JL Audio VX600/1i (Open Box, Good) Image 2 — JL Audio VX600/1i (Open Box, Good)

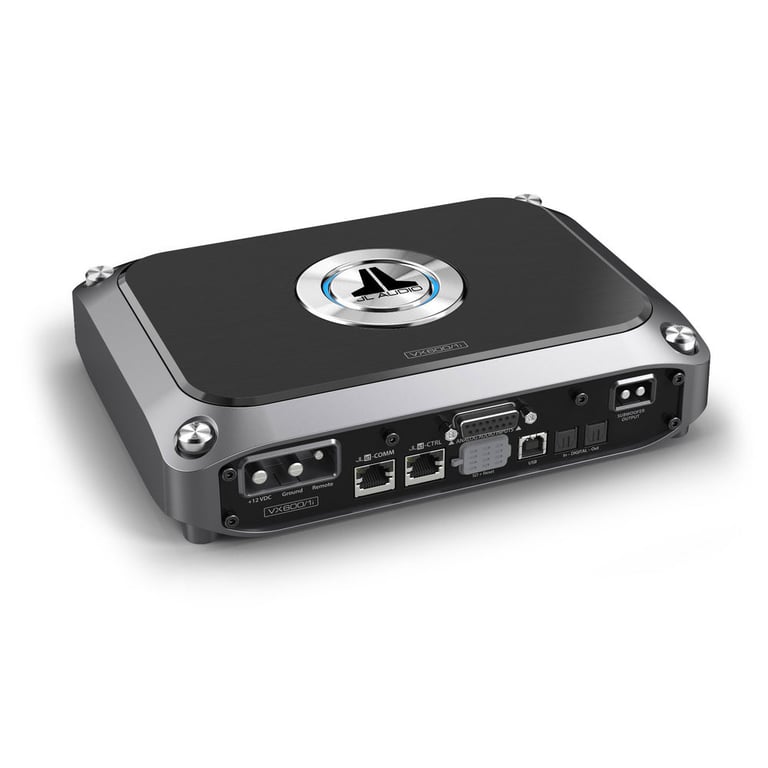

JL Audio VX600/1i (Open Box, Good) Image 3 — JL Audio VX600/1i (Open Box, Good)

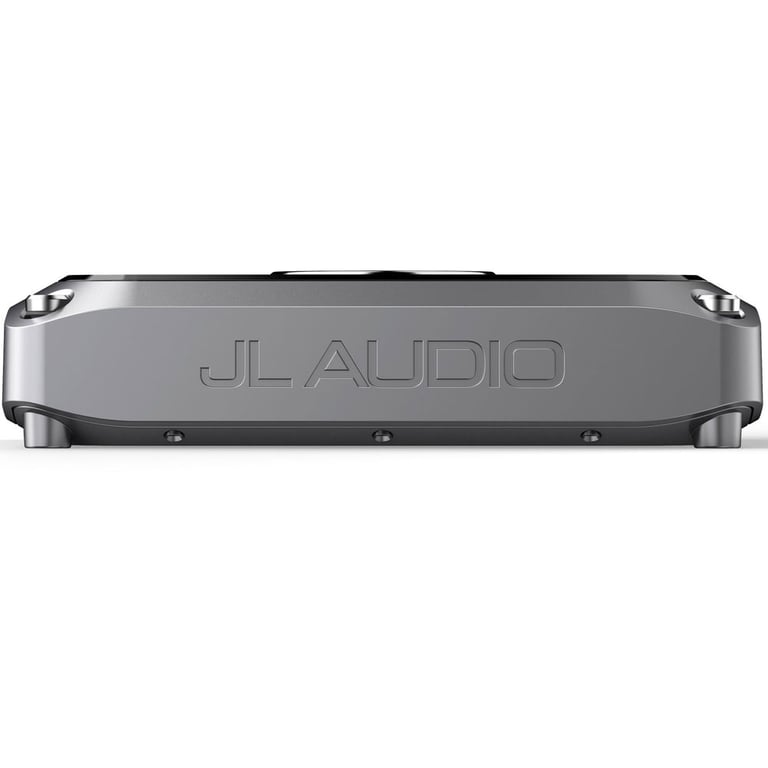

JL Audio VX600/1i (Open Box, Good) Image 4 — JL Audio VX600/1i (Open Box, Good)

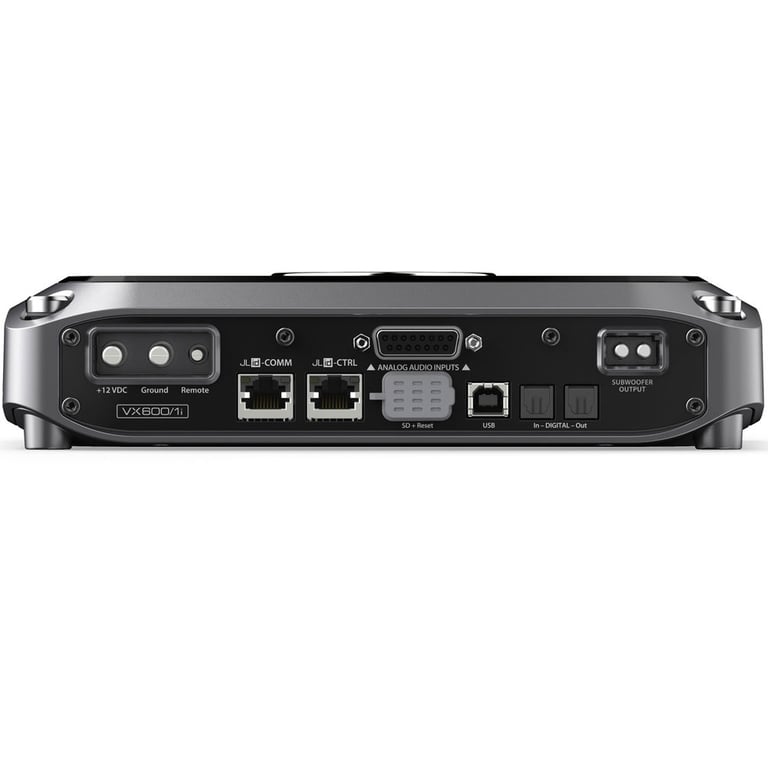

JL Audio VX600/1i (Open Box, Good) Image 5 — JL Audio VX600/1i (Open Box, Good)

Product highlights

• 400 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 3 ohm
• 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable Monoblock Amplifier

Learn more about the ls-vx6001i-u7

Description

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

VX600/1i

Designed to simplify great audio, every VXi amplifier combines advanced NexD2 switching amplifier technology with an integrated, full-featured digital signal processor.

The VX600/1i monoblock subwoofer amplifier outputs up to 400 watts into 4 ohms, or a staggering 600 watts into 2 ohms. A specialized, low-frequency version of NexD2 amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN Software application installed.

Product Details:

VXi Series Class D 2 ohm Stable 1 - Mono Amplifier
RMS Power Rating:

4 ohm: 400 watts x 1 channel
3 ohm: 500 watts x 1 channel
2 ohm: 600 watts x 1 channel

Total power output: 600 watts
Preamp/Speaker-level (high-level) inputs (Speaker-level requires adapter JL Audio XD-CLRAIC2-SW)
Free TüN software is available for computers and most handheld devices
2nd-Gen NexD2 switching amplifier technology
Optical Digital (Toslink) Inputs permit direct connection of S/PDIF digital sources
Analog and Digital Pre-Outs (pass-through or fully configurable)
Automatic turn-on options via signal-sensing or DC-offset sensing
Input sensitivity: 200mV - 16 volts
Frequency Response: 12 - 500 Hz
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: 90 dB
USB connection for device running TüN app (6-foot cable included)
Lid connections for optional Network Hub, Bluetooth Communicator, and Digital Remote Control
Fuse Rating: 50A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 9.02" L x 6.62" W x 2.12" H
Authorized Internet Dealer
2 Year Manufacturer's Warranty
MFR #: VX600/1i

Specifications & Details

Key Features

Amplifier Key Features

Built-in DSP
Speaker Level Inputs

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

400 watts x 1 channel

RMS Power @ 3 ohm

500 watts x 1 channel

RMS Power @ 2 ohms

600 watts x 1 channel

Amplifier Specifications

Series

VXi Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

Frequency Response

12 - 500 Hz

THD at Rated RMS Power

<1%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Band-Pass (BP)
Low-Pass (LP)
High-Pass (HP)

Signal-to-Noise Ratio

90 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio DRC-205

Fuse Rating

50A x 1

Total Fuse Rating

Strappable

Amp Bluetooth Connectivity

Yes

Hi-Res Certified

Low-Level Input Sensitivity

200mV - 16 volts

What is in the box?

Paperwork

User manual
Warranty/Registration card

WITB: Amplifiers

Amplifier
Mounting screws (4)
Adhesive brand badge
Allen wrenches (2)

Warranty and Return Policy

Parts Warranty Duration

2 years

Labor Warranty Duration

2 years

Warranty Provider

Manufacturer
