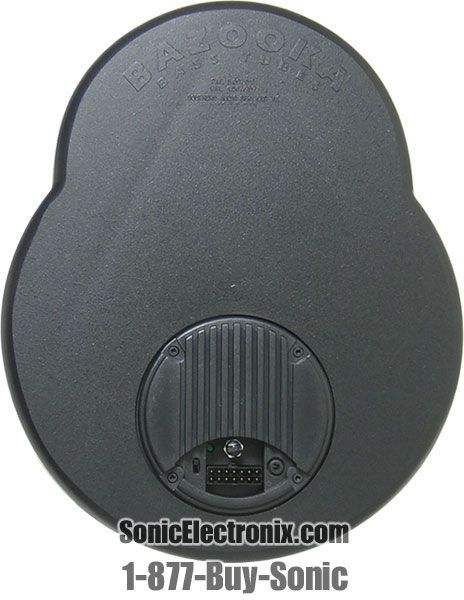

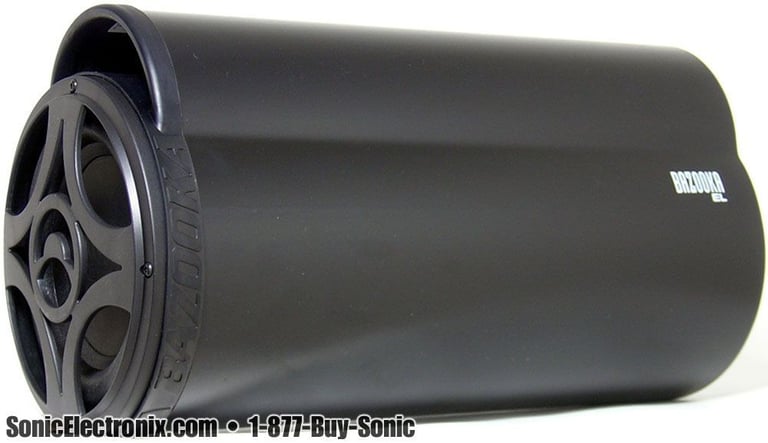

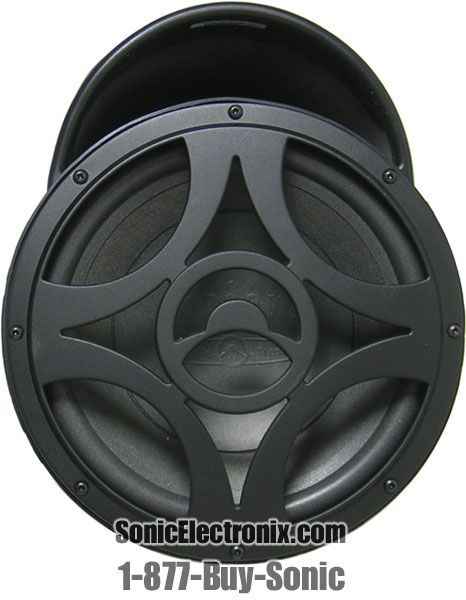

Bazooka EL8A-hp 8" Powered EL Series

2
Bazooka
Shop all Bazooka
highlight-star-icon

8" EL Series Subwoofer in ported and powered bass tube • power handling 100W max • 85 Hz low-pass filter • sensitivity 105 dB • speaker-level and preamp inputs

Learn more about the el8ahp

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

bta8100 thumbnail

Bazooka BTA8100

OUR PRICE: $249.99

View item

Description

Bazooka

Authorized dealer

  • 8" subwoofer
  • 100W built-in amplifier
  • installation kit included with mounting hardware
  • power handling 100 watts max
  • 85 Hz low-pass filter (18 dB/octave)
  • line- and speaker-level inputs
  • frequency response 39-85 Hz
  • subsonic filter (12 dB/octave at 35 Hz) for improved amp efficiency
  • sensitivity 105 dB
  • 18-1/2"L x 8-7/16"W x 10-1/16"H
  • impedance 2 ohms
  • 1-year SonicElectronix.com warranty

Product history:

Bazooka BTA8100 thumbnail
(newest, current model)
Bazooka EL8A-HP thumbnail
(previous model, replaced by Bazooka BTA8100)

Specifications & Details

Full Range Amplifier Power Specifications
Peak Power Output
100 watts x 1 channel
Amplifier Specifications
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
85 Hz
Subwoofer Specifications
Subwoofer Size
8"
RMS Power Handling
50 watts
Total RMS Power Handling
50 watts
Peak Power Handling
100 watts
Total Peak Power Handling
100 watts
Impedance (Per Voice Coil)
2 ohms
Sensitivity
105 dB
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Tube/Cylinder
Height
10-1/16"
Width
8-7/16"
Depth
18-1/2"
Number of Terminals
1
Box Exterior Color
Black
Box Finish
Paint
Warranty and Return Policy

Item Details

Manufacturer:

Bazooka

Model Number:

EL8A-HP

Weight:

17.00lbs

Internal SKU:

el8ahp

Internal Product ID:

154

Customer Ratings & Reviews

Bazooka EL8A-hp 8
2
Rate or review product
5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%
Durability
5
Value
4.5
Features
4
Design
4.5
Usability
5

Customer Reviews

Sort by:
Loading...

great low end adder!

It provides very noticeable improvement in the fullness of a factory stereo. Has nice lows and shines with most music. It is not an spl subwoofer by any means but it is very noticeable. Made the sound in my jeep liberty sound twice as good. Another plus is the all in one design. Easy install for amateurs!.

By Otakon1983 on March 26, 2010

9

found this helpful.
Helpful? Report abuse

Nice sound.

For the size, it sounds very nice. The bass tube is not bigg at all and it's saves a lot of space, but it's bigg on sound. It's not a bigg deep bass knocker, but it's something that a person who don't want too much bass would love to have.

By James on August 9, 2007

6

found this helpful.
Helpful? Report abuse
