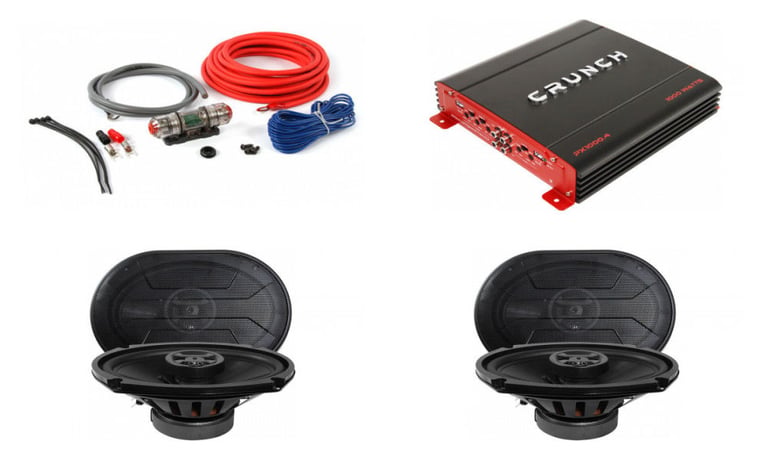

(4) Hifonics ZS693 6x9" 1600W Car Audio Speakers + 4-Channel Amplifier + Amp Kit

800W Max (120W RMS) 6" x 9" Zeus 3-Way Coaxial Car Speakers Package

Hifonics
Shop all Hifonics
highlight-star-icon

• 400 Watts Max Each, 60 Watts RMS Each
• 1" Mylar Dome Tweeter
• Alpha-Cellulose Cones
• 4 Ohm Impedance
• Sensitivity: 88 dB
• Mounting Depth: 3.35"

Learn more about the zs693_px10004_tc4kit8b

We apologize

This item has been discontinued


Loading...
AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

PRO-X6.4M main

DS18 PRO-X6.4M (Sold Individually)

500W Peak (250W RMS) 6.5” PRO-X Series Pro Audio Midrange 4-ohm Loudspeaker

4

Description


Hifonics brand icon

Authorized dealer

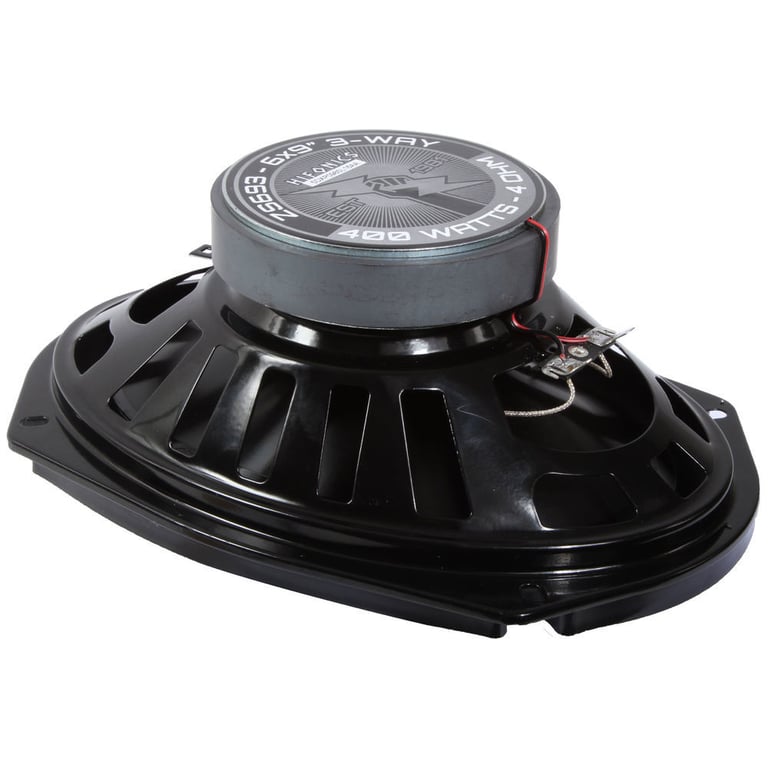

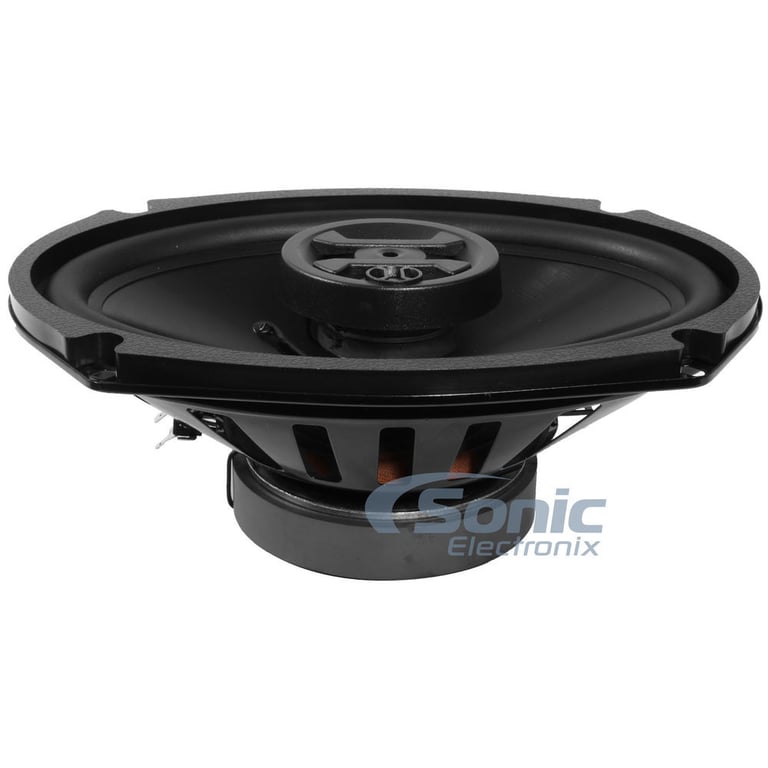

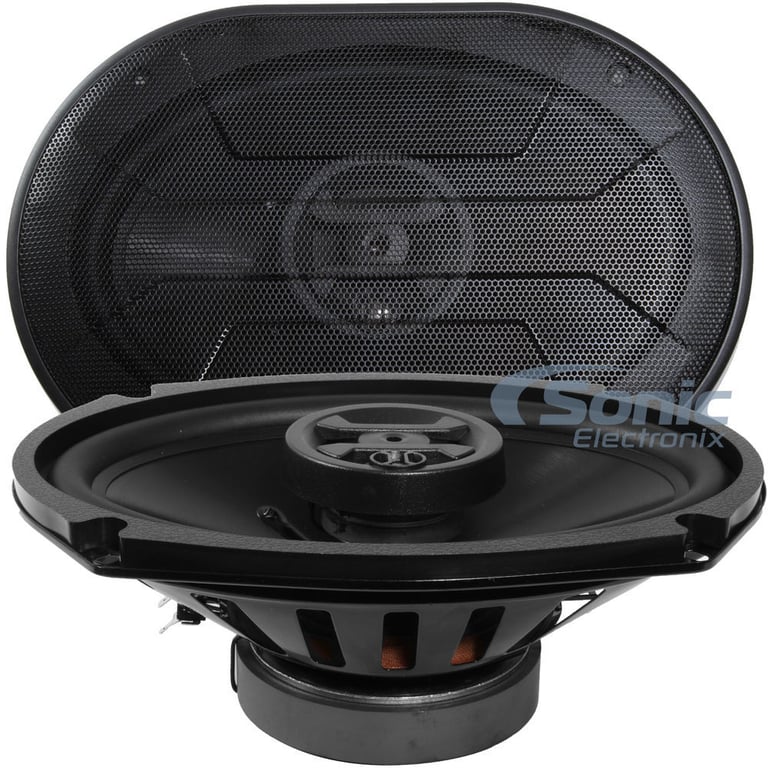

Hifonics ZS693

800W Peak (120W RMS) 6x9" Zeus Series 3-Way Coaxial 4-ohm Car Speakers
Quantity: 2

Product Details:

  • 6" x 9" Zeus Series 3-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 800 watts per pair / 400 watts each
    • RMS: 120 watts per pair / 60 watts each
  • CEA-423B compliant
  • Alpha-Cellulose cone material
  • Rubber speaker surround
  • 1" Neo-Mylar Dome tweeters
  • Tweeters constructed with impact-resistant elements
  • voice coil on Kapton former
  • Ferrite magnet motor structure
  • High-temperature adhesive between the cone and surround
  • Epoxy-infused natural fiber spider
  • Over-coil air cooling system
  • Passive Butterworth crossover with 1kHz + 3kHz 12dB slope
  • Anti-resonant stamped steel basket
  • Top-mount Depth: 3.35"
  • Cutout Dimensions: 8.64 x 5.98
  • Impedance: 4 ohm
  • Frequency Response: 46 - 20000 Hz
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • MFR #: ZS693
  • 1-year Manufacturer's Warranty

  • Priced Per Pair

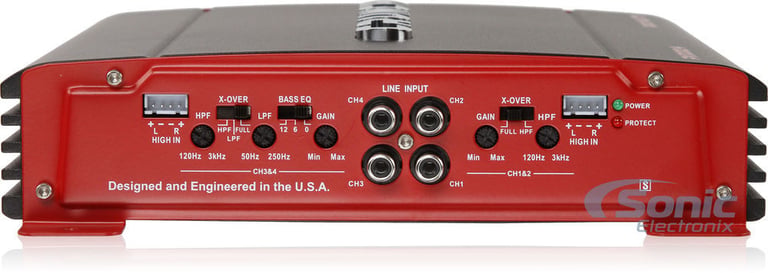

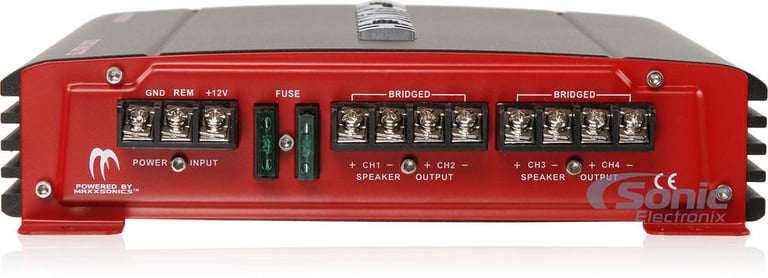

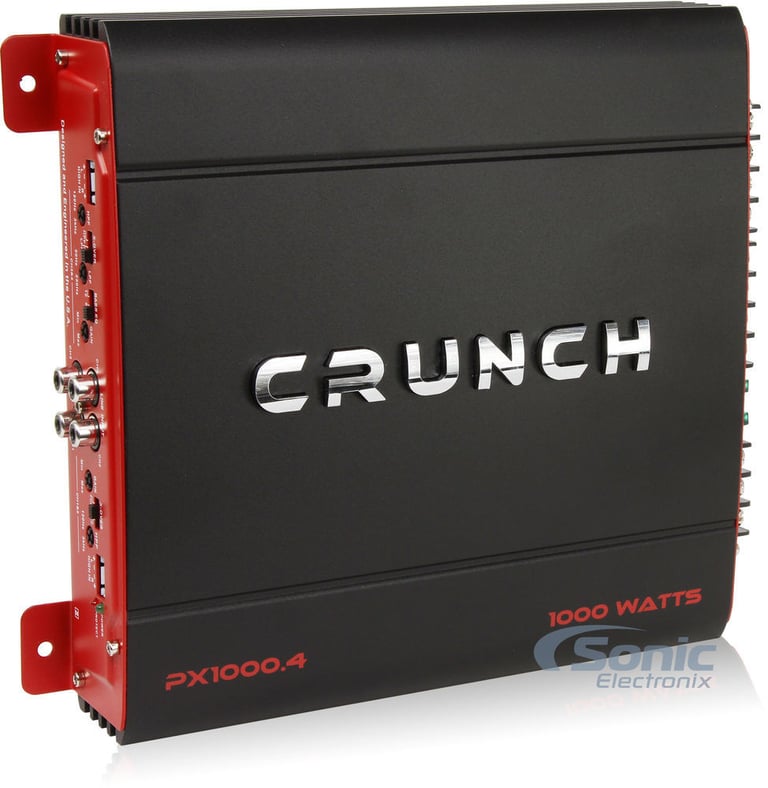

Crunch PX1000.4 (PX10004)

1000W POWERX Series 4-channel Bridgeable Car Audio Amplifier
Quantity: 1

General Features:

  • Crunch POWERX Series PX 1000.2 Entry Level Amplifier
  • Class-A/B FullRange 2-Ohm Stable 4-Channel Amplifier
  • Peak Power Rating:
    • 4 ohm: 125 watts x 4 chan.
    • 2 ohm: 250 watts x 4 chan.
    • Bridged, 4 ohm: 500 watts x 2 chan.
  • Total power output: 1000 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • Variable high-pass filter: 120 - 3000 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 to +12 dB bass boost
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 11.4"W x 10.8"L x 3.7"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the PowerX Amplifier Series Owner's Manual

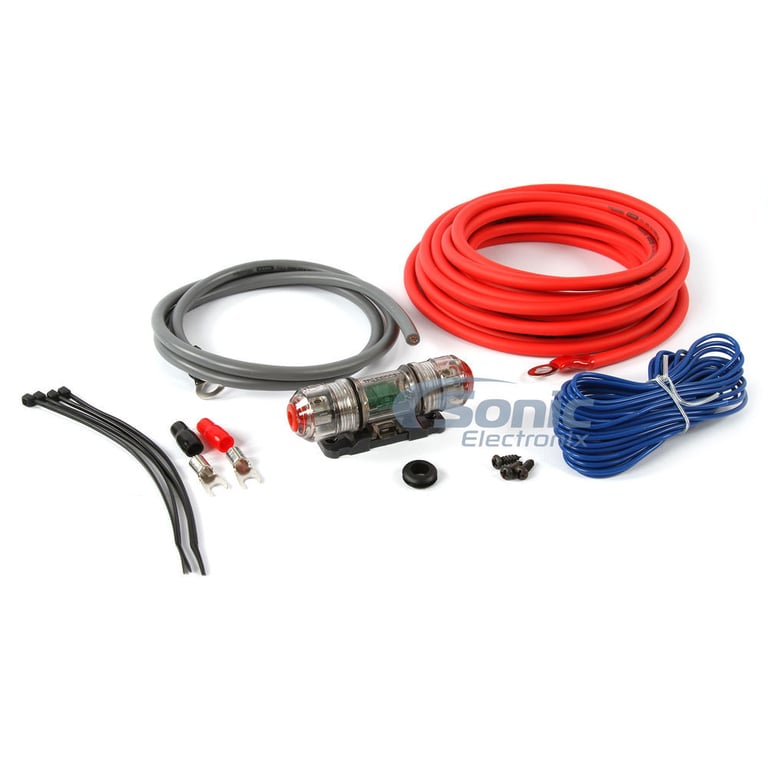

Belva BAK82BL

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - BLUE
Quantity: 1

Product Details:

  • Complete 8 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 60 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Red
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

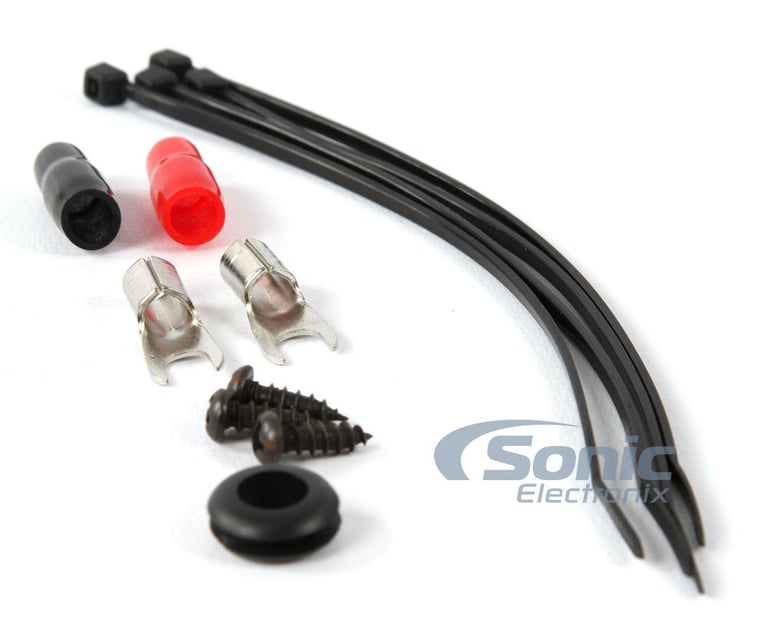

Kit includes:

  1. 17 ft. (5.2 meters) Blue 8 gauge power wire
  2. 3 ft. (.91 meters) Black 8 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

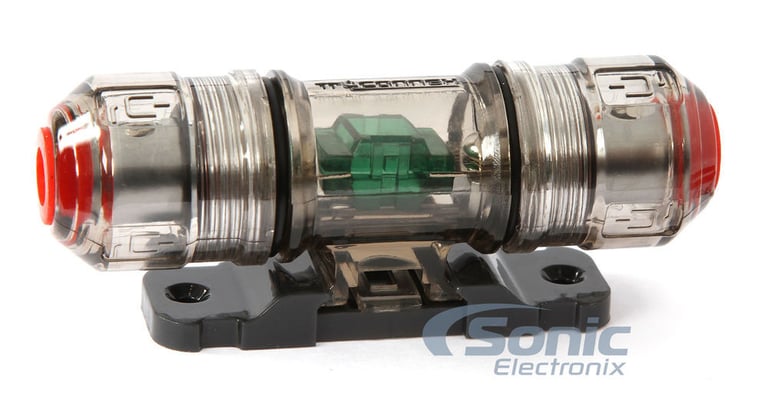

  6. One MINI-ANL Fuse Holder with a 60 amp fuse
  7. One Black rubber firewall grommet
  8. One 8 Gauge Blue chrome plated ring terminals
  9. One 8 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Blue Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

DAX8000S_MRR_S8FO1_S small

Kenwood DAX8000S Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• 4 Camera Inputs Function

(39)

$1353.96

List price $2003.96

DAX800XR_MRR2_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1503.97

List price $2119.97

DAX800XR_MRR_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1403.96

List price $2053.96

KWZ800AW_MRR2_S8FO1_S small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(8)

$1473.96

List price $1892.96

DAX8000S_MRR2_S8FO1_S small

Kenwood DAX8000S Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• 4 Camera Inputs Function

(8)

$1423.96

List price $2093.96

DAX8000S_MRR_S8FO1 small

Kenwood DAX8000S Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• 4 Camera Inputs Function

(39)

$1333.97

List price $1979.97

Specifications & Details


Front Speaker Specifications
Speaker Size
6" x 9"
Design
3-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Mylar
Woofer Composition
Alpha-Cellulose
Woofer Surround
Rubber
Peak Power Handling
400 watts
RMS Power Handling
60 watts
Sensitivity
88 dB
Frequency Response
46 - 20000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
3.35"
Cutout Dimensions
8.64 x 5.98
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZS693, PX1000.4, TC4KIT8b

Weight:

18.00lbs

Internal SKU:

zs693_px10004_tc4kit8b

Internal Product ID:

154203

Customer Ratings & Reviews


(4) Hifonics ZS693 6x9

5 star
76%
4 star
22%
3 star
1%
2 star
0%
1 star
1%



Durability
4.8
Value
4.9
Features
4.7
Design
4.8
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Cheap kit that did it's job

The following review is for BAK82BL, which is a part of the bundle you are viewing.

Inexpensive kit that works great for the 300 watt amp I'm running.

By Anonymous on November 6, 2019

75 found this helpful


Belva BAK82BL (Blue) Review

The following review is for BAK82BL, which is a part of the bundle you are viewing.

Overall this was a pretty good kit for the money. The one downside was I was missing the following and had to go out and buy these to finish my install.
One black rubber firewall grommet
One 8 Gauge Blue chrome plated ring terminals
One 8 Gauge Black chrome plated ring terminal
Three 18 Gauge Blue Spade terminal
Two 18 Gauge Black Spade terminal
One 18 Gauge Red butt connector
Ten 4" Black zip ties

By t-man on January 13, 2018

71 found this helpful


No complaints

The following review is for BAK82BL, which is a part of the bundle you are viewing.

Good amp kit for the price. Not sure if it is true 8 gauge but at this price can't complain. Plus it is everything you need

By Chad on February 26, 2017 Checkmark Icon Verified purchase

70 found this helpful


Great value

The following review is for BAK82BL, which is a part of the bundle you are viewing.

Worked great for the system I installed. It came with everything to complete the project. Sonic has great service and fast shipping.

By Mike on January 22, 2017 Checkmark Icon Verified purchase

69 found this helpful


Great deal

The following review is for BAK82BL, which is a part of the bundle you are viewing.

Worked great for a 240 watt amp powering 4 6x9's in a custom built enclosure

By Anonymous on October 31, 2019 Checkmark Icon Verified purchase

69 found this helpful


AMP. KIT

The following review is for BAK82BL, which is a part of the bundle you are viewing.

VERY GOOD QUILTY PRODUCT AND HAD ENOUGH WIRE FOR PROJECT

By Bobby on March 23, 2017

67 found this helpful


Not worth it.

The following review is for BAK82BL, which is a part of the bundle you are viewing.

This wiring kit isn't worth your money. Just buy a decent one for $50 than wasting your time with this piece of crap.

By Ray on December 19, 2015 Checkmark Icon Verified purchase

70 found this helpful


Nice cabling

The following review is for BAK82BL, which is a part of the bundle you are viewing.

Product performs as advertised. Came with most of necessary hardware

By Anonymous on August 18, 2018

66 found this helpful


Great Value!

The following review is for BAK82BL, which is a part of the bundle you are viewing.

Its a great wiring kit for the money. You cant beat it. Wires are nice and flexible, unlike other cheap wire thats stiff. Id buy again.

By Andrew on September 15, 2015 Checkmark Icon Verified purchase

64 found this helpful


Just what I was looking for!

The following review is for BAK82BL, which is a part of the bundle you are viewing.

I purchased this to go in the trunk of my 1966 mustang. I purchased it after reading another review of an install in a mustang. It fit perfectly in the side of the trunk and did not take up a lot Space. Sounds great.

By DHC on January 4, 2017

59 found this helpful



Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2021 Jeep Compass

2020 Audi Q5 PHEV

2013 Nissan Juke

2019 Ford Escape

2000 Honda S2000

2023 Ram 3500

2018 Ram 2500

2010 Ford Focus

2017 Audi A7 Quattro

1983 Ford Ranger

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
