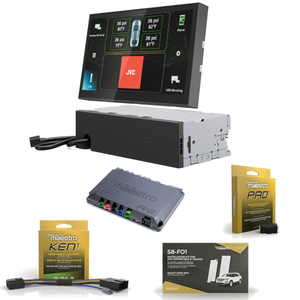

JVC KW-Z800AW Direct Fit Digital Receiver Package

Product Details

• Direct OEM Replacement In-Dash Bluetooth Digital Multimedia Receiver
• 8" Capacitive Touchscreen Display
• Compatible with select 2009-2022 vehicles from Ford, GMC, Chevrolet
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Wireless remote control included
• Built-in HD Radio Tuner and Wi-Fi
• HD display and HD 4-camera input
• SiriusXM and iDataLink Maestro ready
• Direct replacement modular chassis design
• Dynamic GUI and supports live wallpaper
• JVC portal app and remote control app compatible
• Features time alignment function
• Compatible 8" floating stereo dash kits (all sold separately):
• iDataLink APX-S8-FO1, iDataLink APX-S8-FO2, iDataLink APX-S8-GM1
• iDataLink APX-S8-GM2, iDataLink APX-S8-GM3, iDataLink APX-S8-GM4
• iDataLink APX-S8-IN1, iDataLink APX-S8-VF1
• Can be used with JVC KS-UA50 extension cable (sold separately)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: KW-Z800AW

Smartphone Features

• Supports wireless Apple CarPlay and wireless Android Auto
• Split screen interface support for both Apple CarPlay and Android Auto
• Display and control music, navigation, and other apps with iPhone and Android
• Siri Eyes Free control for select iPhones and Voice assistant button for Siri or Google Assistant
• Wired phone-mirroring for Android via HDMI (optional) or Wi-Fi

Playback and Audio Features

• MP3 | WMA | WAV | AAC | FLAC Audio Playback
• H.264 | WMV | MPEG 1/2 and 4 | AVI/MKV Video Playback
• AM/FM tuner with 15FM/5AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic EQ

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately
• iDataLink ADS-MRR and iDataLink ADS-MRR2 module (compatible and sold separately)

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Front-view Camera Input: Used for universal cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.
• Rear HDMI input: Display your smartphone screen via HDMI

Navigation Features

• Determined by phone connected
• Access maps via Apple CarPlay or Google Maps via Android Auto

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes a wired microphone for clear, convenient, distortion-free talking
• Supports voice dialing (voice recognition compatible mobile required)
• Supports 2 phone full-time connection
• Phone Book Access Profile (PBAP)
• Alphabetical search for phone book

Product Features:

• Connect iDataLink compatible stereos to Maestro RR2
• Covers 4860 vehicle models from 2002-2024
• Allows installation of stereo in select 2006-up Chrysler, Fiat, Ford, GM, Honda/Acura, Subaru, Toyota/Scion, and Volkswagen
• Provides gauges, vehicle info, parking assistance, climate control, and radar detection
• Retains factory infotainment features such as steering wheel control, voice commands, etc.
• Enables Bluetooth programming directly from your iOS and Android mobile device
• Basic stereo retention features are available with non-iDataLink compatible stereos
• Allows for integration of factory steering wheel controls and factory amplifier with an aftermarket stereo
• Retains OnStar, SYNC and uConnect in select iDataLink ready stereos
• Displays engine performance data on select iDataLink ready stereos
• Use Bluetooth enabled device or mini USB to USB-A cable for setup
• With 3 programmable output control relay-driven aftermarket accessories
• Dedicated port connects to select Escort radar detectors (sold separately)
• Compatible with vehicle-specific harnesses (sold separately)
• Authorized Dealer
• 1-year Manufacturer's Warranty

Product Details:

• Installation Dash Kit for Kenwood or JVC APX 8" floating touchscreen stereos
• Compatible with select 2011-2022 vehicles from Ford, Lincoln with factory 8" MyFord Touch stereos
• Accommodates ISO mount
• Designed to allow the installation of an aftermarket car stereo receiver
• Compatible with Kenwood Excelon DAX8000S and DAX800XR, and JVC KW-Z800AW (Sold separately)
• iDataLink ADS-MRR or iDataLink ADS-MRR2 modules required (Sold separately)
• Features factory grade fit and finish
• High-grade ABS plastic construction
• Gapless fit between the dash and the kit
• Painted to match factory dash color
• Factory matched texture style
• Retains the factory amplifier with turn-on, fader, gain, DSP control, and speed-compensated volume
• Retains the steering wheel controls with two function buttons for expanded radio functions
• Retains the backup camera with dynamic parking guidelines and park assist chimes
• Retains the factory 360 camera, as well as factory auto-camera switching
• Retains the secondary vehicle display
• Retains the factory climate display and controls, as well as vehicle settings
• Retain the factory USB ports
• Provides the display vehicle information
• Provides selectable performance gauges, including 'track pack' gauges
• Provides 12V accessory power and illumination outputs
• Provides parking brake, reverse and vehicle speed sensor (VSS)
• Color: Black
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit Includes:

1. APX-S8-F01-01 mounting plate
2. APX-S8-FO1-01 bracket
3. APX-SB-FO1-02 bracket
4. APX-S8-FO1-13 mounting bracket
5. APX-SB-FO1-14 mounting bracket
6. APX-S8-FO1-13 bracket
7. APX-S8-FO1-14 bracket
8. Vehicle/interface harness
9. Sub harness
10. A-HRN-KIT speaker harness
11. USB-C cable
12. USB-C to USB-A cable
13. Large and small USB housing
14. USB trim panels
15. 2 USB trim-rings
16. 3 USB trim-plates
17. Antenna adapter
18. 3M tape
19. Pry-tool
20. Ten M5x6mm screws
21. Four M5x16mm screws
22. Four M5x8mm screws
23. 4 Nuts
24. 4 Split-washers
25. "GND" screw
26. Quick Start Guide

Product Features:

• Head unit adapter to connect select Kenwood and JVC stereos to compatible Maestro T-harnesses
• Connects directly to compatible T-harness without splicing or cutting wires
• Use with iDataLink ADS-MRR, iDataLink ADS-MRR2, or iDataLink ADS-MSR module to replace radio and retain steering wheel control (required and sold separately)
• Adapter will only work with the use of an iDataLink Maestro module and a compatible iDataLink Maestro T-harness
• Easy installation, plug-n-play connection
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Features:

• Level matching padding circuit for select vehicles with factory amplifiers
• Made specifically only for vehicles equipped with factory amplifiers
• Provides clean consistent power
• Reduces and minimizes radiated noise
• Ensures crystal clear sound even at high volumes
• Plug and play, hassle-free installation
• Use with Maestro SR iDataLink ADS-MSR or RR iDataLink ADS-MRR (sold separately)
• Compatible with any Maestro T-harness
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
