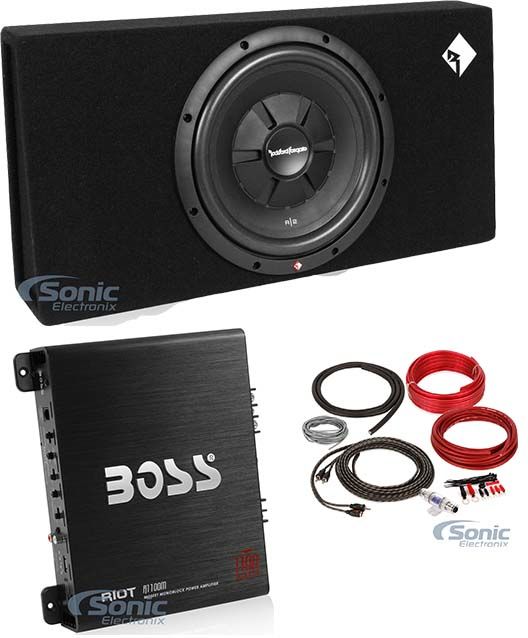

Rockford Fosgate R2S-1X12 12" 500W Subwoofer + 1100W Amp + Premium Amp Kit

500W Peak, Prime Series Single 12" R2SD4 Subwoofer Loaded Enclosure Package

highlight-star-icon

• Peak Power: 500 watts
• RMS Power: 250 watts
• Final Impedance: 2 ohm
• Solid 5/8" MDF Construction
• Complete with high-density black box carpeting

Learn more about the r2s1x12_r1100m_bak82

We apologize

This item has been discontinued


Loading...
70-7001 main

Metra 70-7001 Wiring Harness

Install a new car stereo in select 1992-2012 vehicles from Mitsubishi, Eagle, Dodge

7
99-7007 main

Metra 99-7007 Dash Kit

Install a new Single-DIN car stereo in select 2000-2005 Eclipse and Montero Sport and Eclipse Spyder

2
-43.35%

$16.99

List price $29.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

KMM-BT332U main

Kenwood KMM-BT332U

Single DIN Digital Media Receiver with Bluetooth (Built-in Amazon Alexa)

1
-14.00%

$129.00

List price $150.00

Limited time!
DCPA1013 main

Dual DCPA1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

5
-24.48%

$289.99

List price $383.99

BE9ACP.X main

Boss Elite BE9ACP.X

9" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

1

Description


Rockford Fosgate brand icon

Authorized dealer

Anodized Aluminum Voice Coil Former

Anodized Aluminum Voice Coil Former

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.


CEA-2031 Rockford Fosgate Subwoofers

Conforms to CEA-2031

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.


Rockford Fosgate Stitched Tinsel Leads

Stitched Tinsel Leads

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.

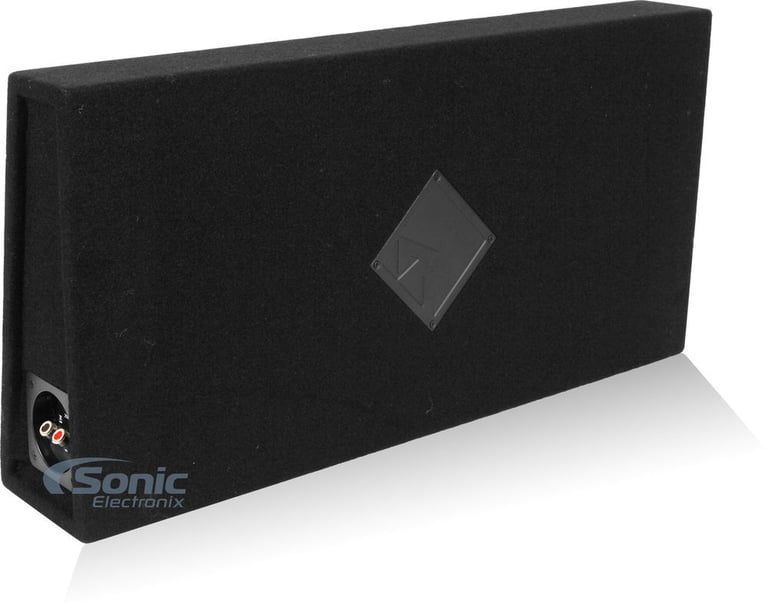

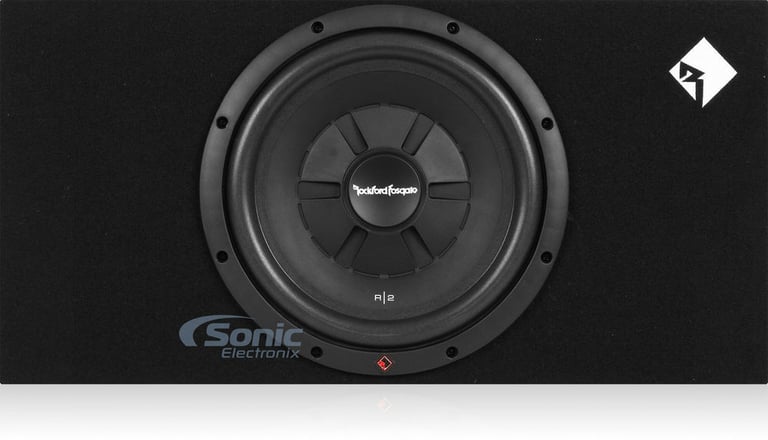

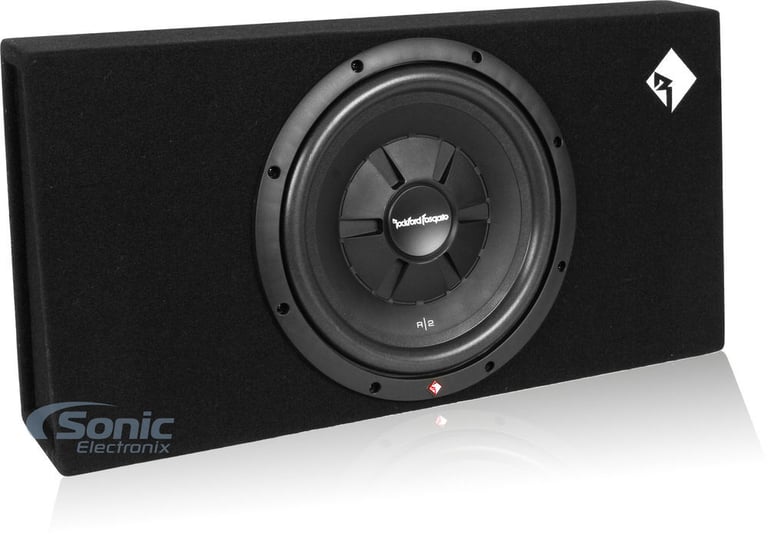

Rockford Fosgate Prime R2S-1X12

500W Peak (250W RMS) Loaded Single 12" Sealed Shallow Truck Enclosure
Quantity: 1

Product Details:

  • Sealed truck enclosure with 1 12" Prime R2 Series Subwoofer
  • 5/8" medium-density fiberboard construction covered with Carpet
  • Preloaded with one Rockford Fosgate R2SD4-12 subwoofer
  • Slim truck-style enclosure
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Final Impedance: 2-ohm
  • Mica Injected Polypropylene - MIPP cone
  • Poly-Foam surround
  • Integrated PVC trim ring
  • StampCast basket with integrated spider venting
  • 2" High temperature Aluminum voice coil
  • CEA-2031 compliant
  • Klippel verified
  • 51 oz. Double Stacked magnet motor structure
  • 10 mm Xmax
  • Frequency Response: 43 - 250 Hz
  • Resonance Frequency (Fs): 30.3 Hz
  • Sensitivity: 85 dB
  • Dimensions: 27.375" L x 13.5" H x 3.25" W x 5.25" W2
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

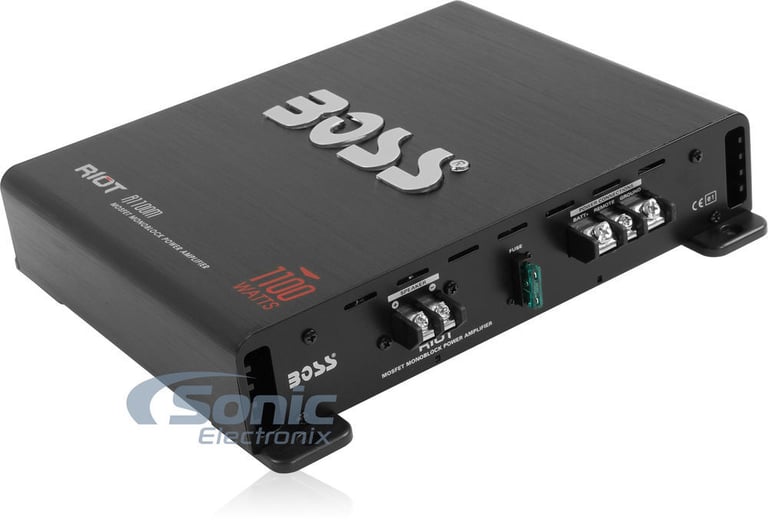

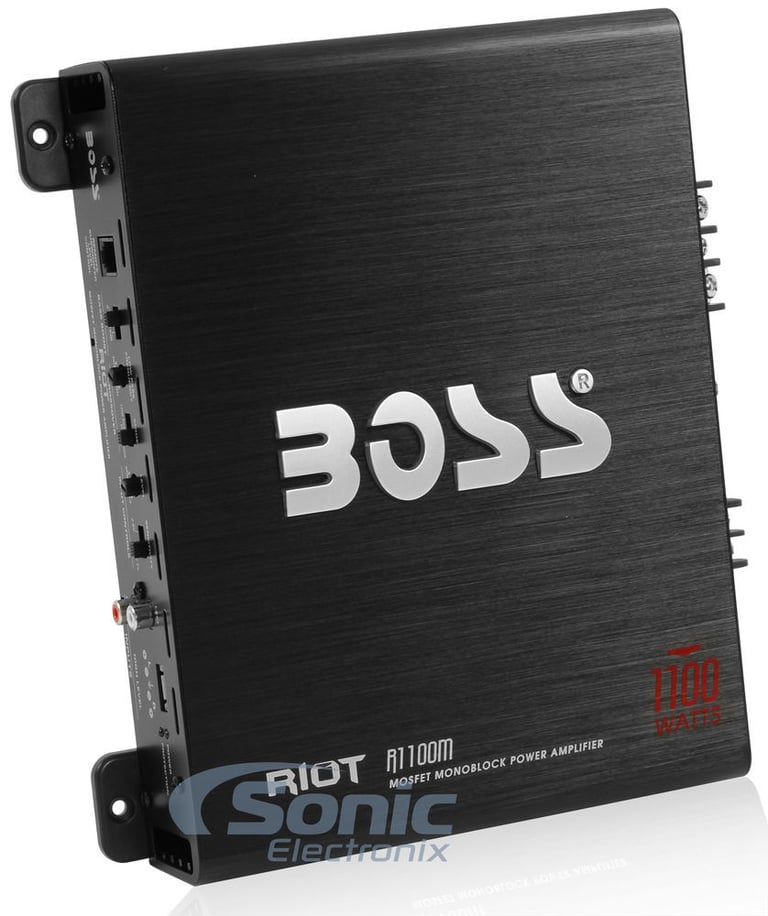

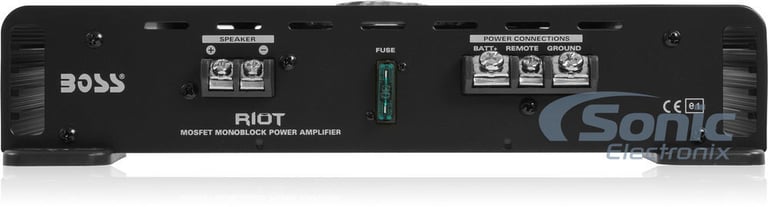

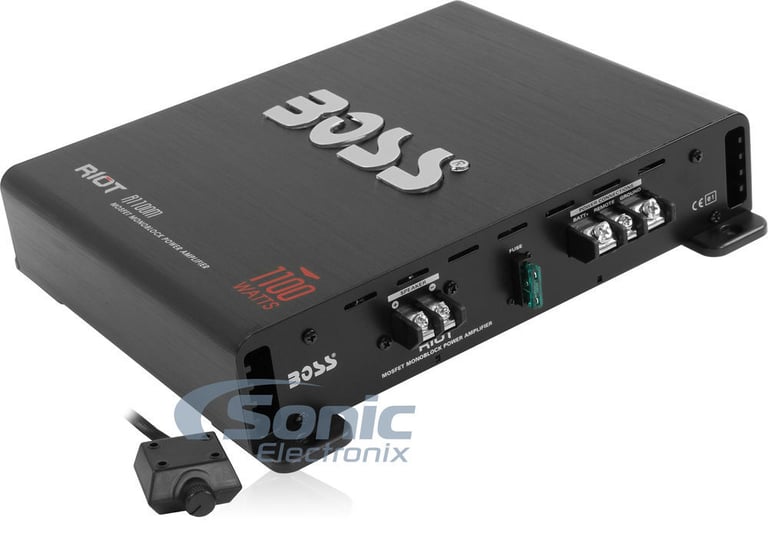

Boss R1100M Amplifier

Riot 1100 Watt, 2/4 Ohm Stable Class A/B, Monoblock with Remote Subwoofer Control
Quantity: 1

General Features:

  • Boss Riot Series R1100M
  • Class-AB FullRange 2-Ohm Stable Monoblock Amplifier
  • MAX Power Rating:
    • 4 ohm: 550 watts x 1 chan.
    • 2 ohm: 1100 watts x 1 chan.
  • RMS Power Rating:
    • 4 ohm: 413 watts x 1 chan.
    • 2 ohm: 825 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 100mV - 2V
    • High level: 2V - 8V
  • Frequency Response: 9 - 50,000 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 102 dB
  • Selectable crossover modes: Low Pass / Full Range
  • Variable low-pass filter: 35 - 160 Hz,/octave
  • Selectable Bass Boost: 0 to +18 dB
  • Fuse Rating: 30A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.13"W x 10.44"L x 2.25"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

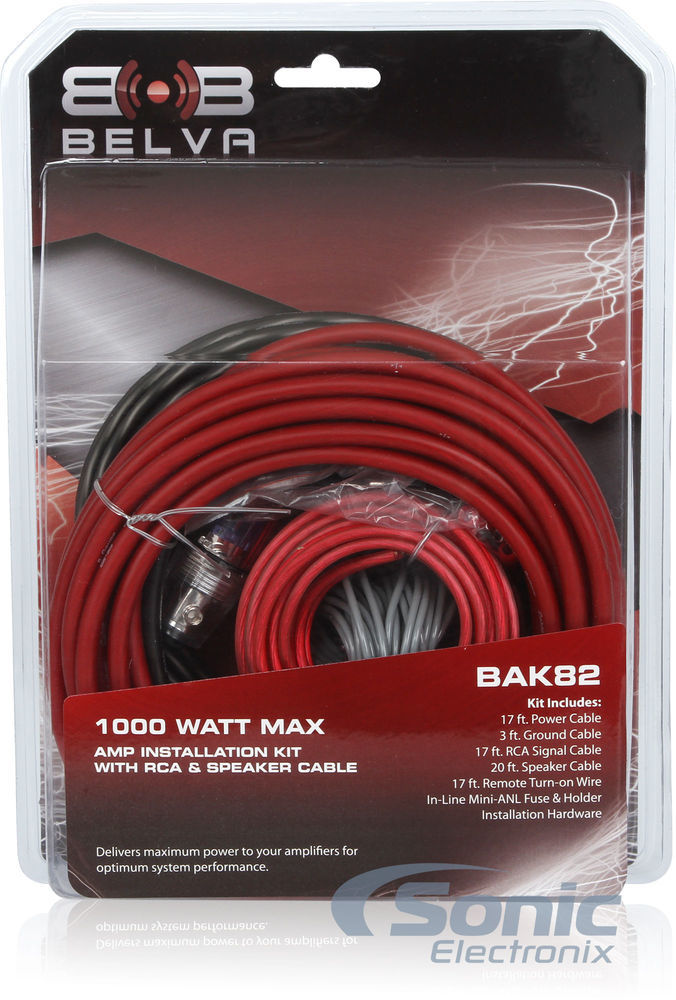

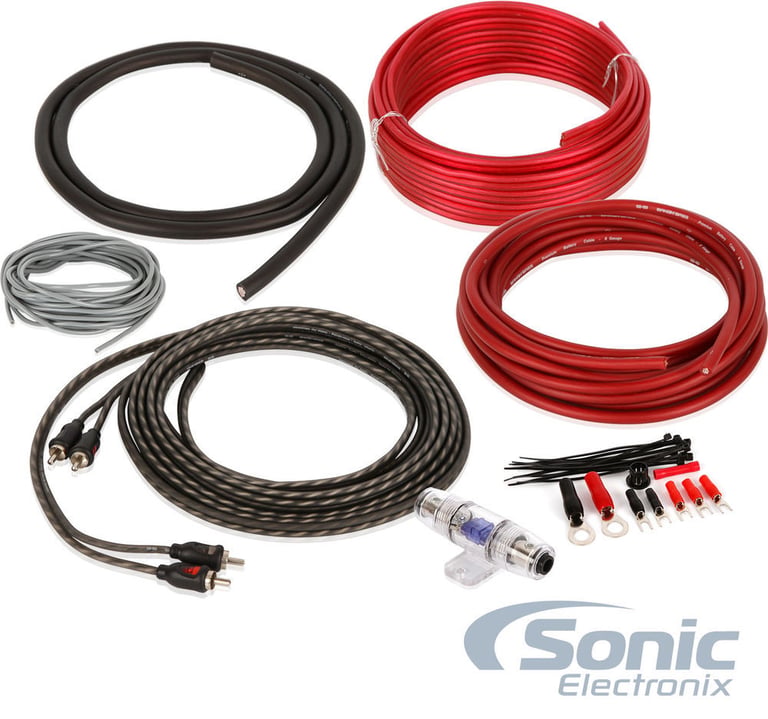

Belva BAK82

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

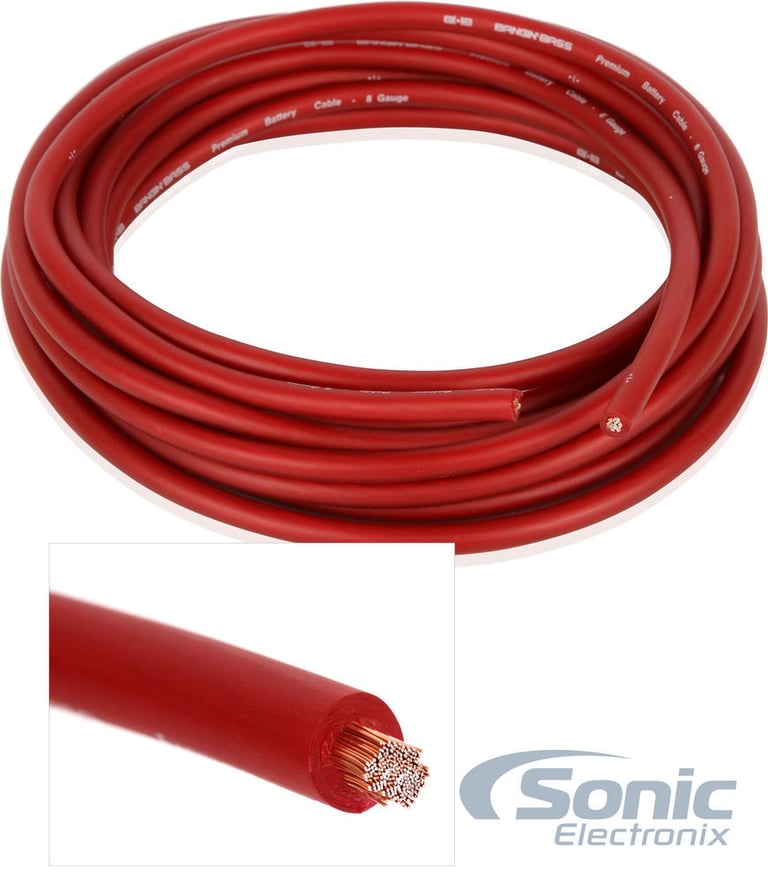

  1. 17 ft. Red 8 gauge power wire
  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties
