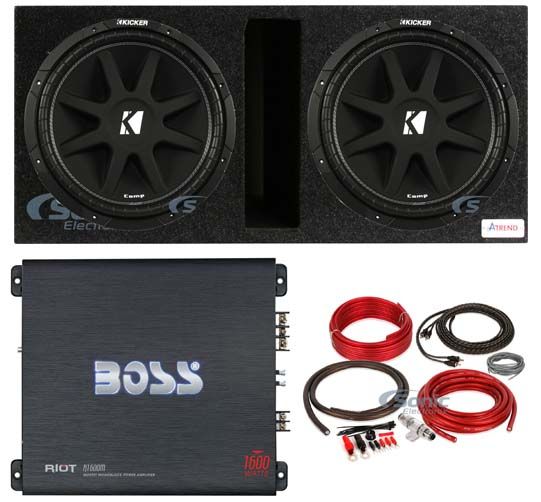

Kicker 15" Dual Loaded Subwoofer Box w/ 2000W 4-Ch. Amplifier & Free Amp Kit

Product Details:

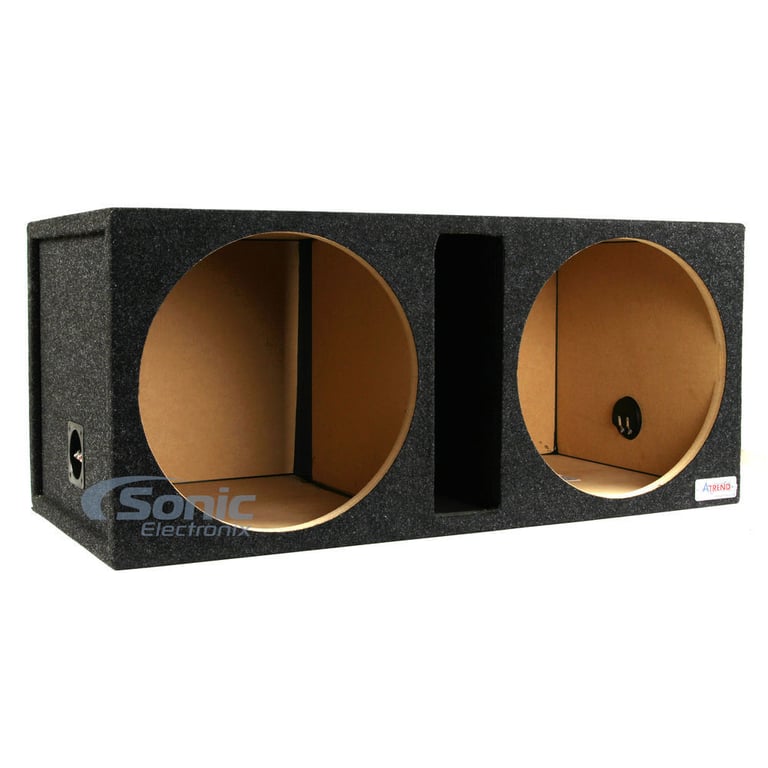

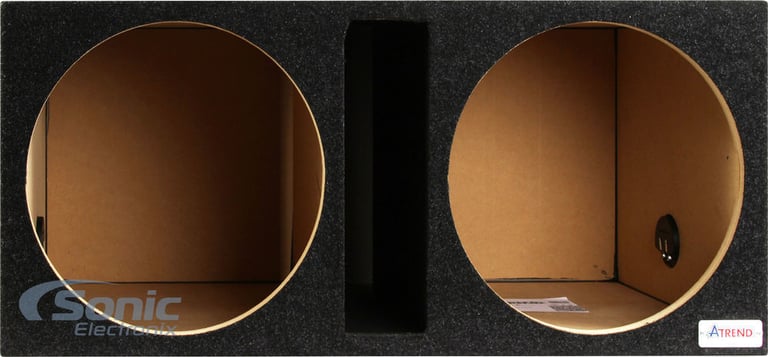

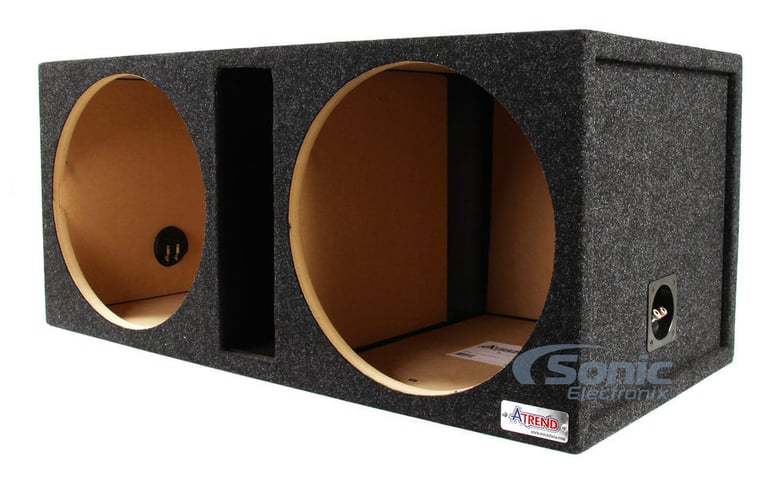

• 15" Dual Ported Subwoofer Enclosure
• Durable 3/4" Medium Density Fiberboard (MDF) construction
• Mitered edge construction provides cleaner finish
• Miter joints feature over 41% more surface area
• More surface area translates into a stronger bond
• Dado joints offer an 80% increase in surface area
• Built using trick glue for up to 3600 PSI holding ability
• Glued and braced with fasteners for added strength
• Premium black carpeted finish for sleek modern look
• Silver spring-loaded terminal push cups
• Maximum subwoofer mounting depth: 16.15"
• Subwoofer cutout diameter: 14"
• Box volume: 2.19 cubic feet (per chamber)
• Total box volume: 4.38 cubic feet
• Dimensions: 36" L x 16" H x 17" W
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Port Specifications:

• Rectangular port
• Number of ports: 1
• Port length: 2.75"
• Estimated port tuned frequency (fb): 36 Hz

Product Details:

• 4 Gauge 2-Channel Complete Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Made from 100% Copper-Clad Aluminum (CCA)
• Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• RCA Interconnect Cable
• Twisted-pair construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Gray 4 gauge power wire
2. 3 ft. Black 4 gauge ground wire
3. 17 ft. Gray 18 gauge remote lead wire
4. 20 ft. 16 gauge speaker wire
5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Chrome Plated ring terminals
9. Five 16 Gauge Spade terminal
10. One 18 Gauge Red butt connectors
11. Ten 4" Black zip ties

General Features:

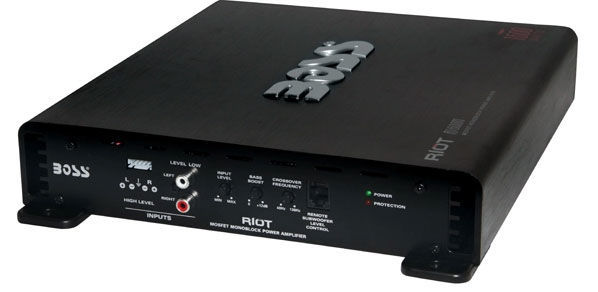

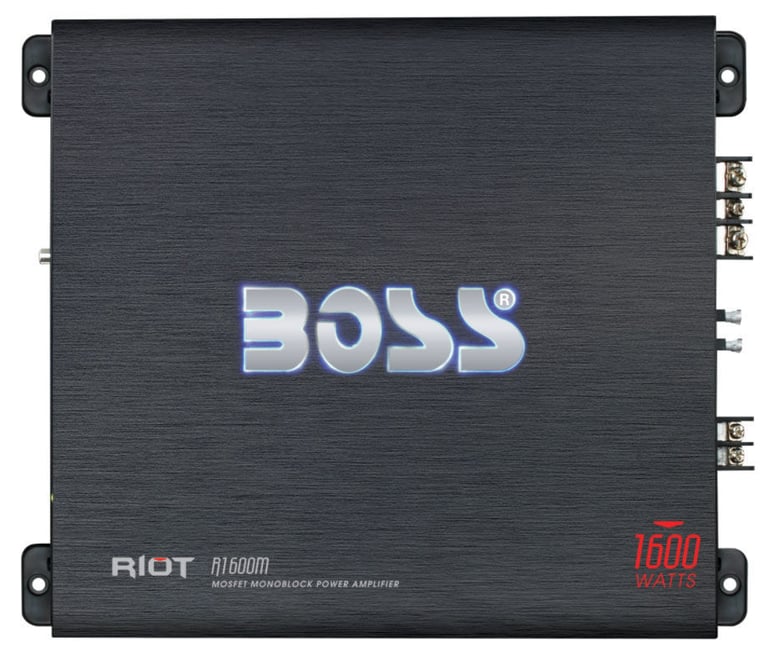

• Boss Riot Series R1600M
• Class-A/B 2 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 600 watts x 1 chan.
• 2 ohm: 1200 watts x 1 chan.
• 1 ohm: ------------N/A------------
• Total power output: 1600 watts
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• Frequency Response: 9 - 130 Hz
• Total Harmonic Distortion (THD): .01%
• Signal to Noise Ratio: 102 dB
• Variable low-pass filter: 40 - 130 Hz, 24 dB/octave
• Subsonic filter: 9 - 130Hz
• Variable Bass Boost: 0 to +12 dB bass boost
• Fuse Rating: 25A x 2
• 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 10.4375"W x 12.34375"L x 2.25"H
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty
