Planet Audio BAK82,R1100M,1TRUCK10,AC10D - Sonic Electronix

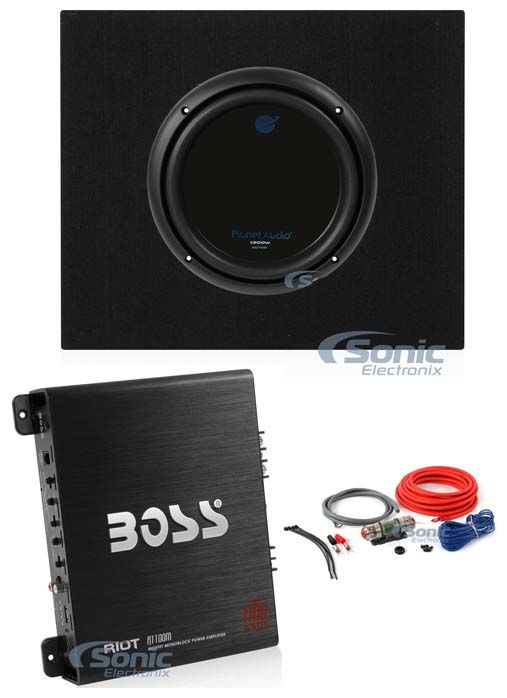

Planet Audio 1500W Subwoofer + Truck Enclosure + Boss 1100W AB Amplifier

750W 10" Anarchy Series Dual 4 Ohm Car Subwoofer Package

750W 10" Anarchy Series Dual 4 Ohm Car Subwoofer Package

• Peak Power: 1500W
• RMS Power: 750W
• Sensitivity: 87 dB

4.7

(212)
List price $303.96
Save: $33.00

$270.96

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Planet Audio

Authorized dealer

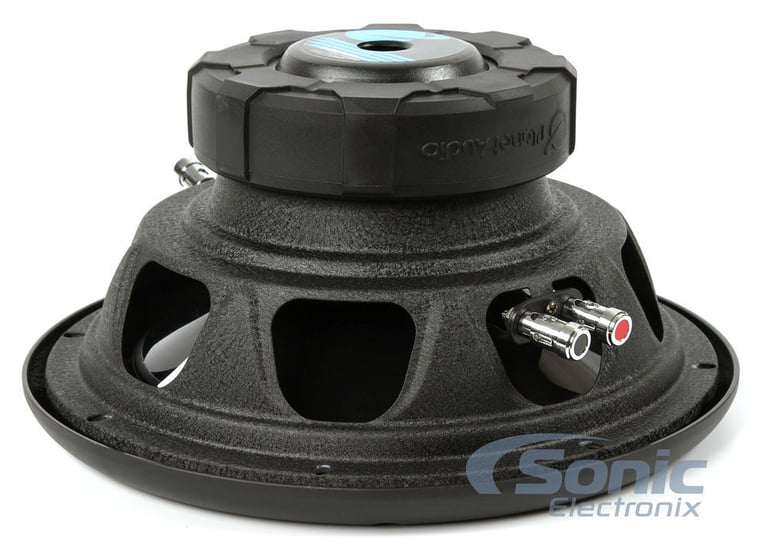

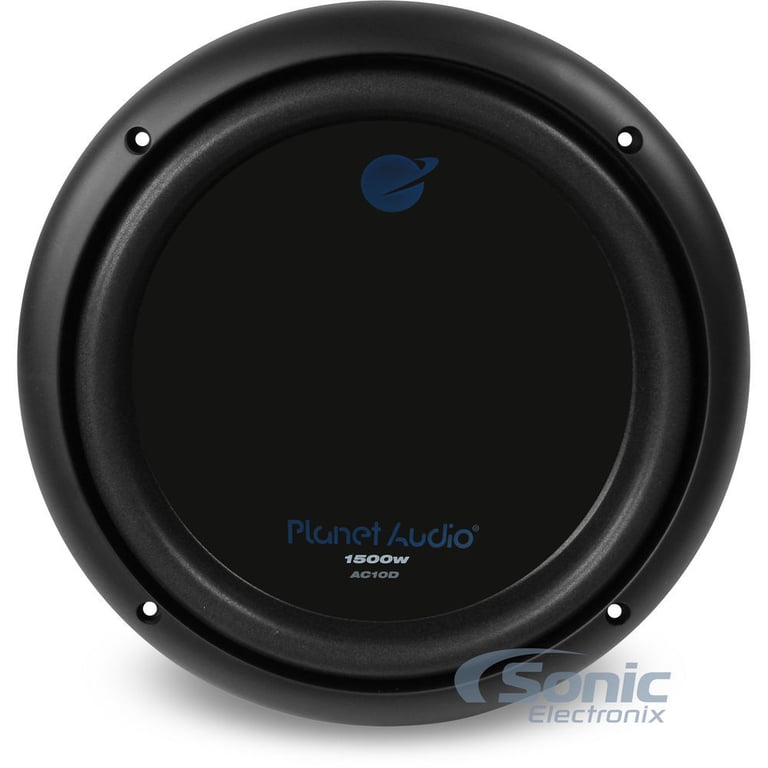

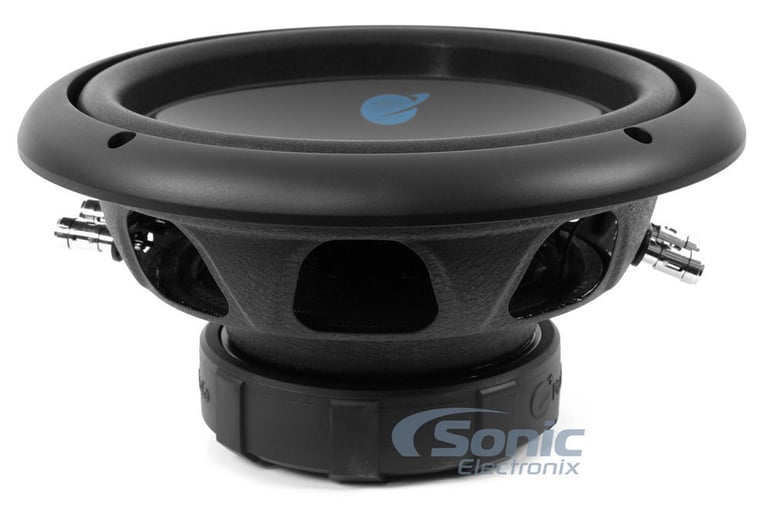

Planet Audio AC10D

750W 10" Anarchy Series Dual 4 Ohm Car Subwoofer
Quantity: 1

Planet Audio Authorized Dealer


General Features:

  • 10" Dual 4 Ohm Anarchy Series Car Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
  • Polypropylene Cone
  • Foam Surround
  • 2" High Tempature Voice Coil
  • Top-mount depth: 4-3/4"
  • Sensitivity: 87 dB
  • Reccomended Box Volume
    • Sealed Enclosure: 1.0 ft3
    • Ported Enclosure: 2.0 ft3
  • Resonant Frequency: 39Hz
  • Sensitivity (1W/1m): 87dB
  • Mounting Depth: 4-3/4"
  • Cutout Diameter: 9-1/8"
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 2 years Manufacturer's warranty


Check out the AC10D Owner's Manual

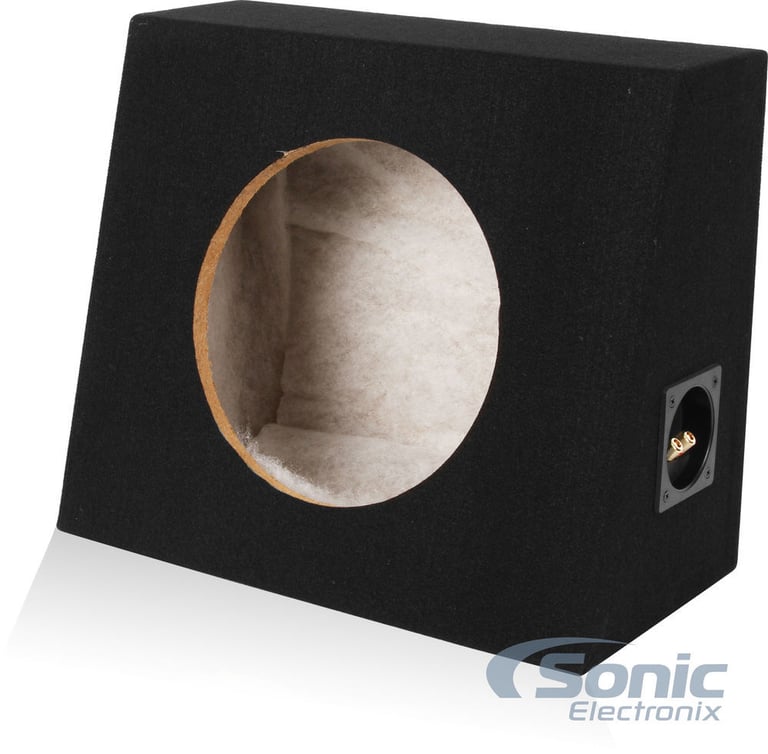

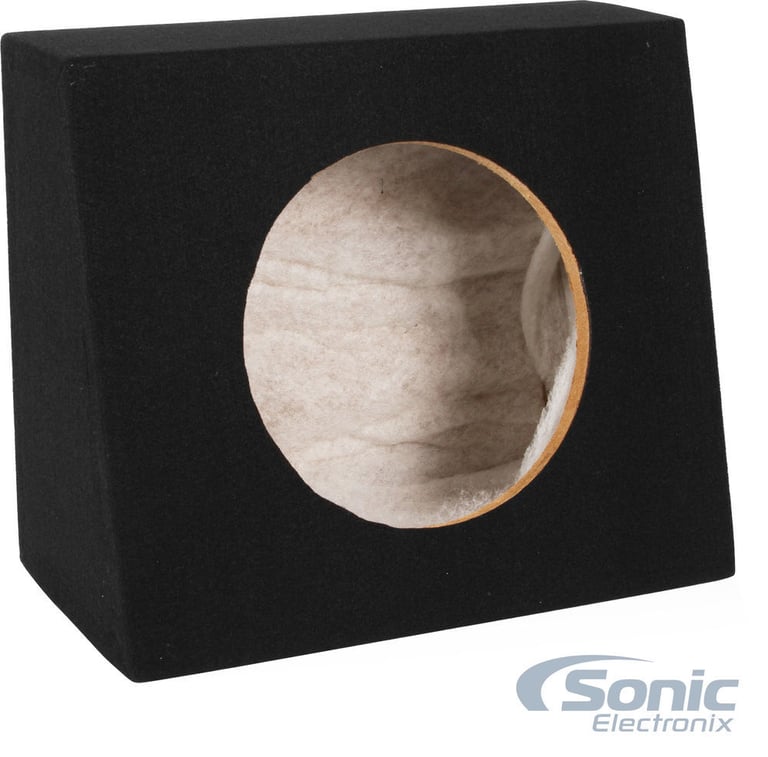

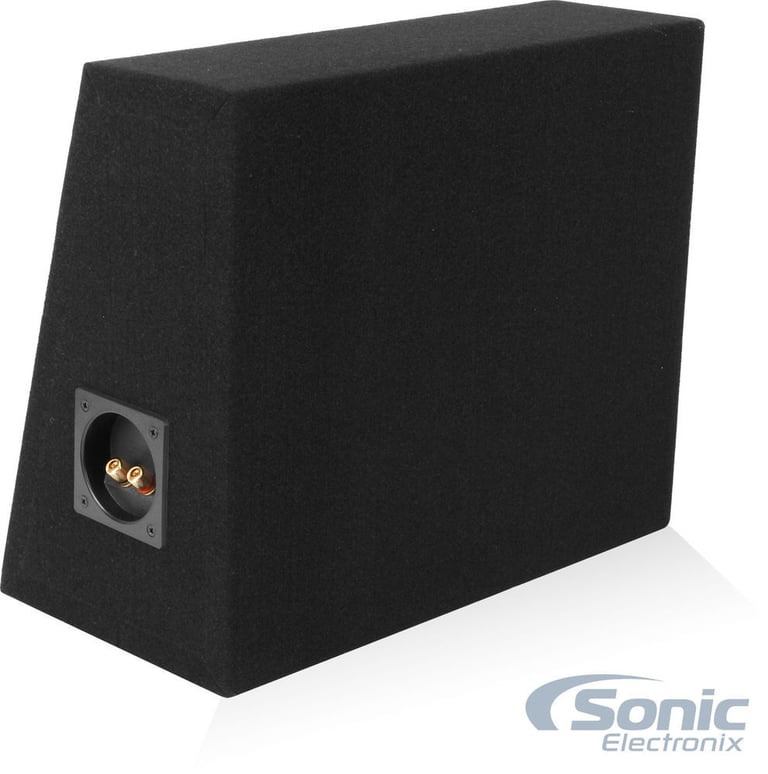

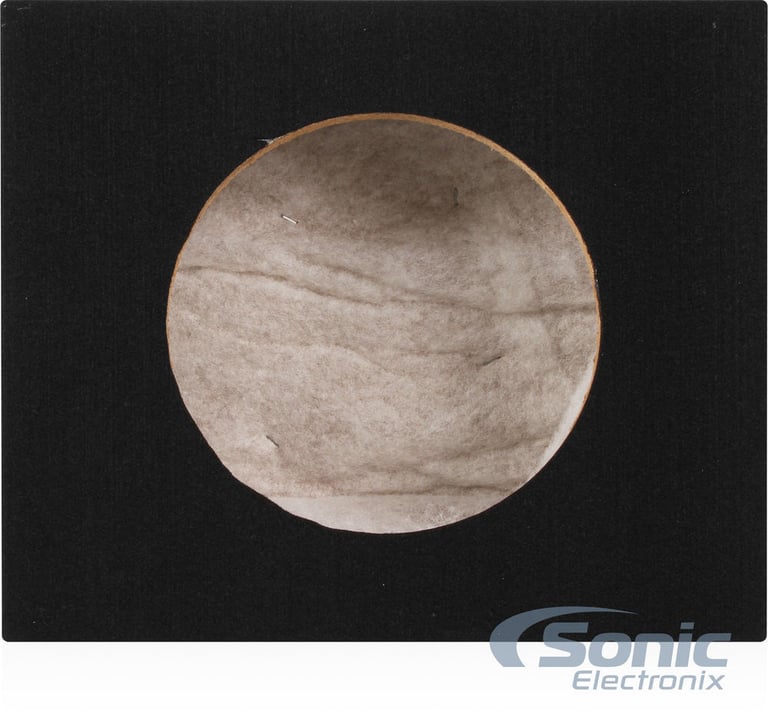

Belva Single 10" Subwoofer Angled Truck or Hatchback Box Enclosure (1TRUCK10)

10ANTCM - CARB Compliant, 5/8" MDF Shallow Sub Enclosure Lined with Polyfil
Quantity: 1

General Features

  • High Quality 5/8" MDF Construction
  • Gold Binding Post Terminals
  • Color: Black
  • Volume: 0.58 Cubic feet
  • Dimensions: 4-5/8"TD x 8-1/8"BD x 16-1/8"W x 13-1/2"H
  • Weight: 12 1bs
  • 30 Day return policy

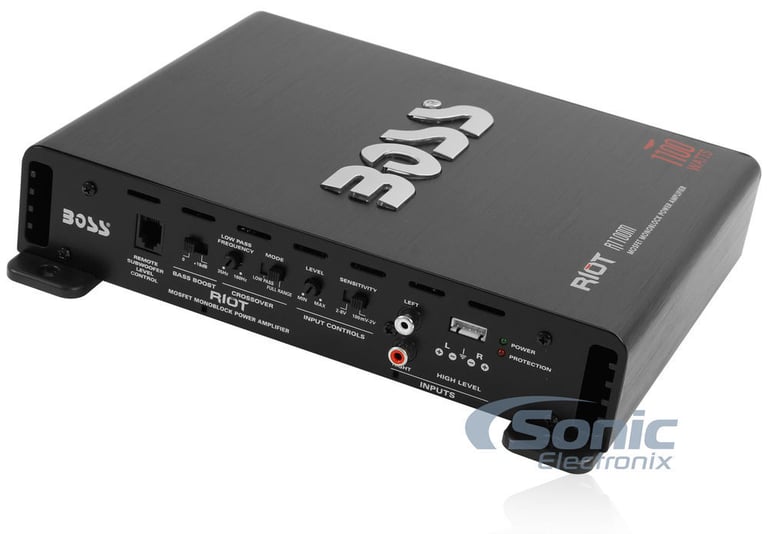

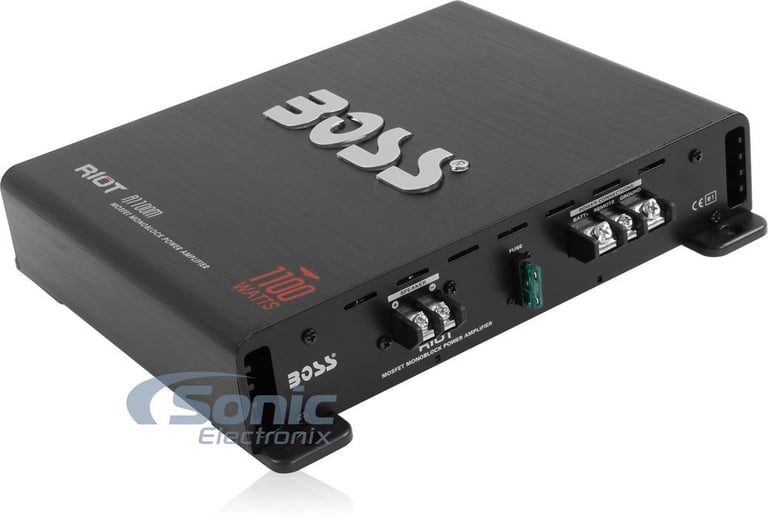

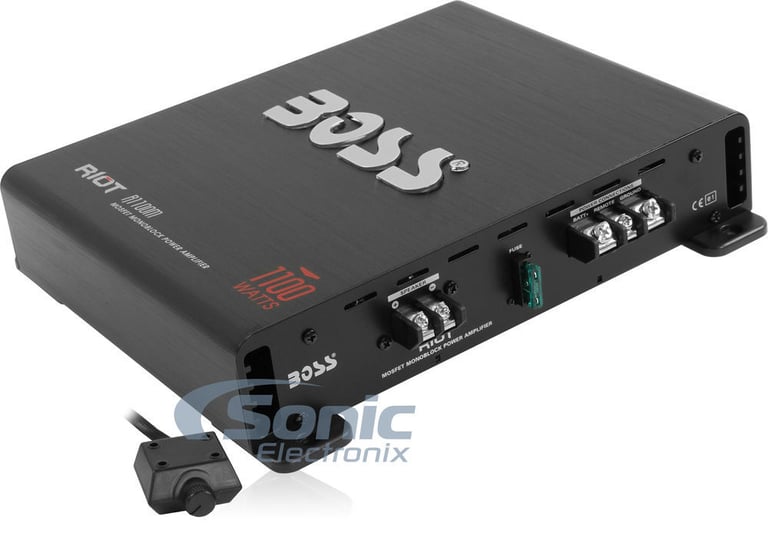

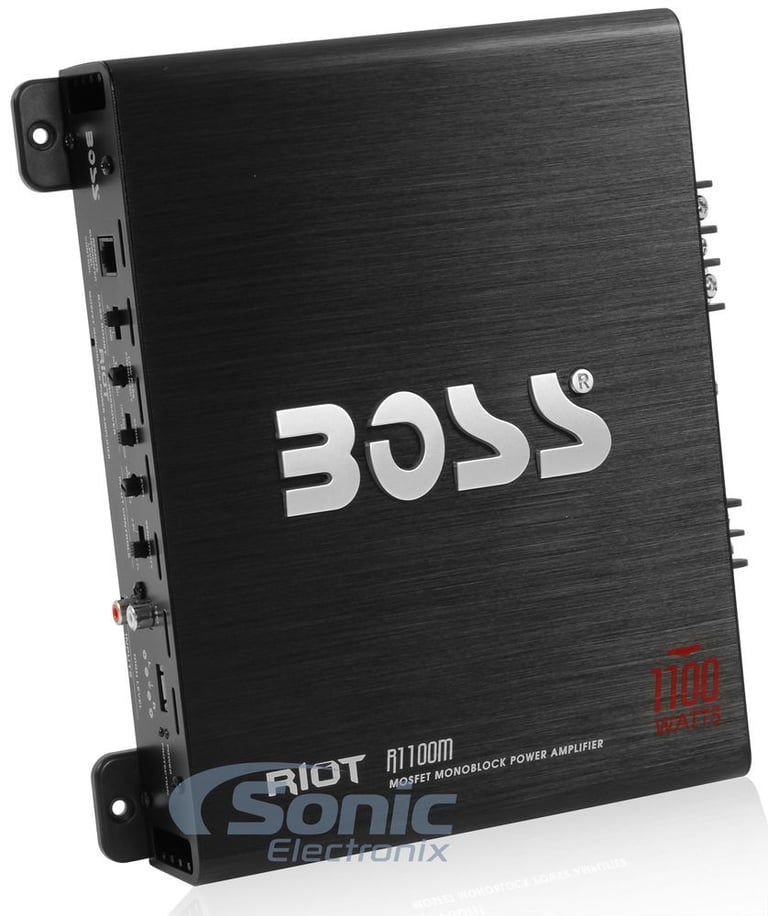

Boss R1100M Amplifier

Riot 1100 Watt, 2/4 Ohm Stable Class A/B, Monoblock with Remote Subwoofer Control
Quantity: 1

General Features:

  • Boss Riot Series R1100M
  • Class-AB FullRange 2-Ohm Stable Monoblock Amplifier
  • MAX Power Rating:
    • 4 ohms: 550 watts x 1 chan.
    • 2 ohms: 1100 watts x 1 chan.
  • RMS Power Rating:
    • 4 ohms: 413 watts x 1 chan.
    • 2 ohms: 825 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 100mV - 2V
    • High level: 2V - 8V
  • Frequency Response: 9 - 50,000 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 102 dB
  • Selectable crossover modes: Low Pass / Full Range
  • Variable low-pass filter: 35 - 160 Hz,/octave
  • Selectable Bass Boost: 0 to +18 dB
  • Fuse Rating: 30A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.13"W x 10.44"L x 2.25"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Belva BAK82

Complete 8 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)
Quantity: 1

General Features:

  • Complete 8 Gauge 2-Channel Amplifier Installation Kit
  • Designed specifically for car audio systems up to 500 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
    • Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • Mini-ANL Fuse holder with a 60 amp Mini-ANL fuse offers ideal protection
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. (5.2 meters) Red 8 gauge power wire
  2. 3 ft. (.91 meters) Black 8 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. 20 ft. (6.1 meters) Speaker cable
  6. One In-line Mini-ANL Fuse Holder with a 60 amp Mini-ANL fuse
  7. One black rubber firewall grommet
  8. One 8 Gauge red chrome plated ring terminals
  9. One 8 Gauge black chrome plated ring terminal
  10. Three 18 Gauge red Spade terminal
  11. Two 18 Gauge black Spade terminal
  12. One 18 Gauge red butt connector
  13. Ten 4" Black zip ties

FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
Anarchy (Planet Audio)
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
RMS Power Handling
750 watts
Peak Power Handling
1500 watts
Minimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1 cubic feet
Maximum Ported Box Volume
2 cubic feet
Sensitivity
87 dB
Xmax (millimeters)
10 mm
Top-Mount Depth
4.75"
Cutout Diameter
9.125"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer
REVIEWS
Planet Audio 1500W Subwoofer + Truck Enclosure + Boss 1100W AB Amplifier

Planet Audio 1500W Subwoofer + Truck Enclosure + Boss 1100W AB Amplifier

4.7

(212)

Write a review

Overall rating distribution

5 star
74%
4 star
22%
3 star
4%
2 star
0%
1 star
1%

By feature average rating

Durability
4.6
Value
4.8
Features
4.6
Design
4.7
Usability
4.8

Sam

June 19, 2014

BAK 82

The following review is for BAK82, which is a part of the bundle you are viewing.

Nice package, quality wire but could more end connectors for the larger wire.

108

found this helpful.

Collins

January 6, 2014

Good product

The following review is for BAK82, which is a part of the bundle you are viewing.

It's exactly what you need for your car amp installation. I bought this kit with Kenwood KAC-1502S amp for 75 bucks. Good deal from Sonic Electronix.

101

found this helpful.

vic

September 22, 2014

sub box enclosure

The following review is for 1TRUCK10, which is a part of the bundle you are viewing.

A solid well built box.A good fit for the speaker.

100

found this helpful.

n2audio

September 24, 2014

Great kit for the cost

The following review is for BAK82, which is a part of the bundle you are viewing.

Very nice kit for $18.
Wire seems adequately thick. Good quality fuse (not AGU) and fuse holder. RCA's feel durable. Decent assortment of accessories. All together a solid budget kit IMO.

95

found this helpful.

JESUS

March 6, 2015

great item

The following review is for R1100M, which is a part of the bundle you are viewing.

it works great. its an exelent item if i ever need another i will buy it.

89

found this helpful.

Alfredo

October 29, 2014

Good product for the price

The following review is for BAK82, which is a part of the bundle you are viewing.

Good wiring package, good quality fuse holder and wires, I would like more connectors on it and maybe some tube for the power wire, but overall is a good kit.

89

found this helpful.

Super cat

April 27, 2014

Great value

The following review is for R1100M, which is a part of the bundle you are viewing.

Low price and powers my polk audio 15' in sealed enclosure just fine glad I got it.

87

found this helpful.

Double Down

August 14, 2012

Don't know what the other guy is talking about.

The following review is for BAK82, which is a part of the bundle you are viewing.

This kit was awesome and included with my package that I bought. In comparison to others for the same price, there is simply not a comparison and the other review is just wrong on so many levels I felt compelled to write this.

The reality is there are a lot of real shoddy amp kits and wire as a whole being used in car audio in terms of cheap amp kits that have over-insulating wires and fake gauge ratings, huge amounts of aluminum, lousy RCA cables, fuse holders and other accessories. BUT and a BIG BUT, this kit excels in those areas where others fall flat on their face. I have bought a few inexpensive 8 gauge kits in my day and XScorpion, Raptor, Install Bay and others haven't even given me the 8 gauge of wire that I paid for, and in some cases gave me wire that heated up to a dangerous level due to the actual make up of the wire.

I also literally laughed when I see that the other reviewer was intending to use spade terminals to connect his amp power and ground wire... It is for the SPEAKER wire knucklehead :-). I am an installer and the smaller accessories work just fine when you use them correctly. Most amps will still work with them when used with the speaker wire. Of course one can be used for the remote wire connection to the amp and the other end with the butt connector being used to connect to the stereo. The funny thing is, if you do not need them, who cares? It is like ordering this kit for a compact car or single cab pickup. You will not use all of the power wire for these applications, so do you complain that the manufacturer gave you extra wire? That just made me laugh.

Now, onto the other accessories. The AFS fuse and holder that are included are so far superior to others in this price range and the amount of copper (albeit CCA) is much better than others in the price range. Lastly, the RCAs included are awesome for the price. I cannot find ANYTHING to complain about here for $21.99.

All in all, you will not get a better value for the money.

85

found this helpful.

Steve

January 13, 2014

Almost custom

The following review is for 1TRUCK10, which is a part of the bundle you are viewing.

I purchased these sub enclosures for my 93 Toyota Turbo MR2. They fit like a glove in the alloted area behind both driver's and passenger's seats. I fit them with 10" Alpine E10 subs and after tuning the graphic equalizer on my deck all I can say is what all my passengers say "WoW, those subs beat in that box"!!! Great affordable buy!

87

found this helpful.

Joshua

December 8, 2013

Good Kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Great kit for the price. the price is good. Long wires.

85

found this helpful.

Eric

November 29, 2013

Great wiring kit

The following review is for BAK82, which is a part of the bundle you are viewing.

works great on my MB Quart 2x100 watt amp.

83

found this helpful.

Chris

July 23, 2010

Nice inexpensive box, fits 10"

The following review is for 1TRUCK10, which is a part of the bundle you are viewing.

Nice inexpensive box, fits 10" subs. Don't mind banging it around so to speak, because it's sturdy and inexpensive. If you don't need a custom box, this is one to get.

84

found this helpful.

Mitch

January 31, 2014

Good kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Good kit for basic setups. Using it right now in my mothers system powering a simple 12. Could handle more if needed.

Pros: Handles power, Wires are HQ, More copper than rubber, Wires are good length, Fuse is HQ, Comes with lots of ties and rubbers.

Cons: None

I would recommend this kit to anyone who has a simple system. All around good kit.

90

found this helpful.

Woof

January 29, 2015

Worth it

The following review is for BAK82, which is a part of the bundle you are viewing.

This one is good try the four gauge amp kit

80

found this helpful.

Johnny

January 1, 2015

boss r1100m the best

The following review is for R1100M, which is a part of the bundle you are viewing.

I enjoy it..best thing i never have in my car sounds perfect i agreed wit this product

79

found this helpful.
ACCESSORIES
TRENDING SIMILAR CAR STEREO PACKAGES & BUNDLES

This product is temporarily out of stock. May we recommend...

Dual XDVD276BT Stereo + JVC 6.5" Car Speakers

• 50W x 4 Chan. Max
• 16W x 4 Chan. RMS
• 3 Sets of Preamp Outputs
• Equalizer With Selectable Presets
• Bluetooth Calling and Music Streaming
• SD and USB Inputs

(4)

$179.95

Boss BCPA9690RC 6.75" Apple CarPlay Stereo

• 80W x 4 Chan. Max
• 3 Sets of 4V Preamp Outputs
•Built-in Preset EQ
• Wireless Remote control included

(1)

$319.99

NVX MVPA4 4-Channel Amplifier + Free Pure OFC Copper 8 Gauge Installation Kit

• The size of a postcard with 400 Watts True RMS Output!
• • MVP Series 4-Channel Micro Class D Amplifier
• 50W x 4-Chan. @ 4 ohms
• 100W x 4-Chan. @ 2 ohms
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• Extremely Small Footprint!
• 8 Gauge 4-Channel Complete Amplifier Installation Kit
• For Car Audio Systems Up To 600 Watts RMS
• Silver-Tinned 100% Virgin Copper
• 4-channel RCA Interconnect Cable

(117)

$314.99

Dual XDVD276BT Stereo + JVC 6x9" Speakers

• 50W x 4 Chan. Max
• 16W x 4 Chan. RMS
• 3 Sets of Preamp Outputs
• Equalizer With Selectable Presets
• Bluetooth Calling and Music Streaming
• SD and USB Inputs

(5)

$169.99

Alpine BBX-F1200 Amplifier + (2-Pairs) Rockford 6.5" Speakers + Amp Kit

• 50 Watts RMS x 4 @ 4 ohms
• 70 Watts RMS x 4 @ 2 ohms
• 130 Watts RMS x 2 @ 4 ohms
• Total Peak Power: 600 Watts
• High and Low Pass Filters
• 0-12dB Bass Boost
• Aluminum Heatsink
• Dimensions: 9.4" W x 12.9" L x 2" H

(71)

$403.92

Searches Related to the Planet Audio BAK82,R1100M,1TRUCK10,AC10D
ITEM DETAILS

Manufacturer:

Model Number:

BAK82,R1100M,1TRUCK10,AC10D

Weight:

30.30lbs

Internal SKU:

ac10d_10antcm_r1100m_tc4kit

Internal Product ID:

155833

Item Added to Cart

750W 10" Anarchy Series Dual 4 Ohm Car Subwoofer Package

$270.96

Keep Shopping

Why SquareTrade?

  • The #1-Rated Protection Plan
  • 5-Day Service Guarantee & Free Shipping
  • Protection from Normal, Everyday Use
You have added a warranty
$32.99
Add Warranty
3 years of protection

20 Square Feet of Sound Dampening Material

NVX Sound dampening is thicker than competitors, eliminates rattles and gives you bigger bass!

$59.99

Add
Belva BBG3KT CCA 1/0 Gauge Big Three Kit

Features everything needed to upgrade factory power and ground wire.

$49.99

Add
Car Stereo and Speaker Installation Tool Kit

Includes Test Light, Crimp/Splice Tool, Multi-bit Screwdriver and more.

$19.99

Add

Don't see the accessory you're looking for?
View all available accessories for the Planet Audio 1500W Subwoofer + Truck Enclosure + Boss 1100W AB Amplifier.
