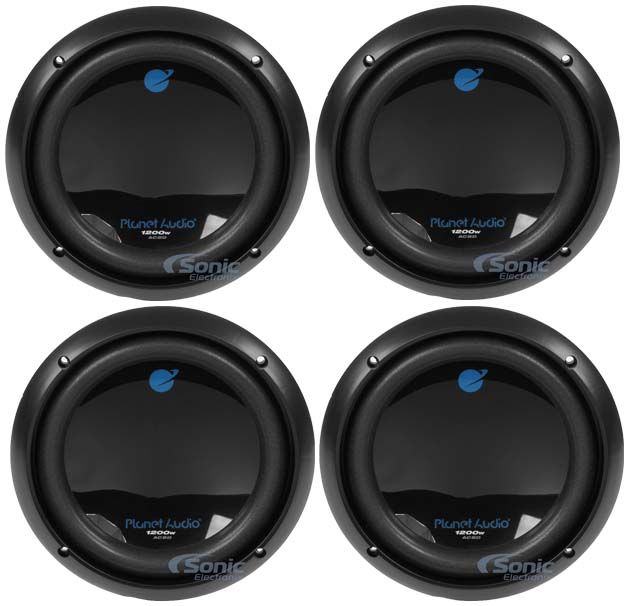

4) New Planet Audio AC8D 8" 4800 Watt Car Subwoofers Power Sub Woofer DVC 4 Ohm

600W 8" Anarchy Series Dual 4 ohm Subwoofer Package

highlight-star-icon

• Peak Power: 1200W
• RMS Power: 600W
• Black Poly Injection Cone
• Customizable Trim Ring

Learn more about the ac8d_4

We apologize

This item has been discontinued

Description


Planet Audio

Authorized dealer

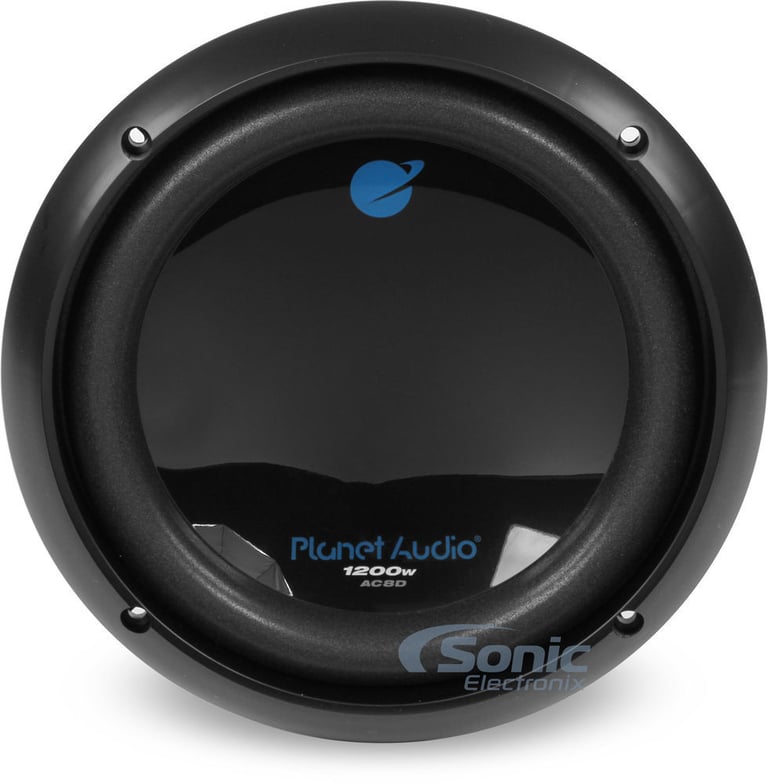

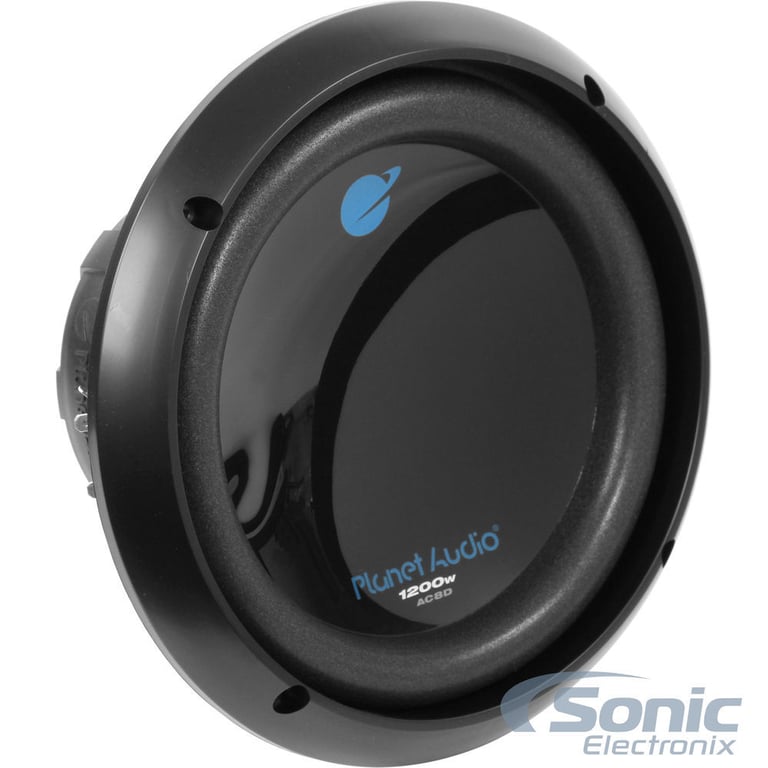

Planet Audio AC8D

1200W Peak 600W RMS 8" Anarchy Series Dual 4 ohm Subwoofer
Quantity: 3

Product Details:

  • 8" Dual 4 ohms Anarchy Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Injection Molded Polypropylene - IMPP Cone
  • High Temperature Voice coil
  • 10 mm Xmax

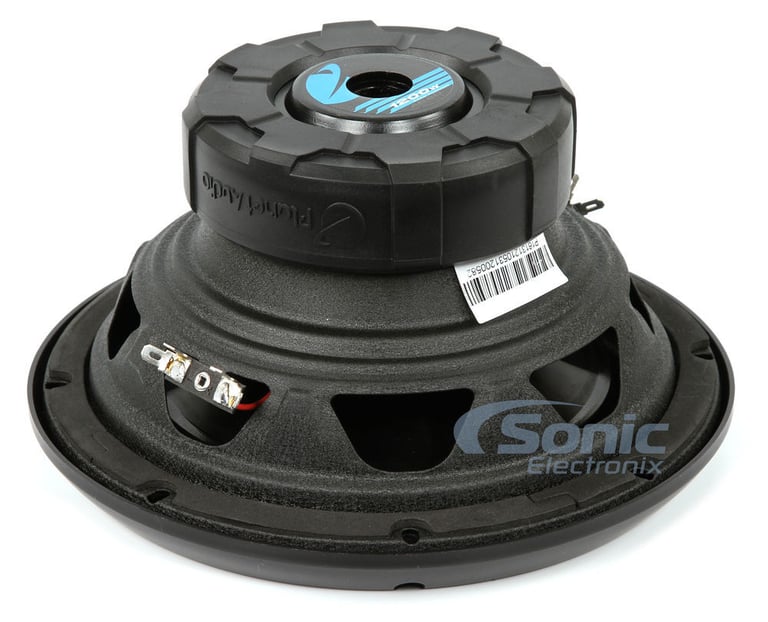

  • Single Stacked Ferrite magnet motor structure
  • Resonance Frequency (Fs): 35 Hz
  • Sensitivity: 87 dB
  • Sealed box volume: .35 cubic feet
  • Ported box volume: .9 cubic feet
  • Top-mount depth: 5-3/16"
  • Cutout diameter: 7"
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty

  • Priced Individually

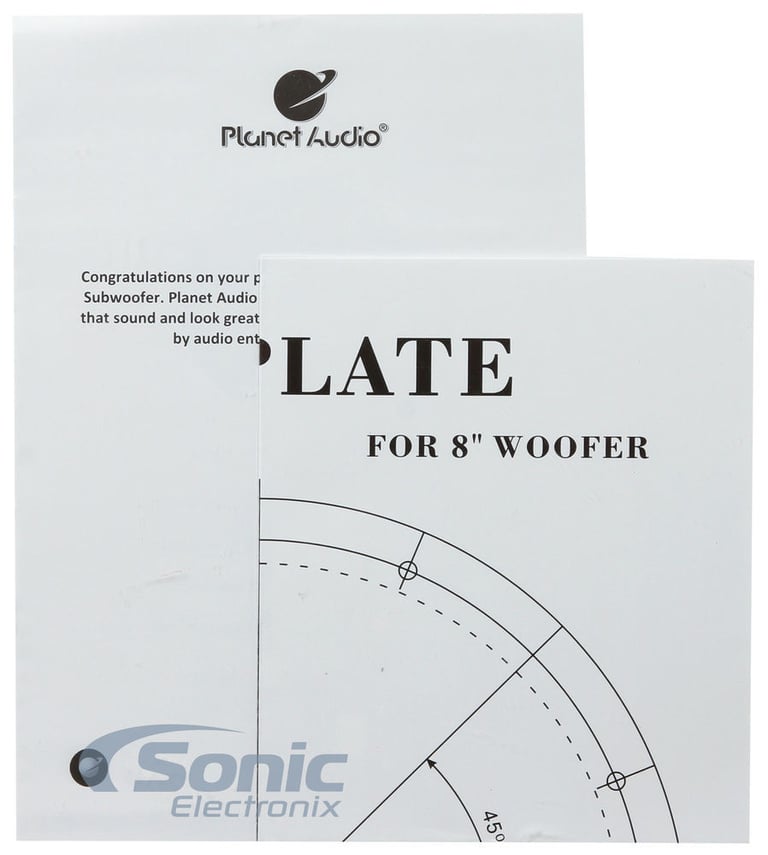

Planet Audio AC8D owner’s manual



Planet Audio AC8D

1200W Peak 600W RMS 8" Anarchy Series Dual 4 ohm Subwoofer
Quantity: 1

Product Details:

  • 8" Dual 4 ohms Anarchy Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Injection Molded Polypropylene - IMPP Cone
  • High Temperature Voice coil
  • 10 mm Xmax
  • Single Stacked Ferrite magnet motor structure
  • Resonance Frequency (Fs): 35 Hz
  • Sensitivity: 87 dB
  • Sealed box volume: .35 cubic feet
  • Ported box volume: .9 cubic feet
  • Top-mount depth: 5-3/16"
  • Cutout diameter: 7"
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty

  • Priced Individually



Planet Audio AC8D owner’s manual



Subwoofer Wiring Guide


Wiring Guide to Wire 1 4) New Planet Audio AC8D 8" 4800 Watt Car Subwoofers Power Sub Woofer DVC 4 Ohm Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 4) New Planet Audio AC8D 8" 4800 Watt Car Subwoofers Power Sub Woofer DVC 4 Ohm Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 4) New Planet Audio AC8D 8" 4800 Watt Car Subwoofers Power Sub Woofer DVC 4 Ohm Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 4) New Planet Audio AC8D 8" 4800 Watt Car Subwoofers Power Sub Woofer DVC 4 Ohm Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Anarchy Series
Subwoofer Size
8"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Sensitivity
87 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene - IMPP
Magnet Structure
Single Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Top-Mount Depth (Mounting Depth)
5-3/16"
Cutout Diameter
7"
Electromechanical Parameters
Free-Air Resonance (Fs)
35 Hz
Equivalent Compliance (Vas)
3.083 liters
Total Speaker Q Value (Qts)
.61
Electrical Q Value (Qes)
.66
Mechanical Q Value (Qms)
9.52
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

(3) AC8D,AC8D

Weight:

21.60lbs

Internal SKU:

ac8d_4

Internal Product ID:

156145

Customer Ratings & Reviews



5 star
74%
4 star
19%
3 star
7%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

best bang for your buck

The following review is for AC8D, which is a part of the bundle you are viewing.

I have 4 8" planet audio ac8d subs they sound better then the fosgates they replaced

By tattedj on November 25, 2014

45

found this helpful.

BIG BANG for the buck!!!

The following review is for AC8D, which is a part of the bundle you are viewing.

I bought this sub to replace the blown stock woofer in my 01 Suburban. I took the outer cardboard ring off the stock woofer and put it under the AC8D so the magnet did not bottom out in the stock enclosure. I am truly shocked how good this thing sounds. I would recommend this to anyone looking for some cheap bang. Clear deep and tight bass, no muddy sound at all. If you were like me and debated over so many options....This is it!!!!

By Bandy on January 18, 2015

41

found this helpful.

BIG BANG for the buck!!!

The following review is for AC8D, which is a part of the bundle you are viewing.

I bought this sub to replace the blown stock woofer in my 01 Suburban. I took the outer cardboard ring off the stock woofer and put it under the AC8D so the magnet did not bottom out in the stock enclosure. I am truly shocked how good this thING sounds. I would recommend this to anyone looking for some cheap bang. Clear deep and tight bass, no muddy sound at all. If you were like me and debated over so many options....This is it!!!!

By Bandy on January 18, 2015

39

found this helpful.

1600 Watts?

The following review is for AC8D, which is a part of the bundle you are viewing.

The sound is crisp, and the range is incredible! I had just replaced all the speakers and feel like I now have a rolling concert hall. However, the only complaint is that I thought 1600 watts would be much louder. But, hey! I only have less than $400 in the entire system, and I've got blue tooth connectivity, iPod connection, etc. overall, this is amazing!

By Chevytunes on February 16, 2015

36

found this helpful.

Get's the job done

The following review is for AC8D, which is a part of the bundle you are viewing.

I just purchased a pair of these subs and put them in a sealed box w a little poly fill in and they sound GREAT!!!!!. You really can't beat the price on these. They are being pushed by a Hifonics Brutus 1200 watt amp and are bridged. So far so good. Works great in a smaller car. Mine is a VW Karman Ghia.

By AJay 3 on August 3, 2014

35

found this helpful.

sub

The following review is for AC8D, which is a part of the bundle you are viewing.

hello i buy from sonicelectronix a sub planet audio 600rms i love to buy from them for my car i am a tehnical for car and the item from them is good and i want to buy more like the ampiflier hifonics good store

By natizohar z multimedia on September 26, 2014

33

found this helpful.

Great Value for price

The following review is for AC8D, which is a part of the bundle you are viewing.

This sub-woofer gets the job done! It sounds great and looks great. I bought this for a replacement of a Sony sub-woofer that started to blow and for 35$ it couldn't get better. I would highly recommend this product.

By Basshead on September 9, 2014

31

found this helpful.

great subs for the price

The following review is for AC8D, which is a part of the bundle you are viewing.

I bought 8 of these and have them in a custom built 5.5 cubic foot box tuned at 21 hertz. These subs are great for the price. I have all them running at 0.25 ohms on 5k plus daily. I'm burping anywhere from 148 to my highest the other day of 151.3 dB on the dash sealed all the way up. I'm going to be ordering 4 more and doing another build. Love these subs

By BassHead on April 23, 2015

29

found this helpful.

Good value.

The following review is for AC8D, which is a part of the bundle you are viewing.

For the price, these are excellent speakers so far. Just got the right size sealed box according to specs and thy work really good. Time will tell if they are durable.

By Pete on December 11, 2014

31

found this helpful.

great value

The following review is for AC8D, which is a part of the bundle you are viewing.

Great price for a great product sounds really good for a 8 in sub

By Clydesdale on March 3, 2015

27
