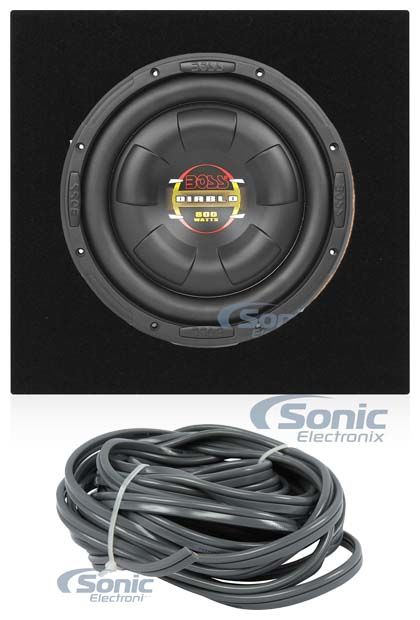

Boss D10F 10" Subwoofer + Sealed Sub Box Enclosure

800 Watt 10" Diablo Series Shallow-Mount Single 4 ohm Subwoofer Package

Boss
Shop all Boss
highlight-star-icon

• 800W Peak
• 400W RMS
• Poly injection woofer cone material
• Butyl rubber surround
• 2" voice coil
• 60oz magnet structure

Learn more about the d10f_mdfs10_tc4sw1625

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

KMM-BT732HD main

Kenwood KMM-BT732HD

Single DIN Digital Media Bluetooth Receiver with HD Radio

3
-14.09%

$189.00

List price $220.00

460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8
DEH-S1200UB main

Pioneer DEH-S1200UB

Single DIN CD Receiver with Pioneer ARC App and USB Control for Android Phones

1
-8.34%

$109.99

List price $120.00

Stage1621 main

JBL Stage1 621 (STAGE1621)

350W Peak (70W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

5
-50.05%

$49.95

List price $99.99

Description


Boss brand icon

Authorized dealer

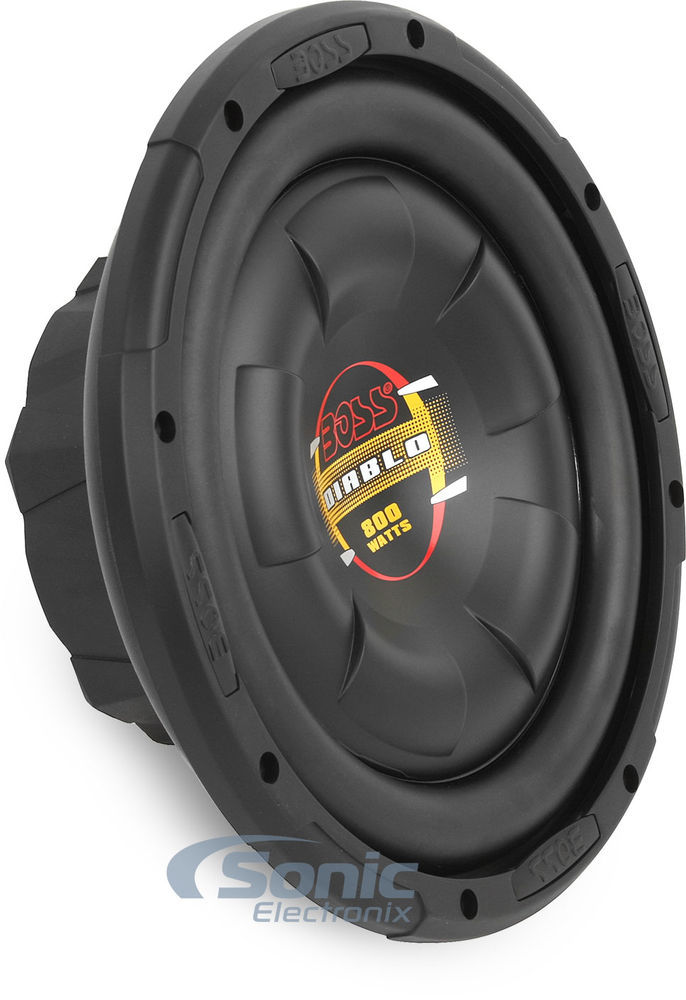

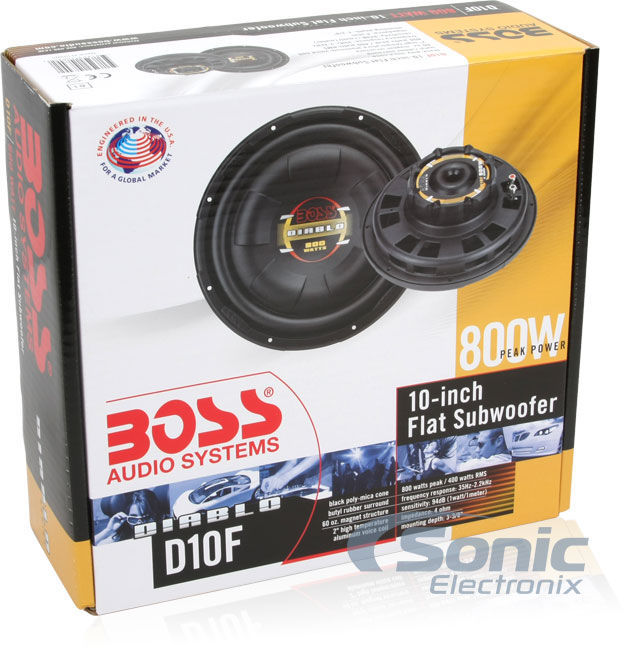

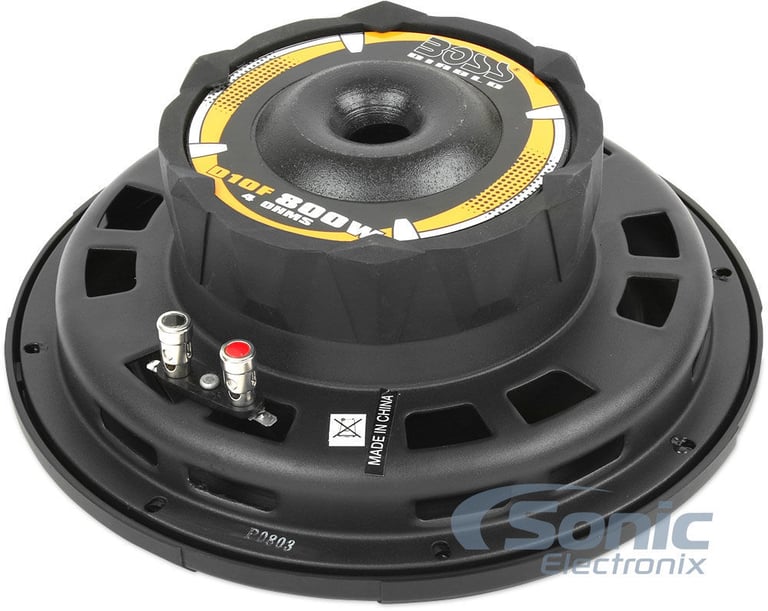

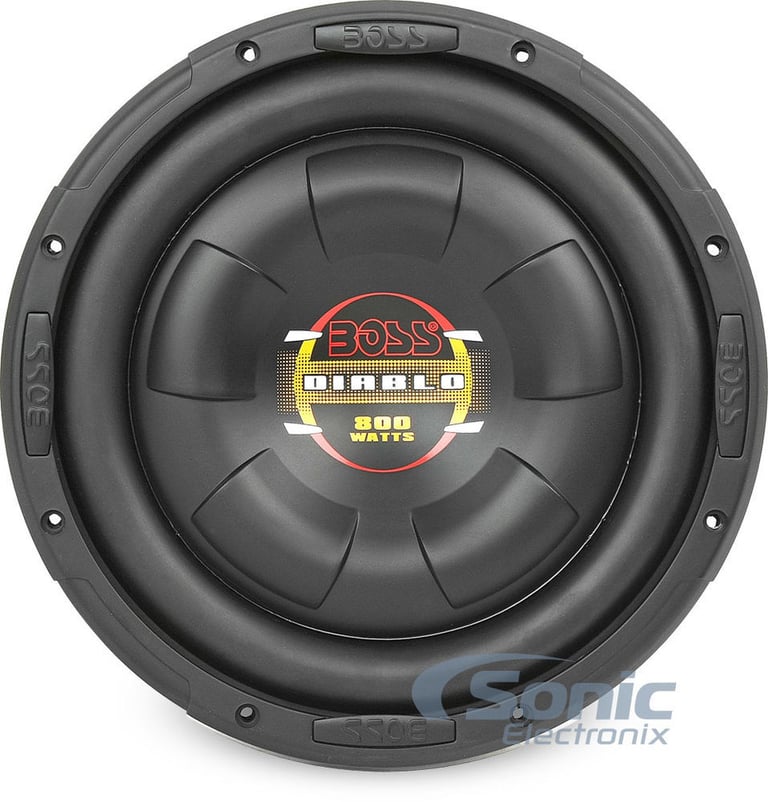

Boss D10F

800W Peak (400W RMS) 10" Phantom Series Single 4-Ohm Car Subwoofer
Quantity: 1

Product Details:

  • 10" Single 4 ohm Boss Phantom Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Injection Molded Polypropylene - IMPP Cone
  • Rubber Surround
  • Shallow mount speaker
  • 2" High Temperature Aluminum Voice coil
  • 5 mm Xmax
  • Frequency Response: 35 - 2200 Hz
  • Resonance Frequency (Fs): 50 Hz
  • Sensitivity: 87 dB
  • Sealed box volume: .6 cubic feet
  • Top-mount depth: 3.37"
  • Cutout diameter: 9.2"
  • Authorized Internet Dealer
  • Protective subwoofer grille: No
  • 3 Year Manufacturer's Warranty

  • Priced Individually

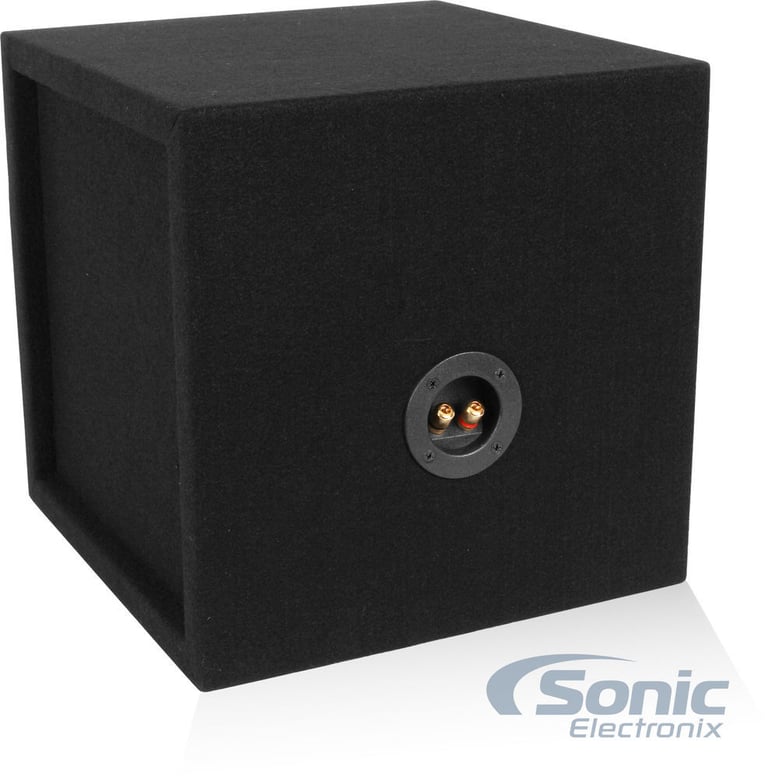

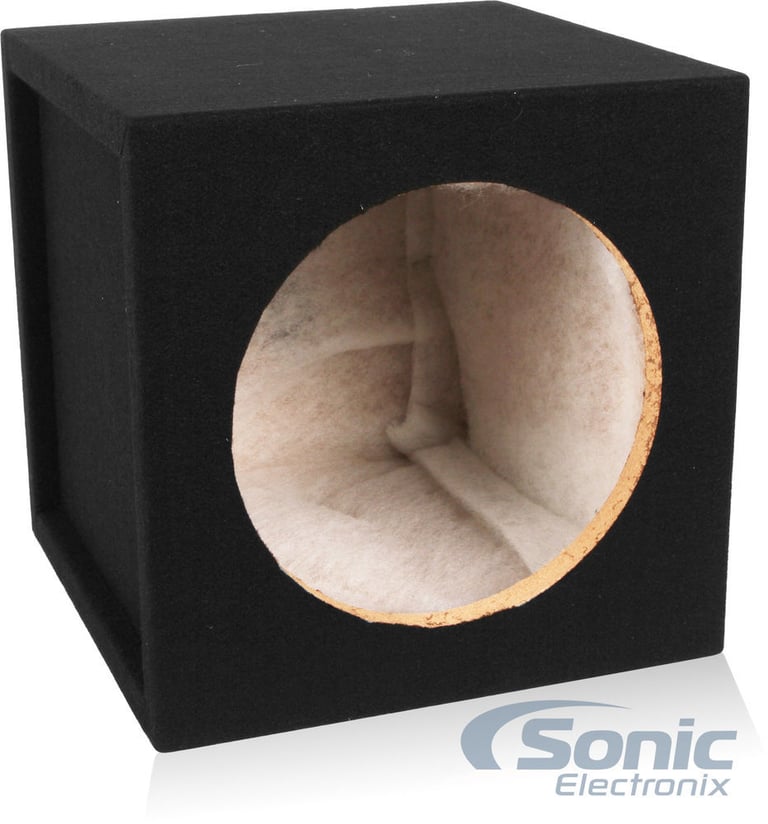

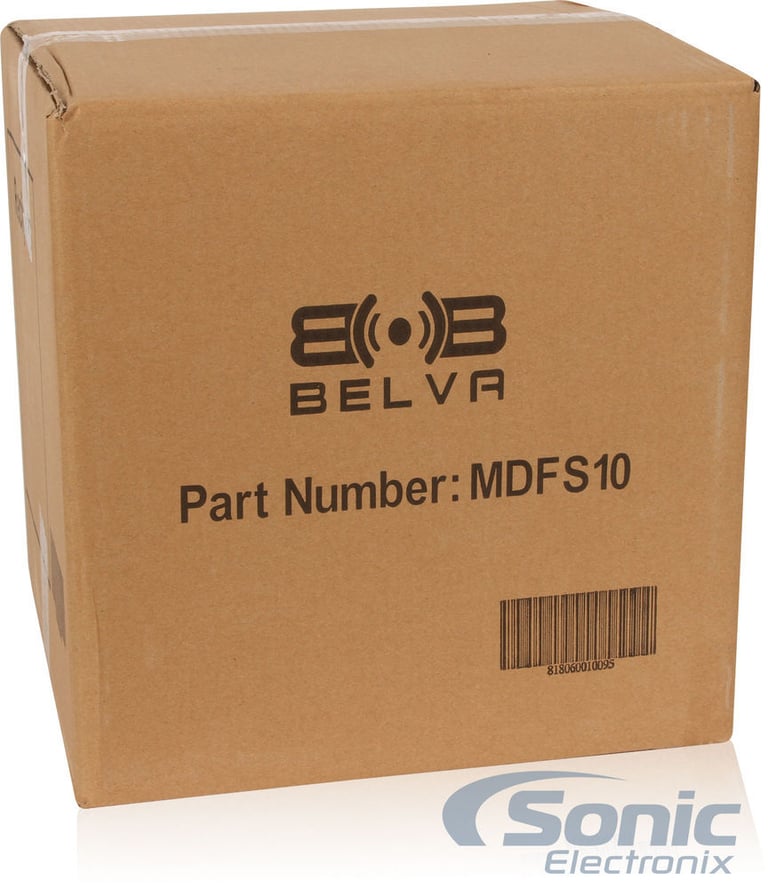

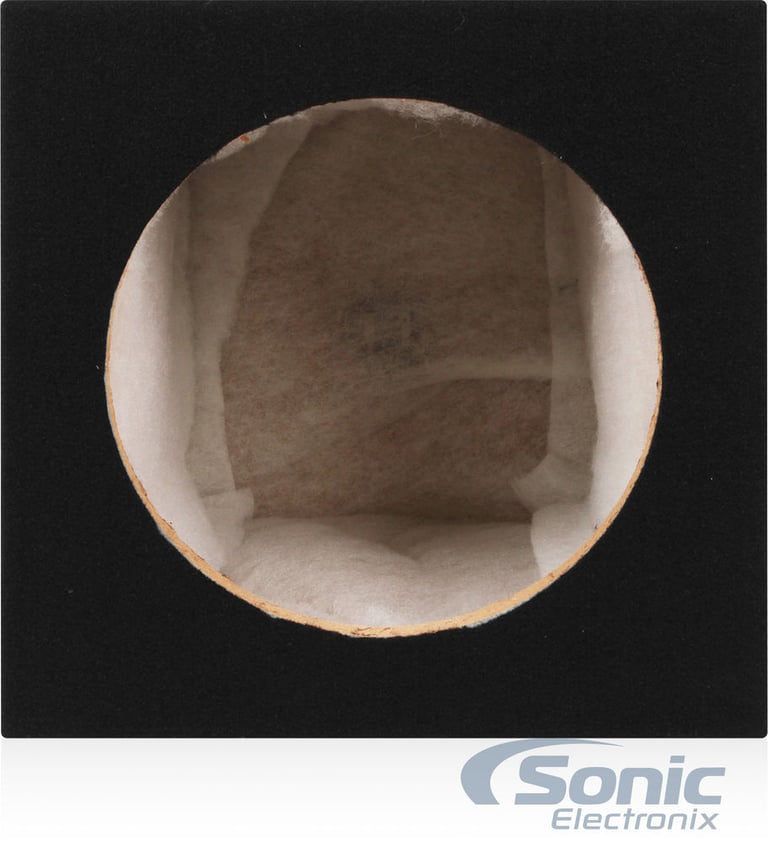

Single 10" Sealed MDF Subwoofer Enclosure (Belva MDFS10)

10-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (0.77 cu ft airspace 10SQTC)
Quantity: 1

General Features:

  • Single Sealed 10" Enclosure
  • Internal box volume: 0.77 cubic ft
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency
  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 12-1/2"L x 12-1/2"D x 12-1/2"H
  • 30 Day return policy


Belva BBSW167

16 Gauge 7 Meter (23 Ft) Speaker Wire (CCA)
Quantity: 1

General Features:

  • 16 Gauge Speaker Wire
  • High strand count for maximum flexibility
  • Ultra-flexible PVC blended jacket for easy installation
  • Packed in resealable bag
  • Length: 7m (23 Ft)
  • Also available in 12 Gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

P3-2X12 small

Rockford Fosgate Punch P3 P3-2X12

• Dual Punch P3 12" Loaded Subwoofer Enclosure
• 2400W Peak
• 1200W RMS
• Constructed with Durable 5/8" MDF
• High Current Binding Posts
• Durable Black Carpet Covering
• Computer Optimized Design
• 1 Ohm Final Impedance

(40)

$709.99

List price $947.99

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

Specifications & Details


Subwoofer Specifications
Series
Diablo Series
Subwoofer Size
10"
RMS Power Handling
400 watts
Peak Power Handling
800 watts
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Butyl Rubber
Sensitivity
94 dB
Frequency Response
35 - 22,000 Hz
Subwoofer Design
Round / Circle
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BBSW167,MDFS10,D10F

Weight:

26.20lbs

Internal SKU:

d10f_mdfs10_tc4sw1625

Internal Product ID:

156237
