Kenwood DVD Bluetooth Receiver Android/Carplay/USB For 2007-14 Toyota FJ Cruiser

Product Details:

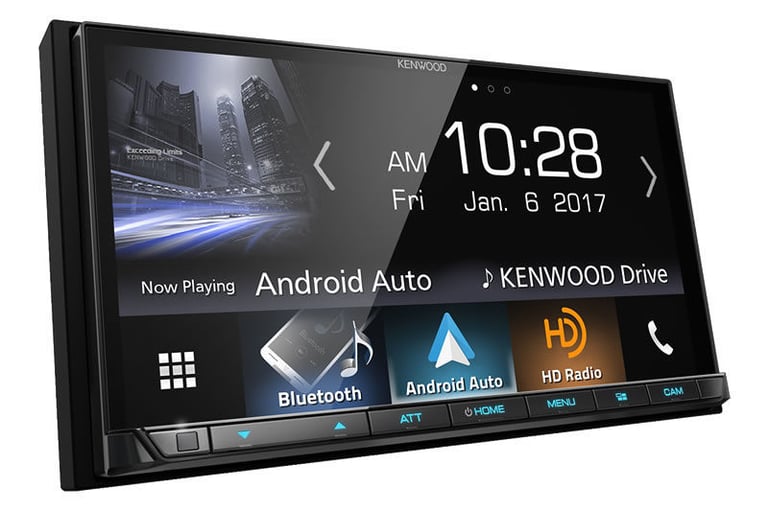

• Kenwood DMX7704S In-Dash Receiver

Power Handling:

• Peak: 50 watts x 4 channels
• RMS: 17 watts x 4 channels
• Mechless digital media stereo
• Includes dedicated input for Kenwood DVR-N520 dashcam
• Dual camera inputs
• Dual phone connection support
• Hi Res Audio and HD Radio supported
• Kenwood DVR ready with the Kenwood DRV-N520
• Parking guidelines for rear camera
• Android Rapid Charge
• Maestro compatible, monitor vehicle function from the stereo monitor
• MP3 ID3 Tag Display (Title/Artist/Album)
• AM/FM tuner with 18FM/12AM presets
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Navigation Features:

• GPS antenna and dash mount included
• Used to enhance the performance of Apple Carplay and Android Auto maps

Playback and Audio Features:

• MP3/WMA/AAC/FLAC Playback via USB
• Compatible with Apple iPhone 6/6+ and iOS 8 software
• 13-band graphic equalizer with 12 selectable tone curves (8 Preset, 4 User)
• Rear USB Input
• 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth version 3.0
• Bluetooth Profiles Supported:
• HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
• SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
• Works with most Bluetooth enabled cell phones
• Includes an external wired microphone for clear, convenient, distortion-free talking

Expandability Options:

• SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required, sold separately
• HD Radio Built-in
• HD2/HD3
• Bookmark
• Digital sound
• Program information
• Artist experience
• Emergency alerts
• Dedicated input for the Kenwood DRV-N520 Dash Cam
• Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
• Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Check out the DMX7704S product manual

Product Details:

• Installation Dash Kit for 4" Aftermarket Double DIN Headunits
• Compatible with select 2000-2020 vehicles from Toyota, Subaru, Scion Vehicles
• Accommodates ISO Double DIN mount
• Designed and manufactured with precision tolerances
• Gapless fit between the dash and the kit
• Painted to match factory dash color
• Factory matched texture style
• High-grade ABS plastic construction
• Color: Black
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit Includes:

1. Two brackets
2. Installation instructions

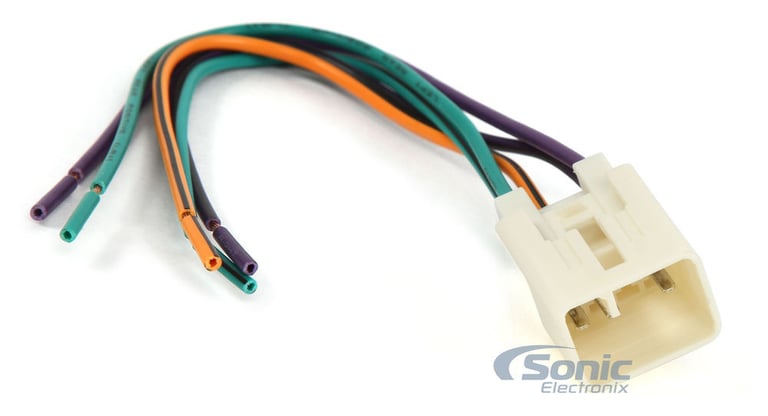

Product Features:

• Compatible with select 1984-2022 vehicles from Toyota, Subaru, Scion
• Includes one 8" power/front speaker harness and 7.5" rear speaker harness
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

Power Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Blue - Power Antenna
• Orange – Dash Light Dimmer/Illumination
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
• Green – Left Rear Speaker (+)
• Green with Black Stripe - Left Rear Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
