Conaxsat (CNX) CNX-Nano DIgital Satellite Receiver, MP3 and JPEG

by Conaxsat (CNX)

About
Reviews
Recently Viewed
Related Searches

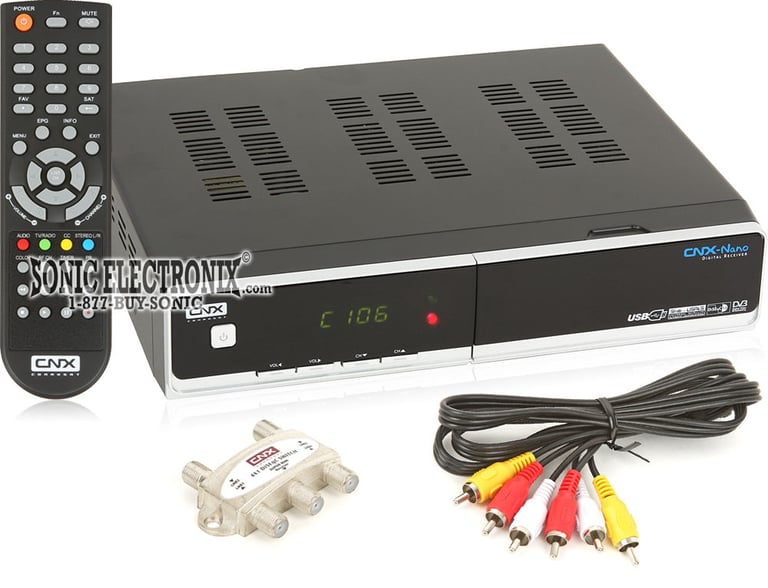

Conaxsat CNX-Nano Image 1 — Conaxsat CNX-Nano

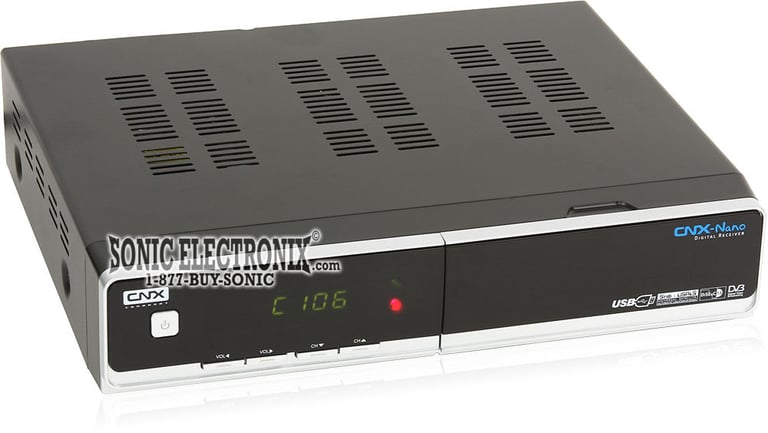

Conaxsat CNX-Nano Image 2 — Conaxsat CNX-Nano

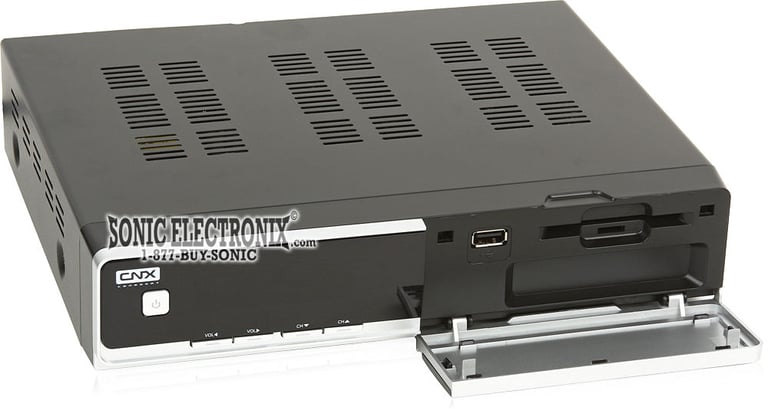

Conaxsat CNX-Nano Image 3 — Conaxsat CNX-Nano

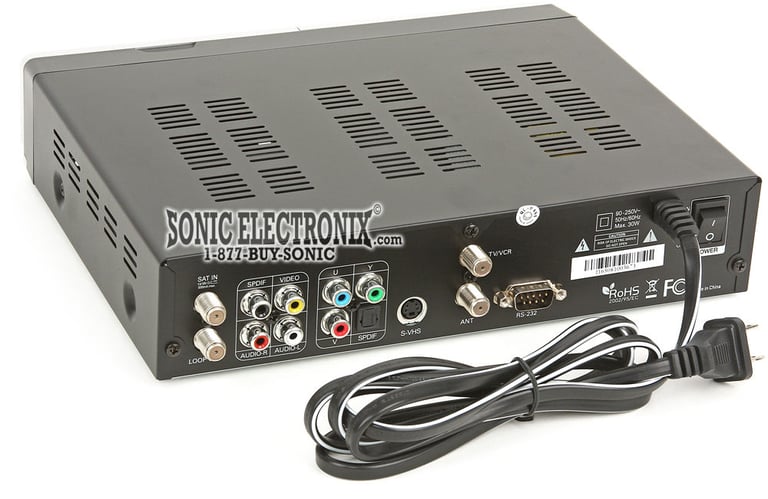

Conaxsat CNX-Nano Image 4 — Conaxsat CNX-Nano

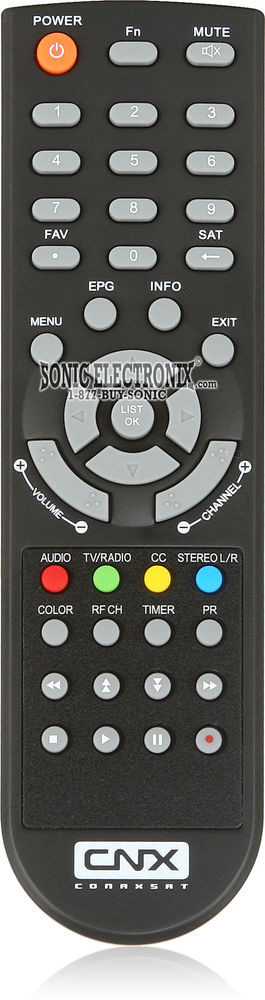

Conaxsat CNX-Nano Image 5 — Conaxsat CNX-Nano

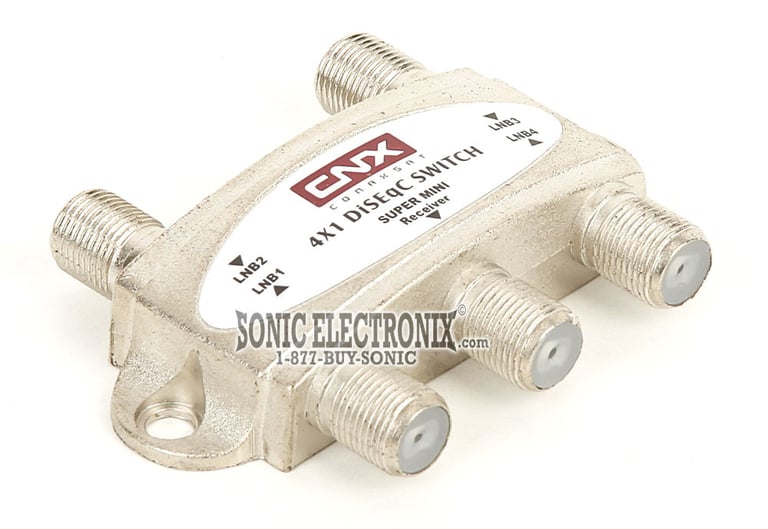

Conaxsat CNX-Nano Image 6 — Conaxsat CNX-Nano

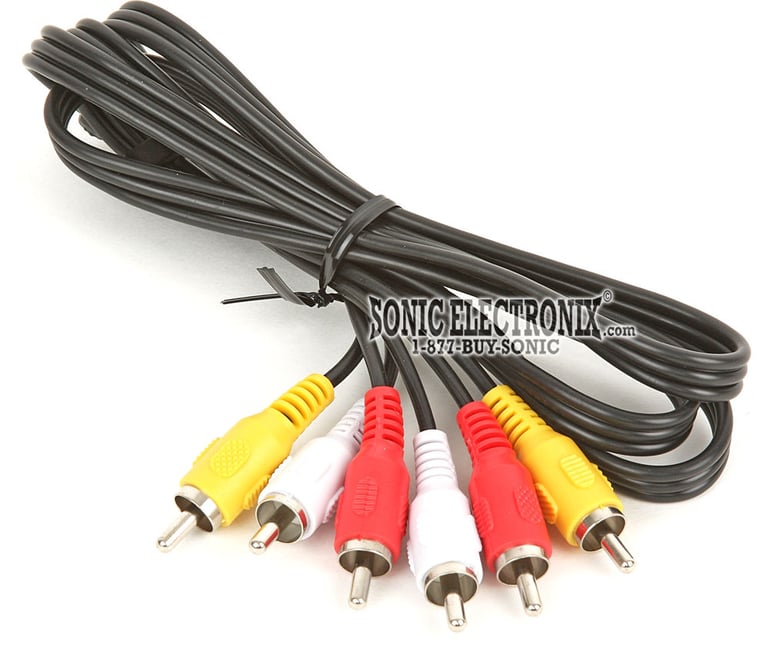

Conaxsat CNX-Nano Image 7 — Conaxsat CNX-Nano

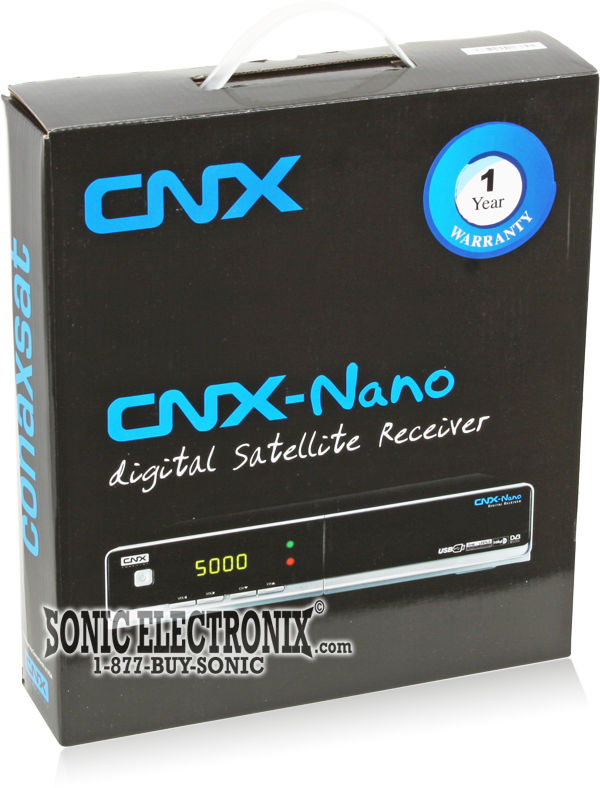

Conaxsat CNX-Nano Image 8 — Conaxsat CNX-Nano

Product highlights

DIgital Satellite Receiver, MP3 and JPEG Compatable via USB Port • 32-bit ARM946 RISC Processor • Picture In Graphic • Multi-Language • Closed Caption Support • Dolby Digital Out

Learn more about the cnx-nano

Other products for your Mitsubishi Eclipse Cross

Limited time!

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122

-33.36%

$79.96

List price $119.99

Add to cart

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

-10.53%

$84.99

List price $94.99

Add to cart

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

-9.16%

$109.00

List price $119.99

Add to cart

Limited time!

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

-28.58%

$99.95

List price $139.95

Add to cart

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

-5.90%

$319.00

List price $339.00

Add to cart

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

-14.89%

$999.99

List price $1175.00

Add to cart

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

-35.19%

$69.99

List price $107.99

Add to cart

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

-16.67%

$189.99

List price $227.99

Add to cart

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$49.99

List price $59.99

Add to cart

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

$449.99

Add to cart

Description

Receiver Features:

DIgital Satellite Receiver, MP3 and JPEG Compatable via USB Port
Upgrade Software & Update Channel Database through USB Port and RS232
MPEG-II Digital & Fully DVB Compliant
C/KU band control for each antenna
LNB Tone Switch 22KHz mode on/off'
Multi-LNB controlled by DiSeqC =>DiSEqC 1.0, 1.2 and USALS
Total 5,000 channels programmable
Blind Scan
Optional smart card reader
Picture In Graphic (PIG)
Electronic Program Guide (EPG) for on screen channel Information
Multi-language supported for Menu and OSD
2x and 4x Zoom function
Parental lock
Closed caption support
Dolby Digital bitstream out through S/PDIF
CVBS Video & Audio Output via RCA
Component Y/Pb/Pr Output via RCA
S-Video Output
MP3/JPEG File Play via USB Port
7-Segment(4-digit) Type of Front Panel Display
Dimensions: 8"D x 10-1/4"W x 2"H
1-year SonicElectronix.com warranty

Tuner and Channel Specifications:

Type 1 × F Type, IEC169-24, Female
Frequency Range 950MHz to 2150MHz
RF Impedance 75 Ohm unbanlanced
Signal Level -65 to -25 dBm
LNB Power 13.5/18.5Vdc +/- 5%, 0.5Amax, Overload Protected
22KHz Tone Frequency : 22KHz +/- 2KHz, 0.6Vpp +/- 0.2V
DiSEqC Control Version1.0, 1.2, Tone burst A/B
Demodulation QPSK
Input Symbol Rate 2~45 Ms/s, SCPC/MCPC
FEC Decoder Convolution Code Rate 1/2, 2/3, 3/4, 5/6 and 7/8 With Constraint Length K = 7

System and Memory Specifications:

32-bit ARM946 RISC Main processor
Flash Memory 2 Mbytes
System Memory 32 Mbytes
Channel Capacity Digital Channel: 5,000
Front 7-segment Display (4 digit)

MPEG Transport Stream & A/V Decoding

Transport Stream MPEG-2 ISO/IEC 13818 Transport Stream Specification
Profile Level MPEG-2 MP@ML
Input Rate Max. 90Mbit/s
Aspect Ratio 4:3, 16:9, Letter Box
Frame Rate 25Hz for PAL, 30Hz for NTSC
Video Resolution 720x576(PAL), 720x480(NTSC)
Teletext Through VBI
Audio Decoding MPEG/MusiCam Layer I & II
Audio Mode Single Channel/Dual Channel Joint Stereo/Stereo
Frequency Response 20~20kHz, <+/-2dB; 60Hz ~ 18kHz <+/- 0.5dB
Sampling Rate 32, 44.1, 48KHz

Inputs and Outputs

RCA Output CVBS, L, R Output(Yellow, White, Red Jack) with Volume Control Component Video(YPbPr) Out
S-VHS Output 4 Pin Mini
SPDIF Dolby Digital Bitstream Out(Coaxal, Optical)
