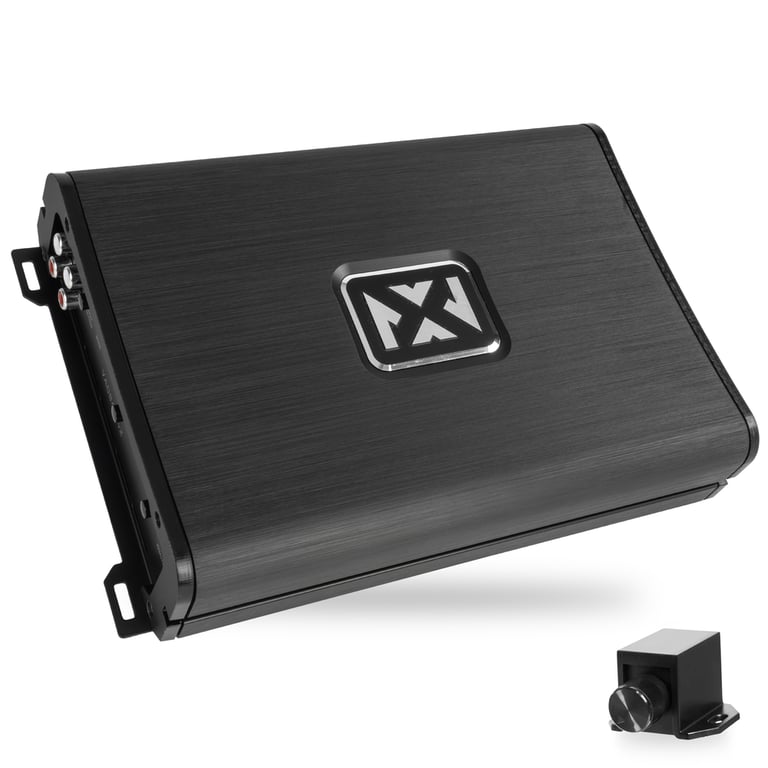

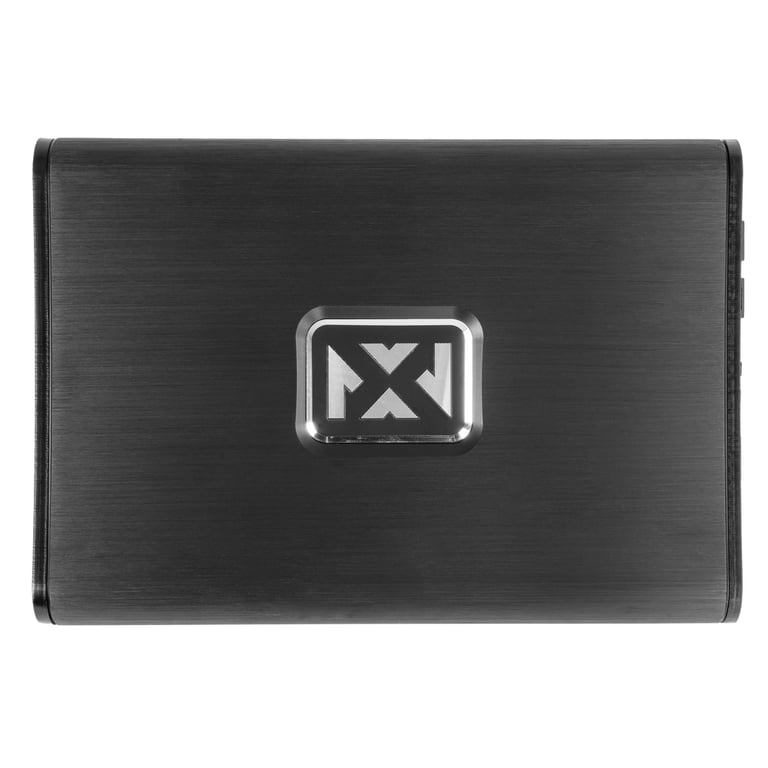

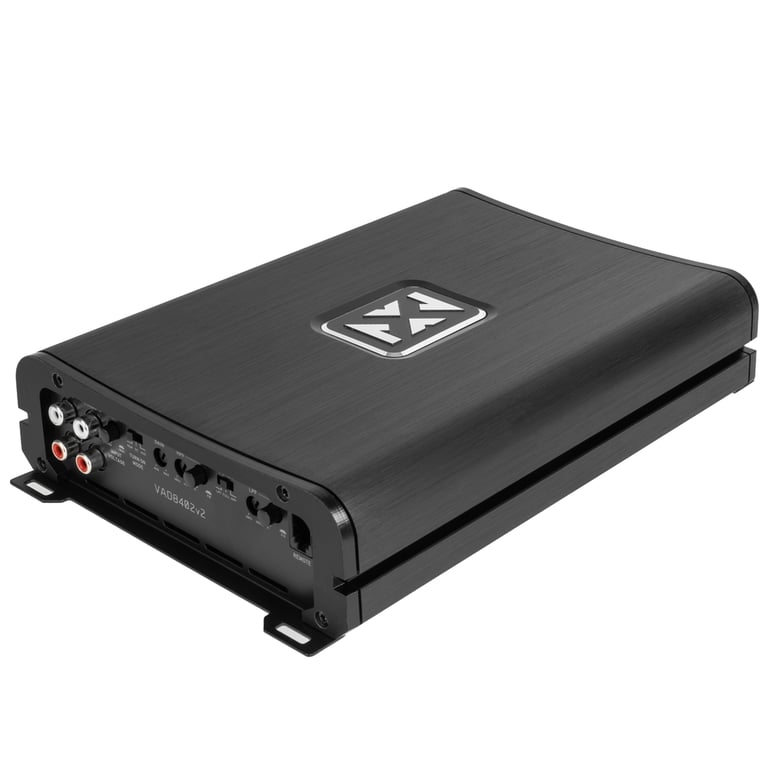

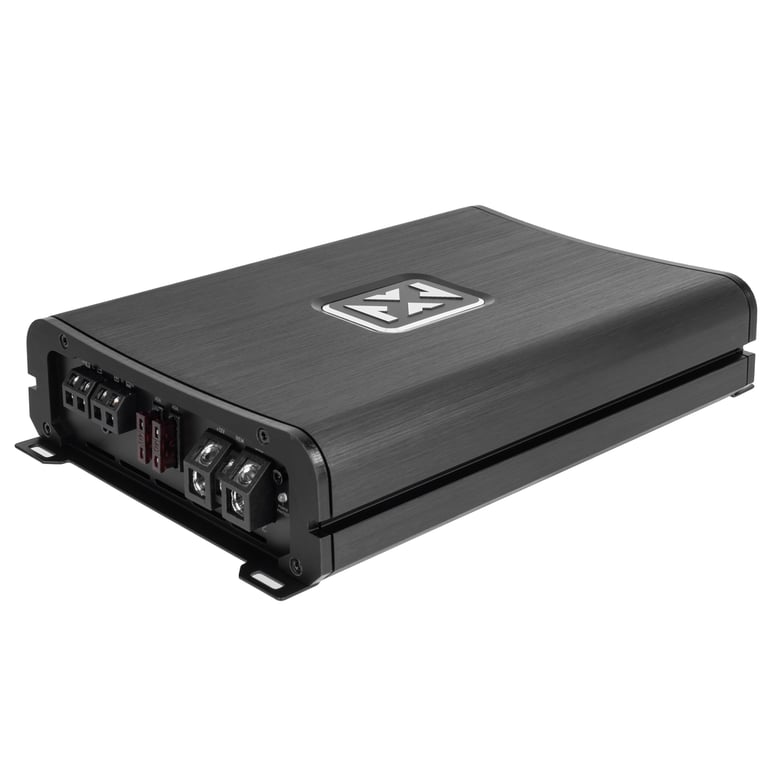

NVX VAD8402 (Like New (Open Box))

Product Details:

• Marine Certified Full Range Class D 2-Channel Amplifier
• CEA-2006 Compliant
• Peak Power Rating: 1680 Watts
• RMS Power Rating:
• 4 ohm: 300 watts x 2 chan.
• 2 ohm: 420 watts x 2 chan.
• Bridged, 4 ohm: 840 x 1 chan.
• LED power (blue) and protect (red) indicators
• Conformal Coated Marine grade circuit board
• Heavy duty aluminum alloy heat-sink

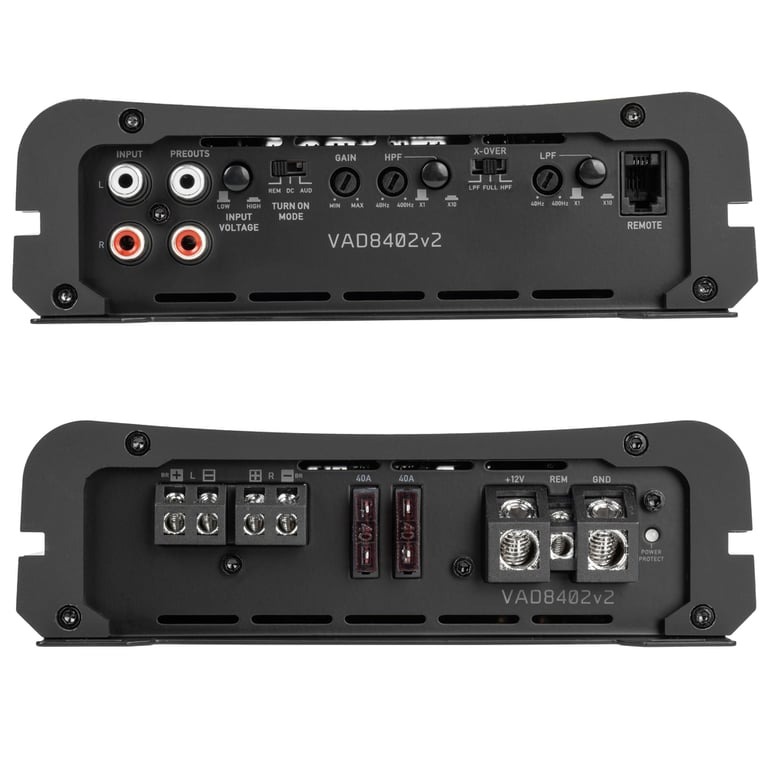

• Platinum-plated RCA level inputs
• Platinum-plated screw terminals
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Selectable crossover modes: FULL / HPF / LPF
• Variable high-pass filter: 40 - 500 Hz, 12 dB/octave
• Variable low-pass filter: 40 - 500 Hz, 12 dB/octave
• Frequency Range : 20 - 20KHz
• Bass Boost: 0 - +12dB boost @ 45Hz
• Input Sensitivity: 200mV-6V
• Total Harmonic Distortion: <0.3%
• Fuse Rating: 40A x 2
• Power Wire Gauge: 4 AWG
• Speaker Wire Gauge: 8 AWG
• Dimensions: 9.2"L x 7.2"W x 2.0"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

NVX VAD8402 owner’s manual
