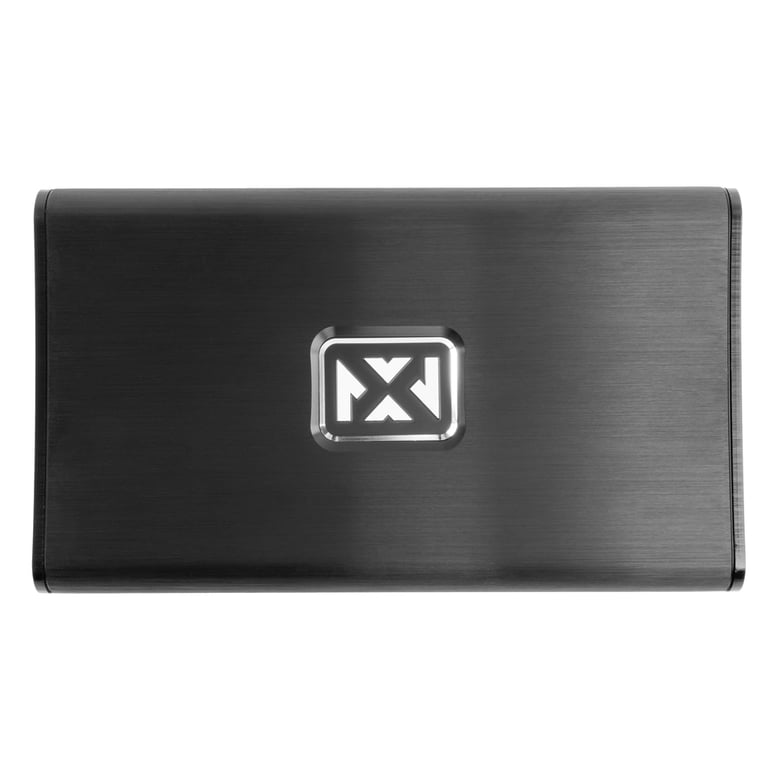

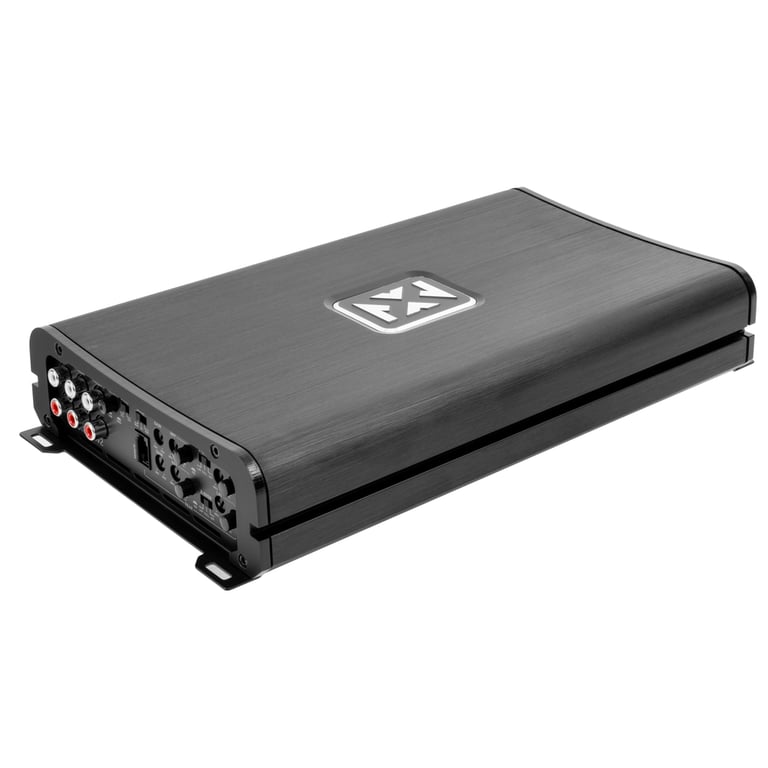

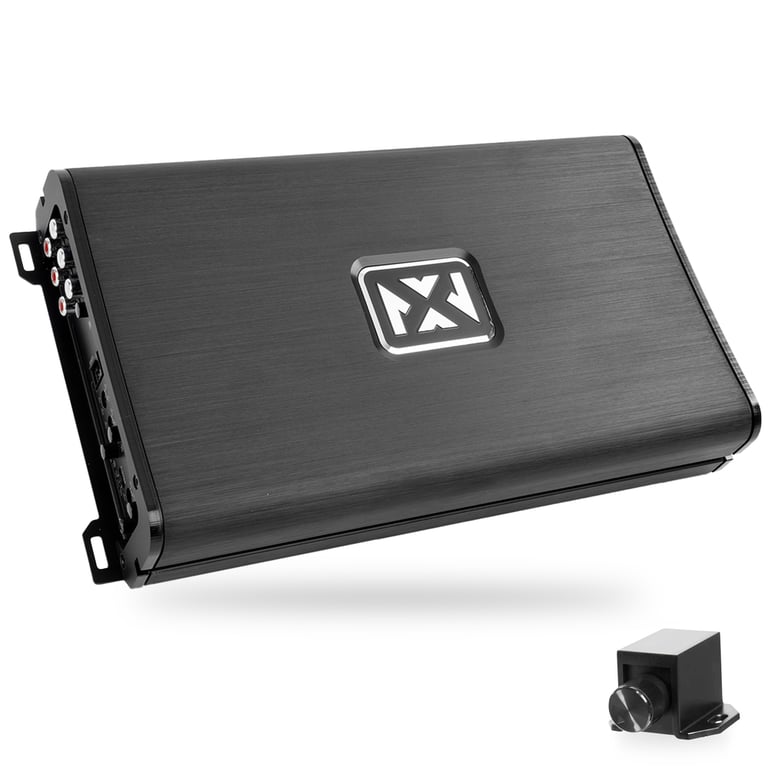

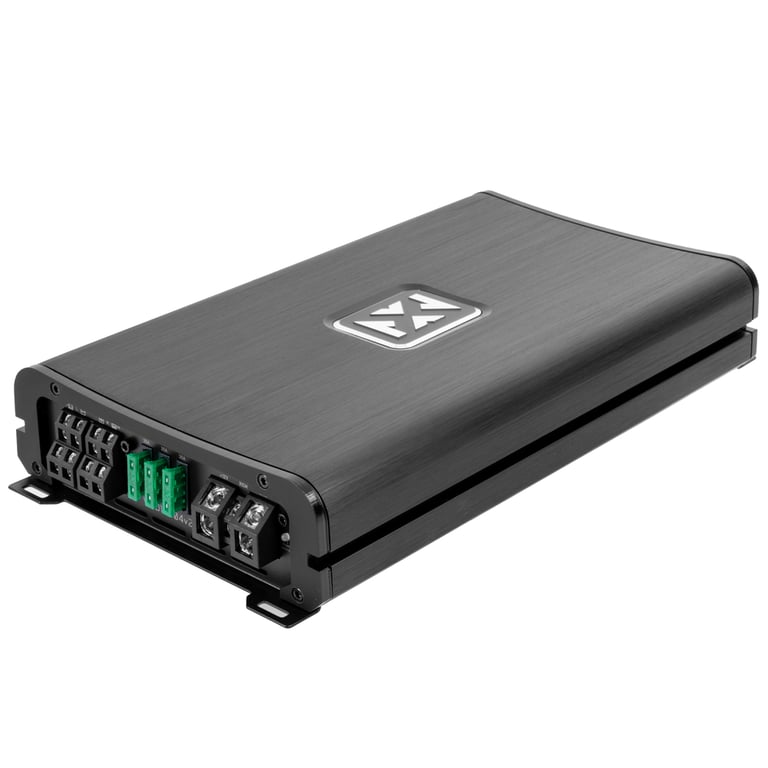

NVX VAD10004 (Open Box, Good)

1000W RMS Full Range Class D 4-Channel Car/Marine/Powersports Amplifier

1
NVX
Shop all NVX
highlight-star-icon

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• CEA-2006 Compliant
• Class D 2 ohm Stable 4-Channel-Channel Amplifier

Learn more about the ls-vad10004-u7

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Description

NVX brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

Product Details:

  • V Series Class D 2 ohm Stable 4-Channel-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 4 channel
    • 2 ohm: 250 watts x 4 channel
    • Bridged, 4 ohm: 500 watts x 2 channel
  • Total power output: 1000 watts
  • CEA-2006 Compliant Amplifier
  • Heavy-duty aluminum alloy heat-sink

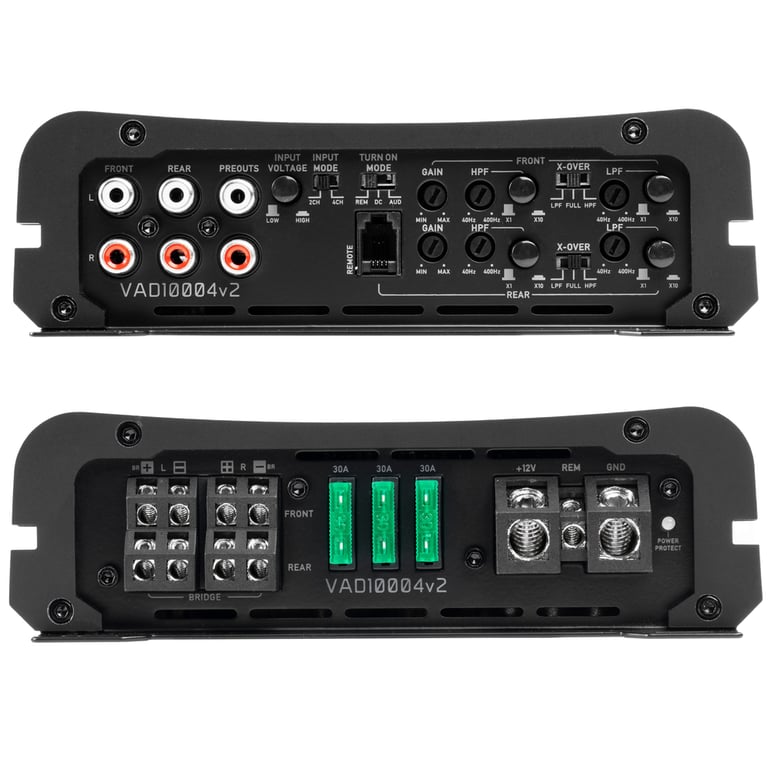

  • LED Power/Protect Light
  • Platinum-plated screw terminals
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Preamp RCA outputs to daisy chain multiple amps
  • Input sensitivity:
    • Low level: 200 - 6 volts
    • High level: 200 - 6 volts
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): 0.3%
  • Signal to Noise Ratio: 105 dB
  • Variable high-pass filter: 40 - 500 Hz, 24 dB/octave
  • Variable low-pass filter: 40 - 500 Hz, 24 dB/octave
  • Variable Bass Boost: bass boost at 50 Hz
  • Fuse Rating: 90
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 12.1" W x 5.4" L x 2.0" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
PDF IconNVX VAD10004 owner’s manual

Product history:

NVX LS-VAD10004 thumbnail
(newest, current model)
NVX JAD800.4 thumbnail
(previous model, replaced by NVX VAD10004 (Open Box, Good))

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 4 channel
RMS Power @ 2 ohms
250 watts x 4 channel
Bridged RMS Power
500 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
300 watts x 4 channel
Peak Power @ 2 ohms
500 watts x 4 channel
Bridged Peak/Max Power
1000 watts x 2 channel
Amplifier Specifications
Series
V Series
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
2000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 20,000 Hz
THD at Rated RMS Power
0.3%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
105 dB
Channel Separation
85 dB
Remote bass/level controller
No
Fuse Rating
30A x 3
Total Fuse Rating
90
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200 - 6 volts
High-Level Input Sensitivity
200 - 6 volts
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

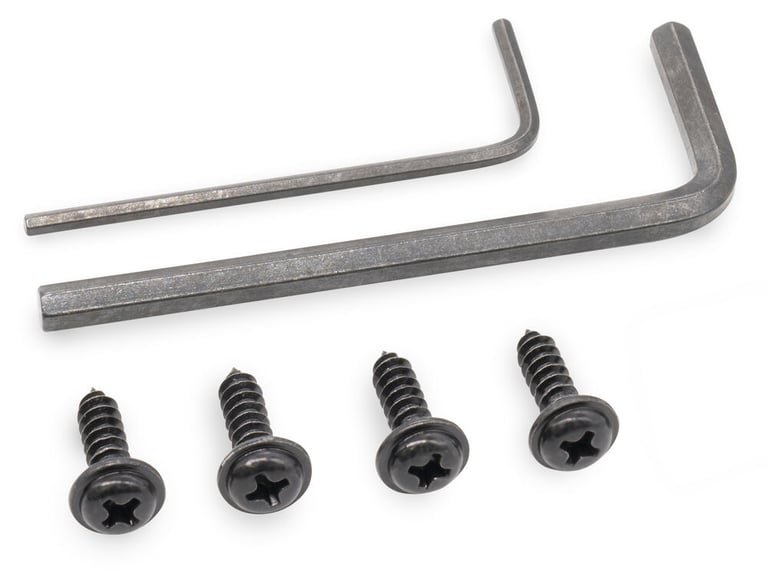

Mounting screws (4)
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

NVX

Model Number:

LS-VAD10004

Weight:

10.00lbs

Internal SKU:

ls-vad10004-u7

Internal Product ID:

207533

Customer Ratings & Reviews

NVX VAD10004 (Open Box, Good) thumbnail image
1
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Photos & Videos

Customer Reviews

Sort by:
Loading...

Love my NVX amps!

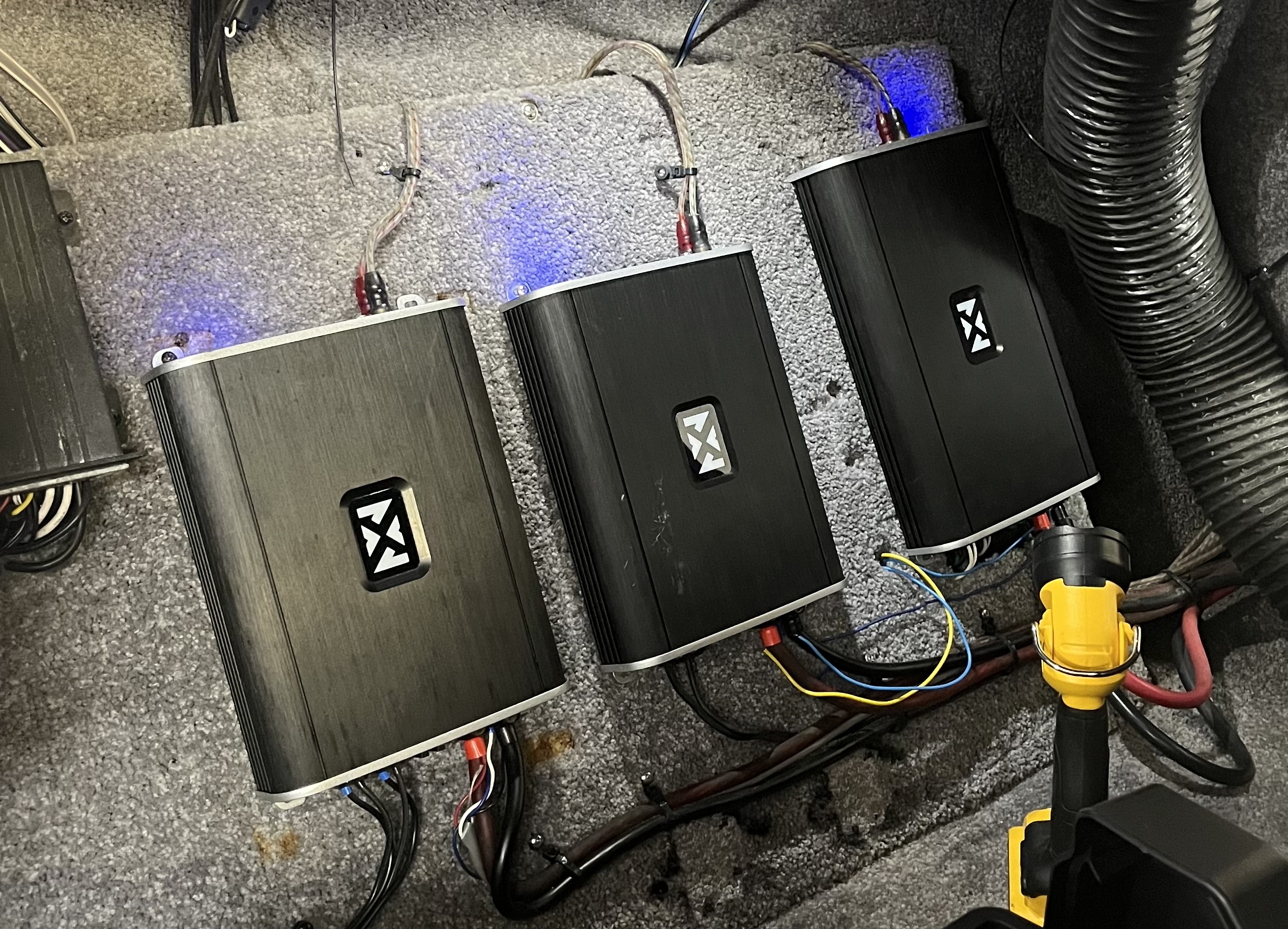

I have all NVX amps in my Malibu 24MXZ. The 10004 is running my 6- 8” and 2- 6.5” Rockford Fosgate M2’s. Plenty of power and really sounds great. Never even breaks a sweat!

By Brandon on March 29, 2025 Checkmark Icon Verified purchase
