NVX VAD17001 (Open Box, Great)

1700W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote (Marine Certified)

NVX
Shop all NVX
highlight-star-icon

• RMS: 800 x 1 @ 4 ohm, 1350W x 1 @ 2 ohm, 1700W x 1 @ 1 ohm
• Total RMS Power: 1700W
• CEA-2006 Compliant
• Wired Bass Remote Included
• Efficient Class D Design
• Dimensions: 10.1"W x 5.4"D x 2.0H

Learn more about the ls-vad17001-u8

We apologize

This item has been discontinued

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Class D Monoblock Amplifer
Bass Knob Included Marine Certified 1 Ohm Stable
Mosfet Power Supply

Product Details:

  • Marine Certified Class D Monoblock Amplifier with Bass Remote
  • CEA-2006 Compliant
  • Peak Power Rating: 3400 Watts
  • RMS Power Rating:
    • 4 ohm: 800 watts x 1 chan.
    • 2 ohm: 1350 watts x 1 chan.
    • 1 ohm: 1700 watts x 1 chan.
  • LED power (blue) and protect (red) indicators
  • Conformal Coated Marine grade circuit board
  • Heavy duty aluminum alloy heat-sink
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Variable subsonic filter: 10 - 55 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Bass Boost: 0 - +12dB boost @ 45Hz
  • Input Sensitivity: 200mV-6V
  • Total Harmonic Distortion: <0.3%
  • Phase: 0-180 Degree Switch
  • Recommended In-line Fuse: 120A
  • Power Wire Gauge: 4 AWG
  • Speaker Wire Gauge: 4 AWG
  • Dimensions: 9.2"L x 7.2"W x 2.0"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

product manual iconNVX VAD17001 Owner's Manual

Product history:

NVX LS-VAD17001 thumbnail
(newest, current model)
NVX JAD1200.1 thumbnail
(previous model, replaced by NVX VAD17001 (Open Box, Great))

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Fan Cooled
Weather-Resistant
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
800 watts x 1 channel
RMS Power @ 2 ohms
1350 watts x 1 channel
RMS Power @ 1 ohm
1700 watts x 1 channel
RMS Power @ .5 ohm
1700 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
1600 watts x 1 channel
Peak Power @ 2 ohms
2700 watts x 1 channel
Peak Power @ 1 ohm
3400 watts x 1 channel
Peak Power @ .5 ohm
3400 watts x 1 channel
Amplifier Specifications
Series
V Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3400 watts
Total RMS Power Output
1700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
0.3%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 55 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Strappable
No
Sonic Certified Amplifier
Yes
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

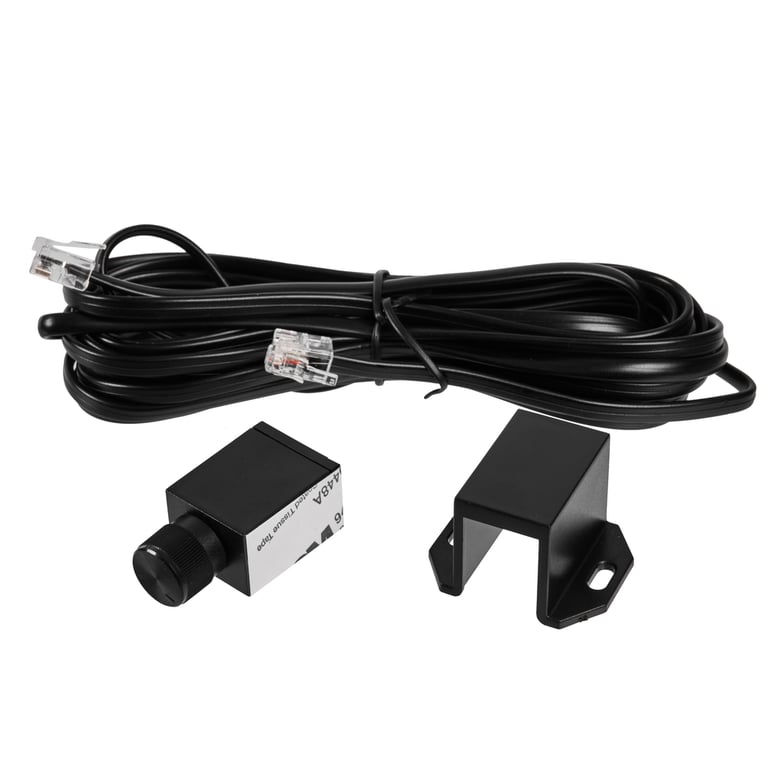

Wired gain knob (wire attached)

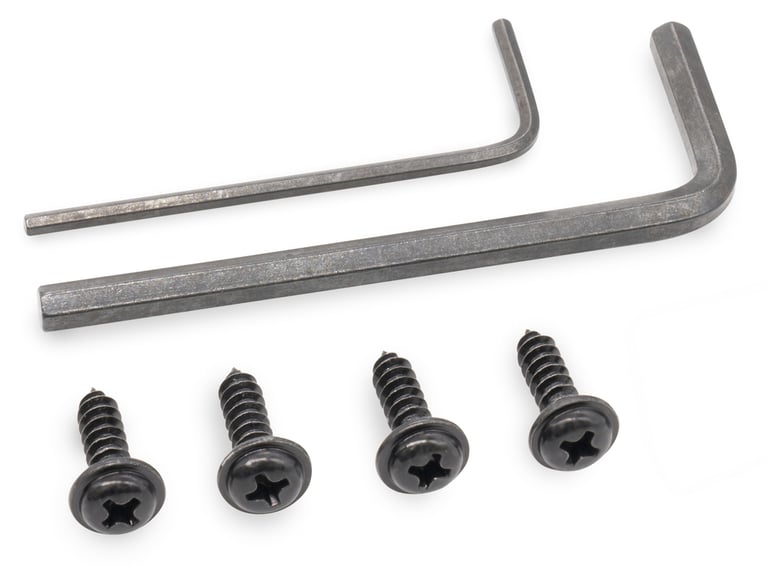

Mounting screws (4)
Adhesive brand badges (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

LS-VAD17001

Weight:

8.00lbs

Internal SKU:

ls-vad17001-u8

Internal Product ID:

208401
