NVX JAD1200.1

True 2400 Watt Peak 1200W RMS Class D Monoblock Amplifier with Bass Remote Included

NVX
Shop all NVX
Product videos
highlight-star-icon

• RMS: 500W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total RMS Power: 1200W
• CEA-2006 Compliant
• Wired Bass Remote Included
• Ultra Efficient Class D Design
• Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H

Learn more about the jad12001

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

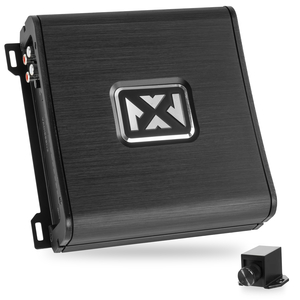

vad17001 thumbnail

NVX VAD17001

OUR PRICE: $279.99

View item

Product Highlights


• RMS: 500W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total RMS Power: 1200W
• CEA-2006 Compliant
• Wired Bass Remote Included
• Ultra Efficient Class D Design
• Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H

Description


NVX brand icon

Authorized dealer



NVX JAD Series Amplifiers

NVX's new line of JAD amplifiers are perfect for those looking for a small footprint, high output amplifier. They boast an abundance of features such as variable high and low pass filters, pre-amp outputs, and gain level control. The sleek design of the chassis combined with the illuminated badge makes these amplifiers eye-catchers. The JAD1200.1 monoblock includes a wired remote bass knob as well as a convenient power and ground gauge adapter for converting the 8 gauge inputs into 1/0 gauge inputs. Dual speaker terminals bridge the amplifier internally allowing for less confusion when wiring multiple subwoofers.



Sonic Electronix Power Certified Amplifier

NVX's JAD1200.1 monoblock amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings. Learn more about this amp's Sonic Electronix Certified Power Here!

Impedance
Claimed Output
Certified Results
Dynamic Results
4 Ω
500W @ 14.4v
662W @ 14.59v
666W @ 14.70v
2 Ω
800W @ 14.4v
1037W @ 14.3v
1128W @ 14.60v
1 Ω
1200W @ 14.4v
1384W @ 14.05v
1647W @ 14.42v



General Features:

  • Class D Monoblock Amplifier with Bass Remote
  • CEA-2006 Compliant
  • Peak Power Rating: 2400 Watts
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 800 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 662 watts x 1 chan.
    • 2 ohm: 1037 watts x 1 chan.
    • 1 ohm: 1384 watts x 1 chan.
  • Non-regulated efficient S.M.P.S power supply design
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Power and ground Gauge adapter included (Up to 0 gauge)
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable subsonic filter: 20 - 38 Hz, 24 dB/octave
  • Variable low-pass filter: 40 - 320 Hz, 24 dB/octave
  • Signal to Noise Ratio: 111 dB
  • Total Harmonic Distortion: <1.0%
  • Damping factor: 200
  • Input Sensitivity: 200mV-6V
  • Frequency response: 20 - 200 Hz
  • Fuse Rating: 40A x 3
  • Accepts 8, 4, 2, and 1/0 Gauge wire with gauge adapter
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty**

Recommended Configurations:

  • Two NVX VCW104 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
  • One NVX VCW104 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
  • One NVX VCW124 12" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
  • One NVX VCW154 15" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
  • Two NVX VSW124 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
  • Two NVX NSW102V2 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS

**Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT42, or NVX XAPK4

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Product history:

NVX VAD17001 thumbnail
(newest, current model)
NVX JAD1200.1 thumbnail
(previous model, replaced by NVX VAD17001)

Best selling similar products

Alpine MRV-M500

• 300 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(53)

$197.99

List price $230.00

Kicker CXA1200.1

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(15)

$339.96

List price $429.99

NVX XQA12001

• 500 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

$399.99

List price $479.99

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$399.99

List price $399.99

NVX XQA25001

• 1000 watts x 1 channel @ 4 ohm
• 1500 watts x 1 channel @ 2 ohm
• 2500 watts x 1 channel @ 1 ohm
• Total RMS Power: 2500 watts
• Class D 1 ohm Stable Monoblock Amplifier

$599.99

List price $839.99

Kicker CXA800.1

• 300 watts x 1 channel @ 4 ohm
• 600 watts x 1 channel @ 2 ohm
• 800 watts x 1 channel @ 1 ohm
• Total RMS Power: 800 watts
• Class D 1 ohm Stable Monoblock Amplifier

(17)

$254.96

List price $329.99

JL Audio XDM600/1

• 400 watts x 1 channel @ 4 ohm
• 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable Monoblock Amplifier

(3)

$599.99

List price $599.99

Rockford Fosgate Power T1500-1BDCP

• 1000 watts x 1 channel @ 4 ohm
• 1500 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class BD 1 ohm Stable Monoblock Amplifier

(70)

$769.99

List price $769.99

JL Audio RD1000/1

• 600 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 3 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(9)

$559.99

List price $559.99

Power Acoustik VA1-6000D

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• 1800 watts x 1 channel @ 1 ohm
• Total RMS Power: 1800 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.99

List price $199.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
800 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Series
JAD Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 320 Hz
Subsonic Filter
20 - 38 Hz
Signal-to-Noise Ratio
111 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 3
Strappable
No
Sonic Certified Amplifier
Yes
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

JAD1200.1

Weight:

7.50lbs

Internal SKU:

jad12001

Internal Product ID:

40252

Product and How-to Videos

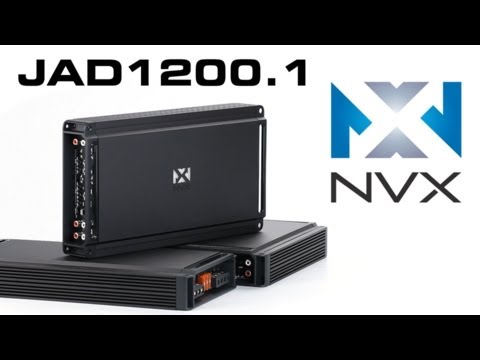

  • NVX JAD1200.1 Car Amplifier (1200W Class D Monoblock Amp)
