Planet Audio AC2500.1M 2500W 2 Ohm Class A/B Mono Car Amplifier+Amp Kit+Remote

The specifications and power ratings shown here have been pulled from various manufacturer resources, but have not been tested and verified by us. We try to make sure everything's as accurate as possible, but we can't know it all.

General Features

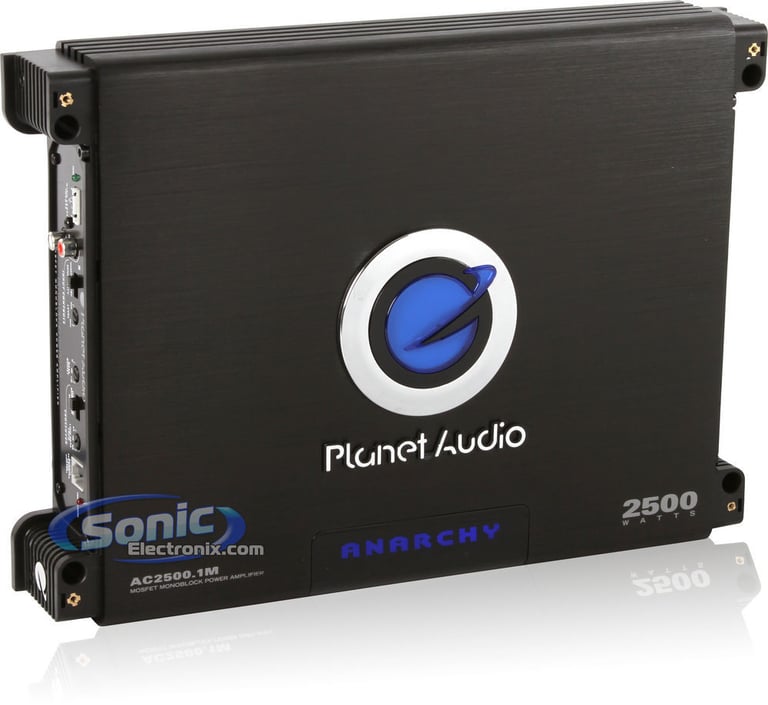

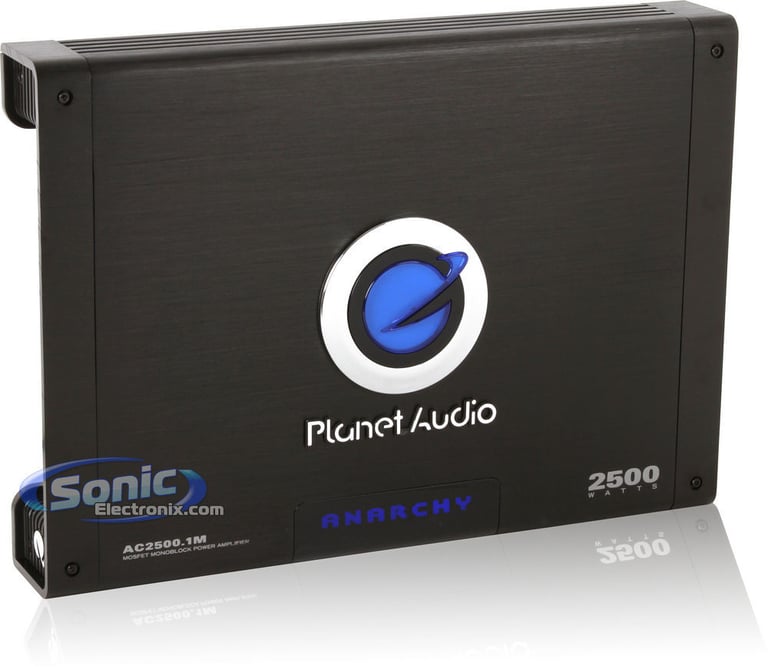

• Anarchy Series Monoblock Car Amplifier
• RMS Power Rating:
• 4 ohms: 938 watts x 1 chan.
• 2 ohms: 1875 watts x 1 chan.
• Max power output:
• 2 ohms: 2500 watts x 1 chan.
• Pulse width modulated MOSFET power supply

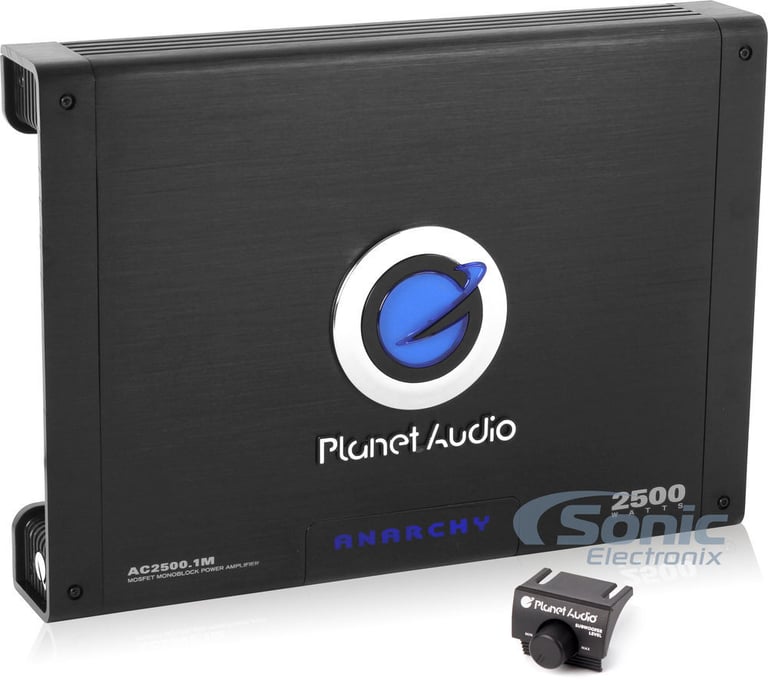

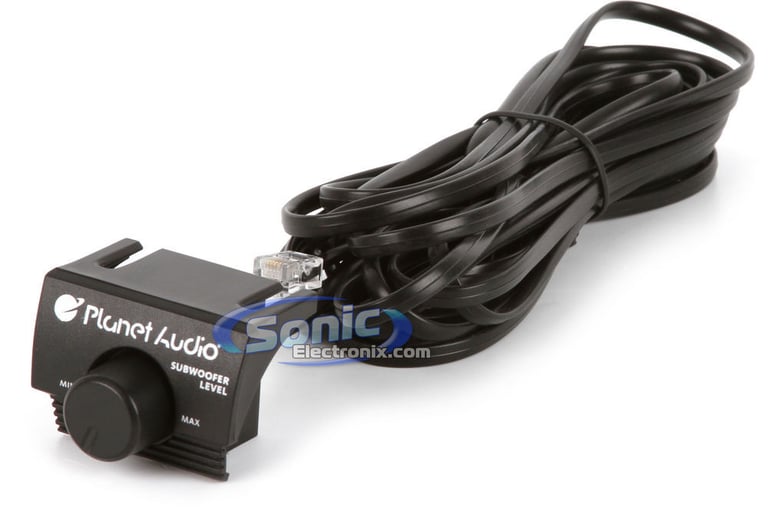

• Convenient remote subwoofer control

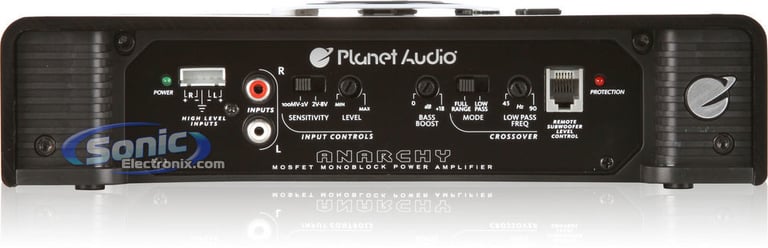

• LED power (green) and protect (red) indicators
• Variable Bass Boost 0 to +18 dB
• Chrome-plated connections enhance durability
• Variable high and low pass crossovers
• Illuminated logo
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Low level high inputs

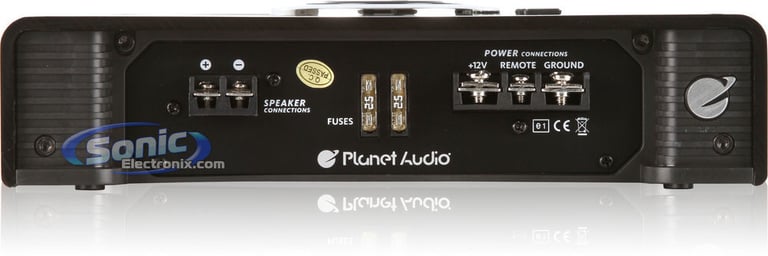

• Heavy-duty set-screw terminals
• Input sensitivity:
• Low level: 100mV-2V
• High level: 2V-8V
• Variable low-pass filter (45-90 Hz, 24 dB/octave)
• Damping factor: >125
• Signal-to-Noise Ratio: 102 dB
• Frequency response: 20-20,000 Hz
• Dimensions: 14"L x 10"W x 2-3/16"H
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Platinum Internet Dealer
• 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Product Details:

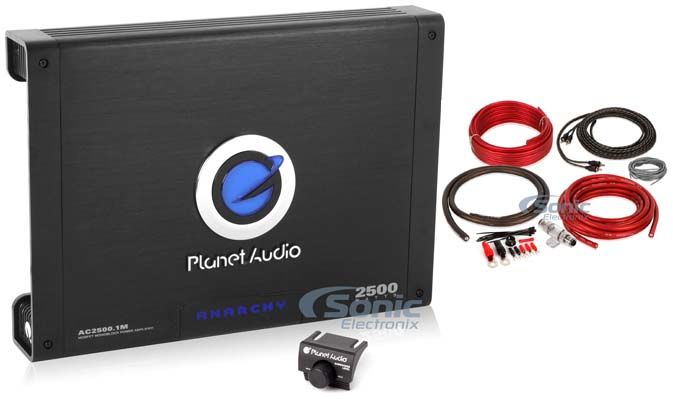

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Belva CCA wire is made from 30% copper while the competition uses only 10%
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
• Complies to American Wire Gauge standards
• Also available in Blue and Red
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. (5.2 meters) Gray 4 gauge power wire
2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

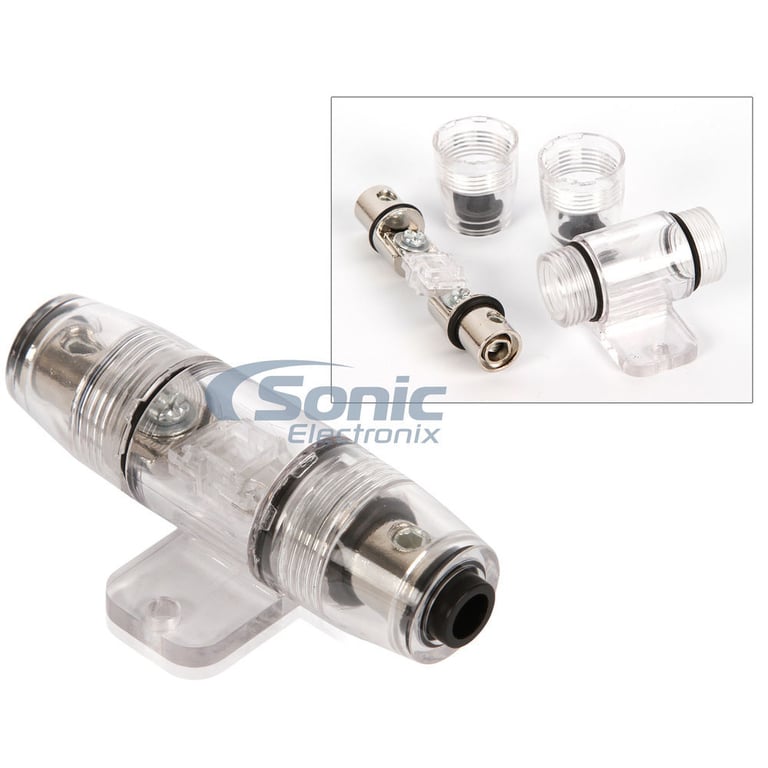

6. One MINI-ANL Fuse Holder with a 80 amp fuse
7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
