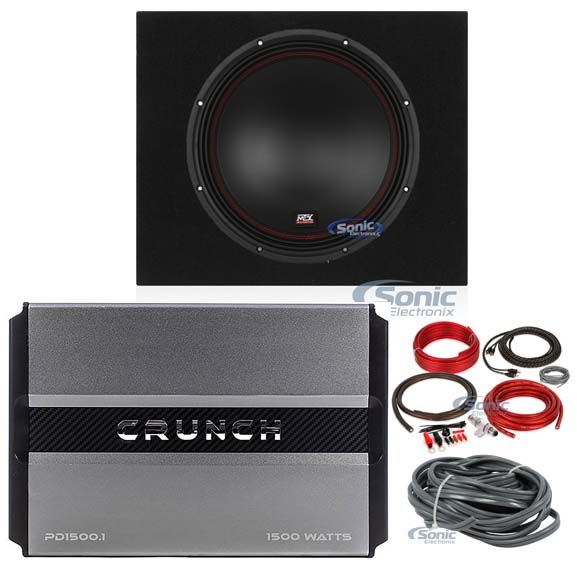

MTX 5512-22 12" 800w Subwoofer+Free Sealed Enclosure+Mono Amplifier+Amp Kit

800W Peak (400W RMS) 12" 55 Series Dual 2 Ohm Subwoofer Package

MTX
Shop all MTX
highlight-star-icon

• 800W Peak
• 400W RMS
• Polypropylene Cone
• Rubber Surround
• Spider Plateau Venting Mechanically Cools the Voice Coil
• Radial Ribbed T-Yoke Dissipates Heat and Decreases Distortion

Learn more about the mtx-551222_mdfs1215_bak42

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

Limited time!
THUNDER51 main

MTX Audio THUNDER51

360W Peak (180W RMS) 5.25" Thunder Series 2-way 4-ohm Component Speakers System

1
-16.67%

$199.96

List price $239.95

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

Description


MTX brand icon

Authorized dealer

MTX Audio 55 Series Subwoofer

MTX 5512-22 55 Series Subwoofer

The MTX Audio 55 Series subwoofers are the perfect solution for improving your car sound quality while taking up little space. Their low profile means they do not need a large enclosure and will still deliver powerful bass. How do they do this? With an improved surround compared to traditional Half-Roll surrounds, expanded surface area and reduced distortion due to progressive suspension controls. With over 40 years of audio experience, MTX Audio makes sure and knows how to create quality audio with their products, and the 55 Series is no exception!

MTX Inverted Apex Surround

MTX Inverted Apex Surround

The MTX Inverted Apex Surround increases the surface area of the sub to allow for more air movement, accurate bass reproduction and higher SPL. Traditional Half-Roll Surrounds have an inherent wrinkling when reproducing bass due to the physics of its motion, which causes distortion. The Inverted Apex Surround moves symmetrically through both positive and negative cycles which eliminates this type of distortion.



Progressive Suspension Control

MTX Audio Series Subwoofer

Progressive Suspension control the excursion of the subwoofer at high power levels which reduces distortion. Eliminating this 3rd order distortion means you can play your music loud and rely on your subwoofer to take of itself.



Radial Ribbed T-Yoke

MTX Audio Series Subwoofer

Two features really make sure the MTX subwoofers stay cool: the Spider Plateau Venting and the Radial Ribbed T-Yoke. The Spider Plateau Venting is a mechanical cooling process that targets cool air at the voice coil. This means the subwoofer cools itself as it is playing. The Radial Ribbed T-Yoke acts as a heat sink that dissipates heat and decreases distortion.


MTX 5512-22

800W Peak (400W RMS) 12" 55 Series Dual 2-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 2 ohm 55 Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Polypropylene Cone
  • Rubber Surround
  • Inverted apex surround for more air and higher SPL
  • Plateau venting for mechanical cooling process
  • Radial ribbed t-yoke as a heat sink to manage temperature
  • 2" High Temperature Voice coil
  • 15.24 mm Xmax
  • 56 oz. Double Stacked magnet motor structure
  • Frequency Response: 25 - 130 Hz
  • Resonance Frequency (Fs): 34 Hz
  • Sensitivity: 85.1 dB
  • Recommended sealed box volume: 1 cubic feet
  • Recommended ported box volume: 2.32 cubic feet
  • Top-mount depth: 6.188"
  • Cutout diameter: 11.125"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

1.5 Cu Ft - Single 12" Sealed MDF Subwoofer Enclosure (Belva MDFS1215)

12-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.5 cu ft airspace)
Quantity: 1

General Features:

  • Single Sealed 12" Enclosure
  • Internal box volume: 1.5 cubic ft
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency
  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 16"L x 17"D x 13-1/2"H
  • 30 Day return policy

Belva BAK42BK

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Gray 4 gauge power wire
  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Belva BBSW167

16 Gauge 7 Meter (23 Ft) Speaker Wire (CCA)
Quantity: 1

General Features:

  • 16 Gauge Speaker Wire
  • High strand count for maximum flexibility
  • Ultra-flexible PVC blended jacket for easy installation
  • Packed in resealable bag
  • Length: 7m (23 Ft)
  • Also available in 12 Gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Crunch PD1500.1 (PD 1500.1)

1500W Max Power Drive Series 2-Ohm Stable Monoblock Amplifier
Quantity: 1

General Features:

  • Crunch Power Drive PD 1500.1
  • Class-A/B 2-Ohm Stable Monoblock Amplifier
  • Max Power Rating:
    • 4 ohm: 750 watts x 1 chan.
    • 2 ohm: 1500 watts x 1 chan.
  • Total power output: 1500 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Quick Thermal Dispersion Technology adds more mass to aluminum heat sink to run cool
  • Input sensitivity: 0.2V - 6V
  • Variable low-pass filter: 40 - 300 Hz
  • Subsonic Filter: 10 - 40 Hz
  • Variable Bass Boost: 0 to +12 dB bass boost
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 11.4"W x 17"L x 3.8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Power Drive Quick Start Installation Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

Specifications & Details


Subwoofer Specifications
Series
55 Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
400 watts
Peak Power Handling
800 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Sensitivity
85.1 dB
Frequency Response
25 - 130 Hz
Xmax (millimeters)
15.24 mm
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

5512-22, MDFS1215, BAK42

Weight:

48.25lbs

Internal SKU:

mtx-551222_mdfs1215_bak42

Internal Product ID:

160175
