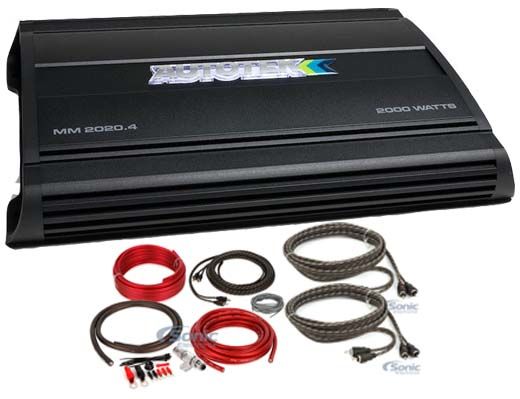

Autotek MM2020.4 Amplifier with Amplifier Kit

General Features:

• Autotek Mean Machine MM2020.4
• Class-A/B 2 ohm Stable 4-Channel Amplifier
• Peak Power Rating:
• 4 ohm: 225 watts x 4 chan.
• 2 ohm: 500 watts x 4 chan.
• 1 ohm: ------------N/A------------
• Bridged, 4 ohm: 1000 watts x 2 chan.
• Total power output: 2000 watts
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• 4/3/2 Channel operation
• Speaker-level (high-level) inputs
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• Input sensitivity:
• High level: .2V-10V
• Frequency Response: 15 - 150Hz
• Total Harmonic Distortion (THD): <.05%
• Signal to Noise Ratio: >90 dB
• Variable high-pass filter: 60 - 1200 Hz
• Variable low-pass filter: 30 - 250 Hz
• Variable Bass Boost: 0 to +9 dB bass boost
• Fuse Rating: 25A x 2
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• 4 Gauge 2-Channel Complete Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Made from 100% Copper-Clad Aluminum (CCA)
• Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• RCA Interconnect Cable
• Twisted-pair construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

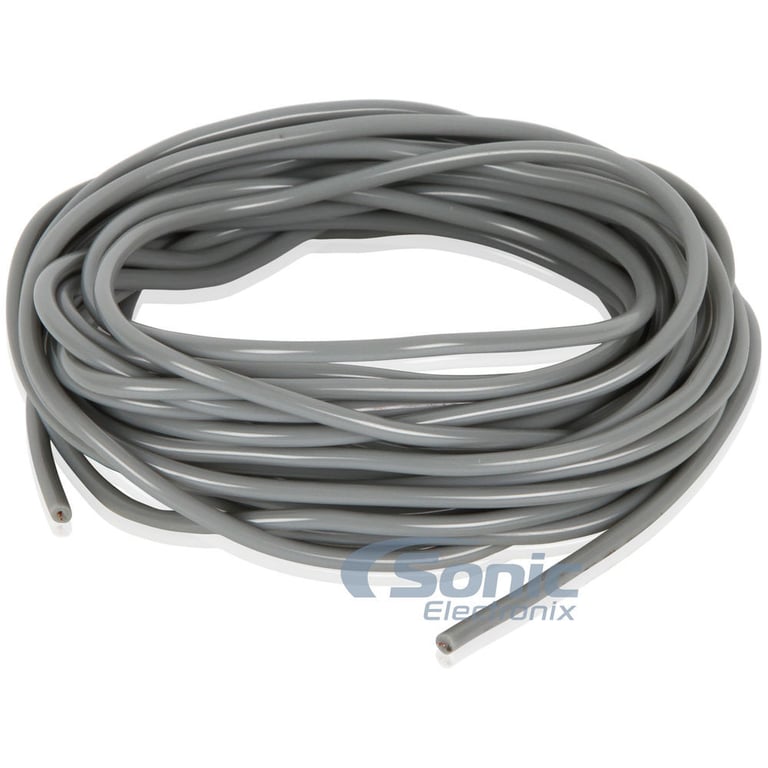

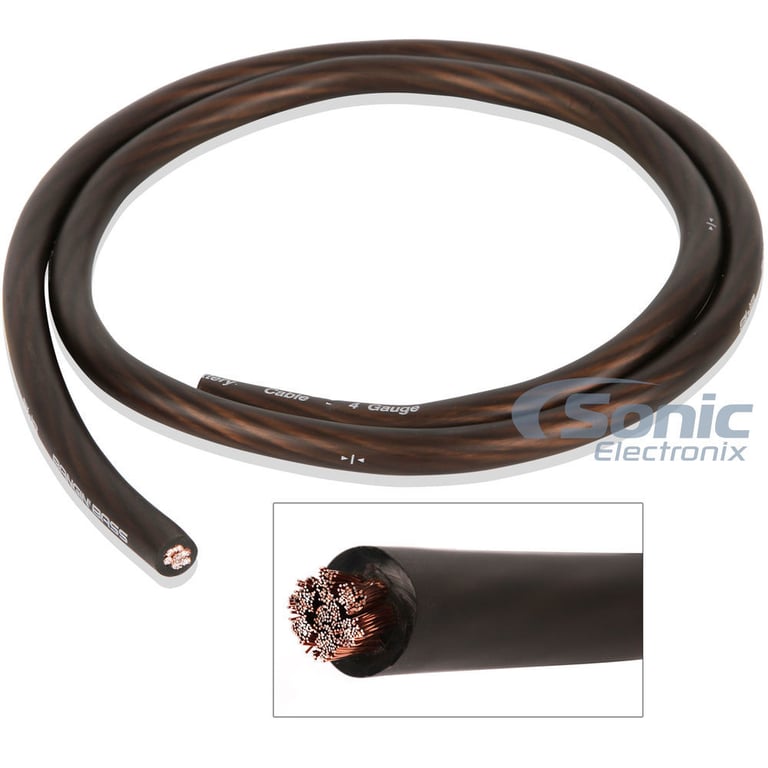

1. 17 ft. Gray 4 gauge power wire
2. 3 ft. Black 4 gauge ground wire
3. 17 ft. Gray 18 gauge remote lead wire
4. 20 ft. 16 gauge speaker wire
5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

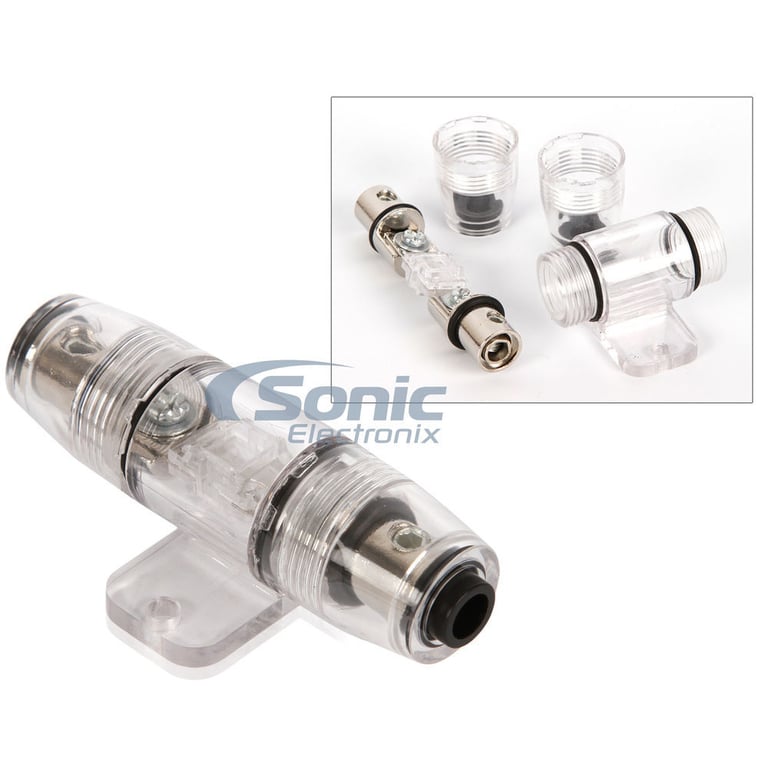

6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Chrome Plated ring terminals
9. Five 16 Gauge Spade terminal
10. One 18 Gauge Red butt connectors
11. Ten 4" Black zip ties

General Features:

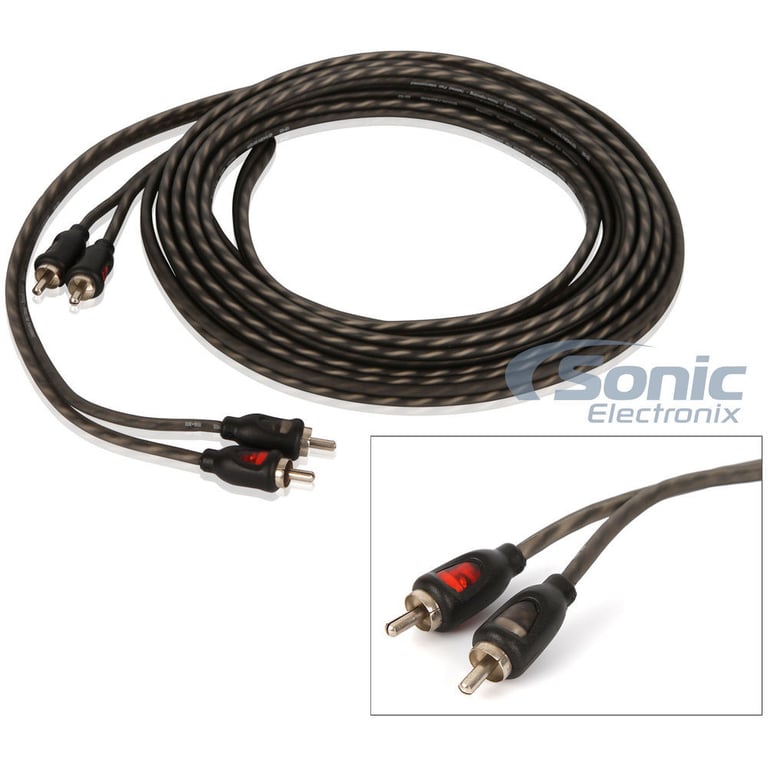

• Audio Interconnect Cable (CCA)
• 2-Channel RCA, perfect for stacking, strapping or connecting amps
• Helical Twist construction minimizes noise and interference
• Patented high tolerance compact machined metal end
• Packed in resealable bag
• Length: 5m (16.4 feet)
• Also available in 9.8 Ft.
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
