Pioneer TS-A1670F

640W Max (140W RMS) A-Series 6.5" 3-Way Coaxial Speakers

Pioneer
Shop all Pioneer
highlight-star-icon

• 320 watts Peak Each, 70 watts RMS Each
• 0.43" PET Hard Dome tweeters
• Carbon and Mica Reinforced Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

Learn more about the tsa1670f

We apologize

This item has been discontinued


Loading...
240-DF-US10V main

SSV Works 240-DF-US10V

Loaded Single 10" Front or Rear Underseat Sealed Enclosure for select 2018-2024 vehicles from Can-Am

RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


Pioneer brand icon

Authorized dealer

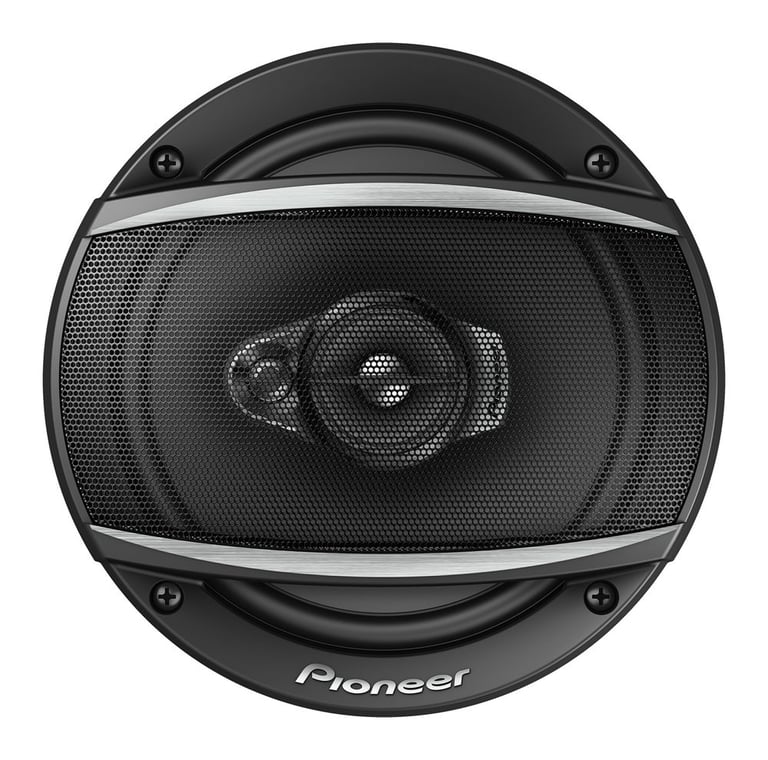

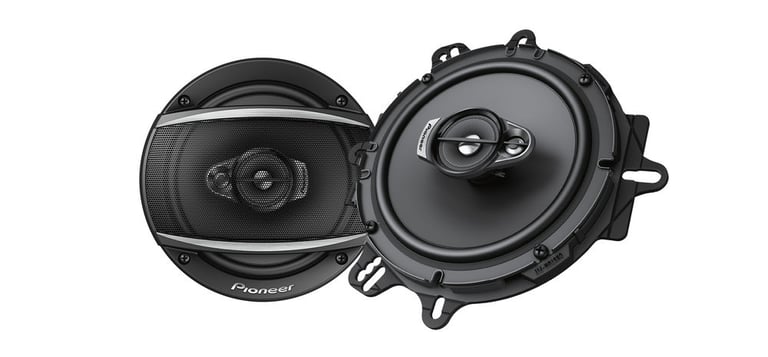

Pioneer TS-A1670F

The Pioneer A Series speaker sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears. The A Series lineup expands flexibility and improves acoustic performance. The integrated inline crossover network allows for increased installation flexibility without the need of an outboard module. Included with the Pioneer A Series are multi-fit installation adapters and tweeter mounts (when applicable).

Product Details:

  • 6-1/2" A Series 3-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 640 watts per pair / 320 watts each
    • RMS: 140 watts per pair / 70 watts each
  • Hi-Res Audio certified
  • CEA-2031 compliant
  • Carbon and Mica Reinforced Injection Molded Polypropylene cone material
  • Elastic Polymer speaker surround
  • 0.43" PET Hard Dome tweeters

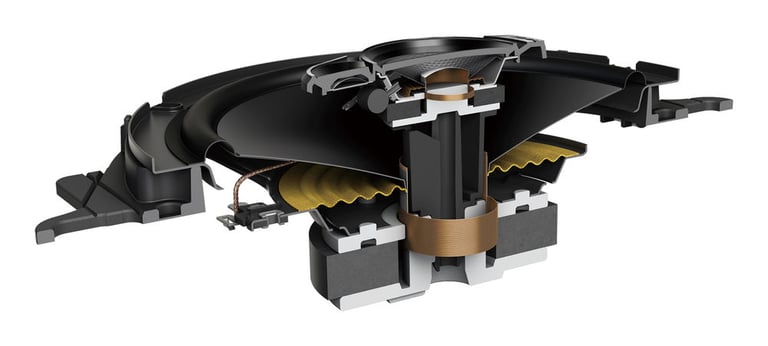

  • Midrange-tweeter bridge with integrated waveguide
  • High heat-resistant wire voice coil
  • 7.6 oz. Ferrite magnet on an optimized symmetrical motor
  • Open & Smooth sound concept between the midrange and tweeter
  • CarSoundFit in-car sound simulator-compatible

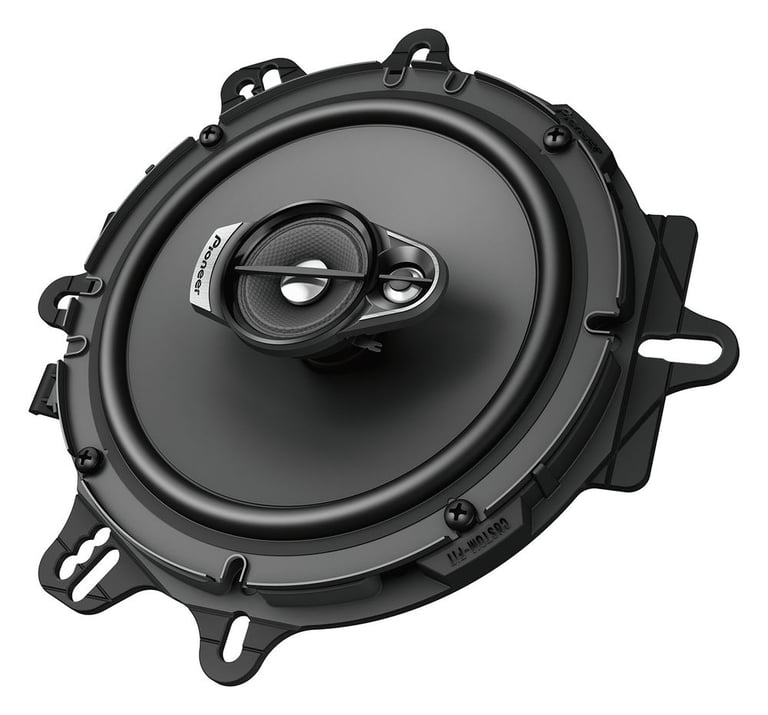

  • Universal woofer basket design
  • Top-mount Depth: 1-7/8"
  • Cutout Dimensions: 5-5/8"
  • Impedance: 4 ohm
  • Frequency Response: 37 - 24,000 Hz
  • Sensitivity: 87 dB
  • 2 speaker grilles included
  • Authorized Internet Dealer
  • MFR #: TS-A1670F
  • 1-year Sonic Electronix Warranty

  • Priced Per Pair


Best selling similar products

46CSC654 small

Kicker CSC65 (46CSC654)

• 300 watts Peak Each, 100 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(123)

$79.96

List price $119.99

Club 622 small

JBL Club 622

• 180 watts Peak Each, 60 watts RMS Each
• Silk Edge Driven Dome tweeters with 0dB or -3dB adjustable output levels
• UV-Resistant Polypropylene cone material with Plus One woofer cone architecture
• Impedance: 3 ohm
• Sensitivity: 93 dB

(5)

$99.95

List price $139.95

43DSC6504 small

Kicker DSC650 (43DSC6504)

• 240 watts Peak Each, 60 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome zero-protrusion tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(28)

$84.99

List price $94.99

Specifications & Details


Speaker Specifications
Series
A Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6-1/2"
Design
3-way Coaxial
Tweeter Design
Hard Dome
Tweeter Size
0.43"
Tweeter Composition
PET
Woofer Composition
Carbon and Mica Reinforced Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Peak Power Handling
320 watts
RMS Power Handling
70 watts
Total PEAK Per Pair/Set
640 watts
Total RMS Per Pair/Set
140 watts
Sensitivity
87 dB
Frequency Response
37 - 24,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Magnet weight
7.6 oz.
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
1-7/8"
Cutout Dimensions
5-5/8"
CTA-2031 Compliant
Yes
General specifications
Hi-Res Certified
Yes
Color
Black
Speaker Grilles
Yes
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
User manual
WITB: Speakers
Mounting Brackets/Hardware
Speakers (2)
Washers
Grilles (2, attached)
Mounting screws (8)
Speaker connection cables (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-A1670F

Weight:

4.00lbs

Internal SKU:

tsa1670f

Internal Product ID:

160505
