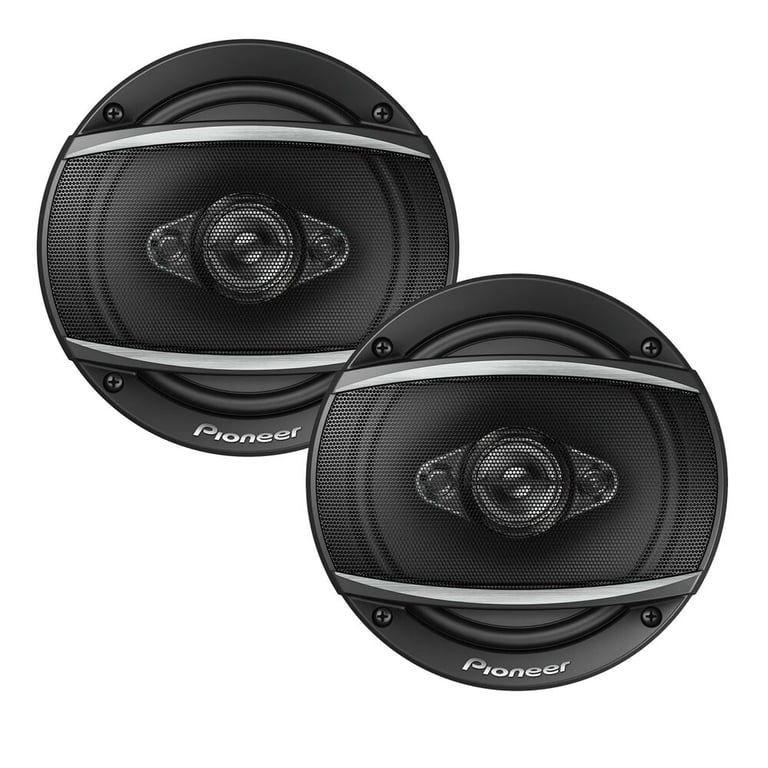

Pioneer TS-A1680F

350W Peak (80W RMS) 6.5" A-Series 4-way 4-ohm Coaxial Car Speakers with Dual Tweeters

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 350 watts Peak Each, 80 watts RMS Each
• 3/8" PET Hard Dome twin tweeters
• Carbon and Mica Reinforced Injection Molded Polypropylene cone material
• Impedance: 4 ohms
• Sensitivity: 88 dB

Learn more about the tsa1680f

We apologize

This item has been discontinued

Product Highlights


• 350 watts Peak Each, 80 watts RMS Each
• 3/8" PET Hard Dome twin tweeters
• Carbon and Mica Reinforced Injection Molded Polypropylene cone material
• Impedance: 4 ohms
• Sensitivity: 88 dB

Description


Pioneer brand icon

Authorized dealer

Pioneer TS-A1680F

The Pioneer A Series speaker sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears. The A Series lineup expands flexibility and improves acoustic performance. The integrated inline crossover network allows for increased installation flexibility without the need of an outboard module. Included with the Pioneer A Series are multi-fit installation adapters and tweeter mounts (when applicable).

Product Details:

  • 6-1/2" A Series 4-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 700 watts per pair / 350 watts each
    • RMS: 160 watts per pair / 80 watts each
  • CEA-2031 compliant
  • Carbon and Mica Reinforced Injection Molded Polypropylene cone material
  • Elastic Polymer speaker surround
  • 3/8" PET Hard Dome dual tweeters
  • 11.2 oz. Ferrite magnet motor structure
  • Open & Smooth sound concept between the midrange and tweeter
  • CarSoundFit in-car sound simulator-compatible
  • Crossover Frequency: 3,600 Hz
  • Top-mount Depth: 2 3/8"
  • Cutout Dimensions: 5-5/8"
  • Impedance: 4 ohms
  • Frequency Response: 36 - 25,000 Hz
  • Sensitivity: 88 dB
  • 2 speaker grilles included
  • Authorized Internet Dealer
  • MFR #: TS-A1680F
  • 1-year Sonic Electronix Warranty

  • Priced Per Pair

Specifications & Details


Speaker Specifications
Series
A Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6-1/2"
Design
4-way Coaxial
Tweeter Design
Hard Dome
Tweeter Size
3/8"
Tweeter Composition
PET
Woofer Composition
Carbon and Mica Reinforced Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Peak Power Handling
350 watts
RMS Power Handling
80 watts
Total PEAK Per Pair/Set
700 watts
Total RMS Per Pair/Set
160 watts
Sensitivity
88 dB
Frequency Response
36 - 25,000 Hz
Impedance (Per Voice Coil)
4 ohms
Shallow Mount Installation
No
Magnet weight
11.2 oz.
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
2 3/8"
Cutout Dimensions
5-5/8"
CTA-2031 Compliant
Yes
General specifications
Hi-Res Certified
No
Color
Black
Speaker Grilles
Yes
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
User manual
WITB: Speakers
Speakers (2)
Washers
Grilles (2, detached)
Mounting screws (8)
Speaker connection cables (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-A1680F

Weight:

3.61lbs

Internal SKU:

tsa1680f

Internal Product ID:

160507

Product and How-to Videos


Customer Ratings & Reviews



5 star
88%
4 star
13%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.9
Design
5
Usability
4.7

Customer Reviews

Sort by:

Loading...

So fresh and so clean, clean

I installed these on my '16 Impreza with relative ease. The included bracket is not ideal for the Impreza, but will work in a pinch. I was able to align the brackets to two of the mounting holes. As far as quality is concerned, these produce a crisp sound when paired with a a baffle. The bass is about what I expected from coaxial speakers and my only suggestion is to pair these with a suitable subwoofer. Personally, I'm going to end up getting something modest to fill out the sound.

By Anonymous on May 21, 2019 Checkmark Icon Verified purchase

41

found this helpful.

Pioneer TS-A1680F

I personally do recommend these guys the service is great they stand by their word and product and you will get your free product are gift card if told when you purchase certain things but they are good people and good help when need I will buy again

By Kenneth on February 14, 2020 Checkmark Icon Verified purchase

38

found this helpful.

Superb!

These are good quality speakers and superb value. The Sonic price was cheaper than the online competition by many Dollars. The delivery time was also exceptional.

By Ice on January 31, 2020 Checkmark Icon Verified purchase

38

found this helpful.

Nice speakers

Definitely recommend Nice sounding speakers good quality- fit our Jeep with brackets in sound bar

By Patty on February 6, 2020 Checkmark Icon Verified purchase

36

found this helpful.

By JOSE E on March 9, 2024 Checkmark Icon Verified purchase

12

found this helpful.

They sound great. Website said they fit my 1998 subaru legacy, I had to modify the supplied mounting bracket. It looks be universal but took some DIYing to make work correctly. Other than that they are great speakers.

By Benjamin on February 3, 2024 Checkmark Icon Verified purchase

12

found this helpful.

By Terrance on March 11, 2024 Checkmark Icon Verified purchase

7

found this helpful.

By Manuel on June 9, 2024 Checkmark Icon Verified purchase
