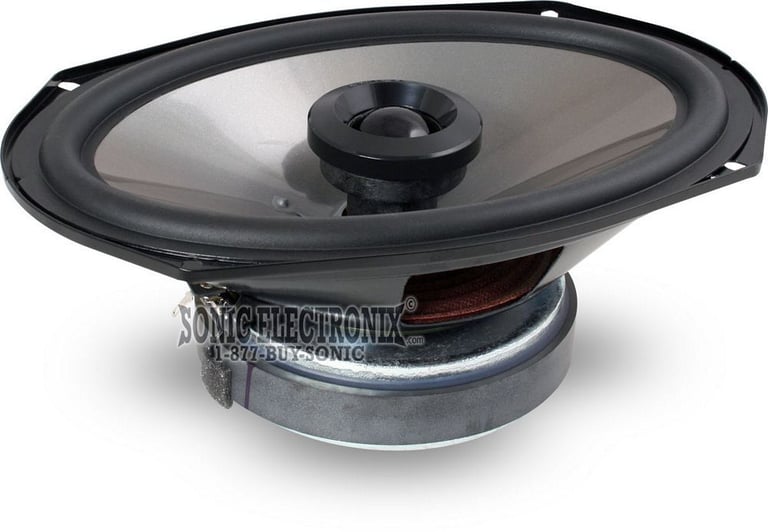

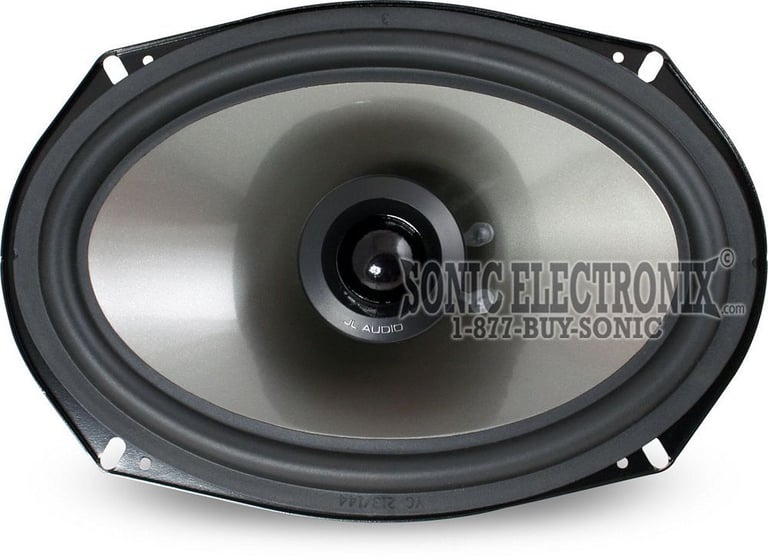

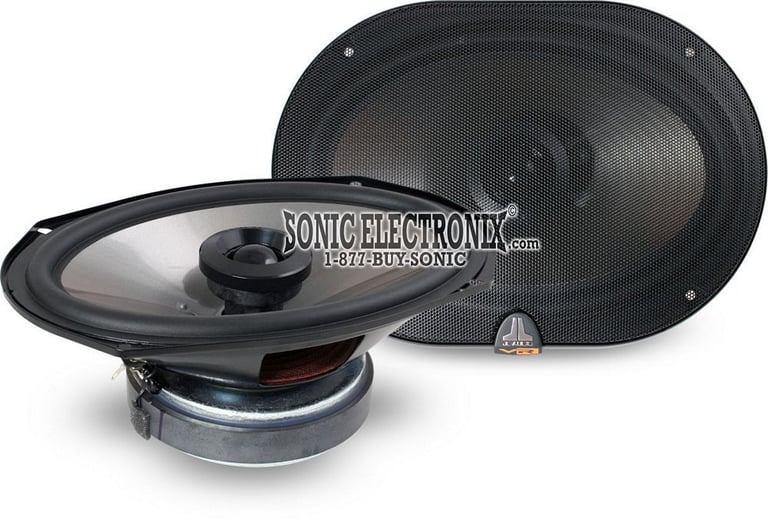

JL Audio VR690-CXi

6" x 9" Evolution VR Series 2-way Car Speakers (VR690CXi)

JL Audio
Shop all JL Audio
highlight-star-icon

6" x 9" VR Series 2-Way Car Speakers • 150W Max • 80W RMS • 1" Treated Textile Soft Dome Tweeter • Injection-Molded Mica Filled Polypropylene Woofer Cone • Butyl Rubber Surround

Learn more about the vr690cxi

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


JL Audio brand icon

Authorized dealer

  • 6" x 9" VR Series 2-Way Car Speakers
  • Power Handling:
    • Peak: 300 watts per pair / 150 watts each
    • RMS: 160 watts per pair / 80 watts each
  • 1" Treated textile soft dome tweeter
  • 4 Ohm Impedance
  • Injection-molded mica filled polypropylene cone woofer
  • Butyl rubber surround
  • 1" Voice Coil
  • Kapton voice coil former
  • Flat, symmetrical spider

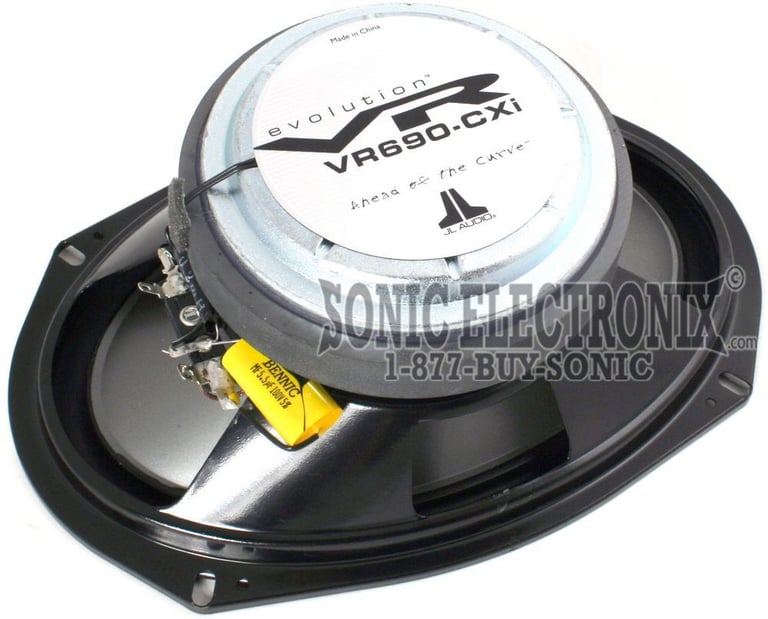

  • Ferrite magnet structure
  • Ferrofluid cooling / damping
  • Neodymium tweeter magnet
  • Onboard Crossover:
    • 1st Order Low-Pass Filter on Woofer
    • 1st Order High-Pass Filter on Tweeter with Mylar Capacitor

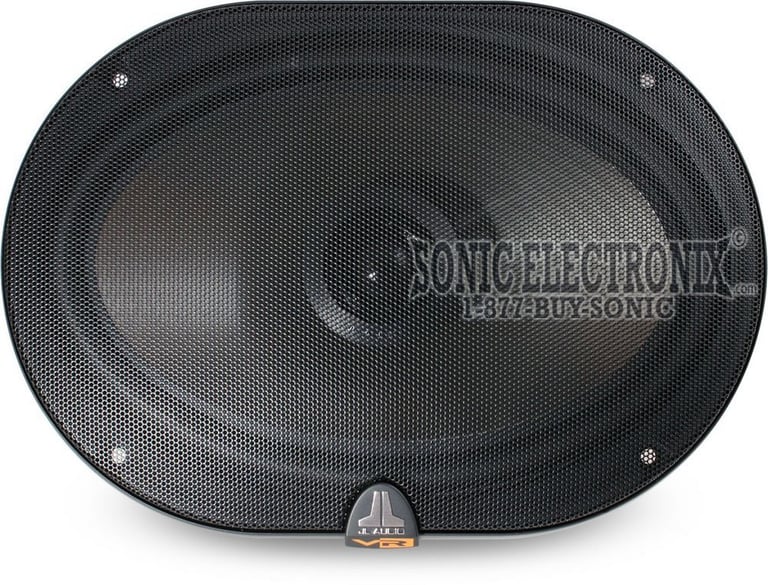

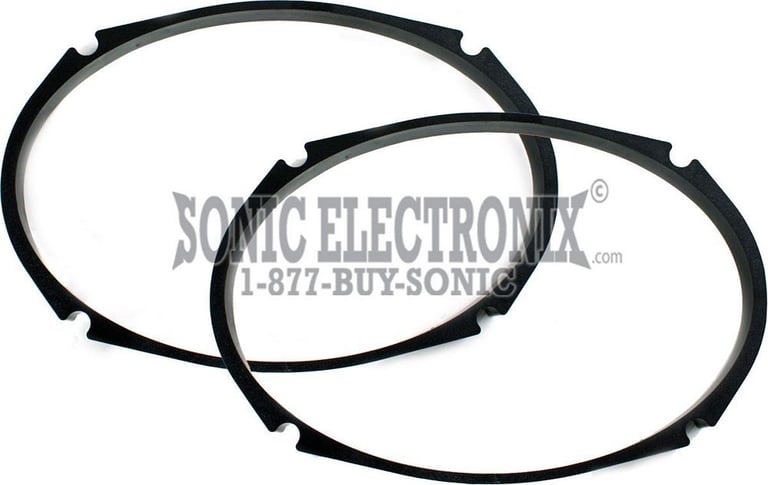

  • Grills and Mounting Hardware Included
  • 1-year SonicElectronix.com warranty

Priced Per Pair


Best selling similar products

46CSC6934 small

Kicker CSC693 (46CSC6934)

• 450 watts Peak Each, 150 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(40)

$111.96

List price $159.99

SXE-6926S small

Alpine SXE-6926S

• 280 watts Peak Each, 90 watts RMS Each
• Mylar Dome tweeters
• Natural Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(13)

$56.99

List price $71.99

REF697F small

Infinity REF697F (INFSPKRF697FUS)

• 300 watts Peak Each, 100 watts RMS Each
• 1" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 94 dB

(5)

$139.95

List price $169.95

TERMINATOR69 small

MTX Audio TERMINATOR69

• 120 watts Peak Each, 60 watts RMS Each
• Silk Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87.8 dB

(1)

$79.95

List price $89.95

NSP69 small

NVX NSP69

• 450 watts Peak Each, 150 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 3.14""

(53)

$89.99

List price $107.99

AP-X69A small

Deaf Bonce Apocalypse AP-X69A

• 400 watts Peak Each, 200 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(3)

$159.90

List price $159.90

JS69K small

Jensen JS69K

• 375 watts Peak Each, 100 watts RMS Each
• 1-3/16" PEI (Polyetherimide) Dome tweeters
• 2-1/4" PEI (Polyetherimide) Dome midranges
• Woven Aramid Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

$169.99

List price $169.99

PK1-169 small

MB Quart PK1-169

• 110 watts Peak Each, 55 watts RMS Each
• 1" Magnesium Dome tweeters
• Tunable waveguide tweeter housing
• Pop Paper-Mica Blend cone material
• Curvilinear cone design geometry
• Impedance: 4 ohm
• Sensitivity: 85.5 dB

$152.74

List price $219.99

P1692 small

Rockford Fosgate Punch P1 P1692

• 150 watts Peak Each, 75 watts RMS Each
• 3/4" PEI (Polyetherimide) Dome Tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(82)

$109.99

List price $109.99

VSP69 small

NVX VSP69

• 450 watts Peak Each, 150 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB
• Mounting Depth: 3.14"

(54)

$109.99

List price $131.99

Specifications & Details


Speaker Specifications
Speaker Size
6" x 9"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Textile
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Butyl Rubber
Peak Power Handling
150 watts
RMS Power Handling
80 watts
Sensitivity
89 dB
Frequency Response
53 - 22000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
3.44"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

VR690-CXI

Weight:

14.00lbs

Internal SKU:

vr690cxi

Internal Product ID:

1606

Customer Ratings & Reviews


JL Audio VR690-CXi thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
4.7
Features
5
Design
4.4
Usability
5

Customer Reviews

Sort by:

Loading...

Music to your ears

I installed a pair of these in the rear of my 1994 Dodge Stealth. I had to space them out 1/8” because the magnets are huge they interfered. It sounded great with the stock radio and even better after I added a Boss GT980 amp.

By Paul on July 11, 2006

3 found this helpful


Wow................... Wow

The first thing you notice when you remove them from the box is the amazing weight. They're much heavier than any 6X9 I've handled before. I installed these to match my 6 1/2" VR components up front and I was blown away. These are nothing short of amazing. Well worth the pain of figuring out how to mount 6X9's in a space designed for 6 1/2's. They produce subwoofer like lows, and are amazingly clear, even with just a high powered head unit. A perfect combination with the smaller components up front, and all but do away with the need for my JL 10" sub. Thanks JL! Oh, 3 for durability because the screens came loose and had to be glued.

By Matthew on December 21, 2006

2 found this helpful


perfect sound

really crystal sound quality. great power handling. price is a bit much more than looking to spend, but worth it.

By Jesse on September 22, 2008

1 found this helpful
