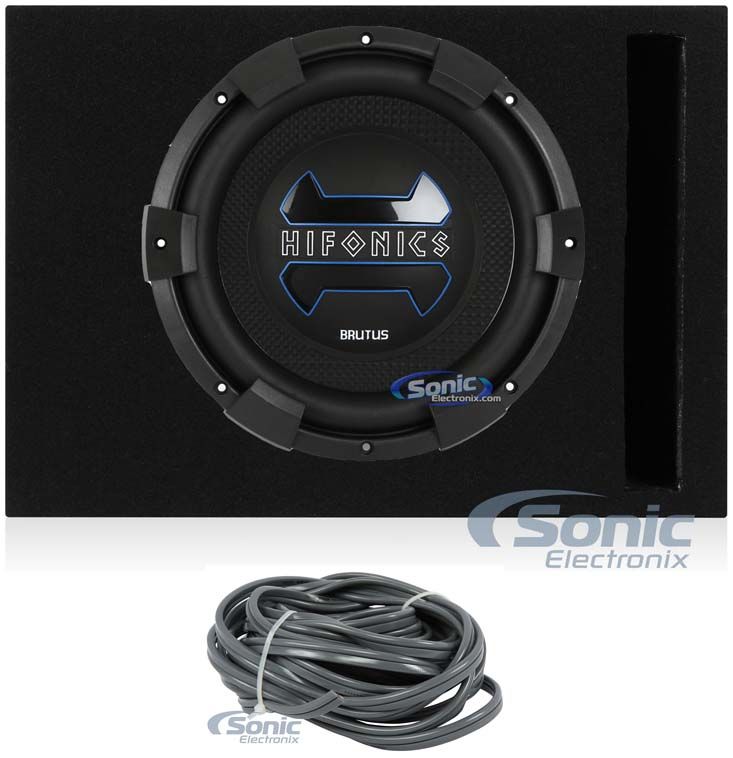

Hifonics Brutus BRX12D4 12" 900w Car Subwoofer + Vented Sub Enclosure Box

900W Max (450W RMS) 12" Brutus Series Dual Voice Coil 4-ohm Subwoofer Package

Hifonics
Shop all Hifonics
highlight-star-icon

• 900W Peak
• 450W RMS
• Polypropylene Cone
• Rubber Surround
• Dual Nomex Spiders
• Push and Insert Speaker Terminals
• 2.5" High-Temperature Voice Coil

Learn more about the brx12d4_1sv12b_tc4sw1625

We apologize

This item has been discontinued

Description


Hifonics brand icon

Authorized dealer

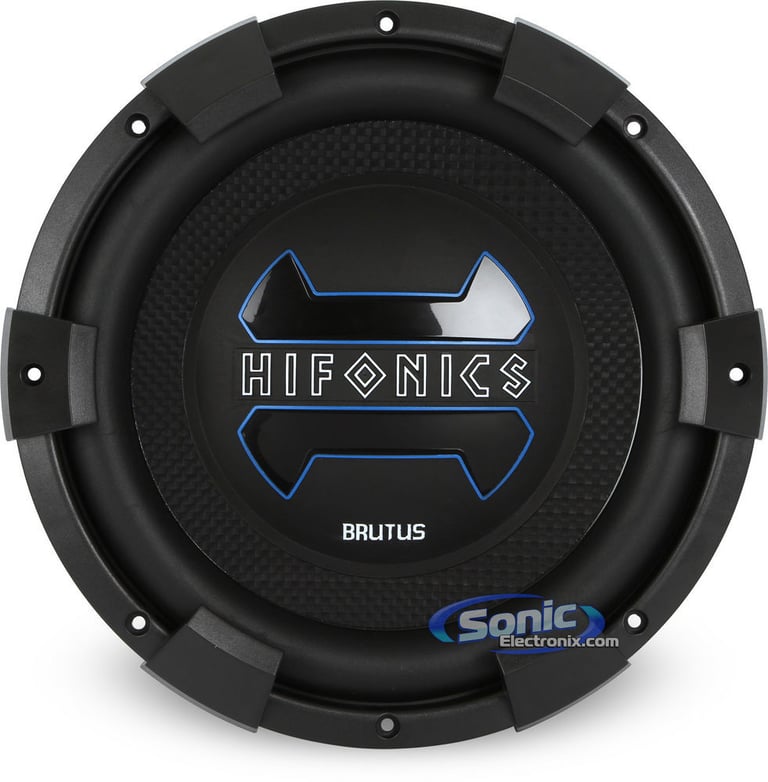

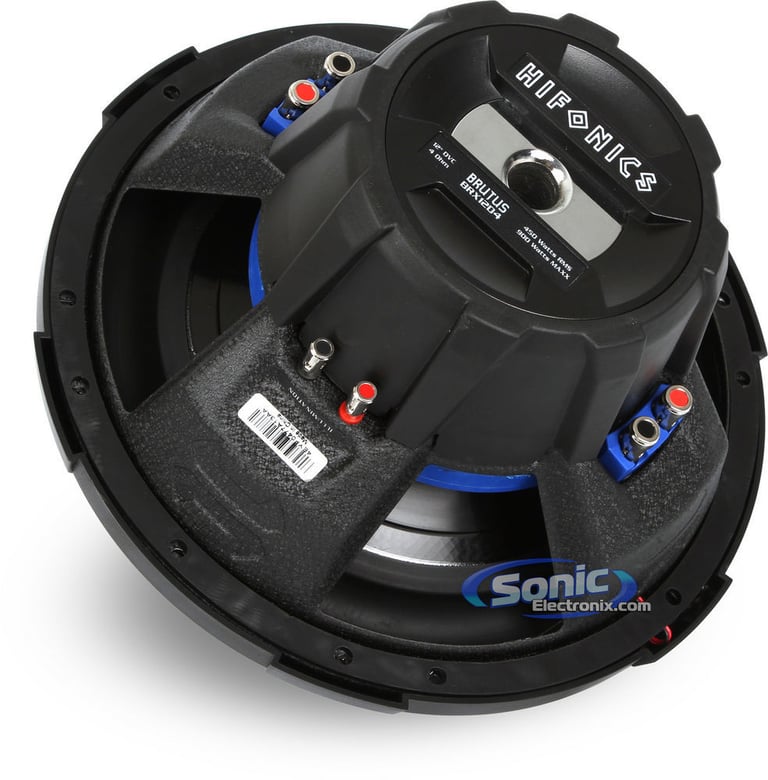

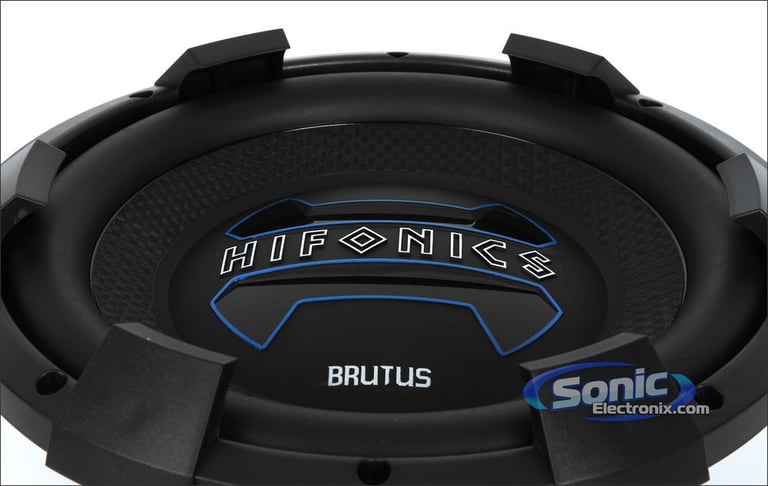

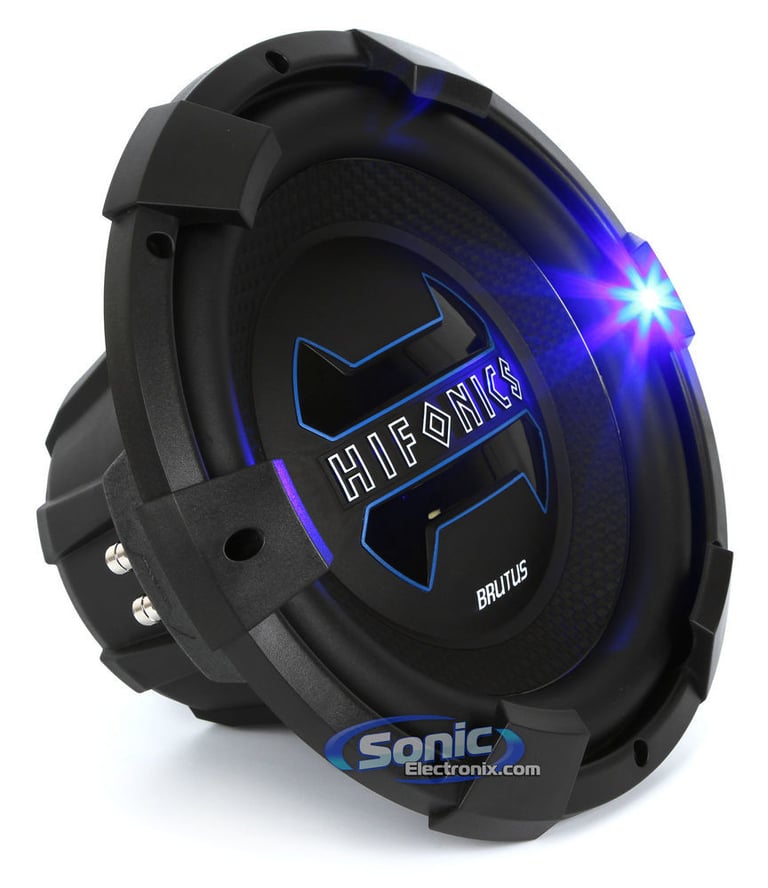

Hifonics Brutus BRX12D4

900W Max (450W RMS) 12" Brutus Series Dual Voice Coil 4-ohm Subwoofer
Quantity: 1

General Features

  • 12" Dual 4 Ohm Brutus Series Subwoofer
  • Power Handling:
    • Peak: 900 watts
    • RMS: 450 watts
  • Recommended power range: 200 - 450 watts RMS
  • Impedance: Dual 4 Ohm
  • Heavy duty woven texture polypropylene cone & injection molded dust cap
  • UV Resistant butyl rubber surround
  • Dual resin infused textile spiders
  • Push & insert style speaker terminals
  • Heavy duty ABS protective motor cap
  • Powder coated deep draw stamped steel basket

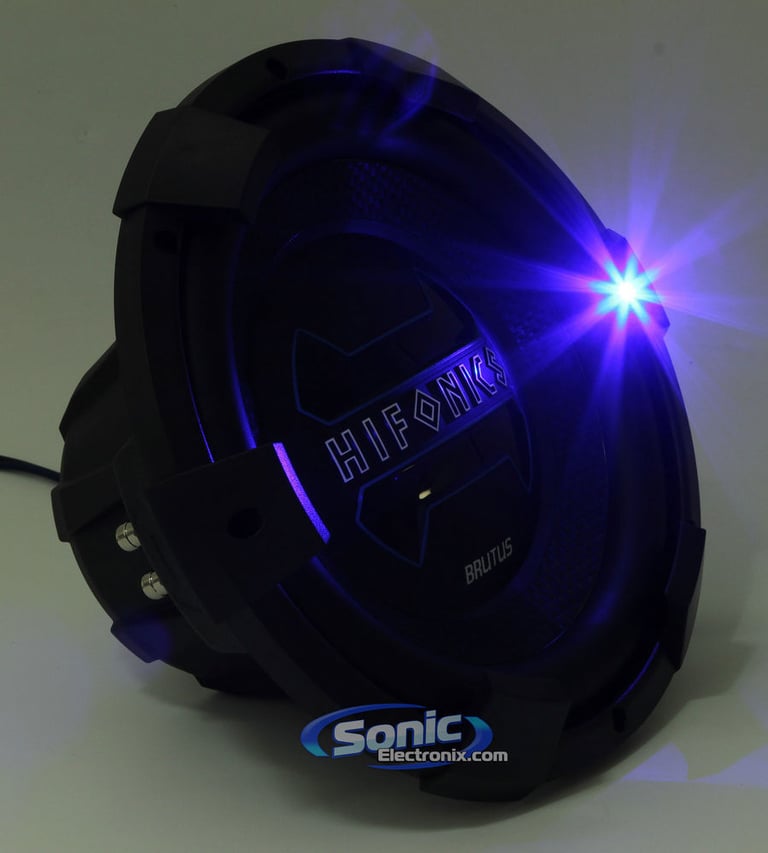

  • ABS rim ring with blue illumination
  • Operates in sealed and ported enclosures
  • 2.5" High temperature voice coil
  • 56 oz Vented motor
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

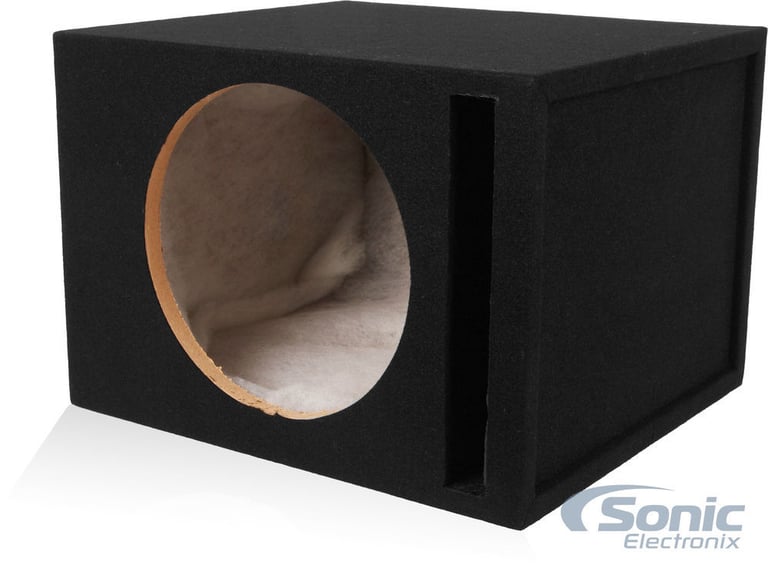

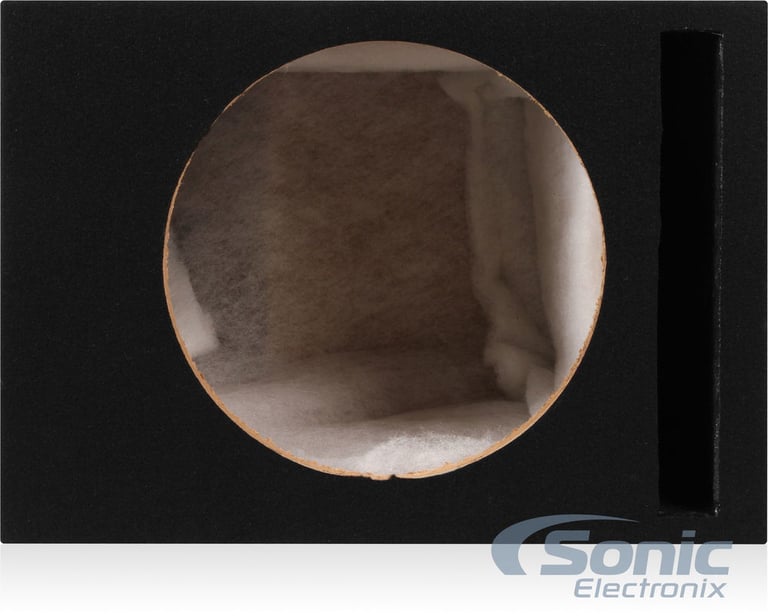

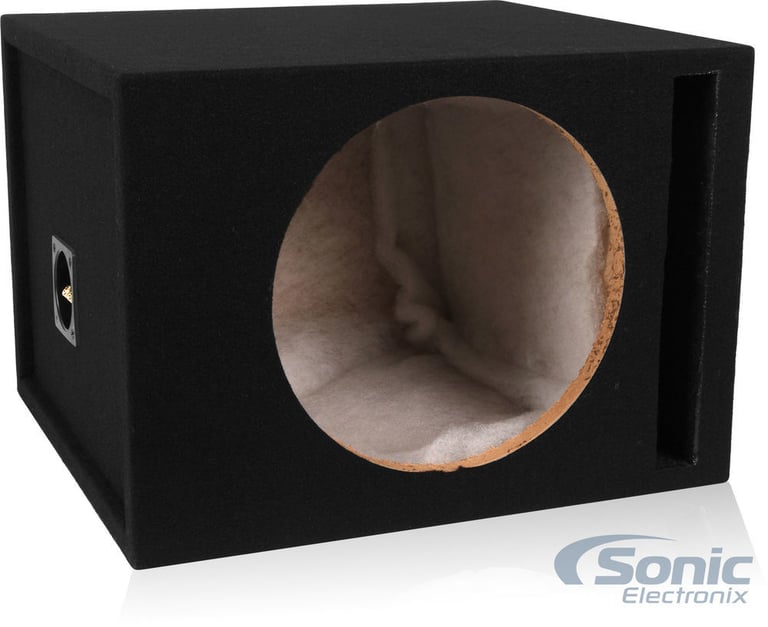

Single 12" Vented MDF Subwoofer Enclosure (Belva 1SV12B)

12-inch Vented Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.8 cu ft airspace 1SV12B)
Quantity: 1

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

Belva Subwoofer Boxes are CARB Phase 2 Compliant

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

Belva MDF 3/4-inch Thickness

Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

Belva MDF 3/4-inch Thickness

  • Single 12" Vented MDF Enclosure
  • Holds one 12" subwoofer
  • 3/4 MDF (Medium Density Fiberboard) Construction
  • Durable black carpeting

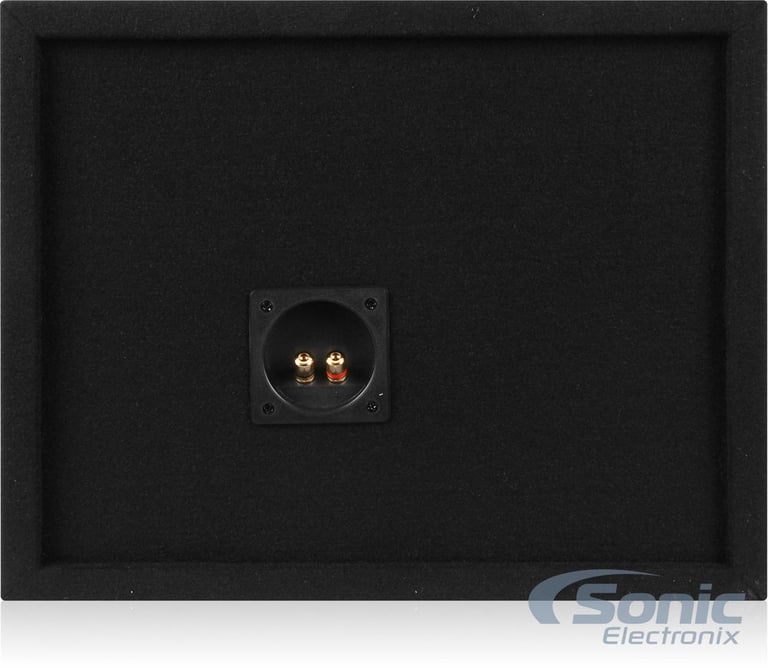

  • Gold Terminals
  • Tuning Frequency: 36Hz
  • Internal Box Volume: 1.8 cubic ft.
  • Dimensions: 13-5/8"H x 17"D x 19-1/4"W
  • 30 Day return policy

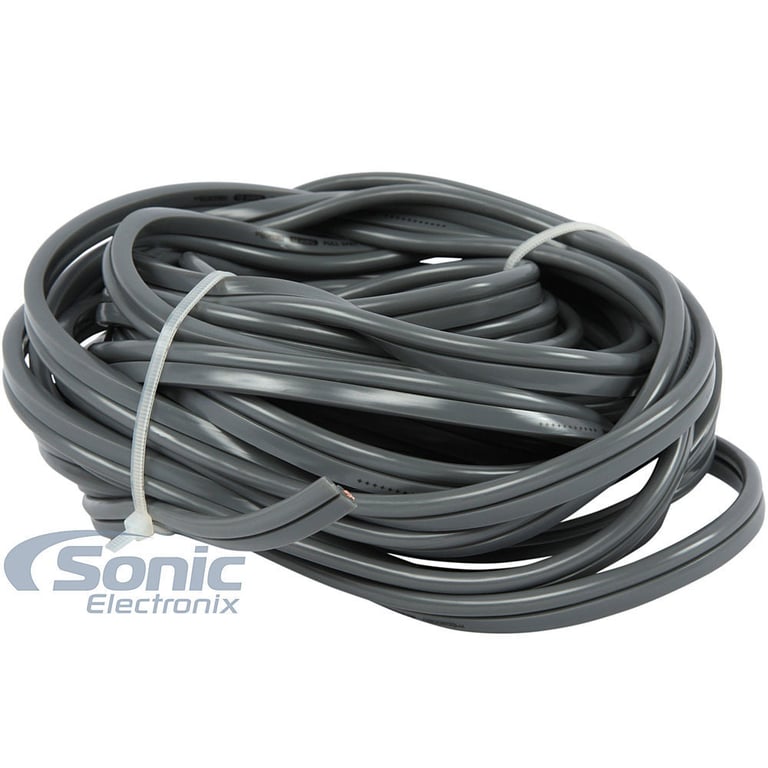

Belva BBSW167

16 Gauge 7 Meter (23 Ft) Speaker Wire (CCA)
Quantity: 1

General Features:

  • 16 Gauge Speaker Wire
  • High strand count for maximum flexibility
  • Ultra-flexible PVC blended jacket for easy installation
  • Packed in resealable bag
  • Length: 7m (23 Ft)
  • Also available in 12 Gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics Brutus BRX12D4 12" 900w Car Subwoofer + Vented Sub Enclosure Box Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics Brutus BRX12D4 12" 900w Car Subwoofer + Vented Sub Enclosure Box Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics Brutus BRX12D4 12" 900w Car Subwoofer + Vented Sub Enclosure Box Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics Brutus BRX12D4 12" 900w Car Subwoofer + Vented Sub Enclosure Box Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12W3v3-4 small

JL Audio 12W3v3-4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.65"
• Sensitivity: 87.15 dB

(65)

$469.99

List price $469.99

Specifications & Details


Subwoofer Specifications
Series
Brutus Series
Subwoofer Size
12"
Peak Power Handling
900 watts
RMS Power Handling
450 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
84 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-9/16"
Cutout Diameter
10-15/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30.91 Hz
Equivalent Compliance (Vas)
45.59 liters
Total Speaker Q Value (Qts)
0.65
Electrical Q Value (Qes)
0.76
Electrical Resistance of Voice Coil (Re)
7.704 ohm
Mechanical Q Value (Qms)
4.4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BRX12D4, 1SV12B, TC4SW1625

Weight:

50.20lbs

Internal SKU:

brx12d4_1sv12b_tc4sw1625

Internal Product ID:

161741
