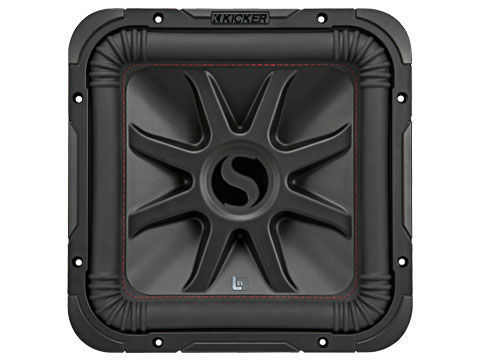

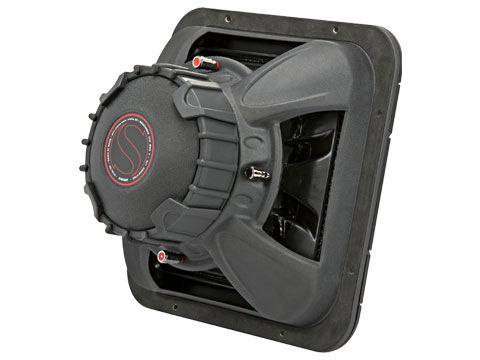

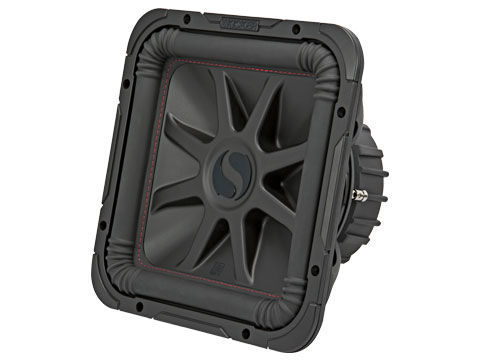

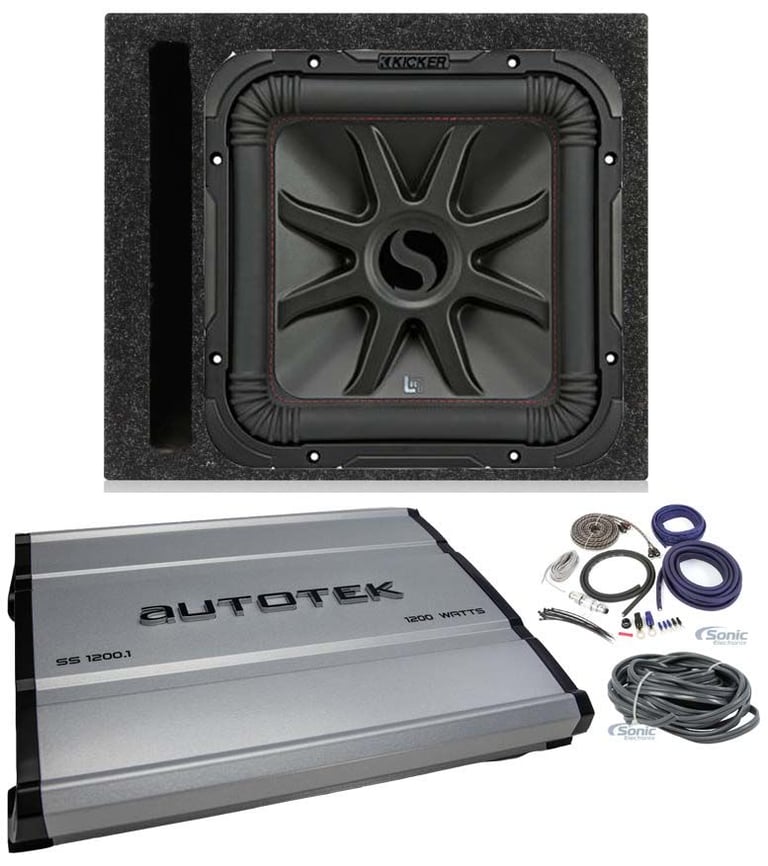

KICKER 45L7R124 12" 1200w L7R Subwoofer Solo-Baric L7R124+Amplifier+Vented Box

Product Details:

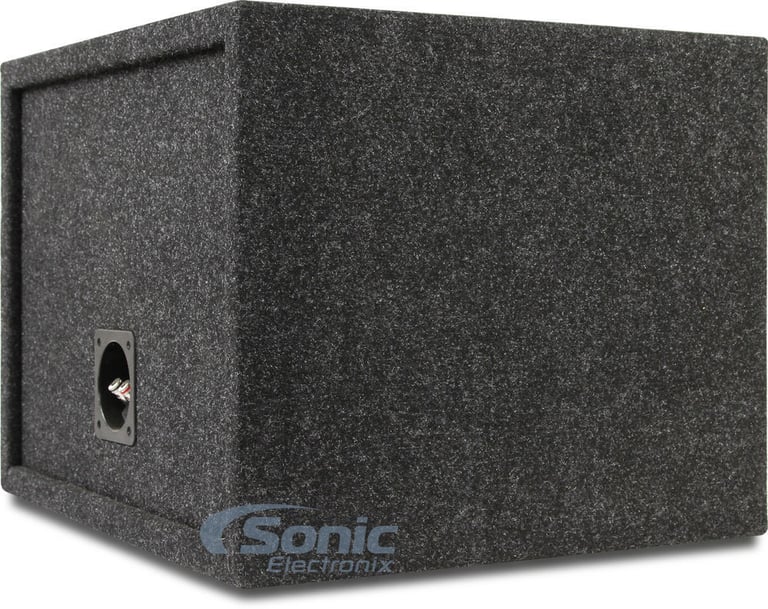

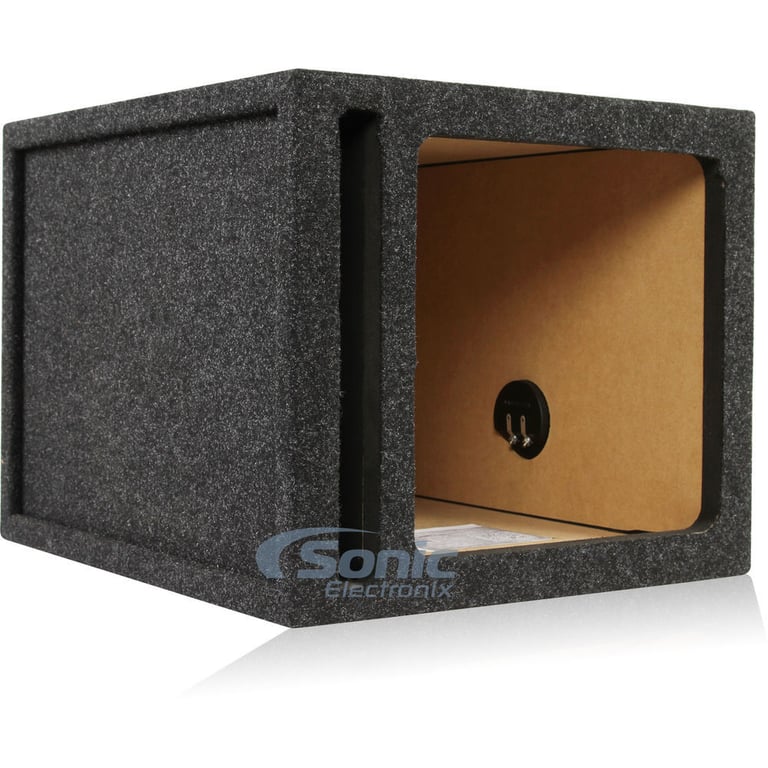

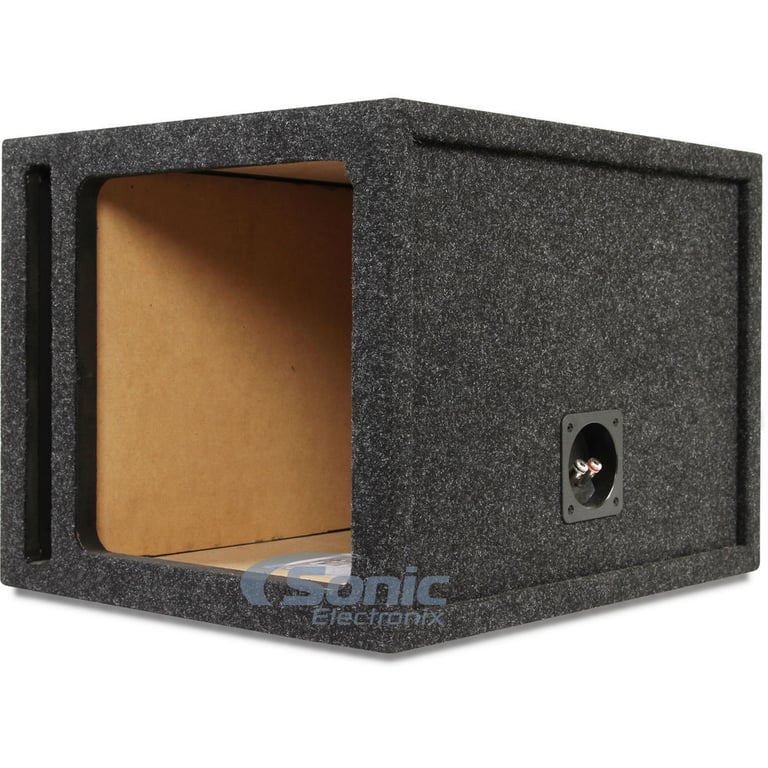

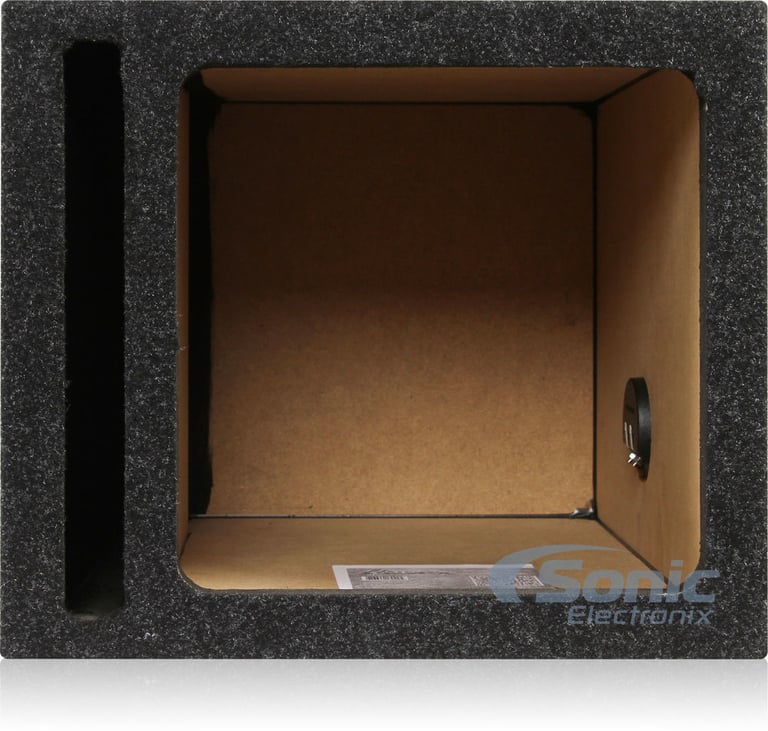

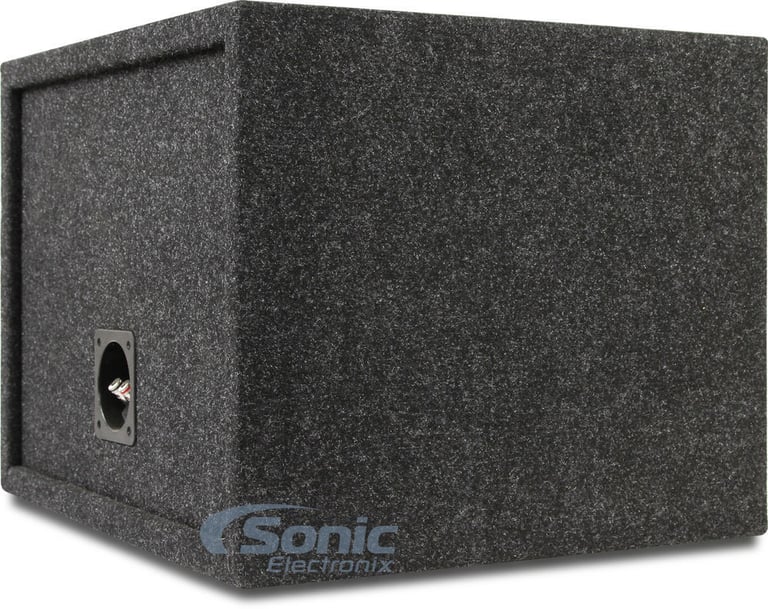

• 12" Single Ported Subwoofer Enclosure
• Fits Kicker L7R and L7S series subwoofers
• L7R: Kicker L7R122 or Kicker L7R124 (sold separately)
• L7S: Kicker L7S122 or Kicker L7S124 (sold separately)
• Durable 3/4" Medium Density Fiberboard (MDF) construction
• Mitered edge construction provides cleaner finish
• Miter joints feature over 41% more surface area
• More surface area translates into a stronger bond
• Dado joints offer an 80% increase in surface area
• Built using trick glue for up to 3600 PSI holding ability
• Glued and braced with fasteners for added strength
• Premium carpeted finish for sleek modern look
• Silver spring-loaded terminal push cups
• Maximum subwoofer mounting depth: 17.55"
• Subwoofer cutout diameter: 11.13"
• Total box volume: 1.85 cubic feet
• Dimensions: 16.25" L x 14" H x 19" W
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Port Specifications:

• Rectangular port
• Number of ports: 1
• Port length: 1.37"
• Estimated port tuned frequency (fb): 34 Hz

Product Details:

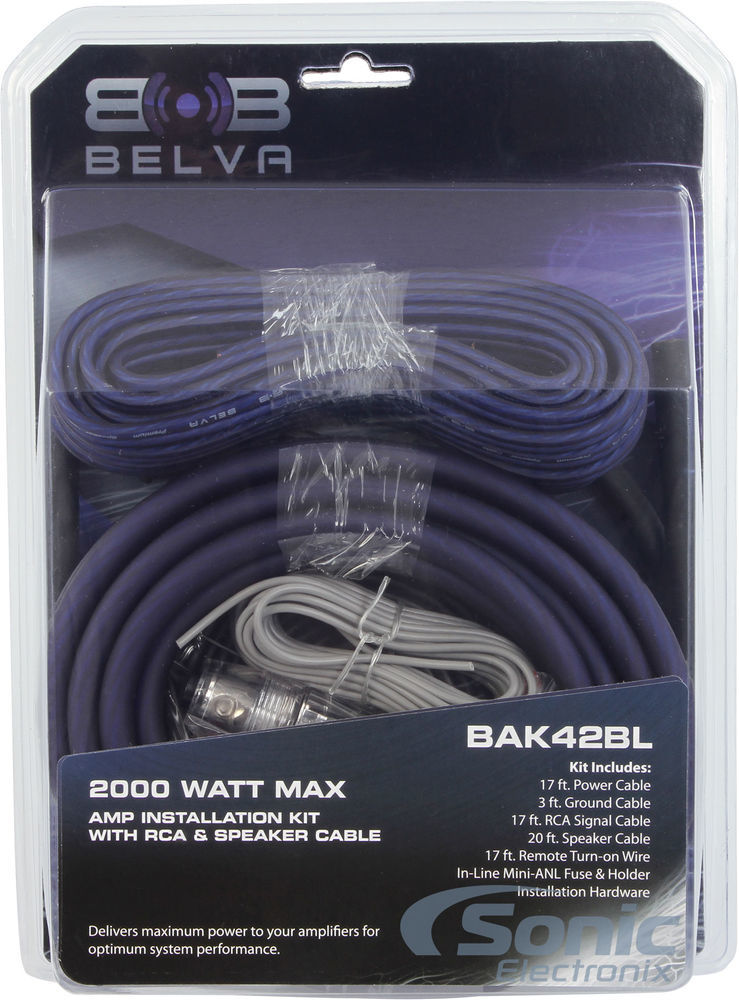

• 4 Gauge 2-Channel Complete Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Made from 100% Copper-Clad Aluminum (CCA)
• Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• RCA Interconnect Cable
• Twisted-pair construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition

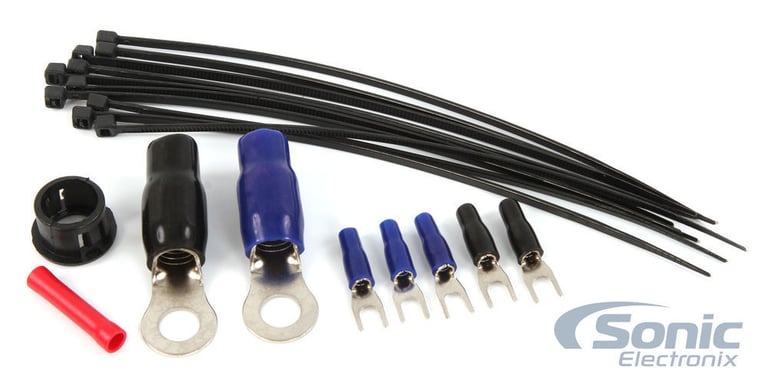

• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

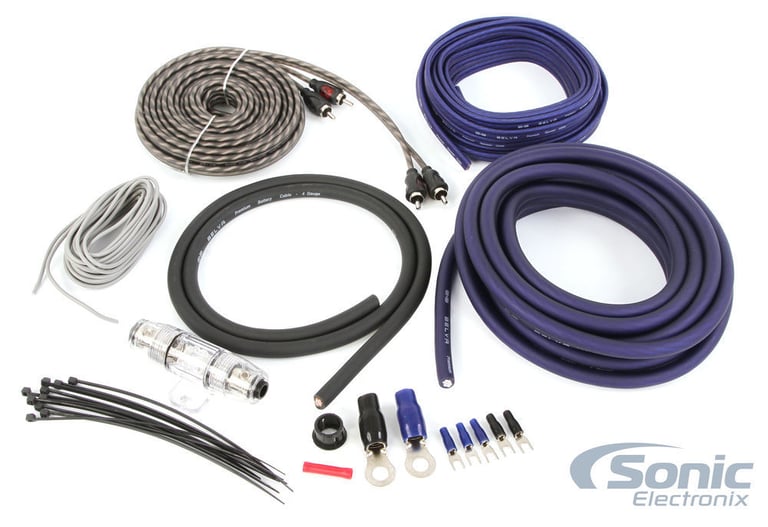

Kit includes:

1. 17 ft. Gray 4 gauge power wire
2. 3 ft. Black 4 gauge ground wire
3. 17 ft. Gray 18 gauge remote lead wire
4. 20 ft. 16 gauge speaker wire
5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Chrome Plated ring terminals
9. Five 16 Gauge Spade terminal
10. One 18 Gauge Red butt connectors
11. Ten 4" Black zip ties

General Features:

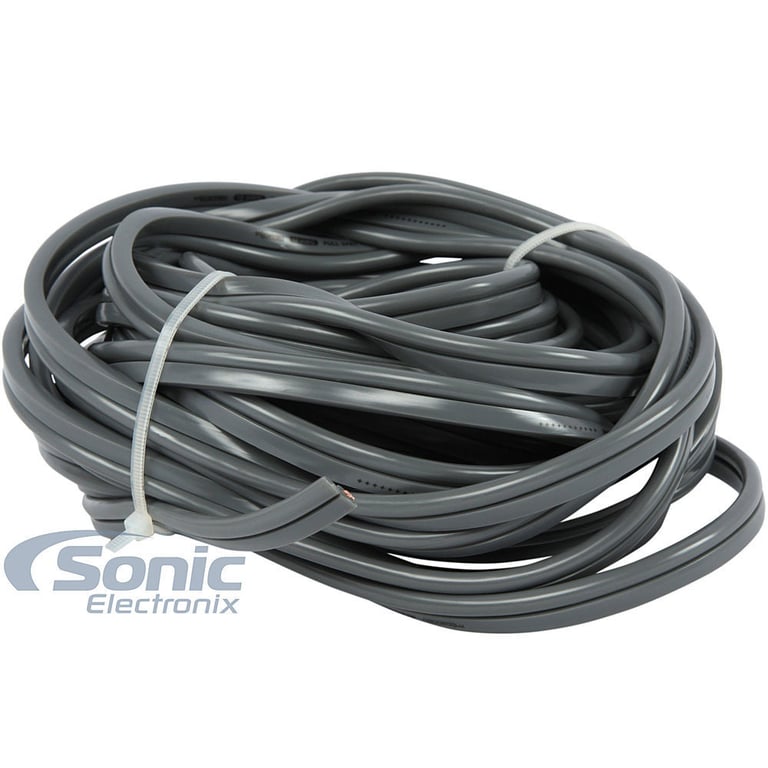

• 16 Gauge Speaker Wire
• High strand count for maximum flexibility
• Ultra-flexible PVC blended jacket for easy installation
• Packed in resealable bag
• Length: 7m (23 Ft)
• Also available in 12 Gauge
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

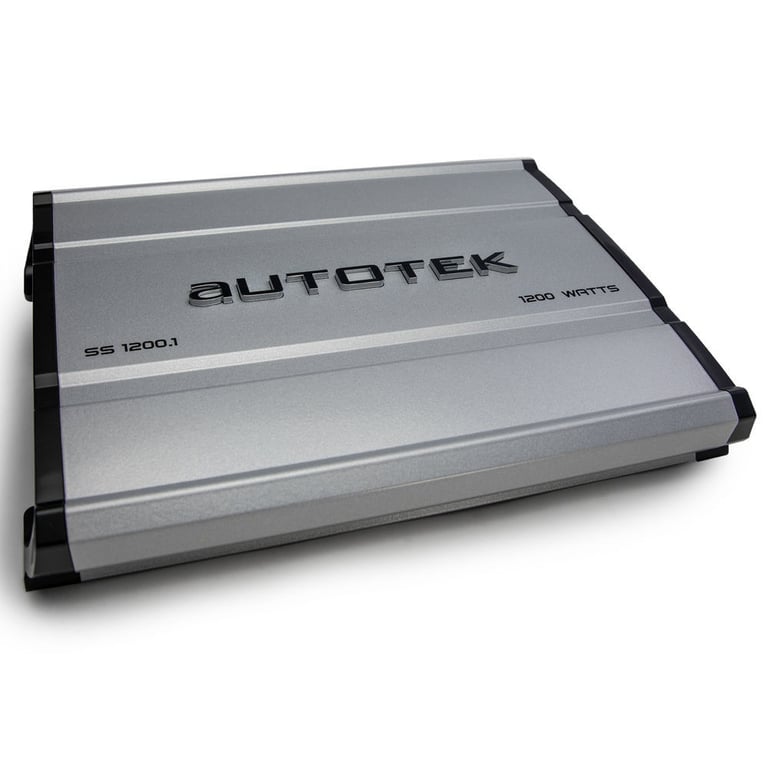

• Autotek Super Sport SS1200.1
• Class A/B 2-Ohm Stable Monoblock Amplifier
• Power Ratings:
• 4 ohm: 600 watts x 1 chan.
• 2 ohm: 1,200 watts x 1 chan.
• 1 ohm: ------------N/A------------
• Total power output: 1200 watts
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation
• Speaker-level (high-level) inputs
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Frequency Response: 20 - 250 Hz
• Signal to Noise Ration: >98 dB
• Variable low-pass filter: 40 - 300 Hz, 12 dB/octave
• Subsonic filter: 10 - 40 Hz , 12 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• Fuse Rating: 25A x 2
• 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 9.75"W x 10.25"L x 2"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Check out the SS1200.1 product manual
