Sony XAV-AX100 Carplay / Android Auto+300W Max 6.5" 3-Way Coaxial Speakers

Sony XAV-AX100 Carplay / Android Auto+300W Max 6.5" 3-Way Coaxial Speakers

Sony
Shop all Sony
highlight-star-icon

• 55W x 4 Chan. MAX • 17W x 4 Chan. RMS
• 3 Sets of 2V Preamp Outputs
• 10-band graphic equalizer
• MEGA BASS
• Built-in Bluetooth technology for hands-free talking and audio streaming

Learn more about the xavax100_ch6530

We apologize

This item has been discontinued

Description


Sony brand icon

Authorized dealer


Sony XAV-AX100:
Smarter Features, Smarter Driving

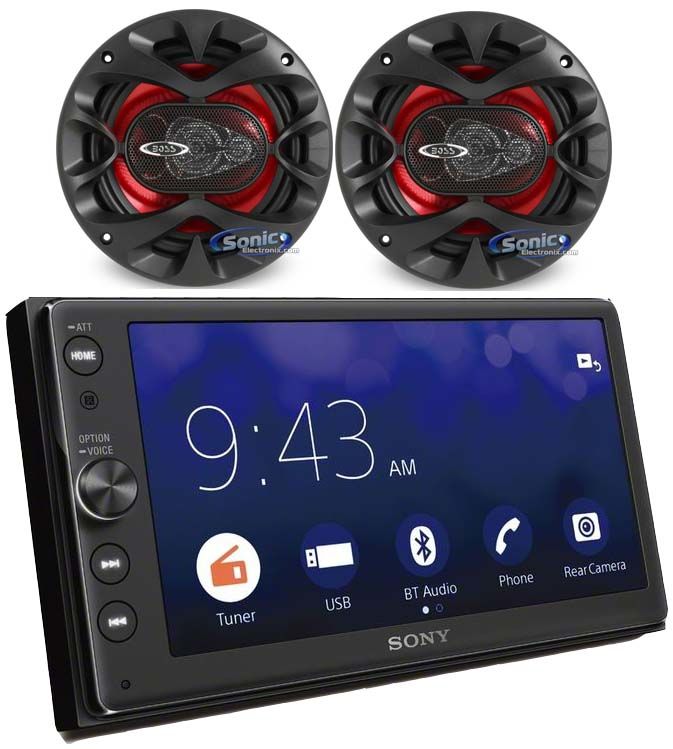

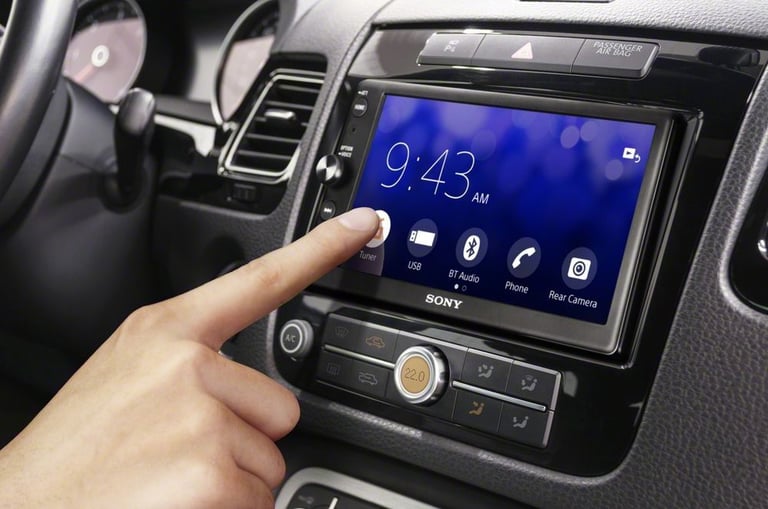

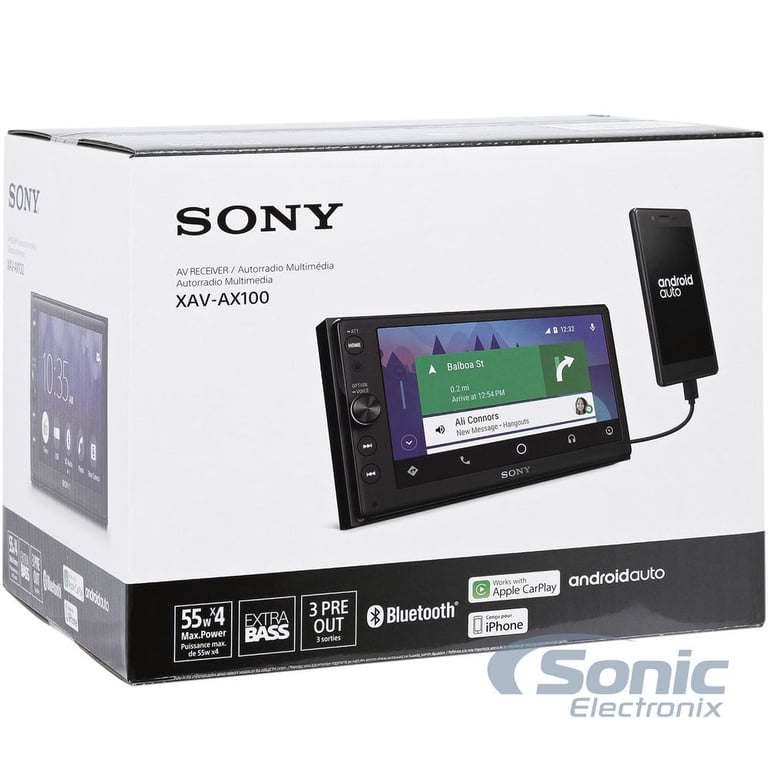

Sony XAV-AX100 Carplay / Android Auto

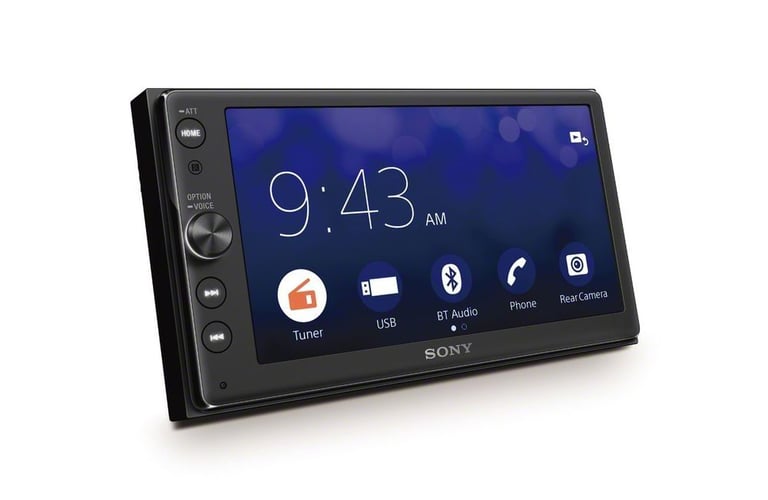

6.4" TouchScreen Media receiver with BLUETOOTH® Carplay/Android Auto and Dynamic Stage Organizer (DSO) technology
Quantity: 1

General Features:

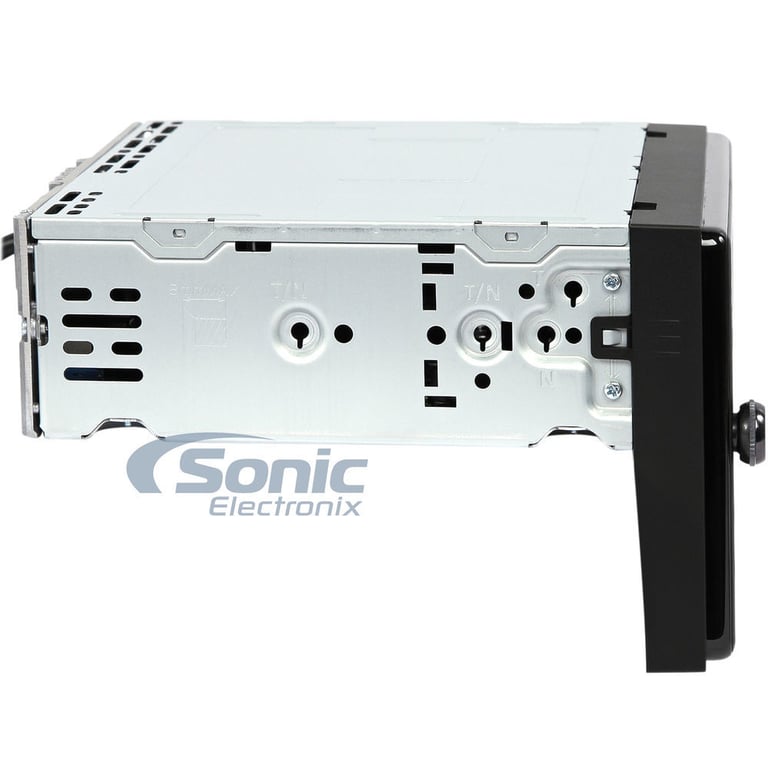

  • Sony XAV-AX100 Mechless In-Dash Digital Media Receiver
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 55 watts x 4 channels
    • RMS: 17 watts x 4 channels
  • 6.4-inch TFT Active Matrix touchscreen display (800 × 480 resolution) with optimal visibility - better night visibility and less sun glare vs. competing models
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • AM/FM RDS tuner with 18FM/12AM presets

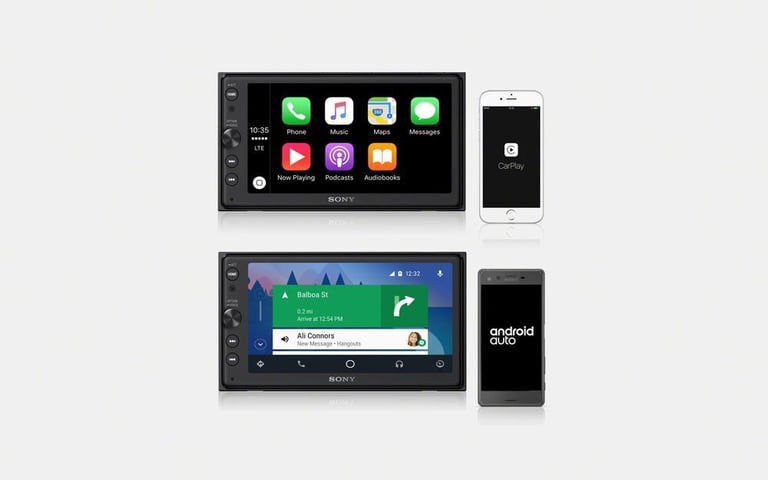

  • Apple Carplay built-in
  • Android Auto built-in
  • Dimensions (W X H X D): 7.01 x 3.94 x 6.36 in
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • MP3/WMA/FLAC Playback via USB
  • Compatible with Apple iPhone 6/6+ and iOS 8 software
  • 10-band graphic equalizer
  • MEGA BASS
  • Rear USB Input

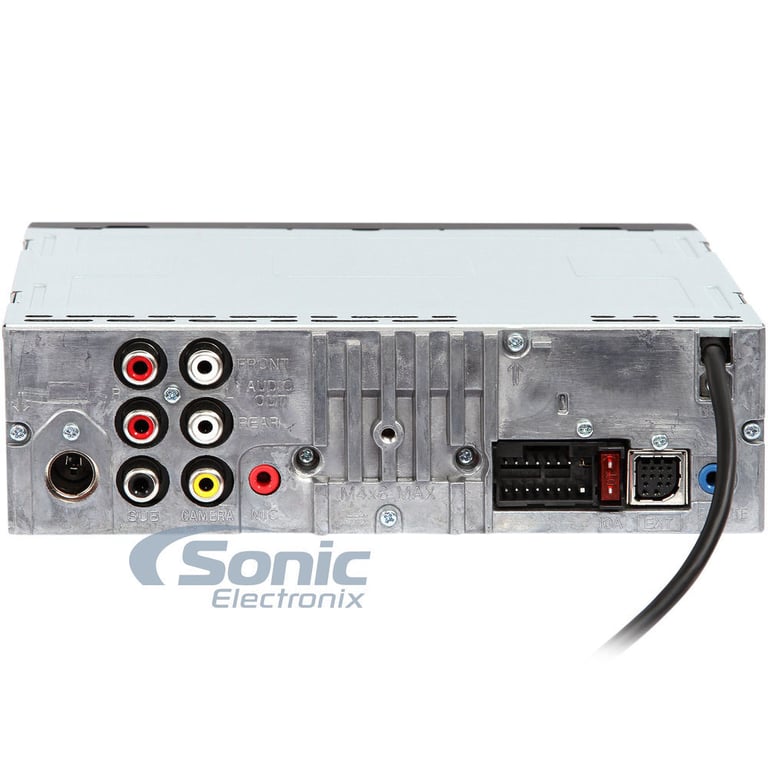

  • 3 Sets of 2V preamp outputs (front, rear and subwoofer)
  • Dynamic Stage Organizer (DSO) re-calibrates speaker frequency output, improving sound

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • 6 speed dial memory banksRecent call lists up to 20 numbers
  • Phonebook acesss via PBAP
  • Alphabetical phonebook sorting feature
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • Works with most Bluetooth enabled cell phones
  • Includes a (external wired microphone for clear, convenient, distortion-free talking
  • Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:

  • Tom Tom Navigation Add-On with Sony XA-NV400
  • Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input

What's in the Box?

  1. Sony XAV-AX100 Receiver

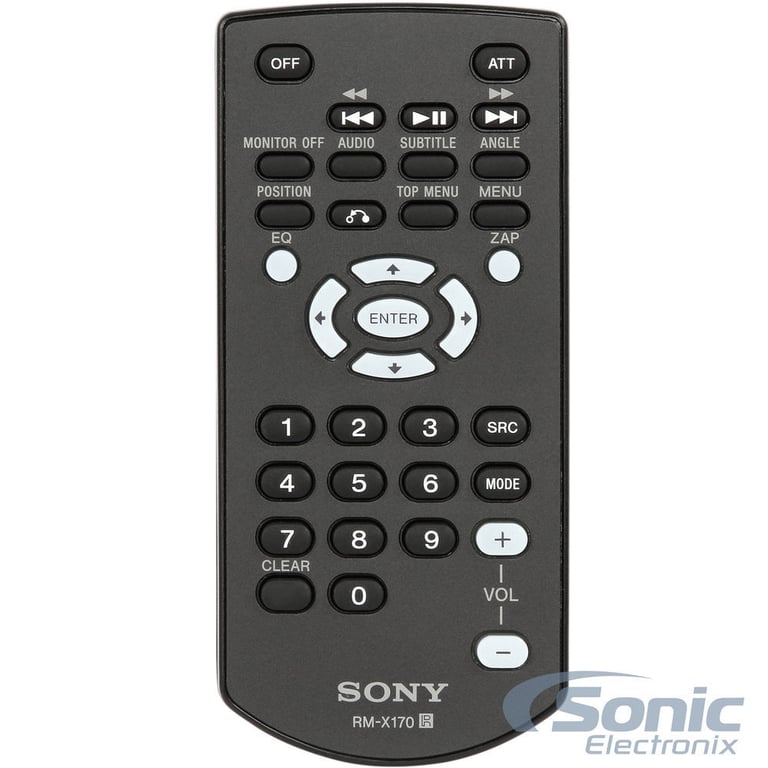

  2. Wireless Remote

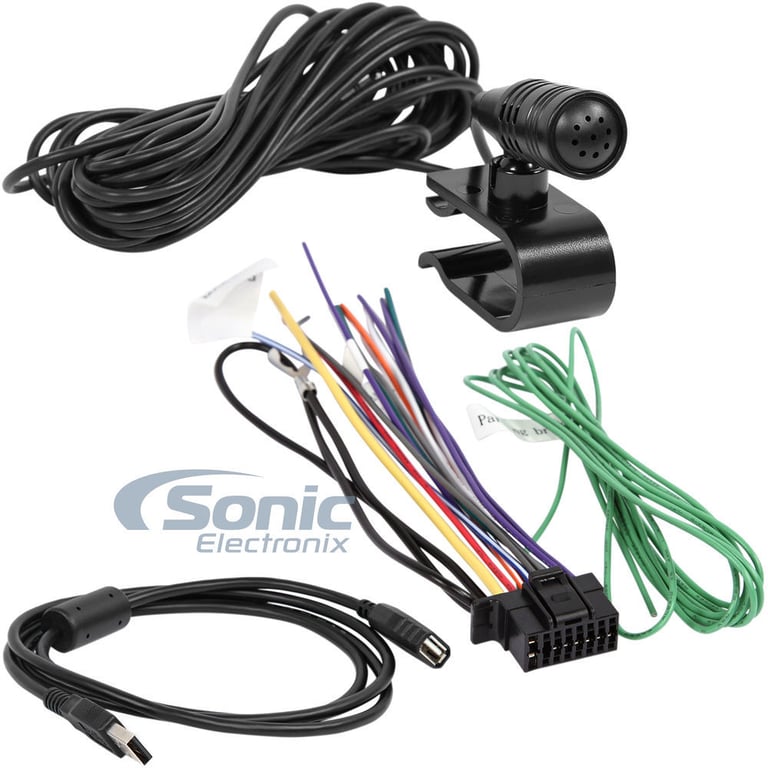

  3. External Microphone
  4. Wiring Harness
  5. USB Extension Cable
  6. User Guide
PDF icon Check out the Sony XAV-AX100 User Manual

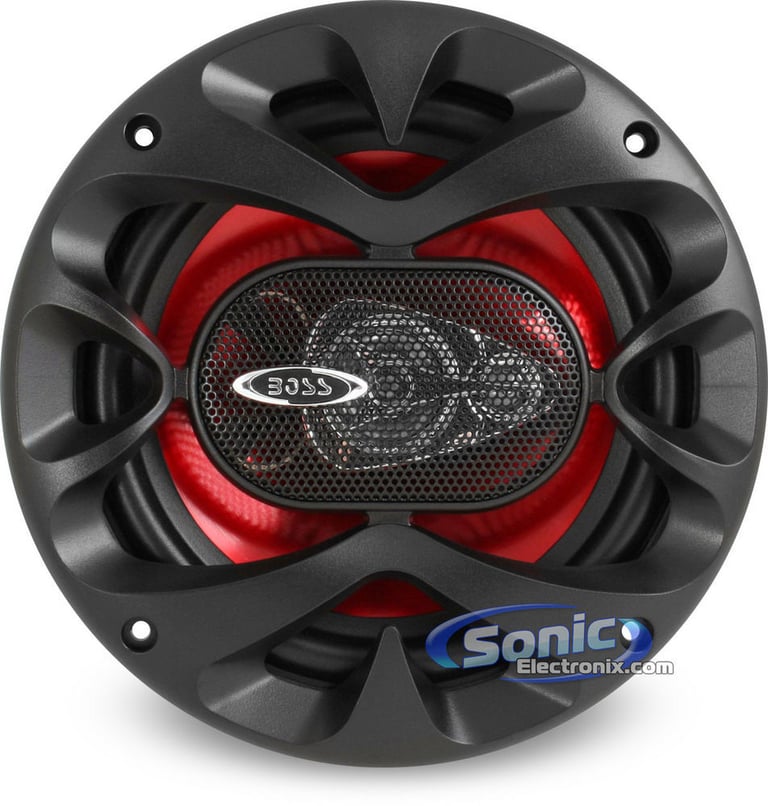

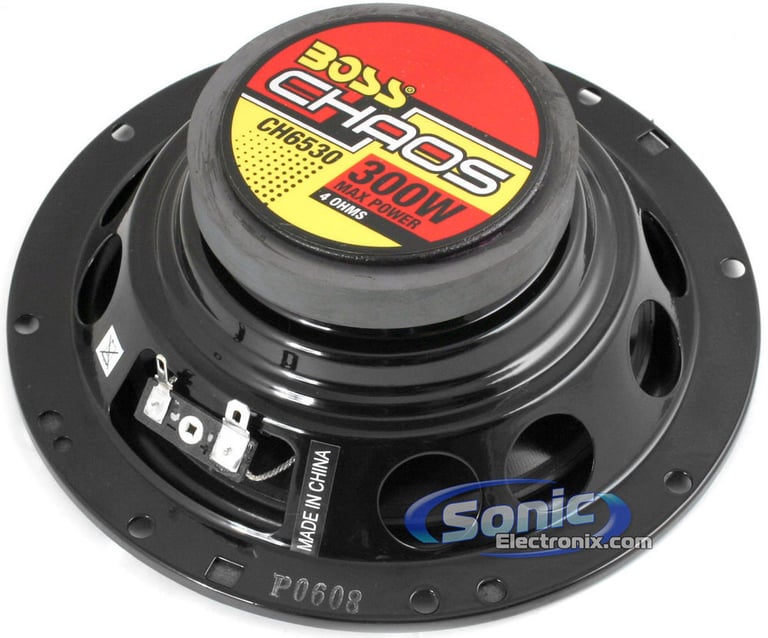

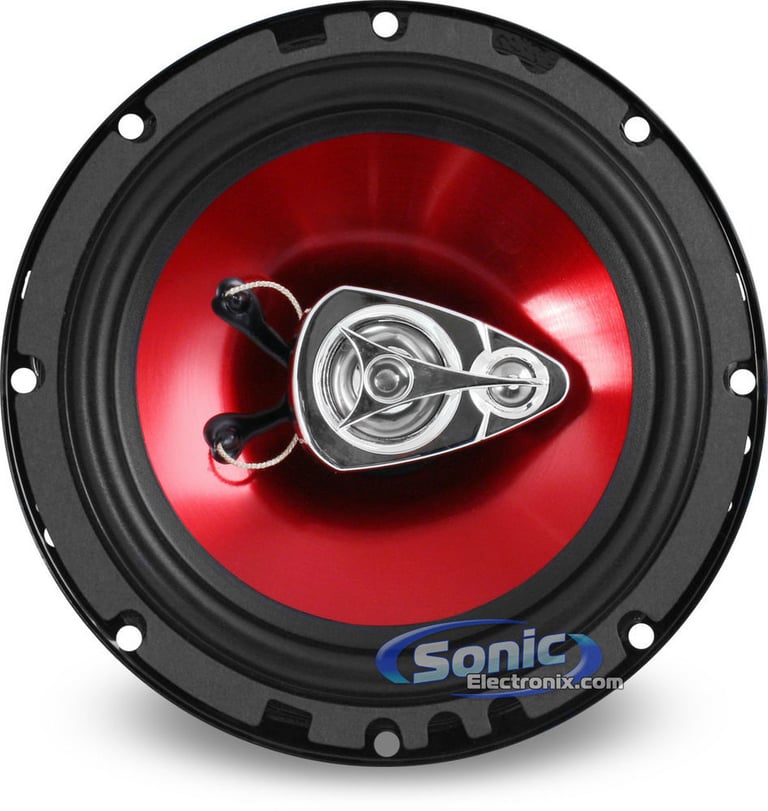

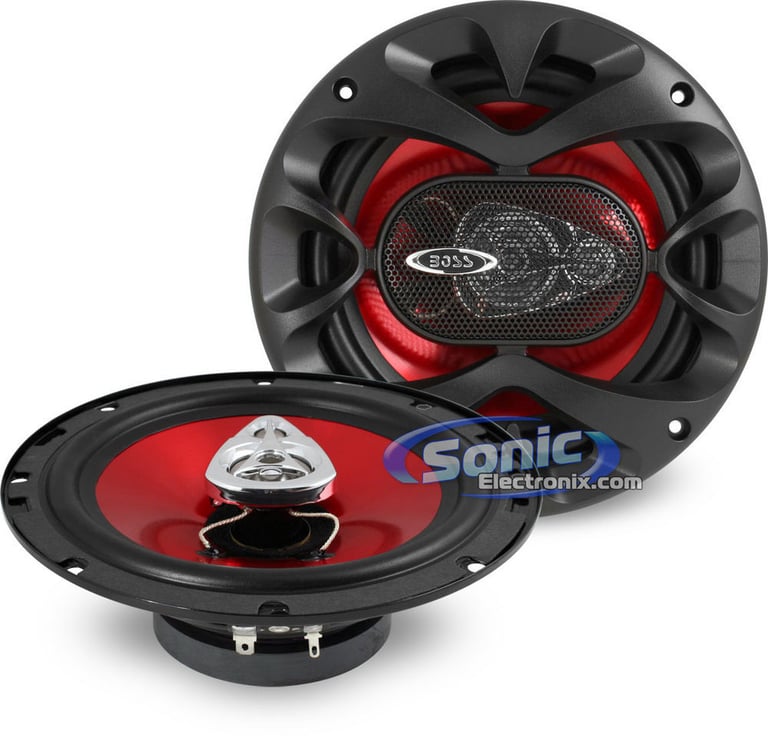

Boss CH6530

600W Peak (300W RMS) 6.5" Chaos Exxtreme Series 3-Way Coaxial Car Speakers
Quantity: 1

Product Details:

  • 6-1/2" Chaos EXXtreme Series 3-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 600 watts per pair / 300 watts each
    • RMS: 300 watts per pair / 150 watts each
  • Polyurethane cone material
  • Rubber speaker surround
  • 1/2" Piezoelectric Dome Tweeters
  • Stamped basket structure
  • High temperature voice coil
  • 1" Voice coil
  • Top-mount Depth: 2.13"
  • Cutout Dimensions: 5.5"
  • Impedance: 4 ohm
  • Frequency Response: 100 - 18000 Hz
  • Sensitivity: 90 dB
  • Grilles included
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty

  • Priced Per Pair


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

KWZ1000AW_MRR2_FLFO1 small

JVC KW-Z1000AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(7)

$1601.82

List price $2348.97

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.97

List price $2479.97

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1605.96

List price $2254.96

DAX8000S_MRR_S8FO2_S small

Kenwood DAX8000S Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• 4 Camera Inputs Function

(37)

$1348.96

List price $1923.96

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1456.96

List price $2074.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1348.96

List price $1973.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(38)

$1383.97

List price $1778.97

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Controls
Motorized Faceplate
No
Wireless Remote
Yes
Peak Power Output
55 watts x 4 channel
RMS Power Output
20 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2 volts
Built-In Equalizer
10-Band Graphic
Display Type
TFT Active Matrix Display
Display Color
Full Color
CD Signal-to-Noise
80 dB
CEA-2031 Compliant
Yes
Playback Features
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
CD-R/RW Playback
No
MP3 Playback
Yes
WMA Playback
Yes
Monitor Screen Features
Touchscreen
Yes
Monitor Angle Adjustment
None
Navigation Features
Map Database
Determined By Phone Connected
Maps
Complete 50 USA
Navigation During Audio Playback
Yes
Navigation During Video Playback
Yes
Map Dimensional Display
3D
Speed Display
Yes
Search Options
Address
City
Coordinates
Favorites
Home
Intersection
Map Browsing
Phone Number
Point-of-Interest (POI) Name
Point-of-Interest (POI) Vicinity
Points-of-Interest (POI) Type
Quick Search
Recent (Previous) Searches
Route
Map Source
Carplay or Android Auto Compatible Phone
Text-to-Speech
Yes
Traffic Tuner
Yes
Customizable POI
Yes
Expandability Features
Navigation
Yes (Carplay or Android Auto Compatible Phone Required)
Inputs
Backup Camera
USB Input
Yes
iPod Audio Integration
No
iPod Video Connection
No
Satellite Radio
No
HD Radio
No
Bluetooth Connectivity
Yes (Built-in/Included [Bluetooth Controls, Adapter and/or Microphone Included])
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
CD Changer Controls
No
Rear View Camera Input
Yes (Universal)
iPod Information
Compatible Apple Devices
iPhone 7 Plus
iPhone 7
iPhone 6S Plus
iPhone 6S
iPhone 6 Plus
iPhone 6
iPhone 5S
iPhone 5C
iPhone 5
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XAV-AX100 CH6530

Weight:

8.50lbs

Internal SKU:

xavax100_ch6530

Internal Product ID:

164069

Customer Ratings & Reviews


Sony XAV-AX100 Carplay / Android Auto+300W Max 6.5

5 star
64%
4 star
21%
3 star
8%
2 star
3%
1 star
5%



Durability
4.5
Value
4.6
Features
4.4
Design
4.8
Usability
4.7

Customer Reviews

Sort by:

Loading...

good item

The following review is for CH6530-2, which is a part of the bundle you are viewing.

even though the price of the item is not as much as the well known products, this set of speakers put out really good sound. i would recommend them to anyone that wants good sound, with a great price

By marvin cease on September 8, 2009

77 found this helpful


BOSS

The following review is for CH6530-2, which is a part of the bundle you are viewing.

The speakers are just what I was looking for. They are a slight upgrade from the factory speakers I had in my truck. I would recommend this speaker to a friend as its outputs satisfactory performance at an affordable price. Thanks BOSS!

By cap on January 30, 2015

64 found this helpful


Excellent Choice

The following review is for CH6530-2, which is a part of the bundle you are viewing.

A friend suggested these speakers from Sonic were the best you can get for the money. After using them for six months, I totally agree.

By Dale on July 12, 2011

63 found this helpful


boss speakers

The following review is for CH6530-2, which is a part of the bundle you are viewing.

yo i been had these speakers for the past wa 7 months prob and so far they good i havnt had any problems with them my car sounds very nice just need to change the rears but these speakers i would say are good to buy if u need something cheap but aight for say a civic then yea go for it

By Kevin on September 27, 2009

66 found this helpful


Their ok

The following review is for CH6530-2, which is a part of the bundle you are viewing.

Not the best but worth the coin. I'd buy em again if I had to.

By Trevor on January 22, 2013

59 found this helpful


not quite sure..

The following review is for CH6530-2, which is a part of the bundle you are viewing.

I got these speakers and I hear a rattle in one already. Not sure if it's the speaker or what. Also, the sound isn't any better than a 2 way speaker.

By Marvin on April 19, 2012

58 found this helpful


Looks Great Good Highs And Good Mids

The following review is for CH6530-2, which is a part of the bundle you are viewing.

Love the grille on these speakers and And The red color definately pops and grabs your attention. Has Crisp Highs and Mids but kinda gets over powered in the Lows during high volume. Definitely need a good box to hear a thump from these. Personally 6x9s with a large magnet what id go for to push more air

By Jos on June 12, 2014

58 found this helpful


Boss CH6530

The following review is for CH6530-2, which is a part of the bundle you are viewing.

Does everything its rated to do and a little more according to a few tests. Still works after 6 months like its brand new. Drove from Dallas to Chicago and back and never had a problem the whole way! Found the same one in a store locally and they wanted to charge me more than double more the exact same item. Great Value!

By Rich on August 25, 2009

57 found this helpful


Complete garbage. Stay away.

The following review is for CH6530-2, which is a part of the bundle you are viewing.

Flimsy construction. Horrible sound. Tiny magnets with plastic covers to make them appear bigger. Rated for 350W, but my 65W amp blew one in ONE DAY!

By Thomas on July 22, 2008

59 found this helpful


great value

The following review is for CH6530-2, which is a part of the bundle you are viewing.

Clear sound and very satisfiying tones.

By Noel on August 18, 2011

57 found this helpful



Related Searches


Save up to 10 different vehicles in your garage

Add vehicle
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
