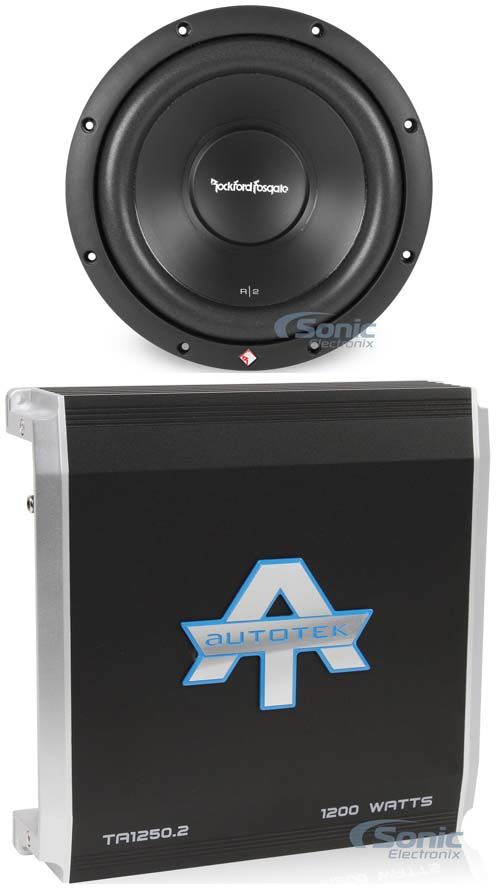

Rockford Fosgate Prime R2D2-10 + 2-Ohm Stable 2-Channel Amplifier

Rockford Fosgate Prime R2D2-10 + 2-Ohm Stable 2-Channel Amplifier-thumbnail

Product highlights

• Peak Power: 500W
• RMS Power: 250W
• 10" Dual 2 ohm Prime Series Stage 2 Subwoofer
• Mica-Injected Polypropylene Cone
• StampCast Basket
• Anodized Aluminum Voice Coil Former
• Frequency Response: 45-250 Hz

Learn more about the r2d210_ta12502

Description

Authorized dealer

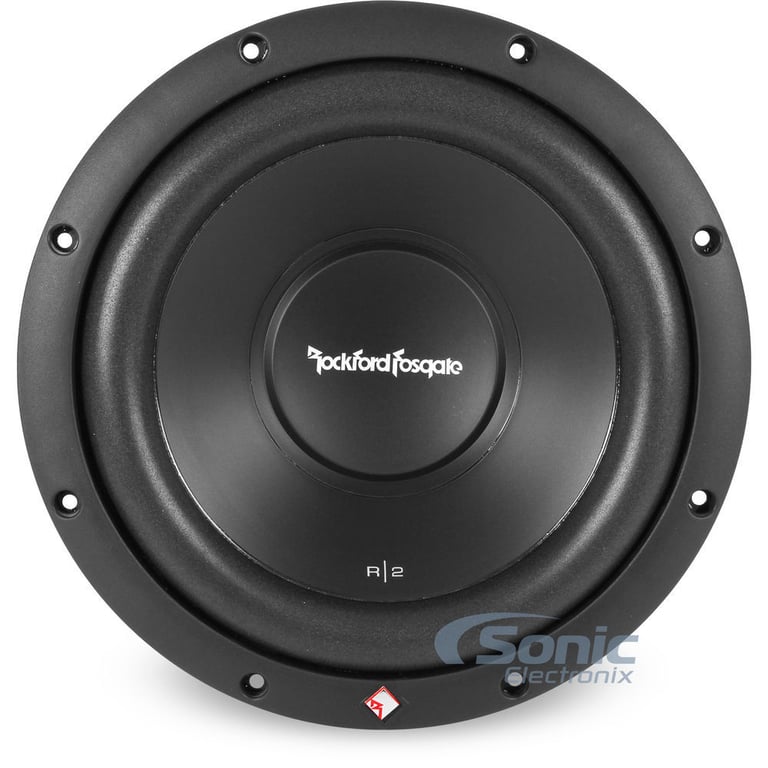

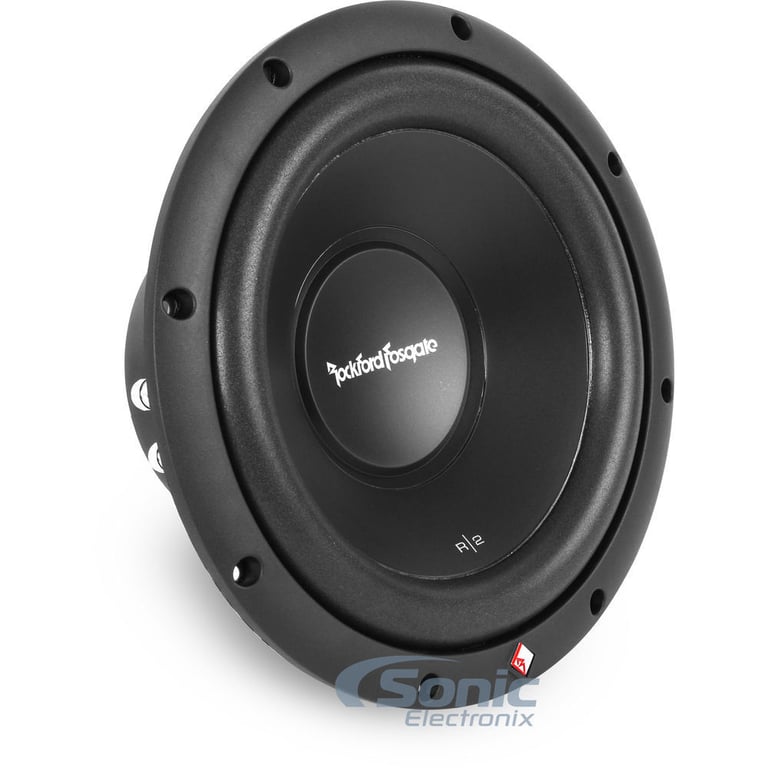

R2D2-10 10" Prime Series Subwoofer

Eliminate Entry Level and Go Straight to Prime

Sonic Electronix is now carrying the brand new line of Rockford Fosgate Prime Series Car Audio Subwoofers. The R2D2-10 10" subwoofer has a peak power rating of 500 watts and a continuous RMS power rating of 250 watts. This makes this an ideal subwoofer for anyone looking to add some bass to their car audio system. Equipped with anodized aluminum voice coil formers for extreme heat dissipation, will allow this sub to perform at optimum level during long hard hitting sessions. Perfect for sealed or ported enclosures the R2D2-10 is the way to go when looking for Prime performance with an affordable price tag.

Anodized Aluminum Voice Coil Former

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.

Conforms to CEA-2031

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.

Stitched Tinsel Leads

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.

General Features

10" Dual 2 ohm Prime Series Stage 2 Subwoofer
Power Handling:

Peak: 500 watts
RMS: 250 watts

Recommended power range: 175 - 300 watts RMS
CEA-2031 Compliant
Klippel Verified

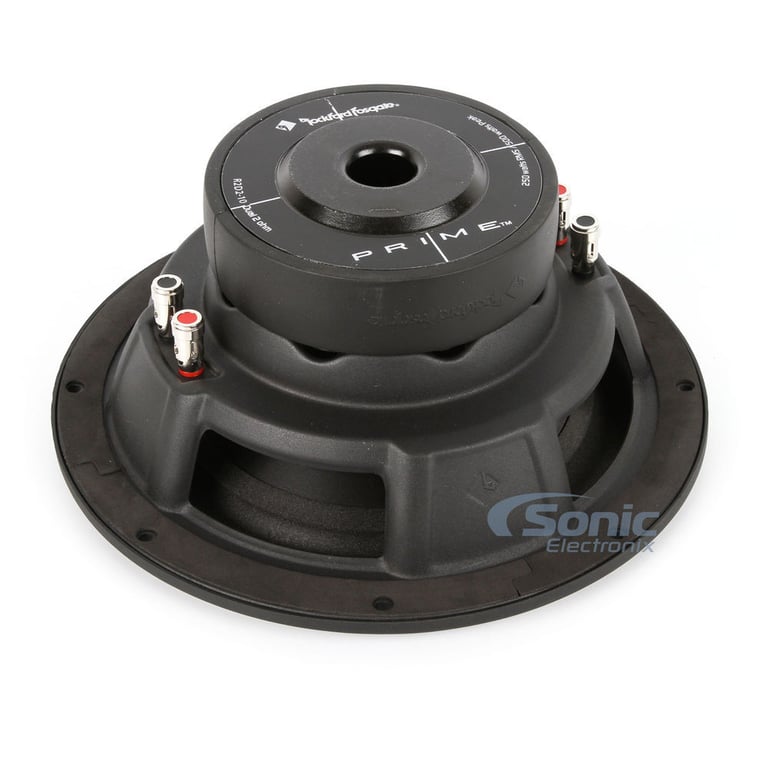

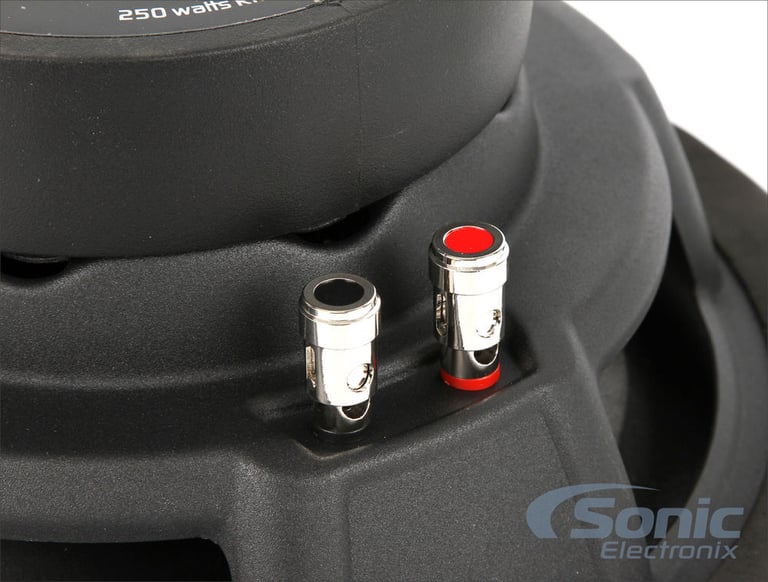

12 AWG compression terminals
Mica-injected polypropylene cone

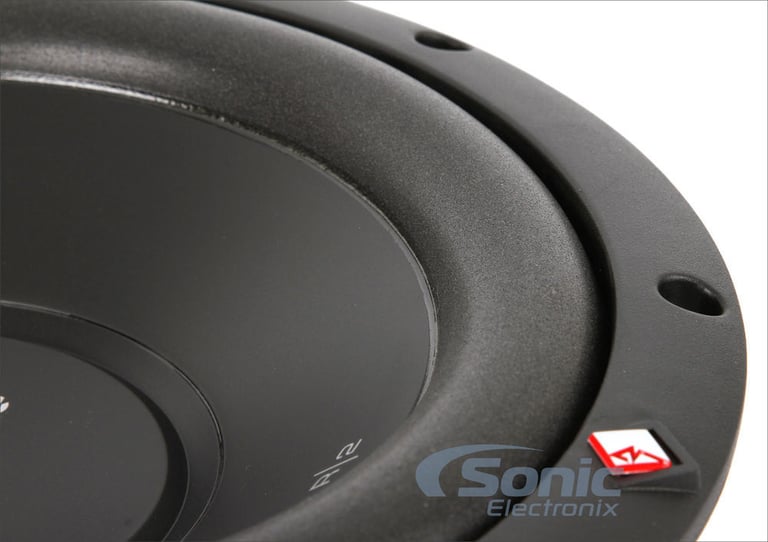

Black raised surround
Linear spider with 16 AWG woven tinsel leads
StampCast basket with integrated spider venting
CEA-2031 Compliant accurate power handling rating
Designed for use with sealed and vented enclosures
High temperature 2" voice coil
Integrated PVC trim ring
Anodized aluminum voice coil former
Mounting Depth: 7.58"
Cutout Diameter: 13.94"
Magnet Weight: 43oz
Frequency Response: 45 - 250 Hz
Xmax: 6.5mm
Sensitivity: 87 dB @ 1 watt / 1 meter
Recommended Ported Enclosure: 1.40ft³
Recommended Sealed Enclosure: 0.59ft³
Matching Amplifiers: (one subwoofer)

Rockford Fosgate Punch P400X1, Series @4ohms
✔ Preferred Match
Rockford Fosgate R750-1D, Series @4ohms
Rockford Fosgate R500X1D, Series @4ohms
Rockford Fosgate P300X1, Series @4ohms

Matching Amplifier: (two subwoofers)

Rockford Fosgate Punch P400X1, Series/Parallel @2ohms
Rockford Fosgate R750-1D, Series/Parallel @2ohms
Rockford Fosgate R500X1D, Series/Parallel @2ohms
✔ Preferred Match
Rockford Fosgate P300X1, Series/Parallel @2ohms

Authorized Internet Dealer
1-year Manufacturer's Warranty

Priced Individually

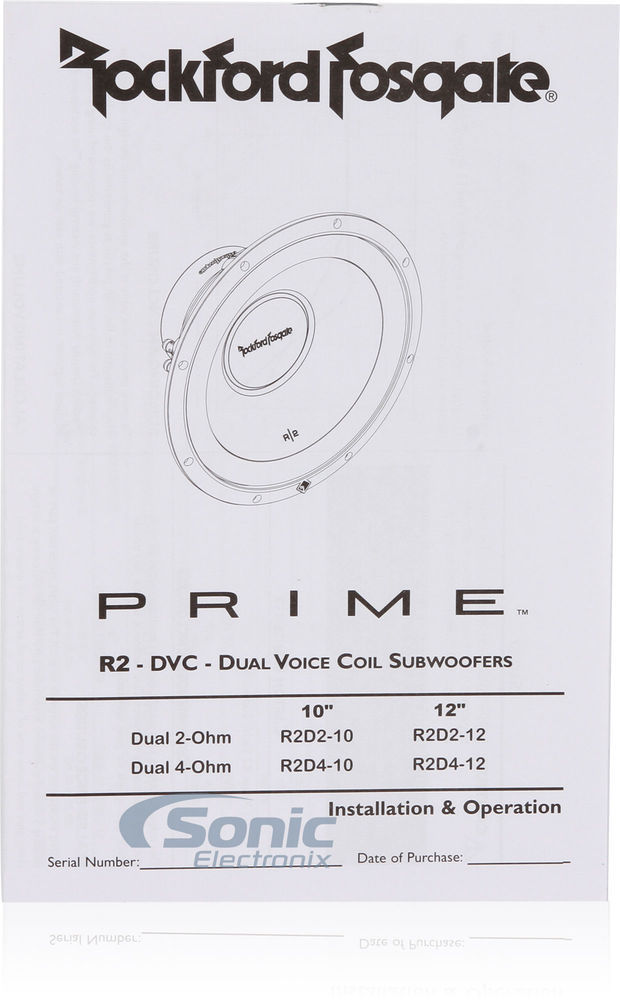

Check out the Rockford Fosgate R2 Series Owner's Manual

Tips for Installing the R2D2-10 Subwoofer

Specifications & Details

Subwoofer Specifications

Series

Prime R2 Series

Subwoofer Size

10"

Voice Coil(s)

Dual

Impedance (Per Voice Coil)

2 ohms

RMS Power Handling

250 watts

Peak Power Handling

500 watts

Woofer Composition

Mica Injected Polypropylene - MIPP

Minimum Sealed Box Volume

0.50 cubic feet

Maximum Sealed Box Volume

0.75 cubic feet

Maximum Ported Box Volume

1.40 cubic feet

Sensitivity

87 dB

Frequency Response

45 - 250 Hz

Xmax (millimeters)

6.5 mm

Top-Mount Depth (Mounting Depth)

4.319"

Cutout Diameter

13.94"

Recommended Enclosure Type

Ported / Vented
Sealed

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
